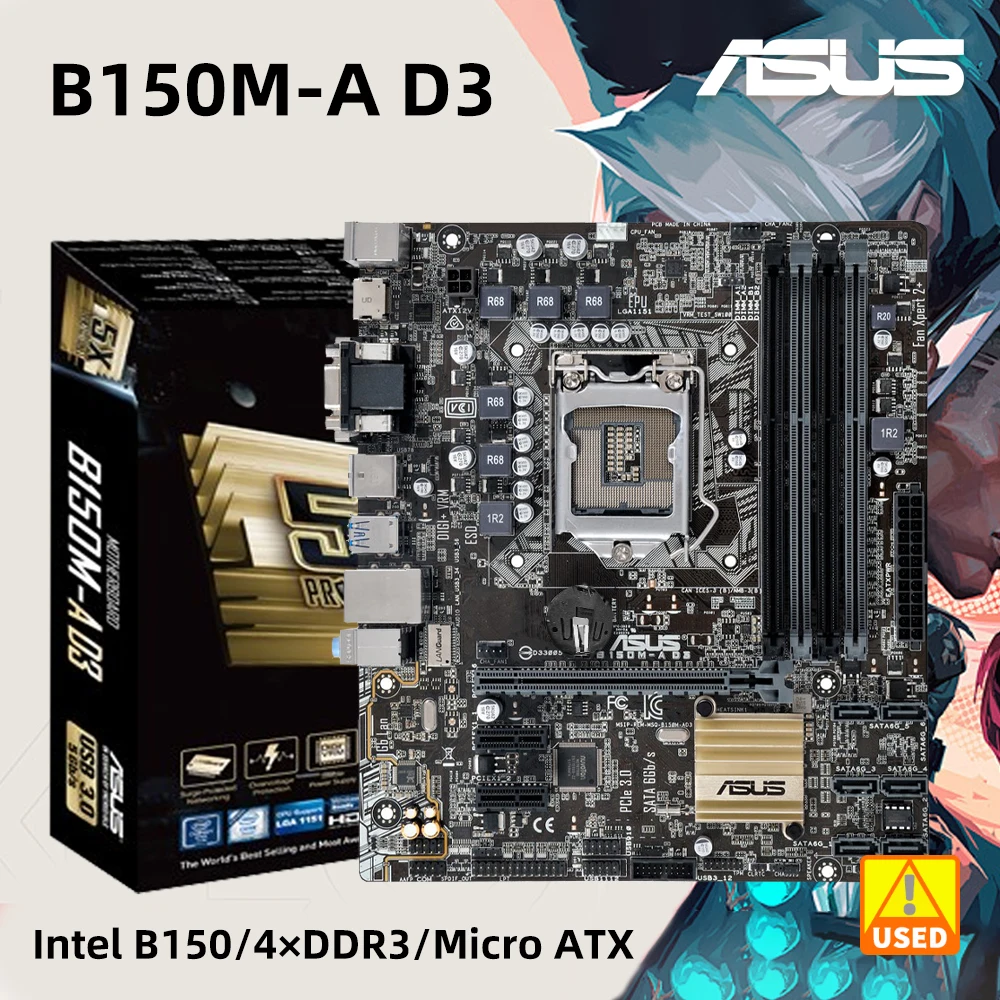

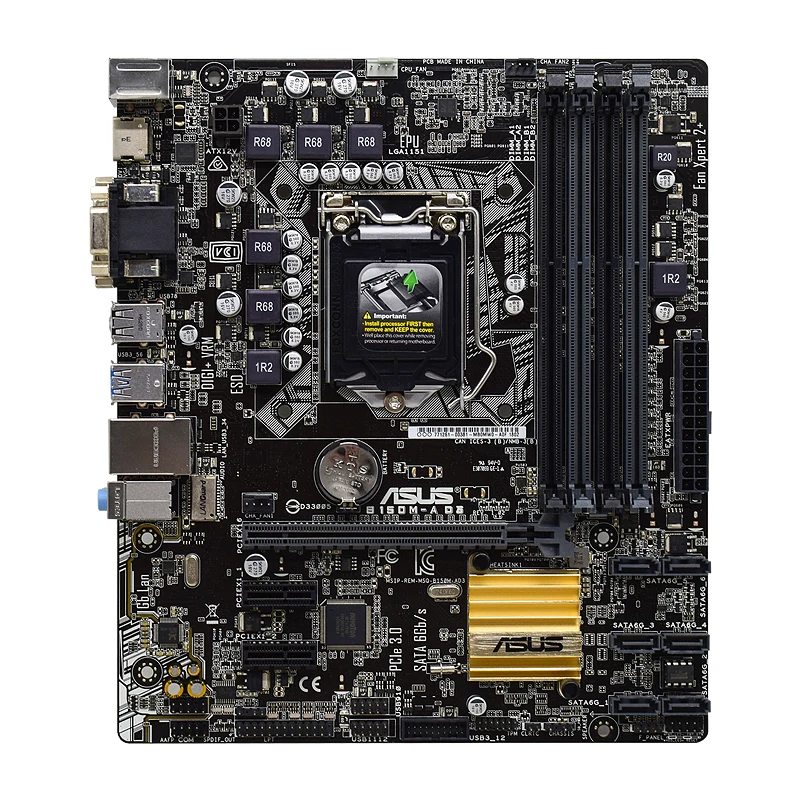

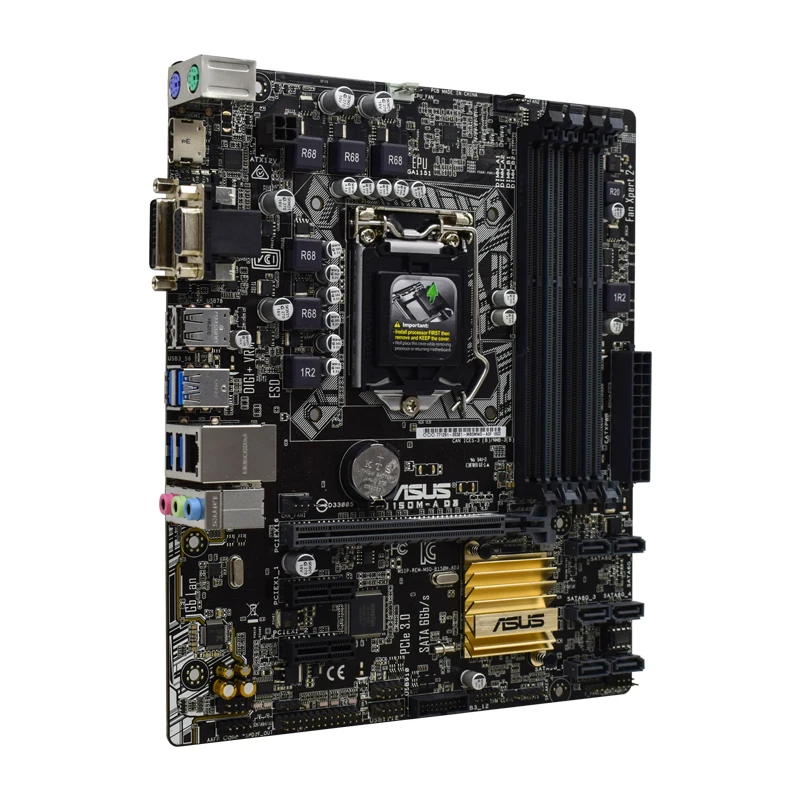

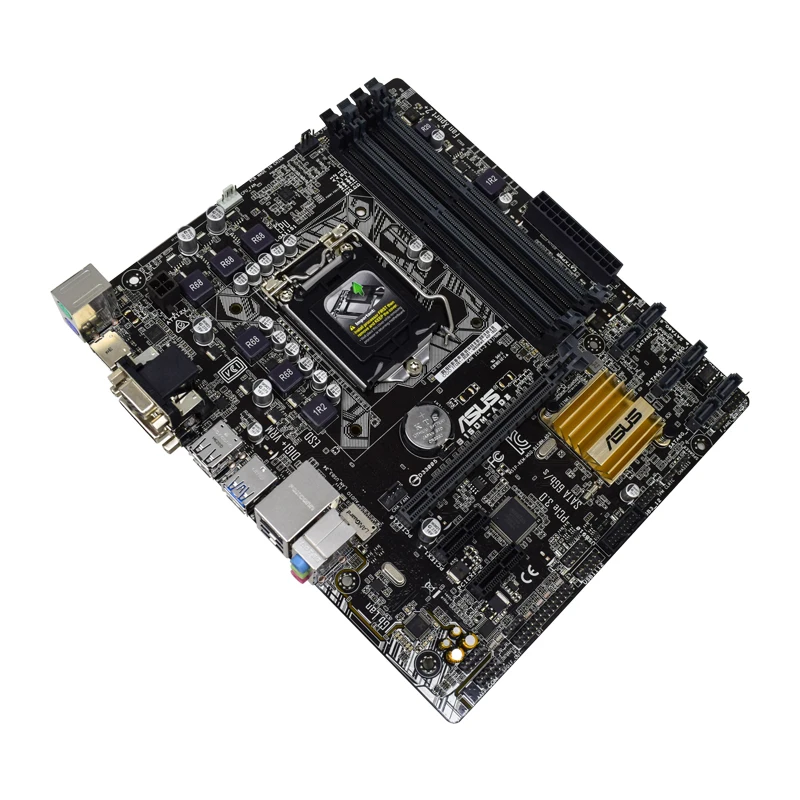

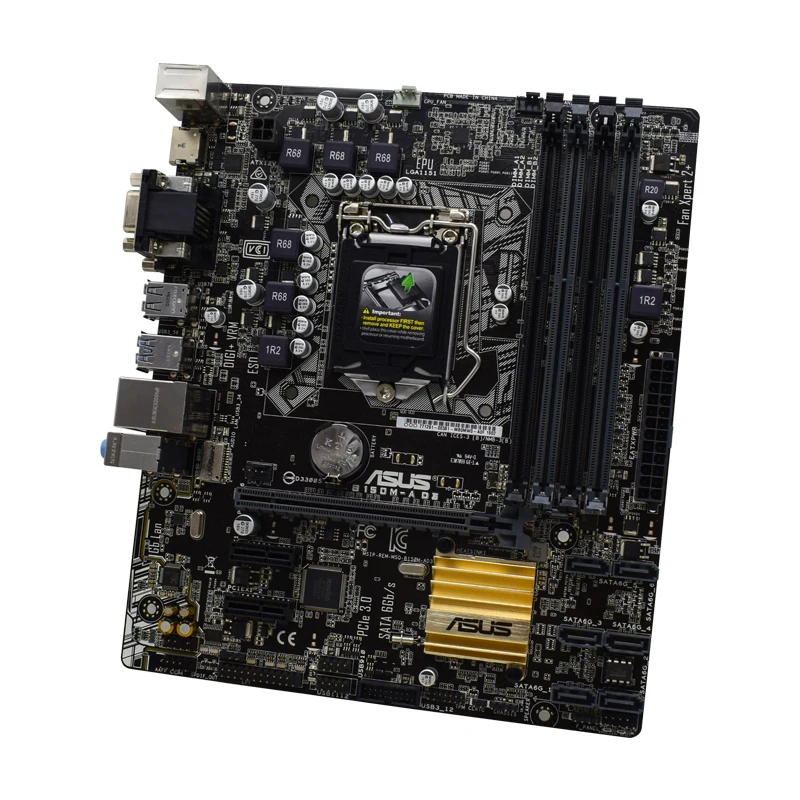

B150 Motherboard ASUS B150M-A D3 for Core i5 6400 7400 6500 7500 6600 7600 LGA 1151 Motherboard for i3 6100 7100 i7 6700 7700
motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel B150
Chipset Description Using Intel B150 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor Specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
memory specification
Memory type 4×DDR3 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR3 1866(OC)/1600/1333MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 6×SATA III interface

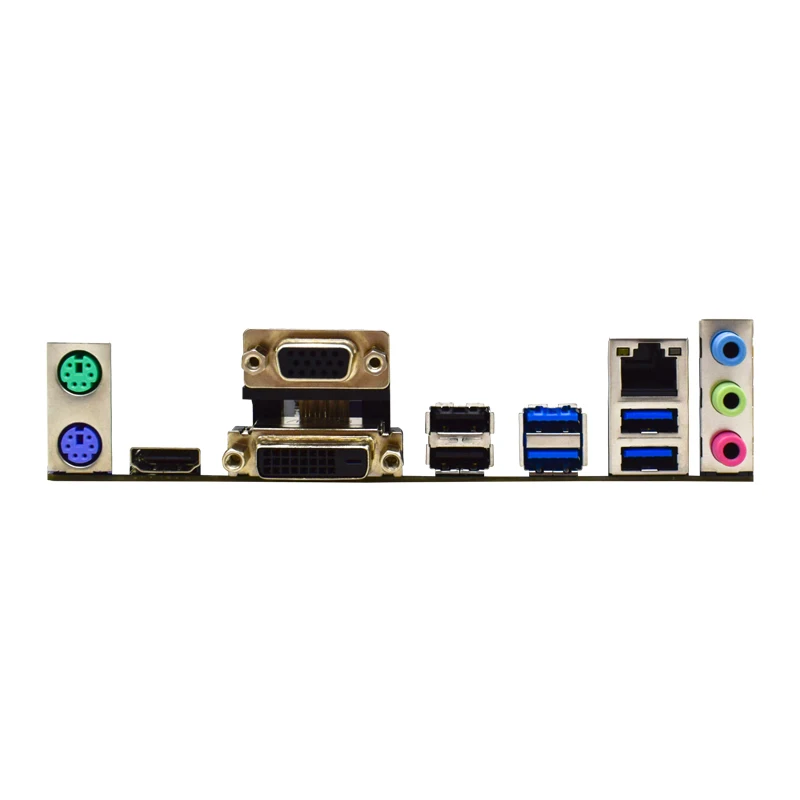

I/O interface
USB interface 6×USB3.0 interface (2 built-in + 4 backplane), 6×USB2.0 interface (4 built-in + 2 backplane)
Video interface 1×VGA interface, 1×DVI interface, 1×HDMI interface
Power interface One 4-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
plate type
Motherboard form factor Micro ATX form factor
Dimensions 23.4×20.1cm
