Motherboard Chip
Integrated chip sound card/network card
Main Chipset AMD A320
Chipset Description Using AMD A320 Chipset
Display chip APU built-in display chip (requires APU support)
Audio chip Integrated Realtek ALC887 8-channel sound chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor Specifications
CPU Type AMD Ryzen/7th Gen A-Series/Athlon II/Athlon
CPU socket Socket AM4
CPU description Support AMD RYZEN processor
Memory Specifications
Memory type 2×DDR4 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR4 1866/2133/2400/2667*MHz memory
Storage Expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 4×SATA III interface

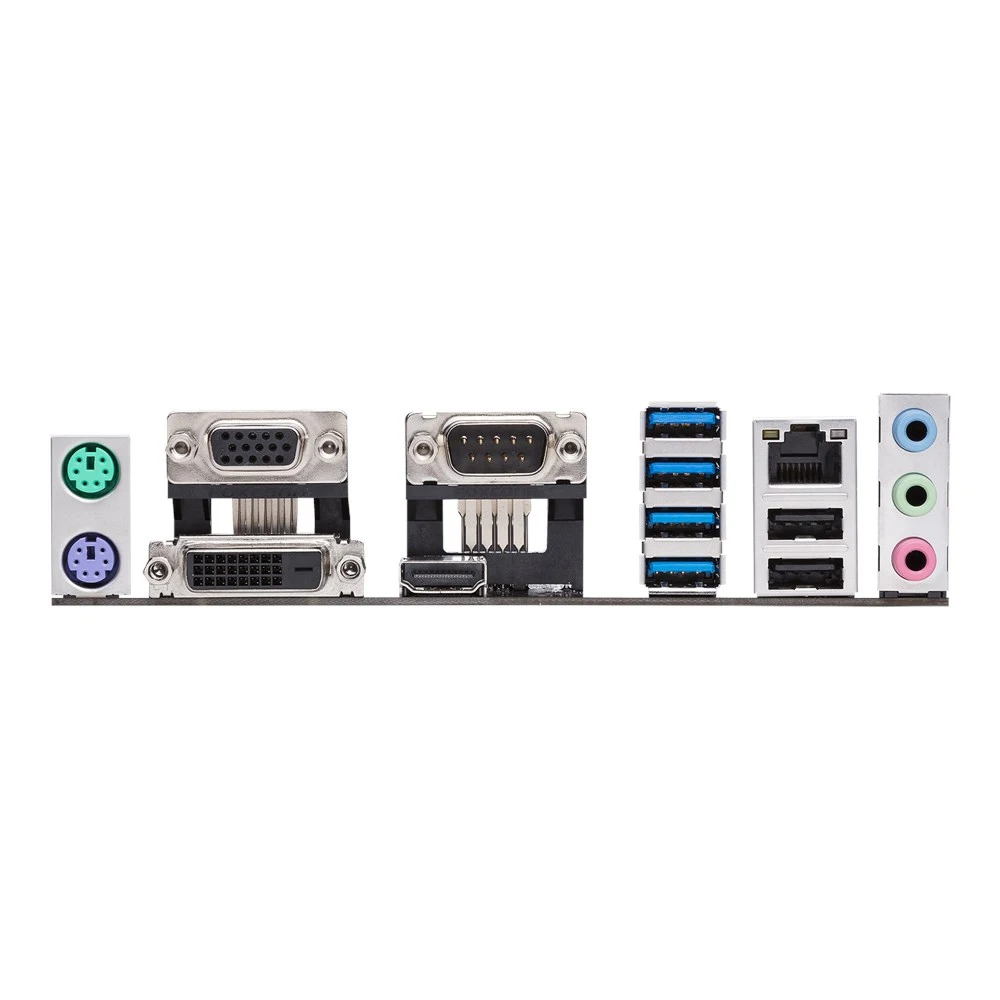

I/O interface
6×USB3.1 interface (2 built-in +4 backplane),
6×USB2.0 interface (4 built-in +2 backplane)
1×VGA interface,
1×DVI interface
1 x 8-pin power connector,
1 x 24-pin power connector
1×RJ45 network interface,
3 x audio interface,
1×CPU fan interface,
1 x system fan interface,
1 x panel audio interface,
2 x system panel interface,
1×TPM module interface,
1 x chassis opening interface,
1 x serial interface,
1×PS/2 keyboard and mouse general interface
Plate Type
Mainboard form factor Micro ATX form factor
Dimensions: 23.6×18.7cm
