Used Motherboard,

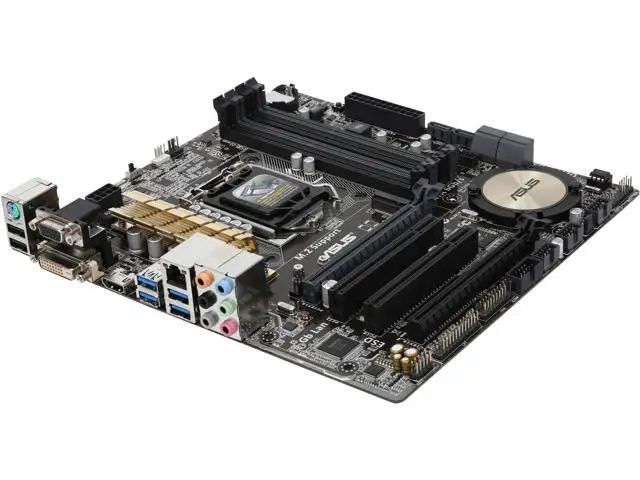

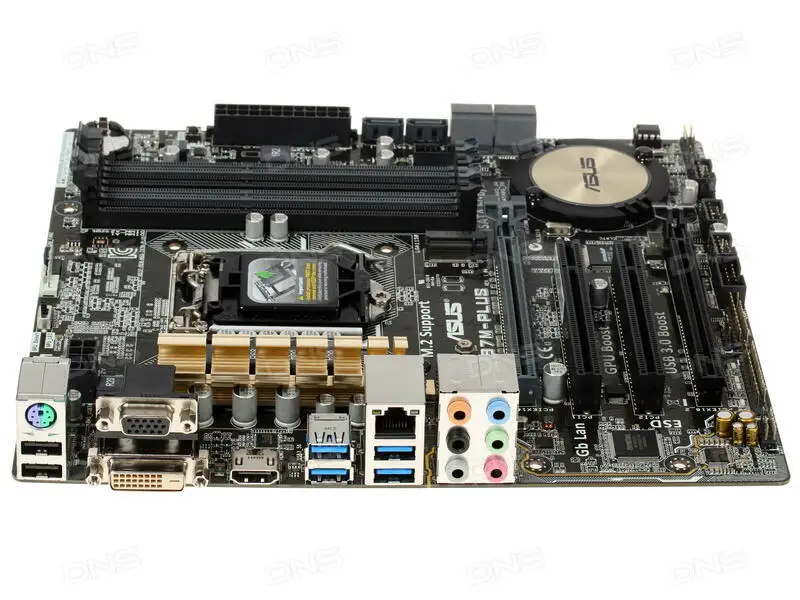

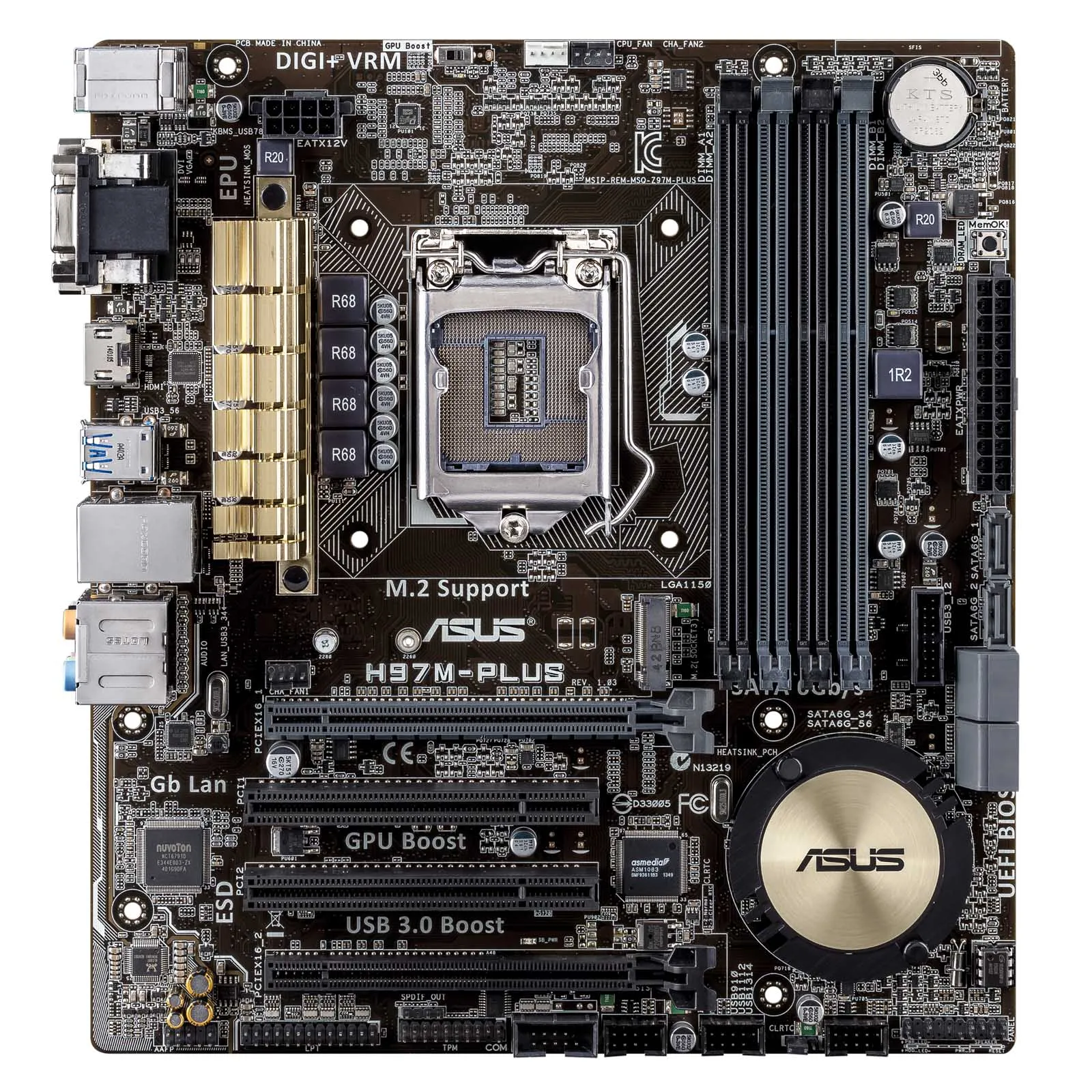

ASUS H97M-PLUS,
LGA 1150 Motherboard, for Intel Core i5 4570, Supports 4x DIMMs Max. 32GB DDR3, mATX Mainboard
motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel H97
Chipset Description Intel H97 Chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Intel I218V Gigabit network card
Processor Specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
memory specification
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot
PCI slot 2×PCI slot
Storage interface 1×M.2 interface, 6×SATA III interface
I/O interface
USB interface 8×USB2.0 interface (4 built-in + 6 backplane), 6×USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×VGA interface, 1×DVI interface, 1×HDMI interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 universal interface for keyboard and mouse
plate type
Motherboard form factor Micro ATX form factor
Dimensions 24.4×22.4cm
software management
BIOS performance 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, Favorites, Quick Notes, History , F12 screenshot, F3 shortcut key, memory SPD information
