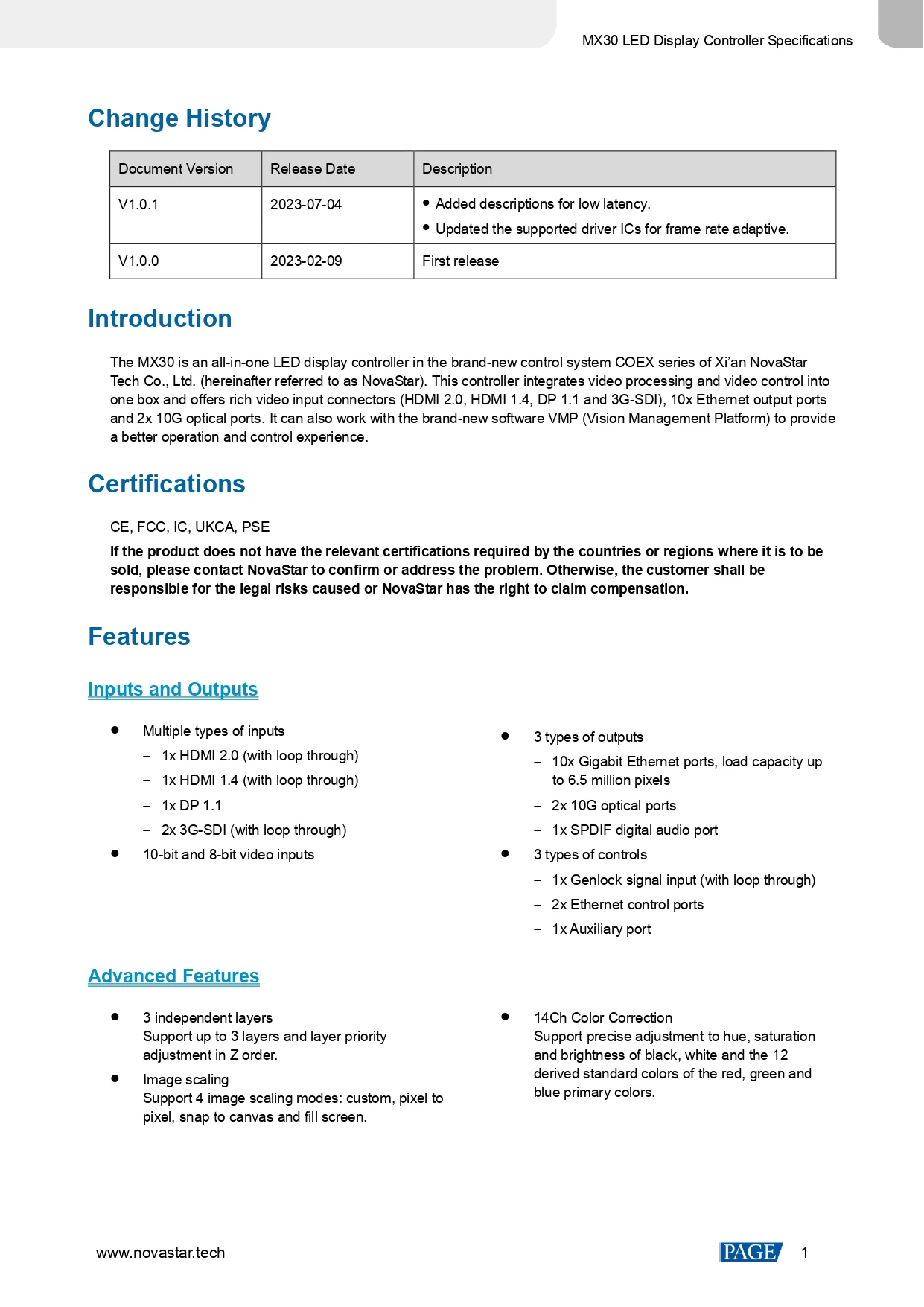

The MX30 is an all-in-one LED display controller in the brand-new control system COEX series. This controller integrates video processing and video control into one box and offers rich video input connectors (HDMI 2.0, HDMI 1.4, DP 1.1 and 3G-SDI), 10x Ethernet output ports and 2x 10G optical ports. It works with the brand-new VMP (Vision Management Platform) software to provide a better operation and control experience.
Key Features:

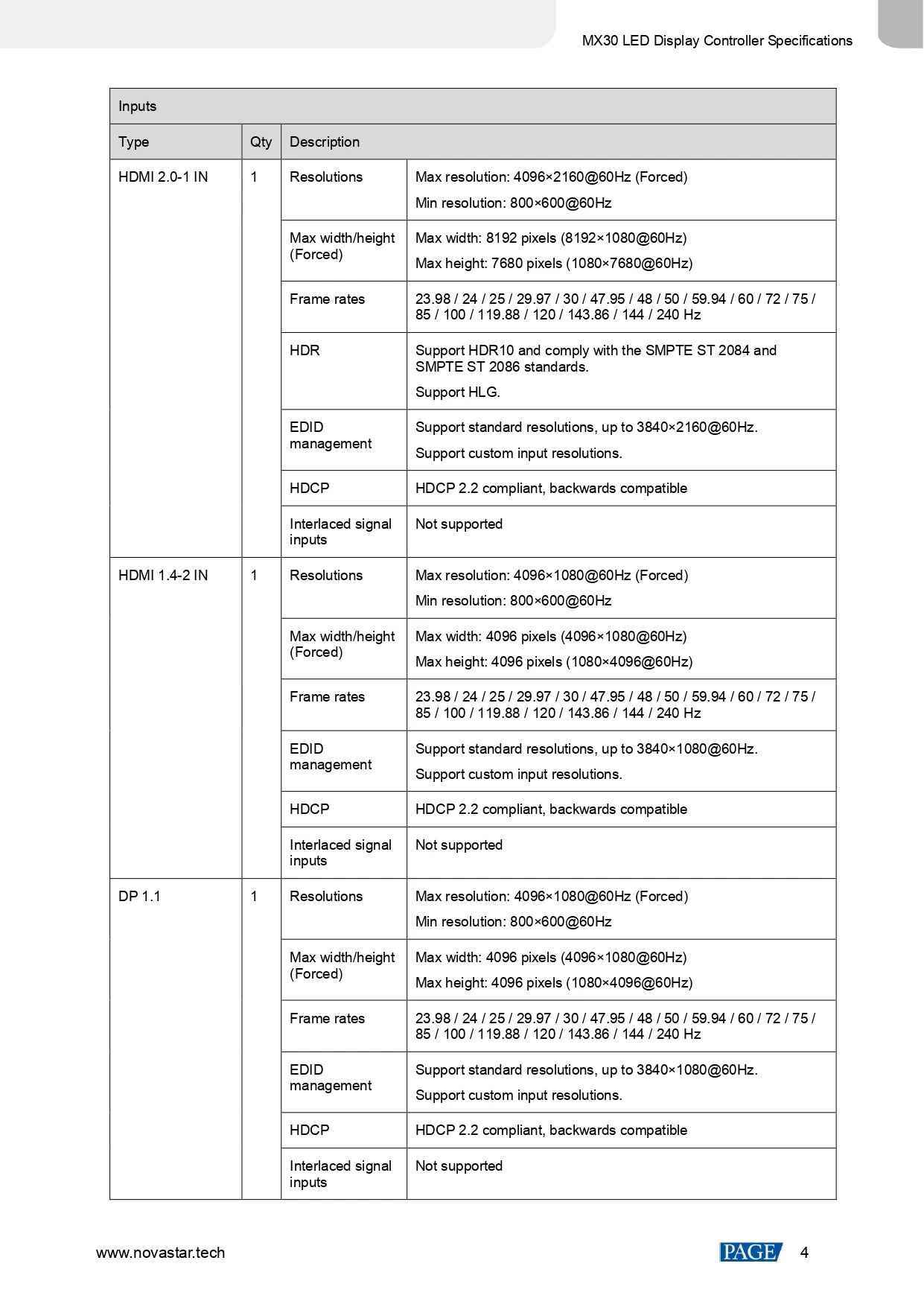

Video Inputs:
1x HDMI 2.0: Supports up to 4K (4096x2160 @ 60Hz).
1x HDMI 1.4.
1x DP 1.1.
2x 3G-SDI: Perfect for broadcast and professional workflows.

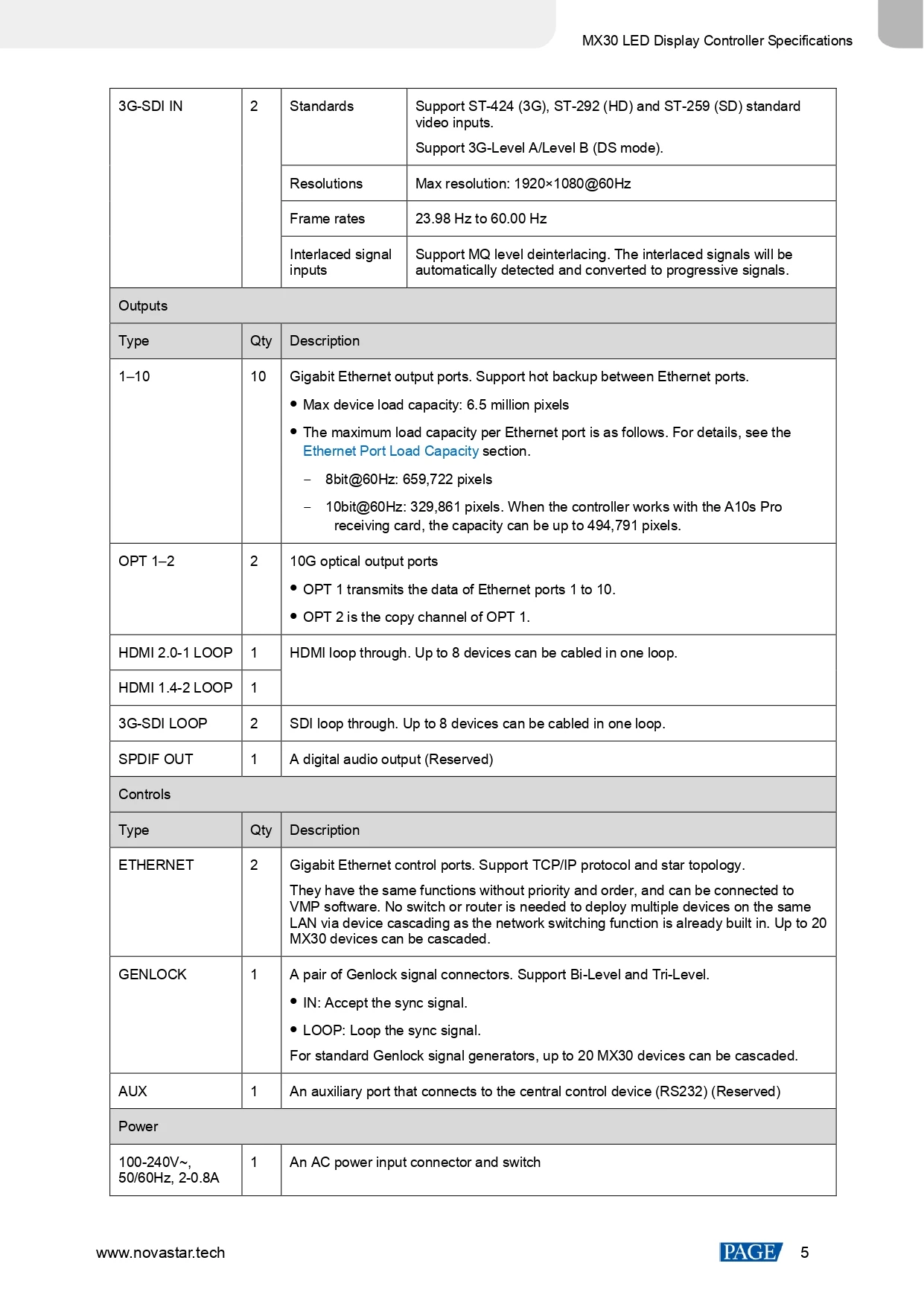

Video Outputs:
10x Ethernet Output Ports: For LED screen connectivity.
2x 10G Optical Fiber Ports: Includes a primary and backup for redundancy.
Processing Features:
-
Built-In Scaling:
Offers 4 modes: Custom, Pixel-to-Pixel, Snap to Canvas, Fill Screen.
Automatically adapts content to fit the display.
-
HDR Support:
Delivers high dynamic range visuals for richer colors and contrasts.
Note: HDR reduces loading capacity when used with the A10s Pro receiving card.
-
Low Latency:
Achieves 1 frame latency in "All-In-One Controller" working mode.
-
14-Channel Color Correction:
Enables precise color adjustments for improved display performance.
-
Full Grayscale Calibration:
Uniform brightness and color calibration (requires A10s Pro receiving card).
-
Genlock:
Synchronizes with external signals for seamless video output.
-
Flexible Mapping:
No Rectangular Restriction: Unused panels do not count toward the data port capacity.
Control:
2x Ethernet Ports: For configuration and control.
Compatible with NovaStar's VMP Software for advanced screen management.
Capabilities:
Maximum Input Resolution: 4096 x 2160 @ 60Hz (HDMI 2.0).
Maximum Output Resolution: 8192 x 7680 pixels (width x height or vice versa).
-

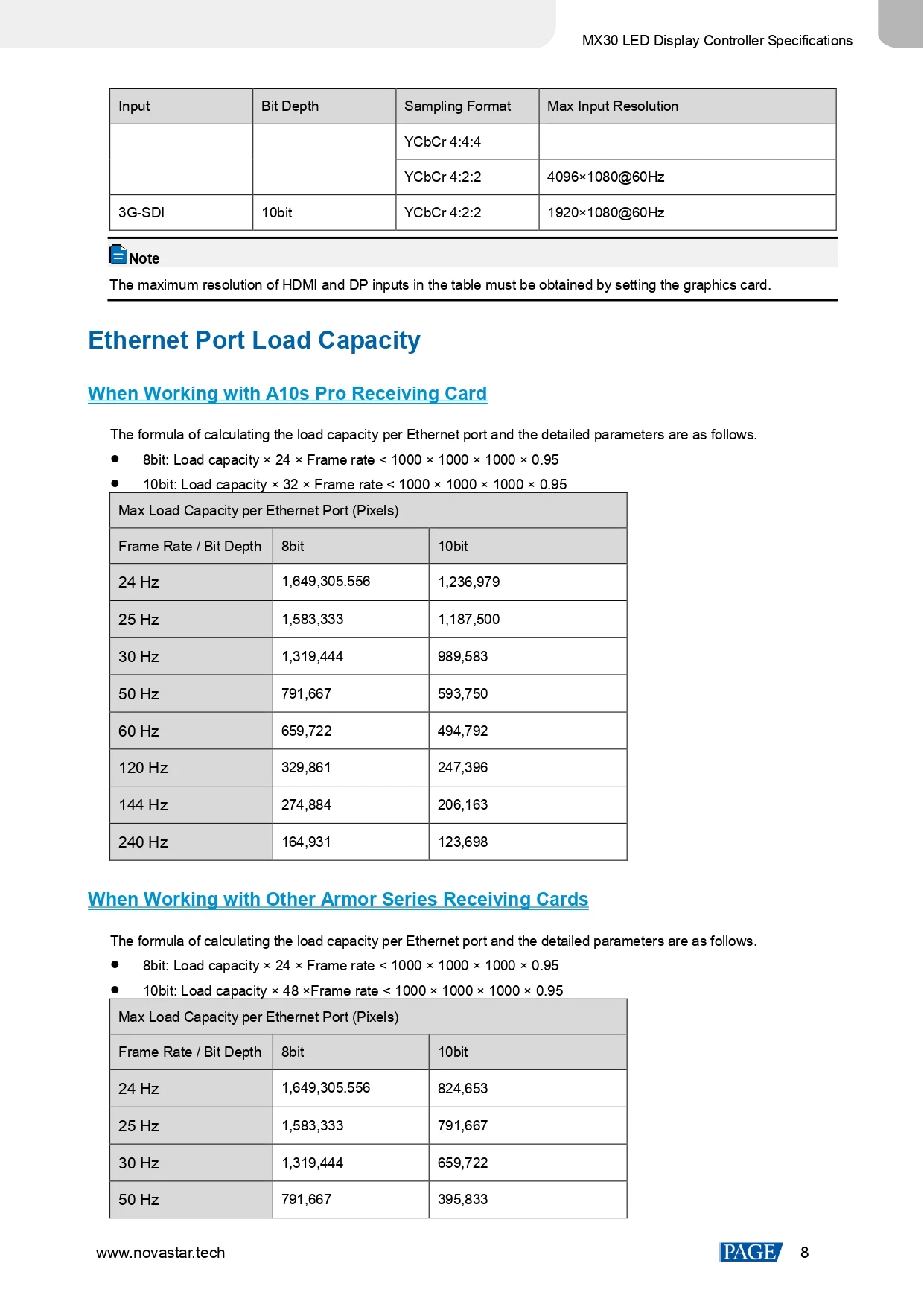

Loading Capacity:
Per Output: 650,000 pixels.
Total: 6.5 million pixels.

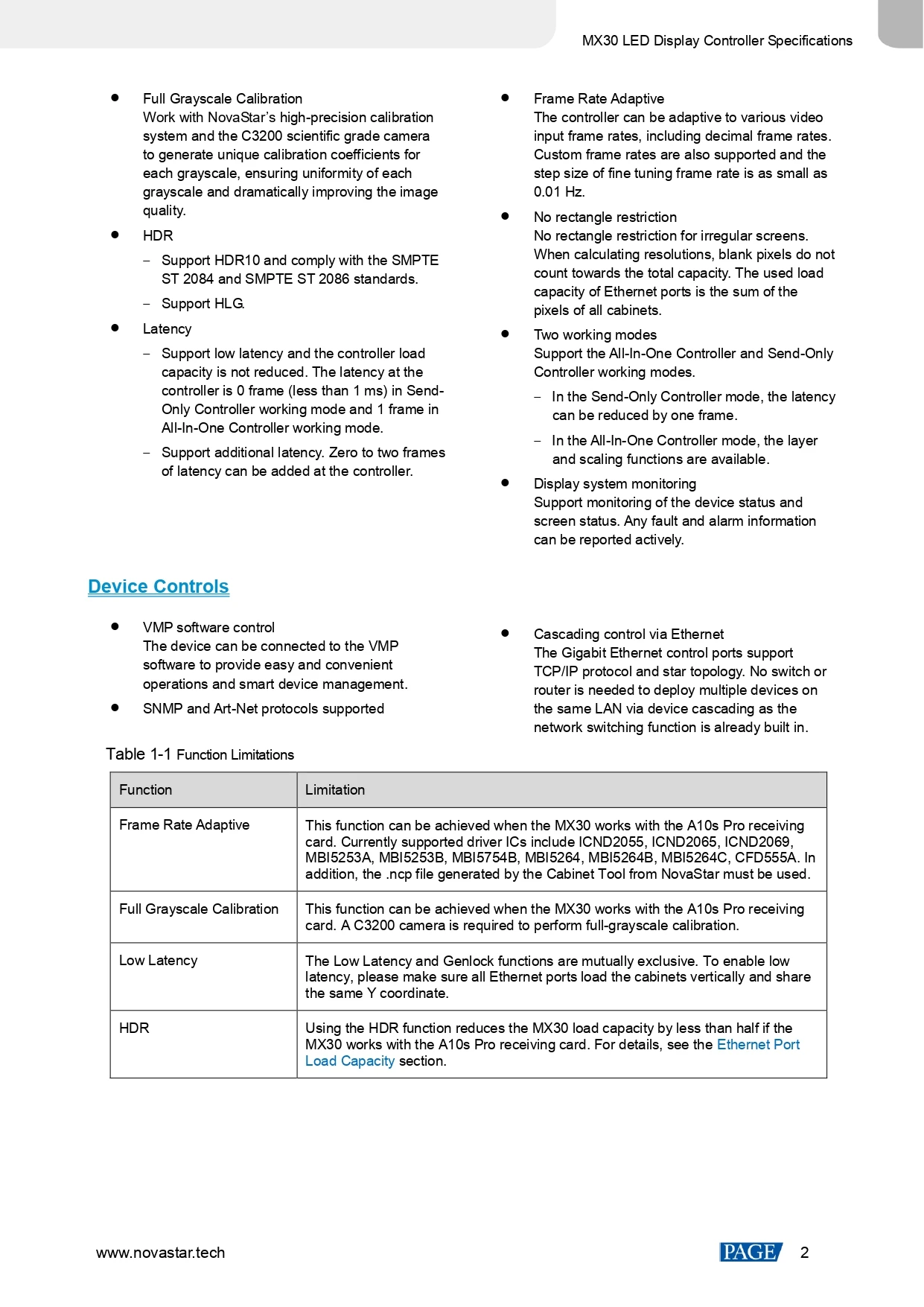

Function Limitations:
Frame Rate Adaptive, Full Grayscale Calibration, and HDR features require A10s Pro Receiving Cards.
Supported driver ICs include MBI5264, MBI5253B, ICND2055, ICND2065, ICND2059, and ICND2069.
The .ncp file from NovaStar’s Cabinet Tool is essential for proper calibration.
HDR significantly reduces loading capacity with A10s Pro cards.
Summary:
The NovaStar MX30 offers an excellent balance of capability, flexibility, and ease of use, making it ideal for professional applications such as events, broadcasts, and mid-scale LED display setups. Its combination of advanced features and reliable performance ensures high-quality visuals and intuitive control.
