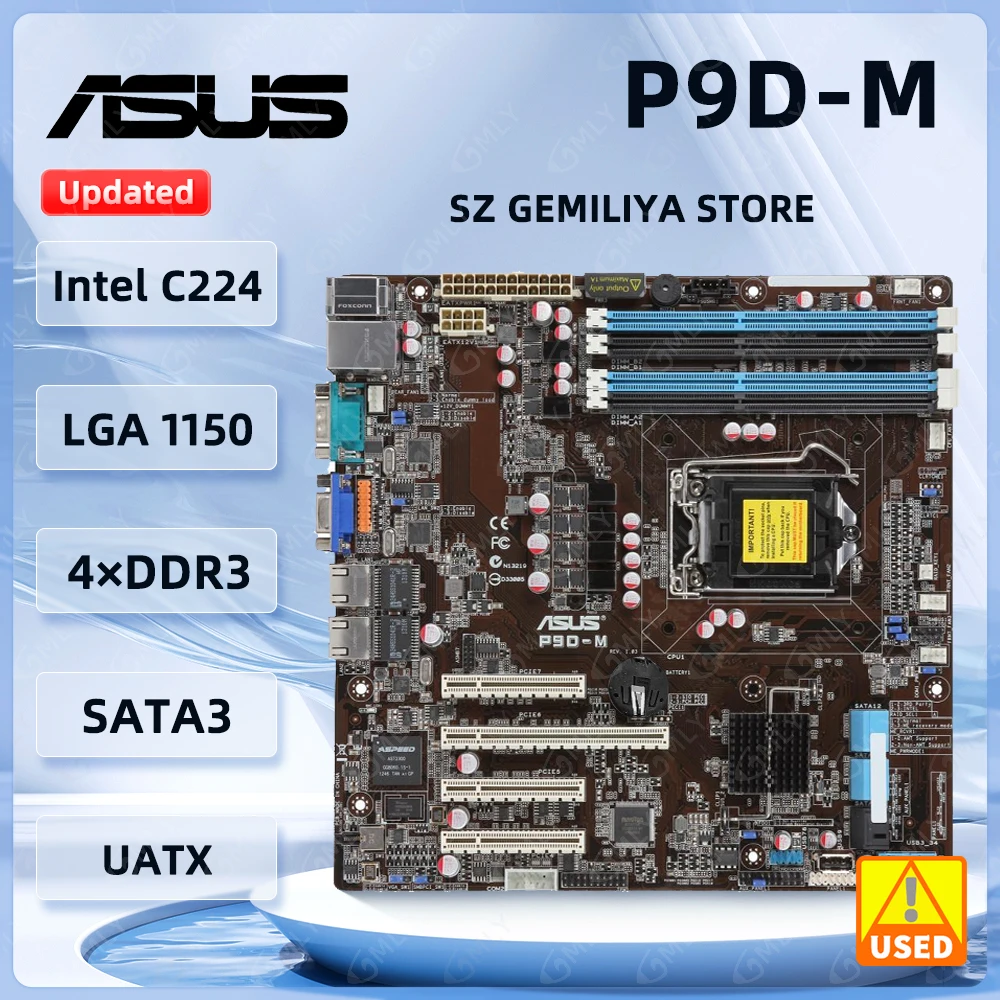

motherboard chip
Integrated chip sound card/network card
Main Chipset Intel C224
Chip maker Intel
Chipset Description Using Intel C224 Chipset
Graphics chip Aspeed AST2300 + 32MB VRAM
Network chip Onboard Intel I210AT Gigabit LAN
CPU Specifications
Applicable platform Intel
CPU type Pentium/Celeron/Core i3/Xeon E3-1200 v3
CPU description Support Intel 22nm processor
CPU socket Socket 1150
Number of CPUs supported 1
Memory Specifications
Memory type DDR3
Memory Description 4×DDR3 DIMMs
Maximum support 32GB memory, support dual-channel DDR3 1600/1333MHz memory
Expansion slot
Graphics card slot 1×PCI-E X1 graphics card slot
3×PCI-E X8 graphics card slots
SATA interface 4 x SATA III interface; 2 x SATA II interface
I/O interface
USB interface 2×USB2.0 interface; 2×USB3.0 interface
PS/2 interface PS/2 keyboard and mouse general interface
Parallel port Serial COM port
External port 1×VGA interface
2×RJ45 network interface
plate type
Mainboard form factor UATX form factor
Dimensions 24.4×24.4cm
Other features
Other performance Support Raid 0, 1, 5, 10
Other parameters
Hardware monitoring CPU temperature
speed of the fan
Power socket One 8-pin, one 24-pin power connector
