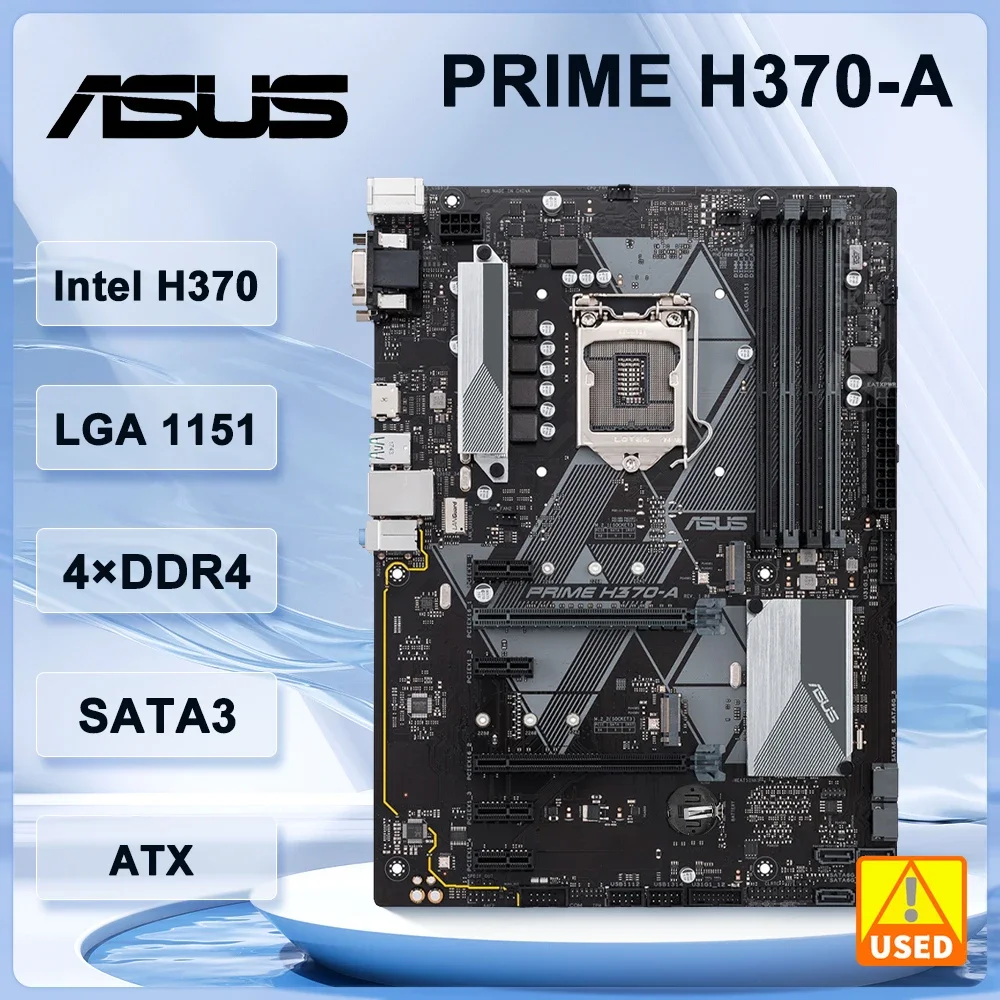

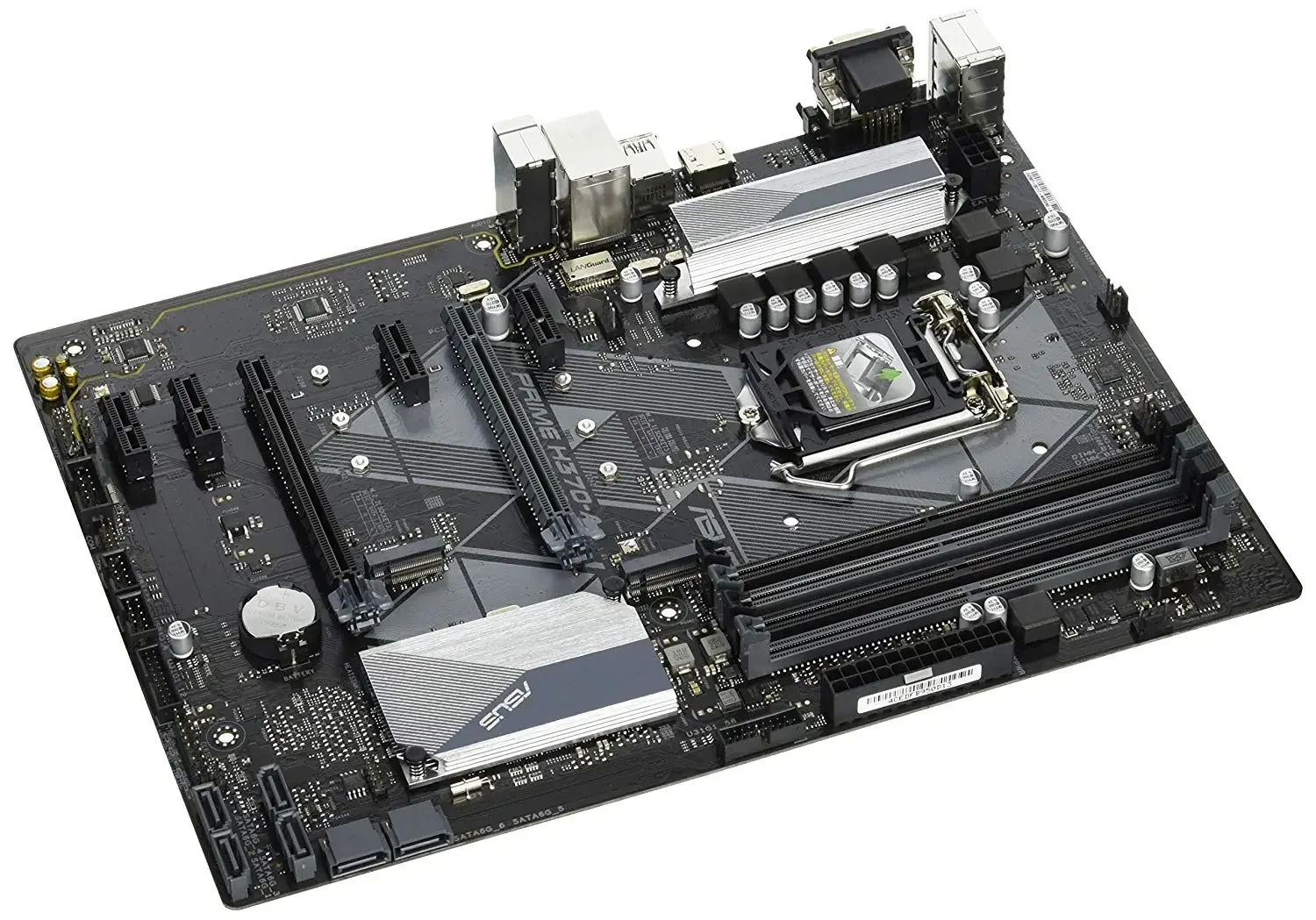

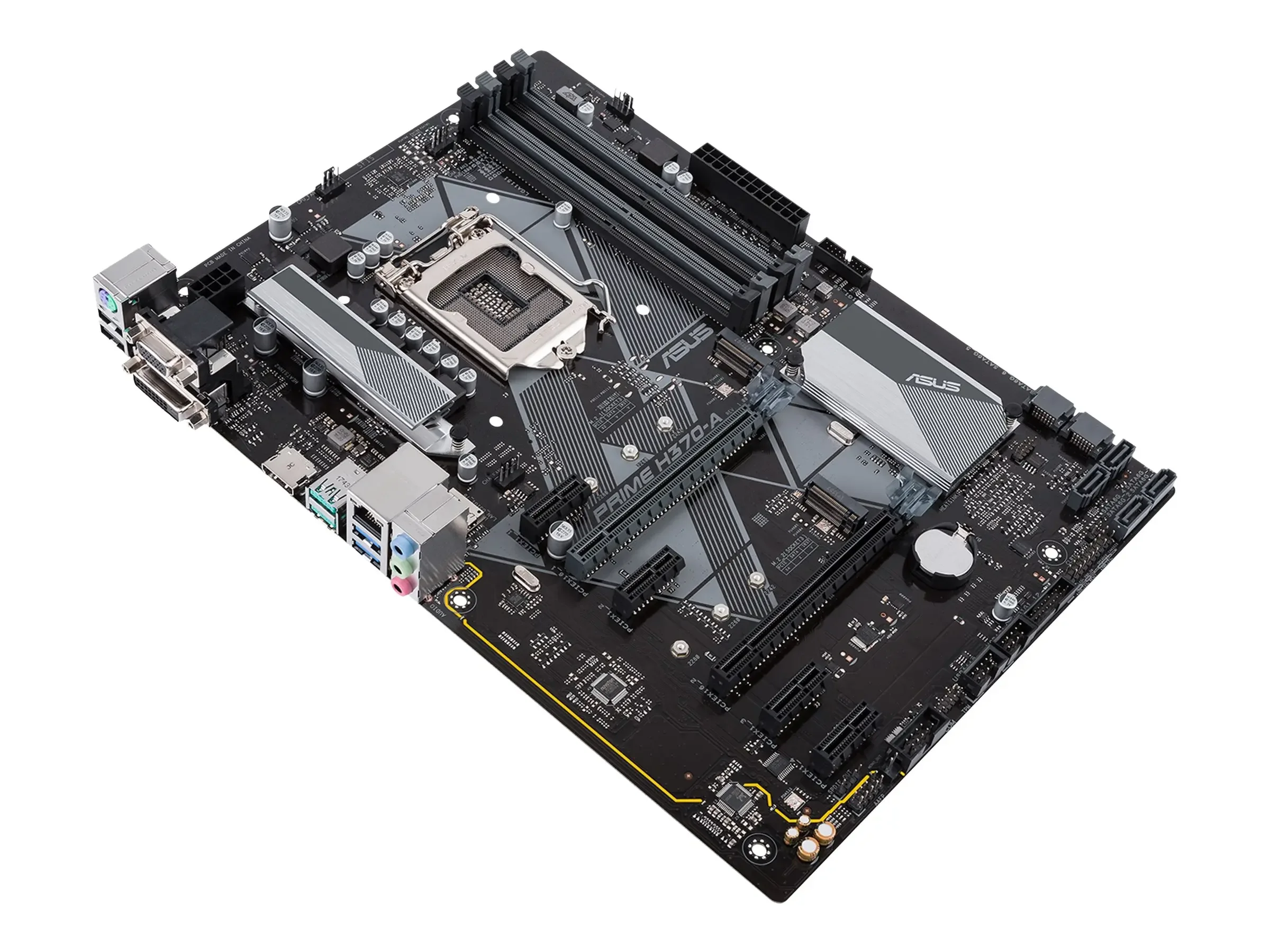

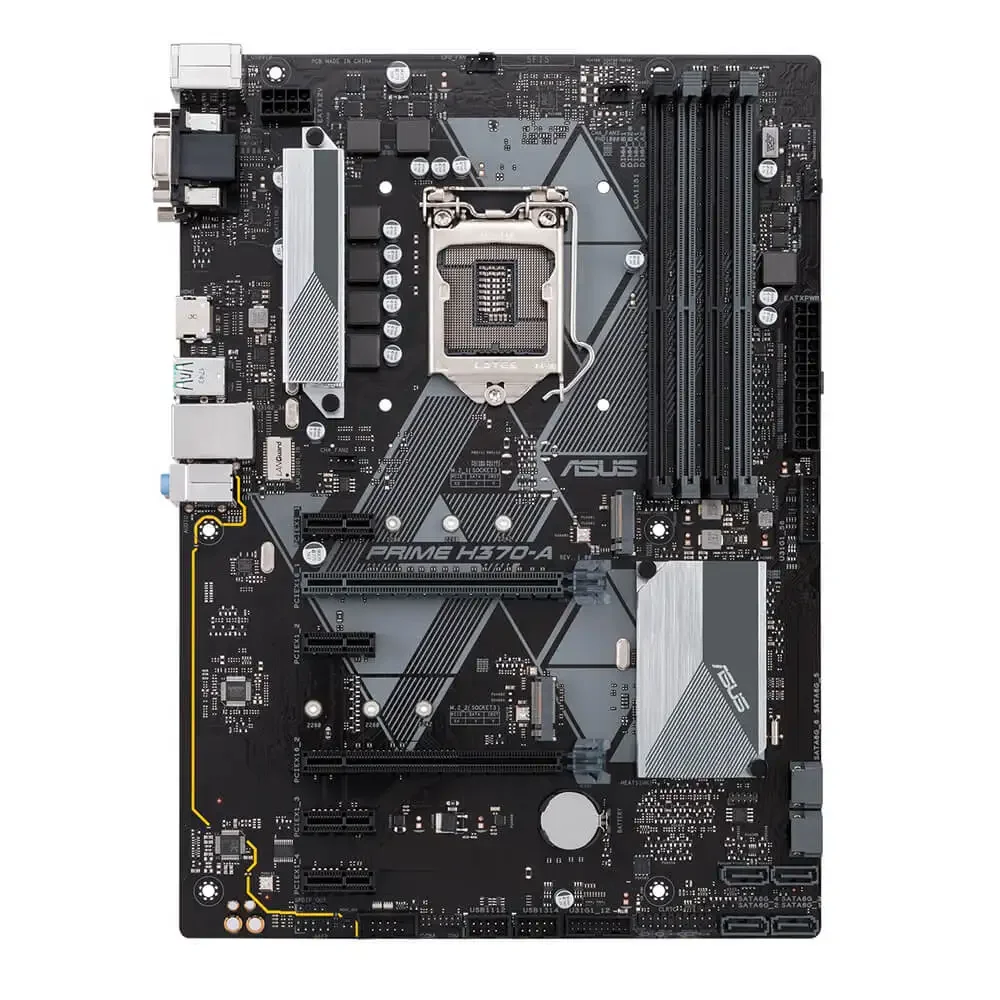

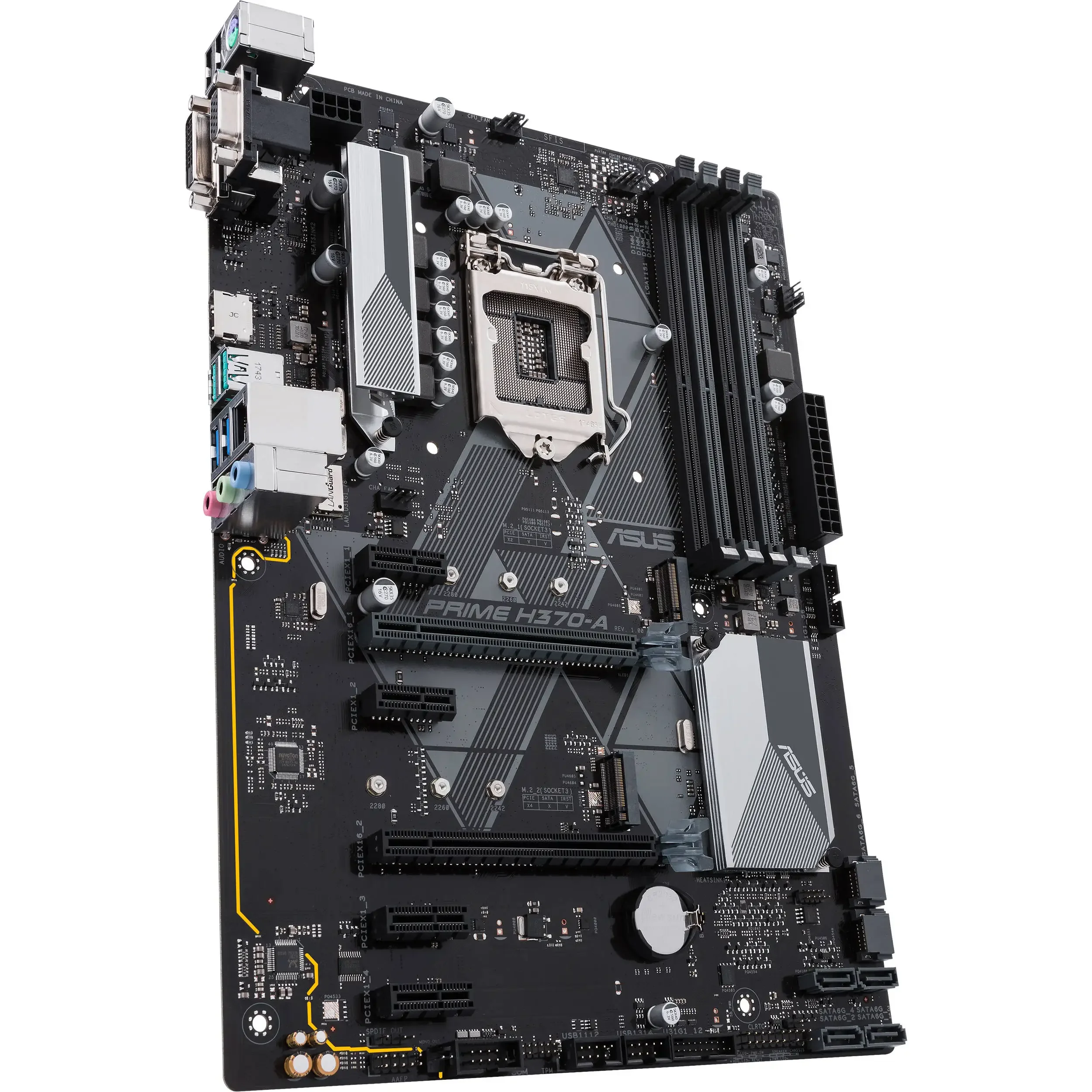

StoneTaskin ASUS PRIME H370-A Motherboard Intel H370 LGA 1151 4×DDR4 64GB support i3-9100F i5-8600 I9-9900 i5-9400F cpu PCI-E 3.0 M.2 ATX Mainboard Fully Tested Free Shipping

Chipset

Integrated chip sound card/network card

Main chipset Intel H370

Chipset description uses Intel H370 chipset

Display chip CPU built-in display chip (requires CPU support)

Audio chip integrated with Realtek ALC887 8-channel sound effect chip

Network card chip onboard Realtek RTL8111H gigabit network card

Processor specifications

CPU type: 8th generation Core i7/i5/i3/Pentium/Celeron

CPU slot LGA 1151

CPU description supports Intel 14nm processors

Support Intel Turbo Boost 2.0 technology

Memory specifications

Memory type 4xDDR4 DIMM

Maximum memory capacity 64GB

Memory Description: Supports dual channel DDR4 2666/2400/2133MHz memory

Storage Expansion

PCI-E Standard PCI-E 3.0

PCI-E slot 2 x PCI-E X16 graphics card slot, 4 x PCI-E X1 slot

Storage interface 2 x M.2 interface, 6 x SATA III interface

I/O interface

USB interface 2 x USB 3.1 Gen 2 Type-A interface, 6 x USB 3.1 Gen 1 interface (4 built-in+2 backplane), 6 x USB 2.0 interface (4 built-in+2 backplane)

Video interface 1 x DVI interface, 1 x HDMI interface, 1 x VGA interface

One 8-pin power interface and one 24 pin power interface

Other interfaces: 1 x RJ45 network interface, 3 x audio interface, 1 x PS/2 keyboard and mouse universal interface

Plate type

Motherboard type ATX board type

Dimensions 30.5 × 22.1cm
