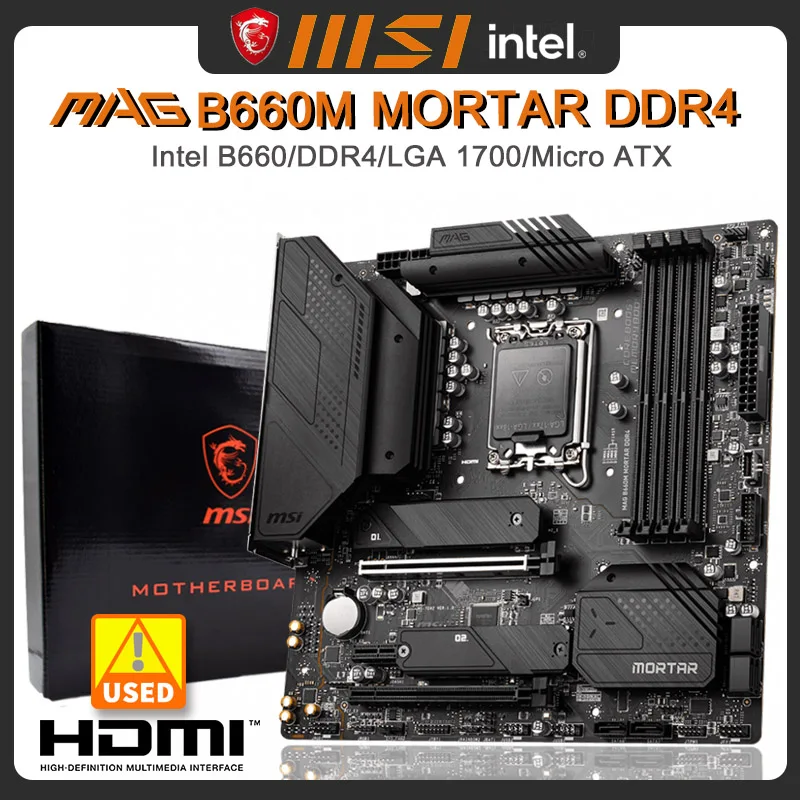

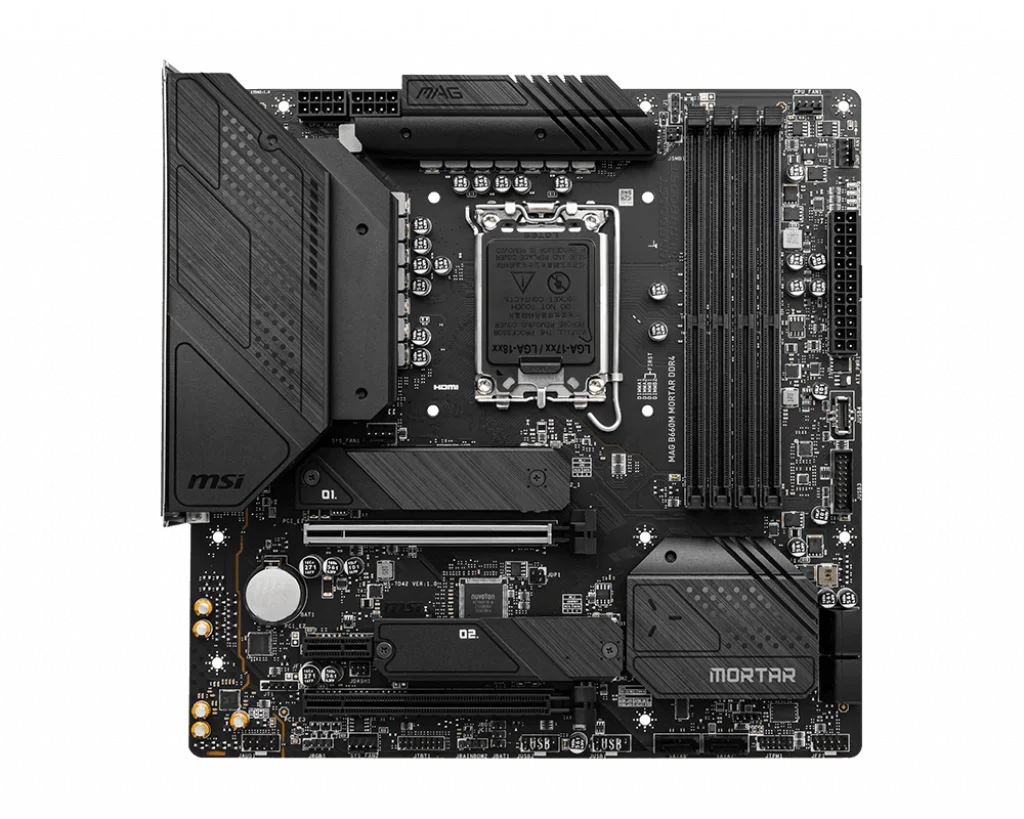

StoneTaskin B660 Motherboard MSI MAG B660M MORTAR DDR4 Motherboard LGA 1700 PCI-E 4.0 USB 3.2 Support 12 gen cpu placa mae Micro-ATX High Quality Fully Tested Free Shipping

motherboard chip

Integrated Chip Sound Card/Network Card

Main chipset Intel B660

Chipset Description Using Intel B660 Chipset

Audio chip Integrated Realtek ALC1200 7.1 channel audio chip

Network card chip Onboard Realtek 8125BG 2.5GbE network card

Processor Specifications

CPU Type Twelfth Generation Core/Pentium/Celeron

CPU socket LGA 1700

memory specification

Memory type 4×DDR4 DIMM

Maximum memory capacity 128GB

Memory description Support dual channel DDR4 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)

/3466(OC)/3400(OC)/3333(OC)/3200(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC) MHz memory

storage expansion

PCI-E standard PCI-E 4.0

2 PCI-E X16 slots (1 supports X16 operation specification, 1 supports X4 operation specification)

PCI-E X1 slot 1

Storage interface 2×M.2 interface, 6×SATA III interface

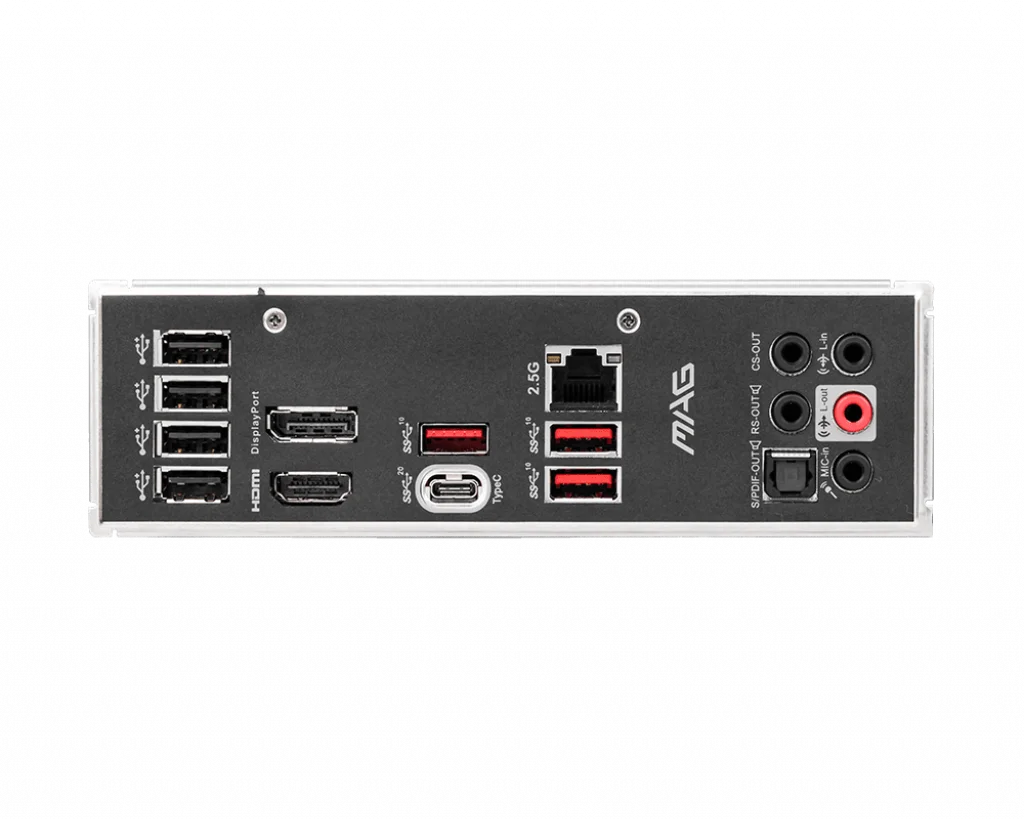

I/O interface

USB (backplane) 1×USB3.2 Gen2x2 Type-C interface

3×USB3.2 Gen2 interface

4 x USB2.0 interface

USB (built-in) 1×USB3.2 Gen2 Type-C interface

2×USB3.2 Gen1 interface

4 x USB2.0 interface

Video interface 1×HDMI interface, 1×DisplayPort interface

Power interface Two 8-pin, one 24-pin power interface

Other interfaces 1×RJ45 network interface, 1×optical fiber interface, 5×audio interface

plate type

Motherboard form factor Micro ATX form factor
