Motherboard chips |
|
Integrated chips |
Sound card/network card |
Main chipset |
Intel Z390 |
Chipset description |
Powered by Intel Z390 chipset |
Display chips |
CPU built-in display chip (CPU support required) |
Audio chips |
Integrated ROG SupremeFX 8-channel audio chip |
Network card chip |
Onboard Intel I219V Gigabit LAN card |
Processor specifications |
|
CPU type |
9th Gen/8th Gen Core i9/i7/i5/i3/Pentium/Celeron |
CPU socket |
LGA 1151 |
Memory specifications |
|
Memory type |
4×DDR4 DIMM |
Maximum memory capacity |
128GB |
Memory description |
Supports DDR4 4400 (O.C) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2800 (OC) / 2666 / 2400 / 2133MHz memory |
Storage expansion |
|
PCI-E standard |
PCI-E 3.0 |
PCI-E slots |
3× PCIe x16 graphics card slot, 1 × PCI-E x1 slot |
Storage interfaces |
2× M.2 interface, 6× SATA III interface |

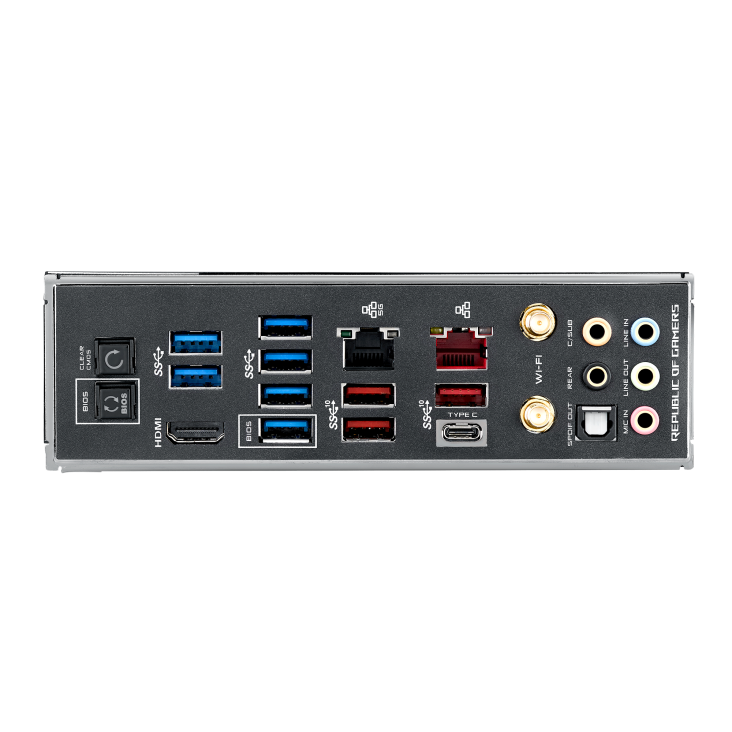

I/O interface |
|
USB interface |
1× USB3.1 Gen 2 interface, 4× USB3.1 Gen 2 interface, 10× USB3.1 Gen 1 interface, 4× USB2.0 interface |
Video interface |
1× HDMI port |
Power connector |
One 4-pin, one 8-pin, one 24-pin power connector |
Other interfaces |
1× RJ45 network interface, 5× audio interface, 1 × optical interface, 1 × Type-C interface |
Plate type |
|
Motherboard form factor |
ATX plate type |
Dimensions |
30.5×24.4cm |
Software management |
|
BIOS performance |
1x128 Mb Flash ROM，UEFI AMI BIOS，PnP，DMI3.0，SM BIOS 3.1，ACPI 6.1 |
Other parameters |
|
Motherboard type |
Supports NVIDIA2-Way SLI technology |
RAID function |
RAID 0, 1, 5, 10 is supported纠错 |
Wireless capability |
Wireless: Support 802.11 a/b/g/n/acWiFi standard, support 2.4/5GHz wireless dual band, support Bluetooth 5.0 |
operating system |
Windows10 64-bit |
Listing date |
October 2018 |
2. The buyer is responsible for customs duties.
1. We guarantee to ship out within 24 hours after payment confirmation(except Holiday).
2. If there is any unexpected situation（for example,if the order can not ship out within 24 hours),we will contact you as soon as possible,and follow up closely to ship your order soon.
3. All products will be tested strictly before shipping.
4. We ship to Paypal address ONLY.Please make sure your address in Paypal is matched with your shipping address before you pay.
