StoneTaskin Wanptek 30V 10A DC power supply Adjustable 60V 5A Lab Bench Power Source Stabilized Power Supply Voltage Regulator 120V 3A 32V Fully Tested Free Shipping
Гарантированная безопасная оплата
The GA series products are four window dual color digital display switch DC stabilized power supplies with USB fast charging output display, which can simultaneously display voltage and current. The product is widely used in mobile phone repair, computer repair, battery charging, school teaching, and production line use. The GA series products use a coding potentiometer to continuously adjust the output voltage and output current between 0 and the nominal value, and can pre display the set value for easy use and adjustment. This device has a USB fast charging interface with output display and supports multiple fast charging protocols. Equipped with perfect short-circuit protection circuit. The stability and ripple coefficient of the power supply are very good. It has a small size, light weight, beautiful design, convenient operation, and can work for a long time at full load, which is deeply loved by users.

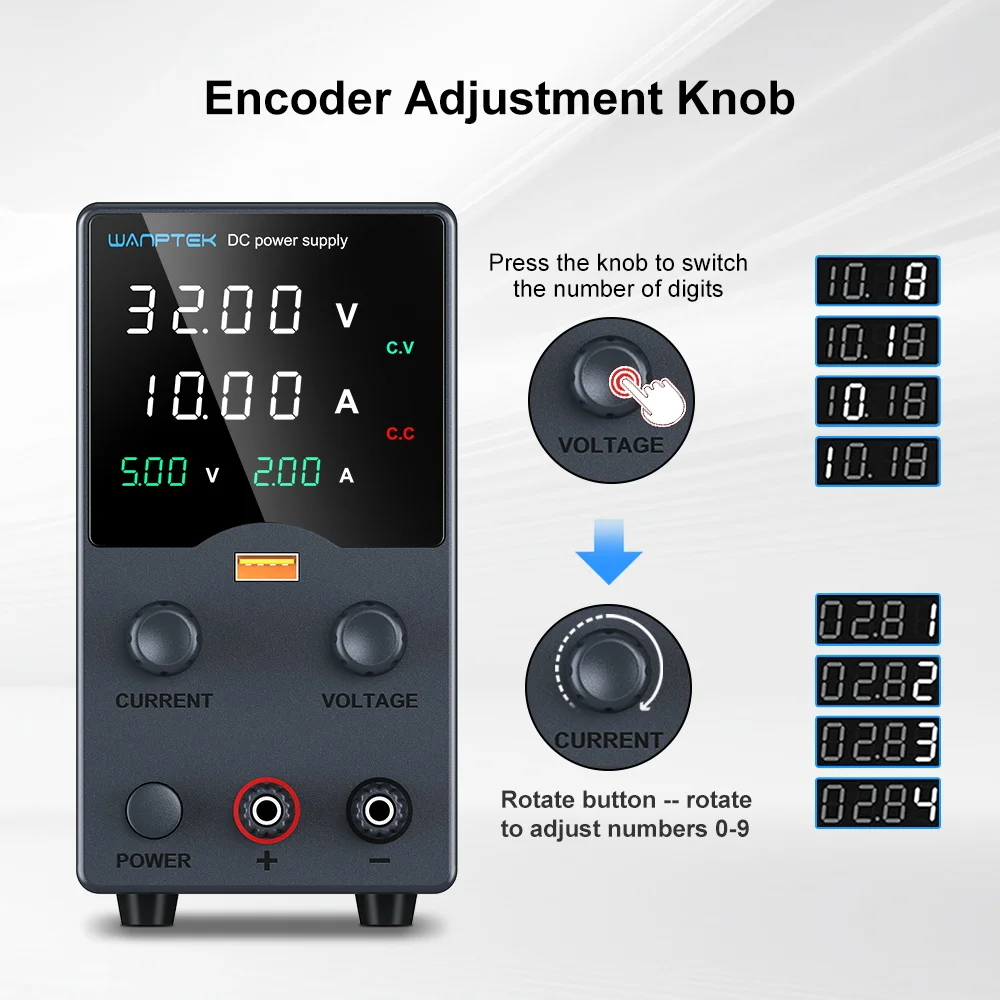

1.The GA series products use coding potentiometers to set voltage and current, and the set values can be displayed in advance.
2.Overload protection function, short circuit stops output.

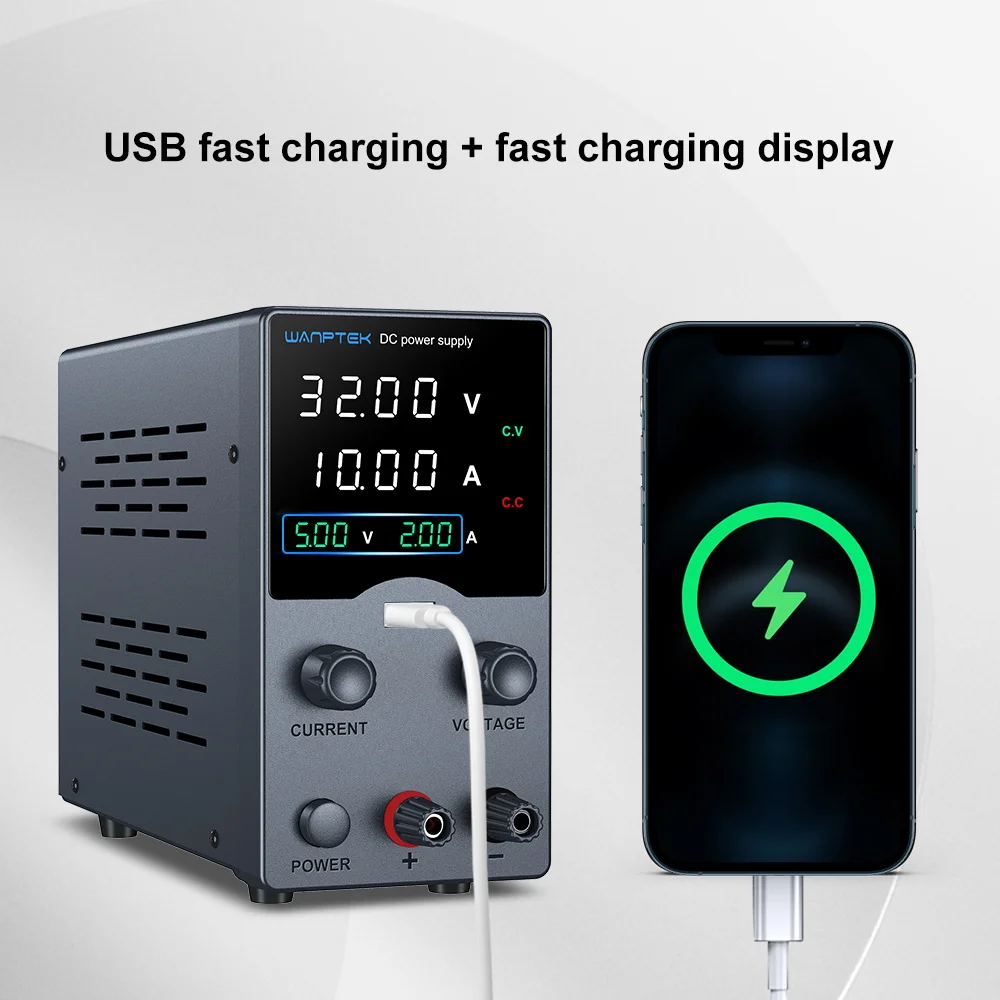

3.USB fast charging interface with output display, supporting multiple fast charging protocols.
4.Small size, light weight, and sufficient power.
5.Automatic switching of constant voltage and current.
6.Voltage, current, four window dual color display with high accuracy.

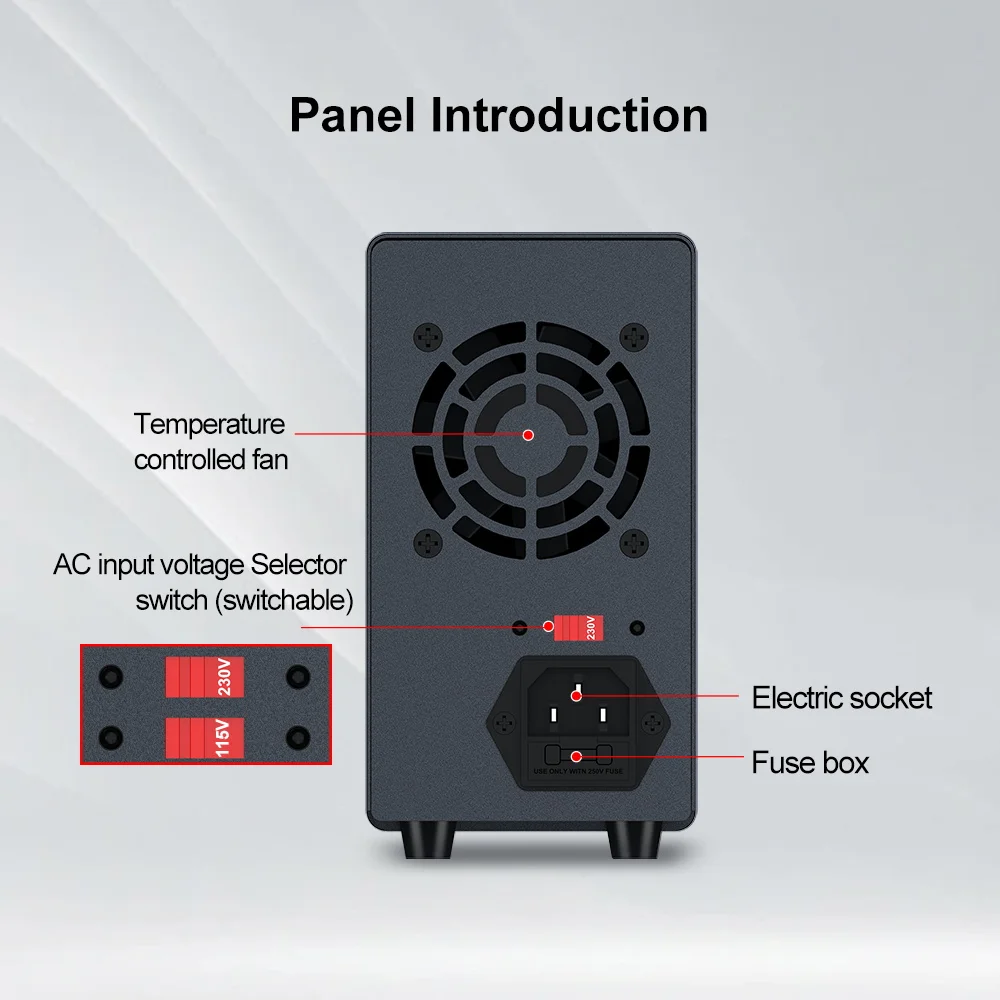

7.Temperature controlled fan cooling, low noise, long life.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment.
11..AC 110V and 220V can work, rest assured to choose.
【CE & FCC Certification, Multiple Protection, Various Application】Lab power supplies have passed CE & FCC Certification. DC power supply has multiple protections: overvoltage protection, overcurrent protection, overheating protection, over power protection, short circuit protection, leakage protection. DC power supply is suitable for LiFePO4 battery charging, arduino project, laboratories, schools, electronic maintenance , electrolysis, electroplating, lamp test, aging test, DIY, etc.
Input voltage:AC 230V/115V±10%;50Hz/60Hz | |
Working temperature:0℃～40℃;relative humidity:<80%RH | |
Storage temperature:-10℃～70℃;relative humidity:<70%RH | |
Constant voltage CV | |
Voltage stability:0.5%±3mV |
|
Load stability: 0.5%±3mV | |
Ripple voltage:≤0.5% Vp-p | |
0 to rated voltage continuously adjustable | |
constant current CC | |
Current stability:0.5%±3mA |
|
Load stability: 0.5%±3mA | |
Ripple current:≤0.5% Vp-p | |
Recovery time:≤500μS | |
Temperature coefficient:≤100ppm/℃ | |
0 to rated current continuously adjustable | |
display | |
LED digit display |
|

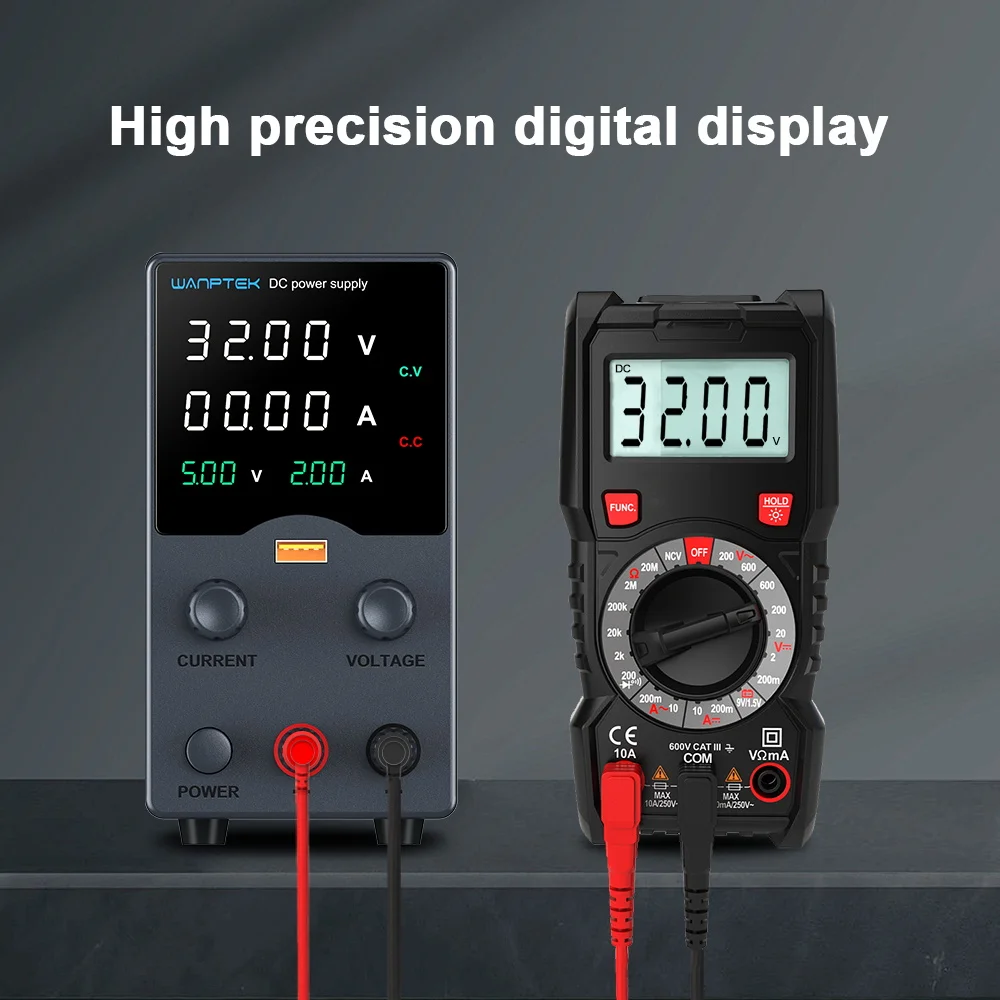

Display accuracy:0.5%±digits | |
Display resolution: voltage 0.01V, current 0.001A | |

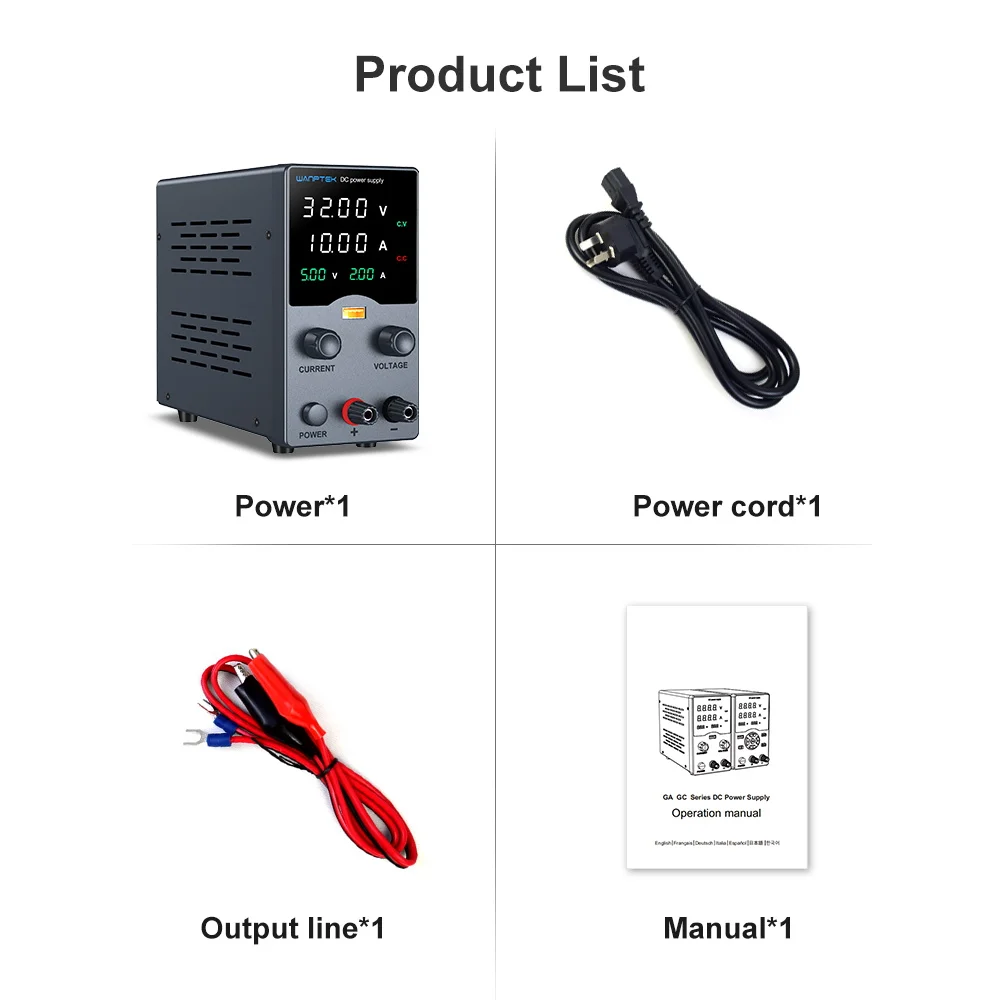

1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line(gift)
1x Instructions
We will inspect all DC power supply and accessories before shipment to ensure that the quality of the products received by each customer is good. We provide a 12-month warranty policy. If you have any questions about our DC power supply, please feel free to contact us, we will response back within 24 hours.
Note 1: The fan inside the power supply is intelligently temperature controlled. The fan will only rotate when the temperature inside the power supply is above 50 degrees Celsius. When the temperature inside the power supply is below 50 degrees Celsius, the fan will not rotate. This is to effectively save energy and reduce noise
