Integrated chip sound card/network card

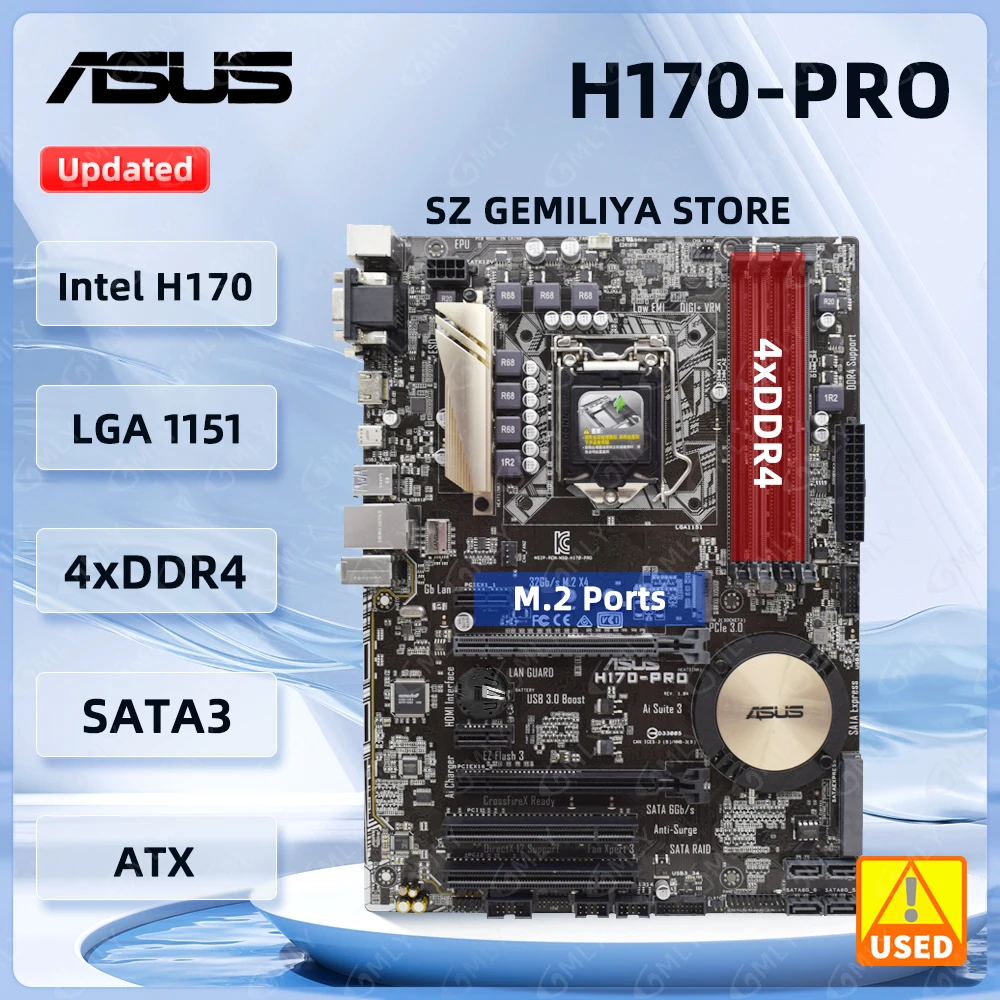

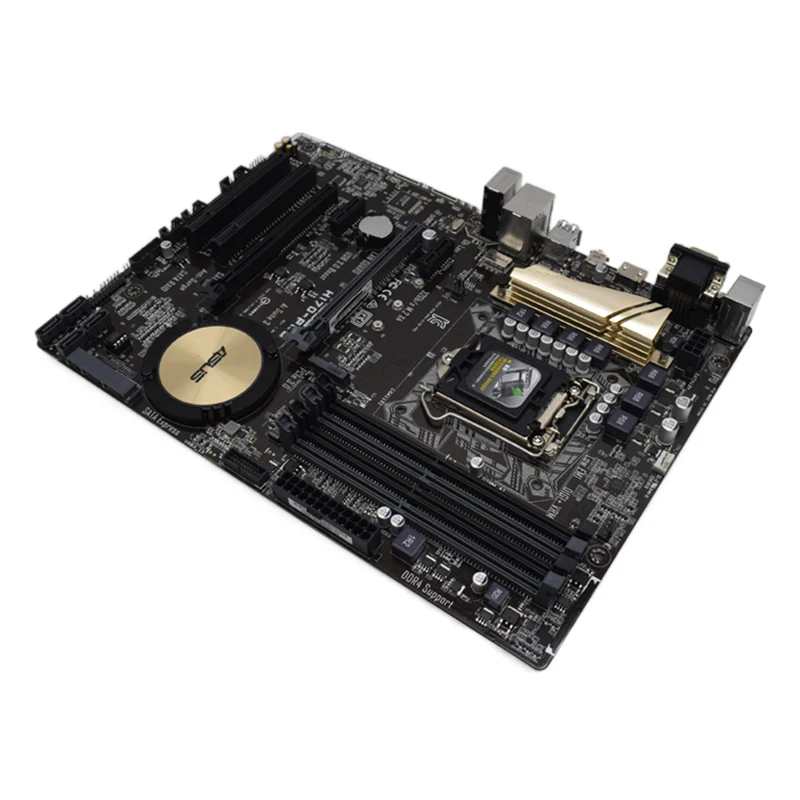

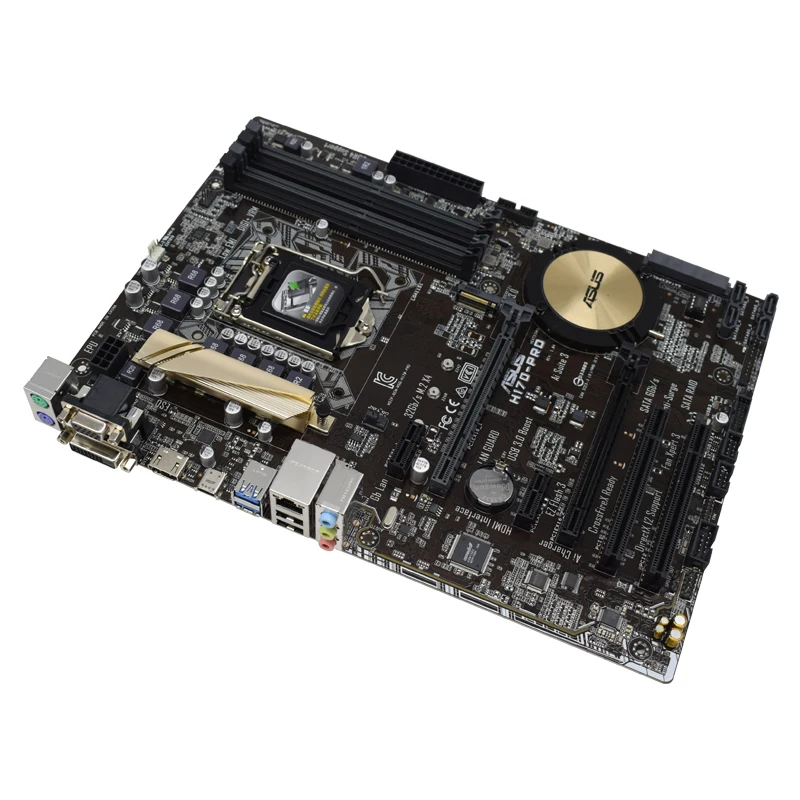

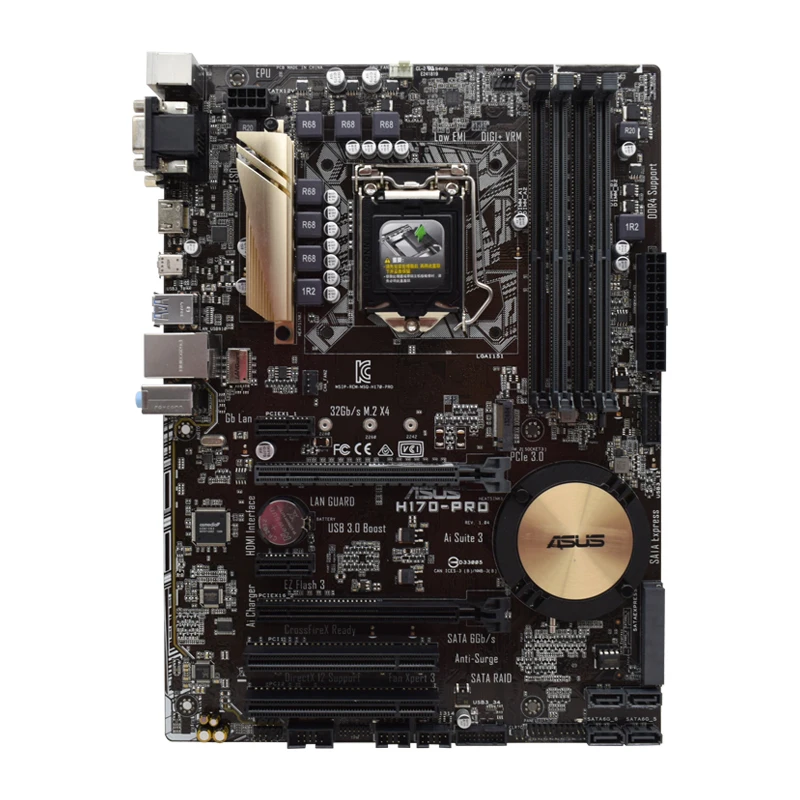

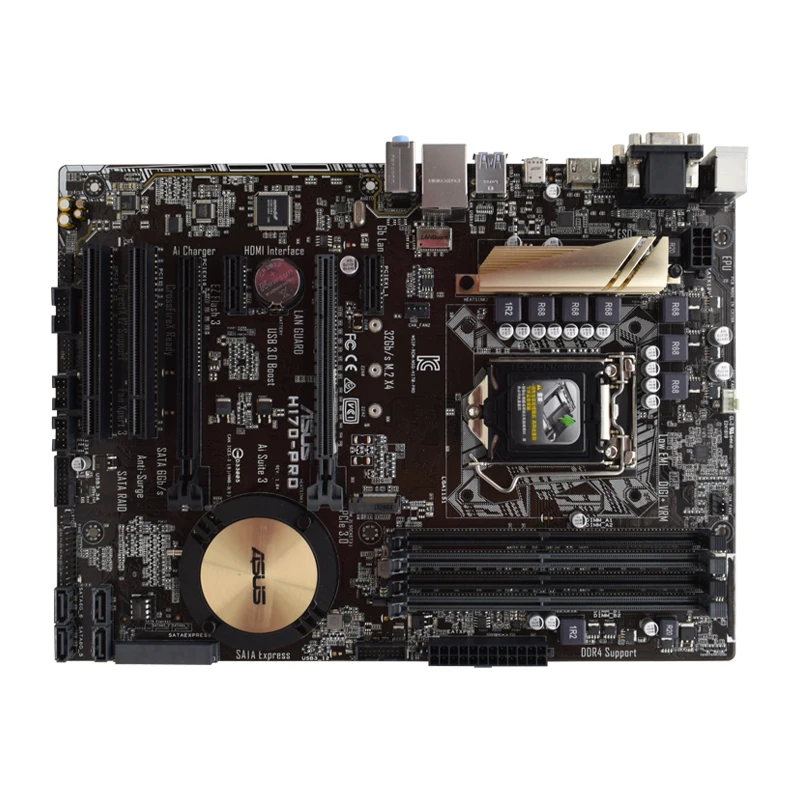

Main chipset Intel H170
Chipset description Using Intel H170 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface 1×M.2 interface, 1×SATA Express interface, 6×SATA III interface
