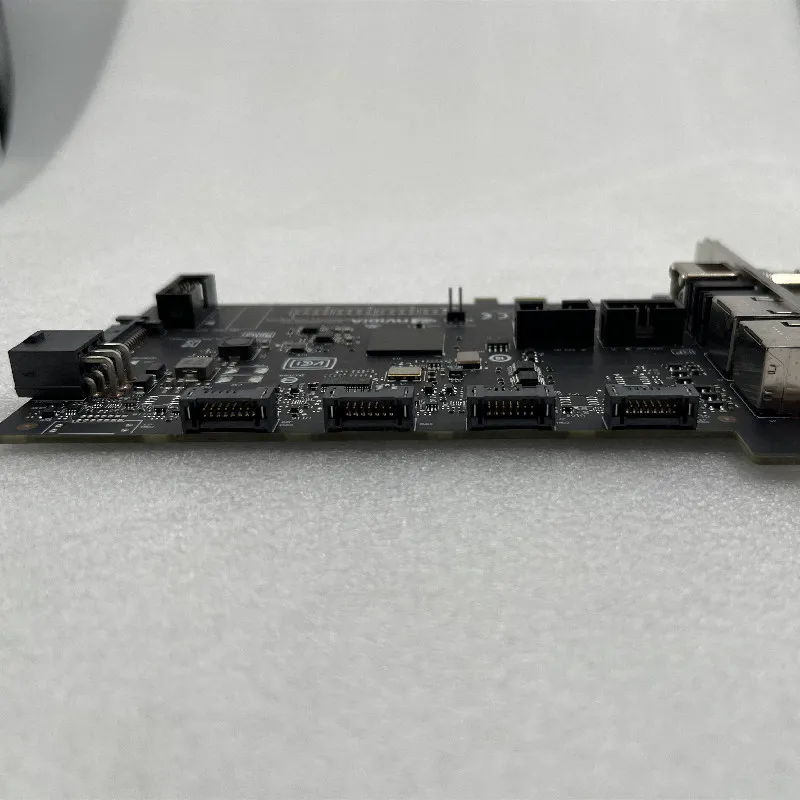

StoneTaskin Original Quadro SYNC II Synchronization Card for P Series RTX Series Graphics Card

Original Quadro SYNC II Synchronization Card for P Series RTX Series Graphics Card

Quadro Sync II GPU Compatible Graphics Cards:

Quadro RTX 8000, RTX 6000, RTX 5000, RTX 4000

Quadro GV100, Quadro GP100,

Quadro P6000, P5000, P4000

NVIDIA Quadro Sync II cards can synchronize up to 4 P-Series boards,

16 Sync Displays per Sync II Sync Display,

2 Sync II cards per system,

Up to 8 P-series GPUs per chassis,

A total of 32 simultaneous displays per system

Quadro Sync II and Quadro GPU support Windows 7, Windows 8, and Linux, providing a robust system that gives you:

Ensures that multi-projector systems or video walls are free of any image artifacts without compromising performance
Ensure that the input of a multi-input display device (such as a 4K projector or panel) is consistent
Ensuring proper operation of stereoscopic 3D displays across multiple systems
Make sure the monitor or projector is aligned with the external clock source


Quadro Sync II Backplane Connector RJ45 Frame Lock (2) + BNC Sync Lock
Quadro Sync II Board Connectors Sync Connectors (5)
Quadro Sync II LED Status Indicators Frame Lock, Stereo Phase Status, Sync Status
Quadro Sync II Form Factor 4.20"H x 6.00"L, Single Slot
Quadro Sync II Thermal Solutions Passive
Quadro Sync II Power Connector 6-pin PCI or SATA
Quadro Sync II System Interface Stabilizer feet fit into any available open slot
