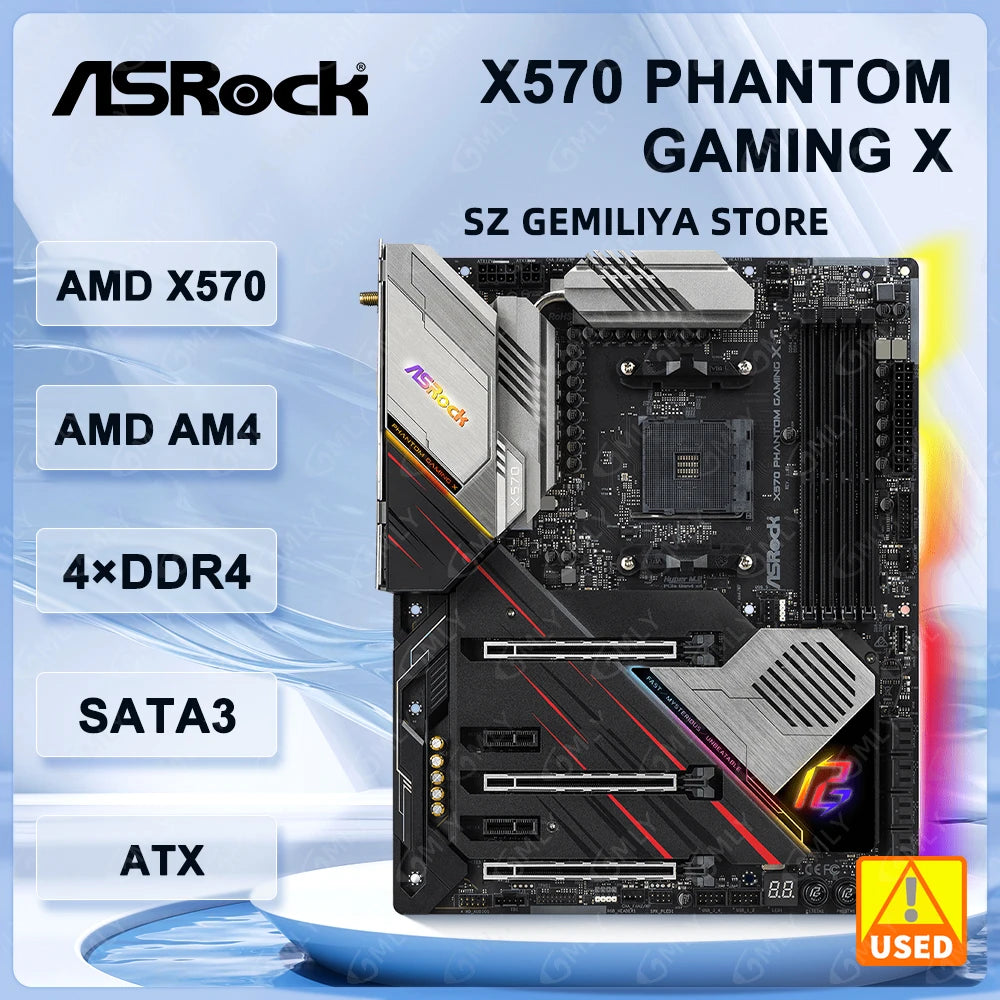

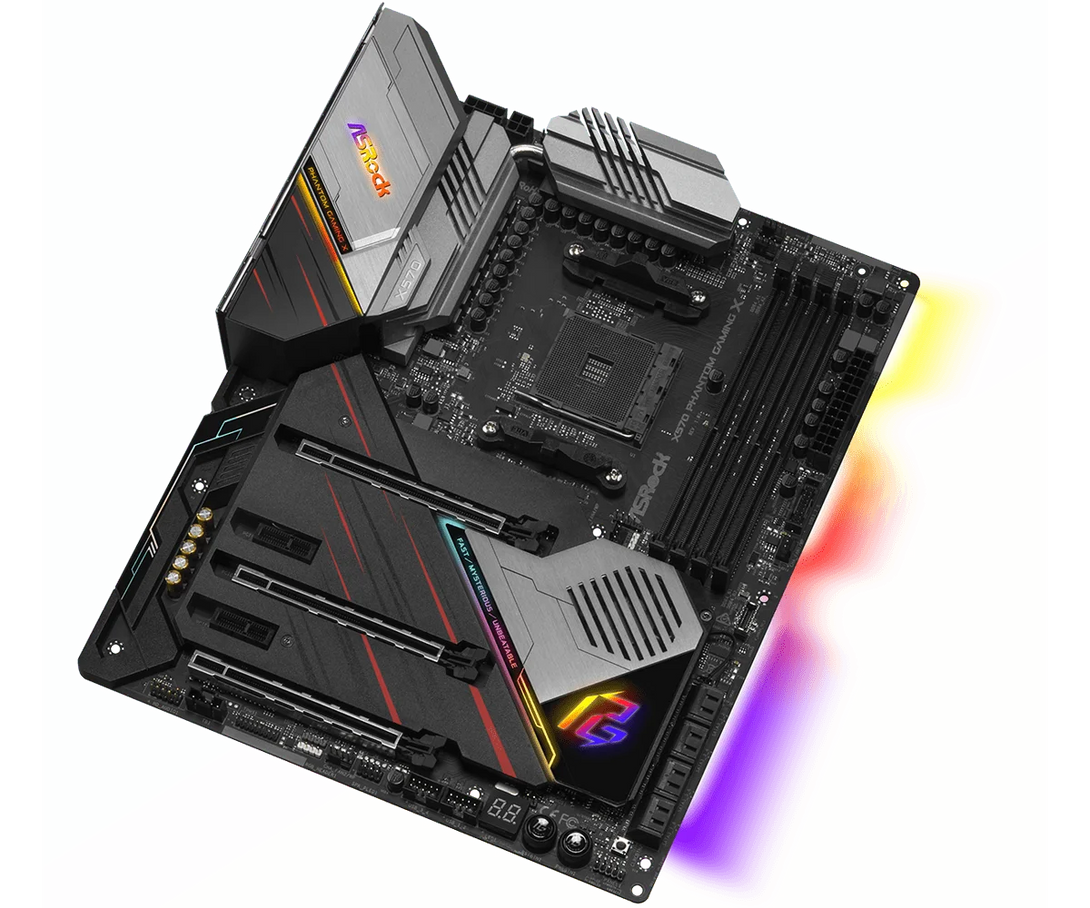

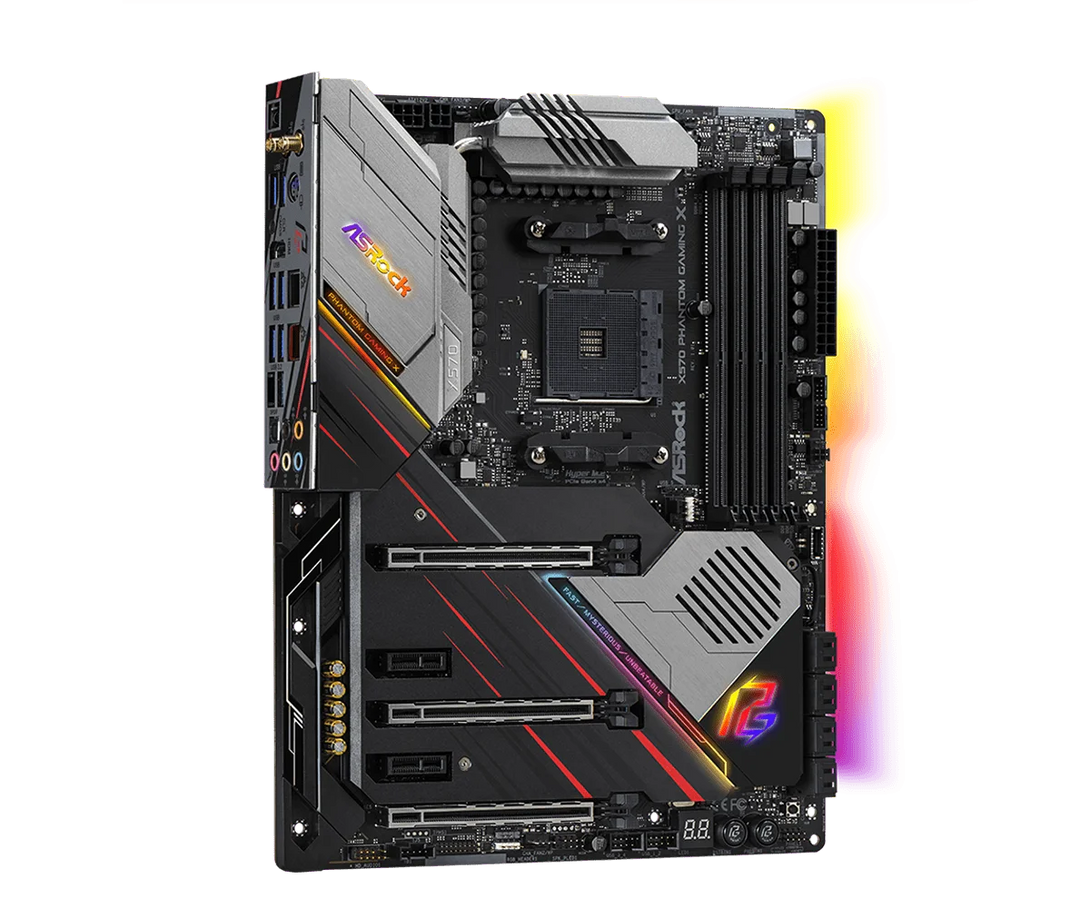

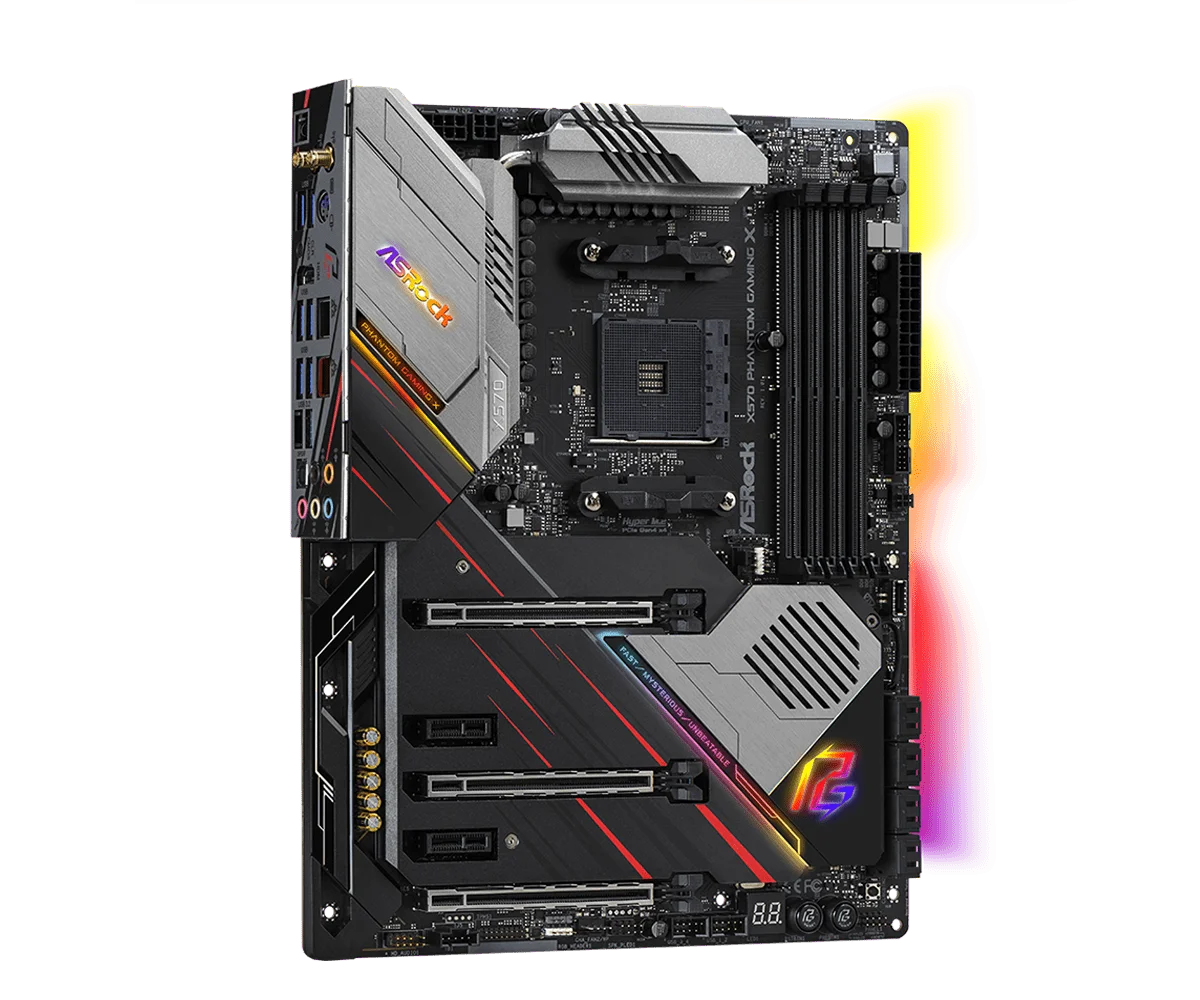

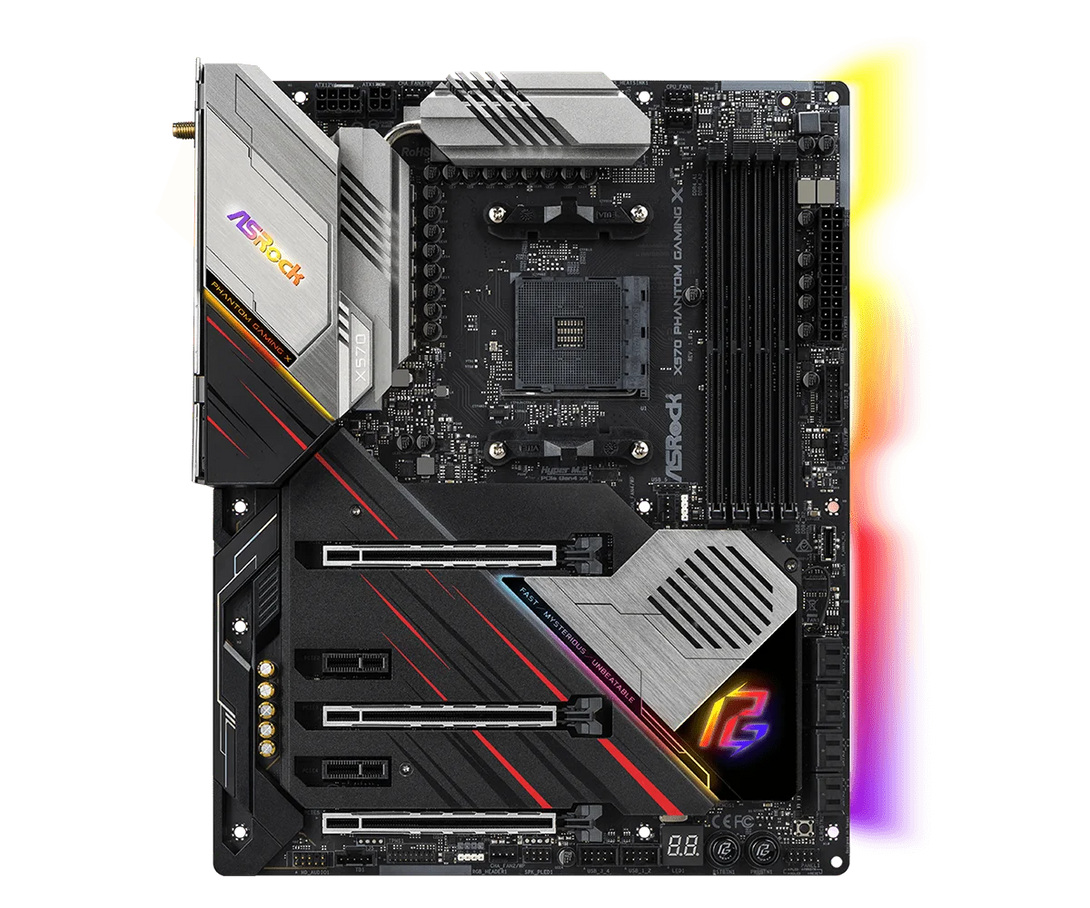

Motherboard chip
Integrated chip Sound card/network card
Main chipset AMD X570
Chipset description Using AMD X570 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC1220 7.1 channel sound chip
Network card chip Onboard Realtek I211AT Gigabit network card
Processor specifications
CPU type Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
CPU socket Socket AM4
CPU description Able to provide an additional 300W power to the CPU, supporting ASRock B+ Turbo chip II
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description AMD Ryzen series processors (Matisse) support DDR4 4666+(OC)/4400(OC)/4300(OC)/4266(OC)/4200(OC)/4133(OC)/3466(OC)/3200/2933/2667/2400/2133MHz memory
AMD Ryzen series processors (Pinnacle Ridge) support DDR4 3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133MHz memory
AMD Ryzen series processors (Picasso) support DDR4 3466+(OC)/3200(OC)/2933/2667/2400/2133MHz memory
Storage expansion
PCI-E standard PCI-E 4.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 8×SATA III interface, 2×Hyper M.2 PCIe (Gen4x4)

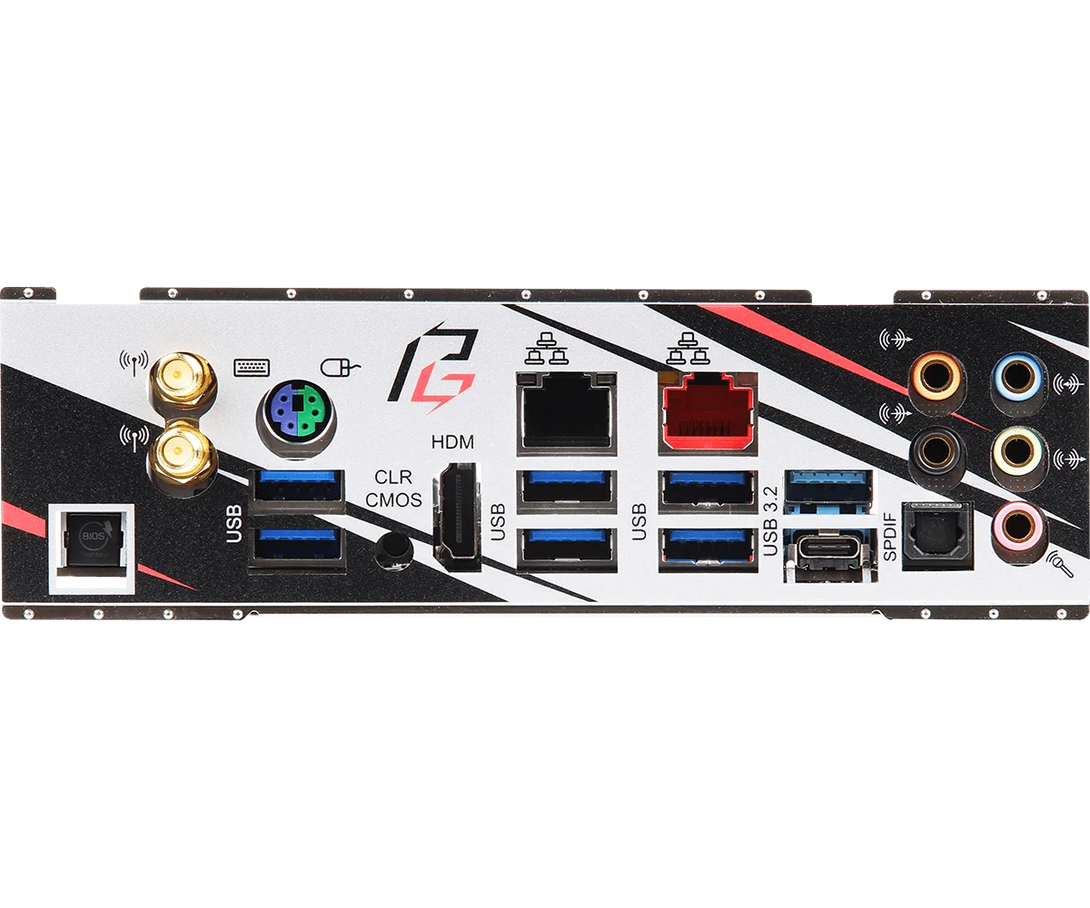

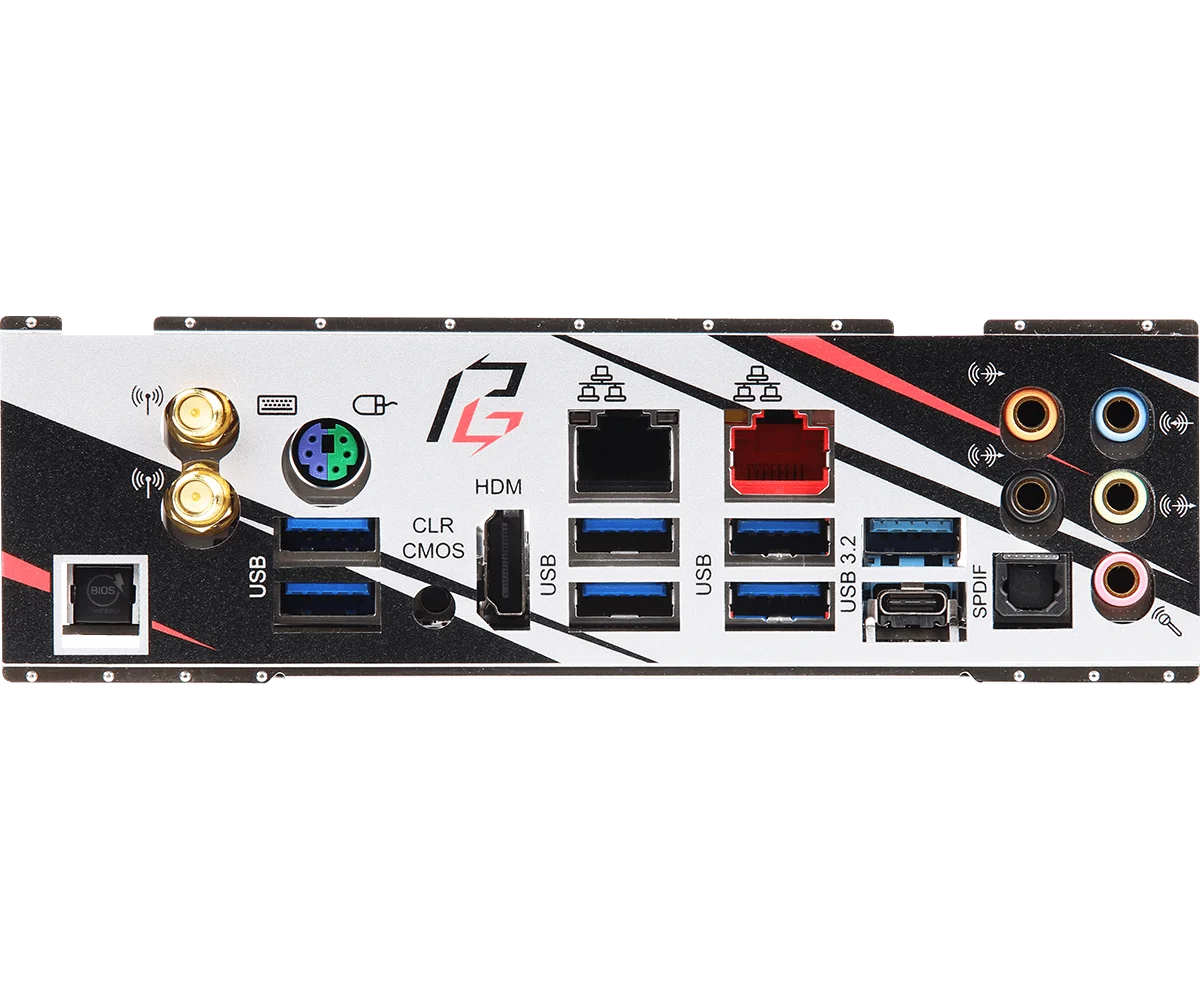

I/O interface
USB interface 1×USB2.0 pin header (supports 2 USB2.0 interfaces) (supports ESD protection)
2×USB3.2 Gen1 pin header (supports 4 USB3.2 Gen1 interfaces) (supports ESD protection)
2×USB3.2 Gen2 Type-A interface (10 Gb/s) (supports ESD protection)
6×USB3.2 Gen1 interface (supports ESD protection)
Video interface 1×HDMI interface, 1×Display Port interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×PS/2 universal keyboard and mouse interface, 1×RJ45 network interface, 5×audio interfaces, 3×antenna ports, 1×Thunderbolt pin header
Motherboard type
Motherboard type ATX board type
Dimensions 30.5×24.4cm
