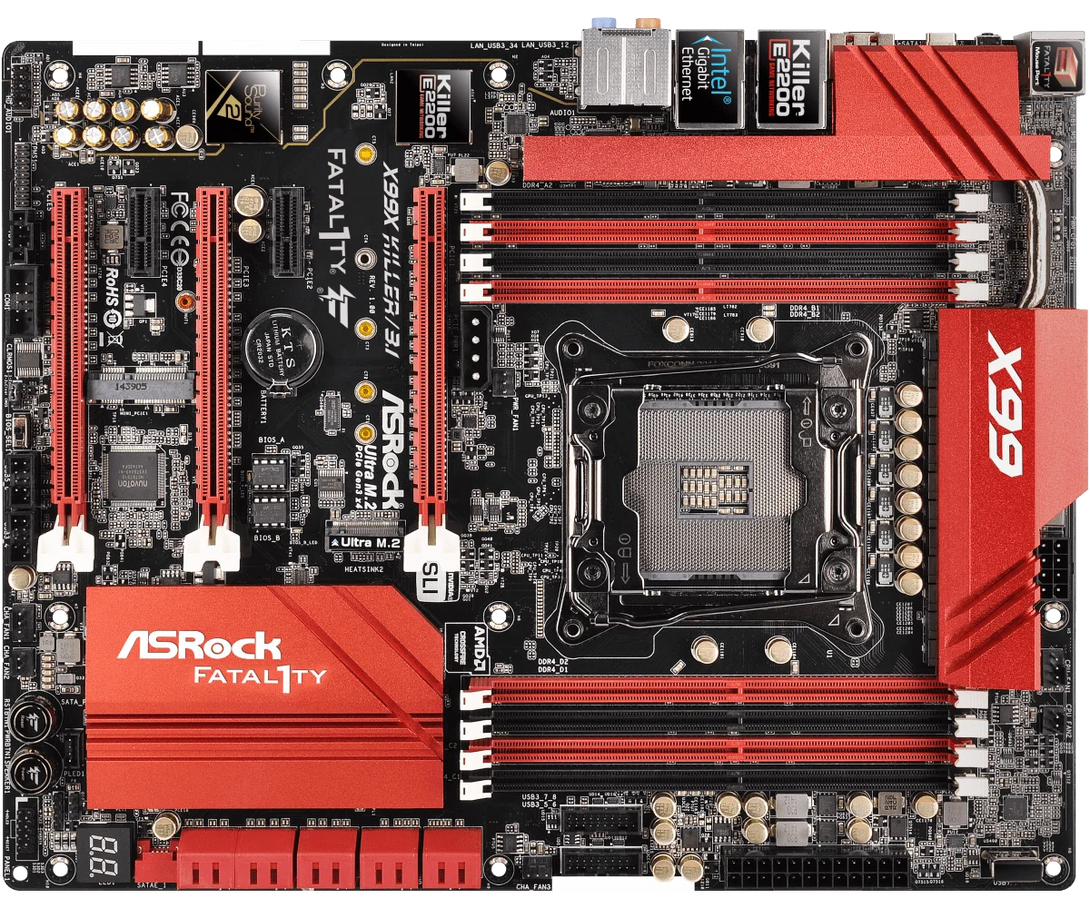

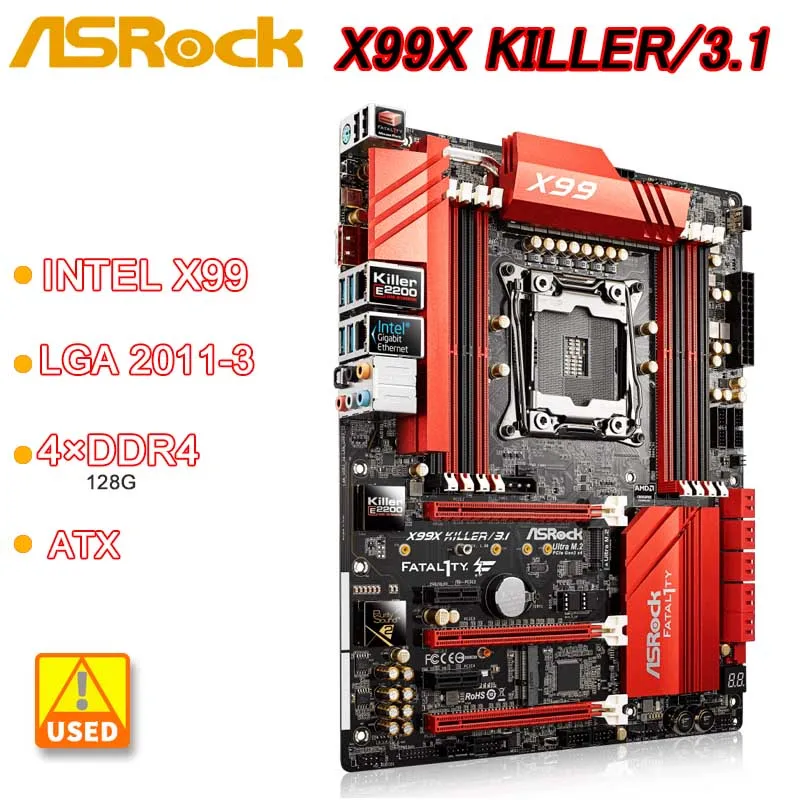

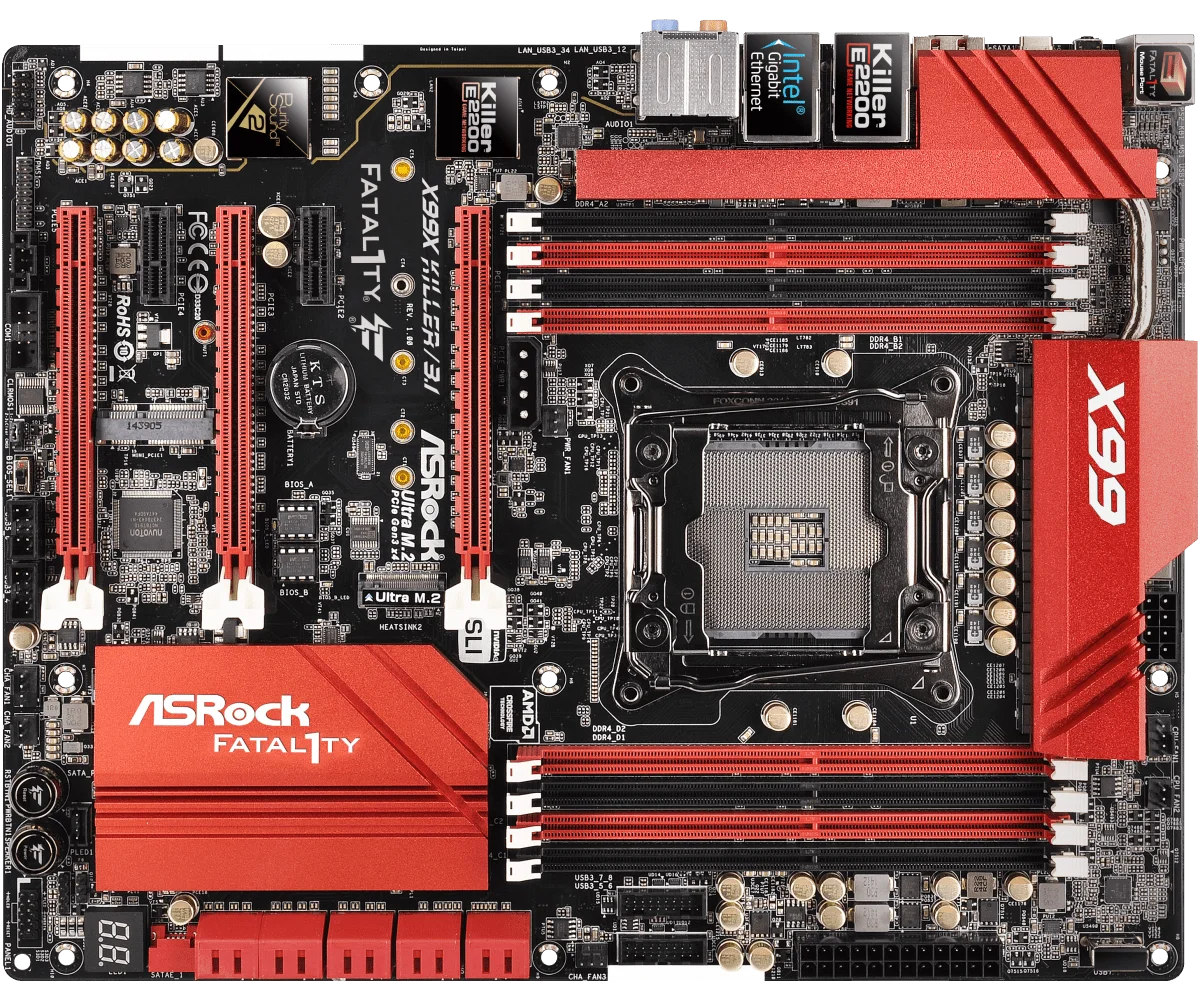

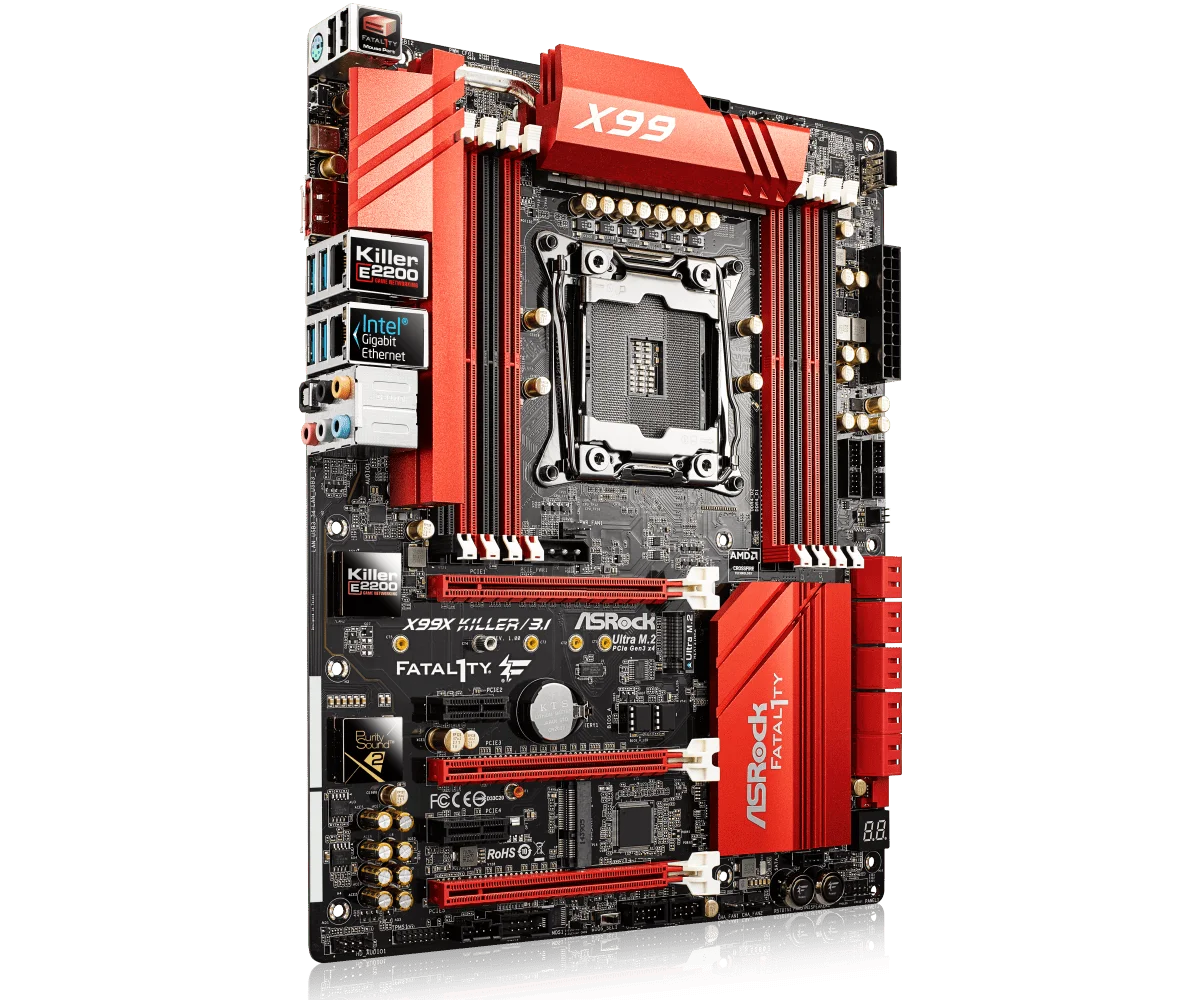

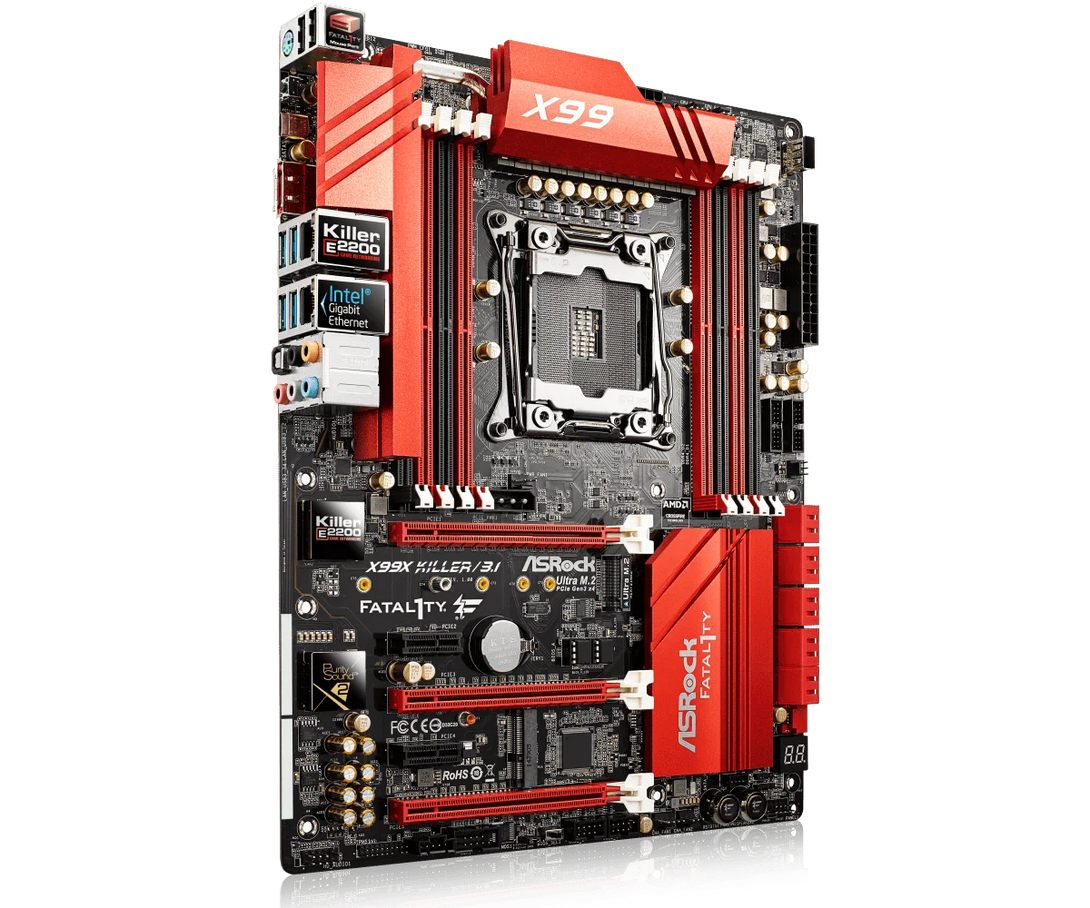

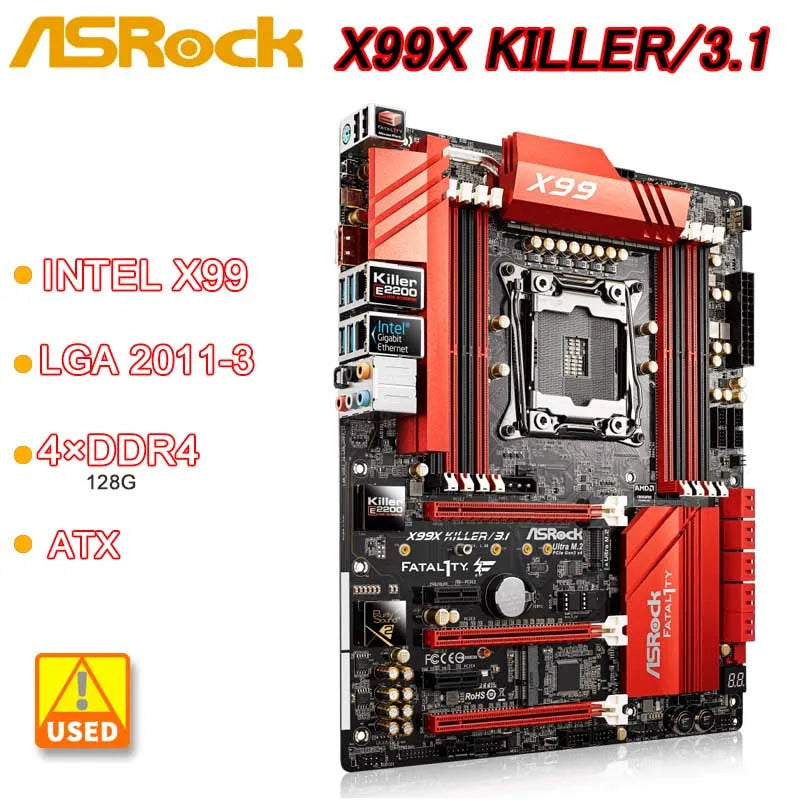

motherboard chip
Integrated Chip Sound Card/Network Card
Main Chipset Intel X99
Chipset Description Using Intel X99 chipset
Audio chip Integrated Realtek ALC1150 8-channel audio chip
Network card chip Onboard Intel I218V Gigabit network card
Onboard Atheros Killer E2200 series Gigabit LAN
Processor Specifications
CPU type Core i7/Xeon E5-1600/2600 v3
CPU socket LGA 2011-V3
memory specification
Memory Type 8×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support four-channel DDR4 3000(OC)/2933+(OC)/2800(OC)/2400(OC)/2133/1866/1600/1333/1066MHz memory
storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot, 1×mini PCI-E slot

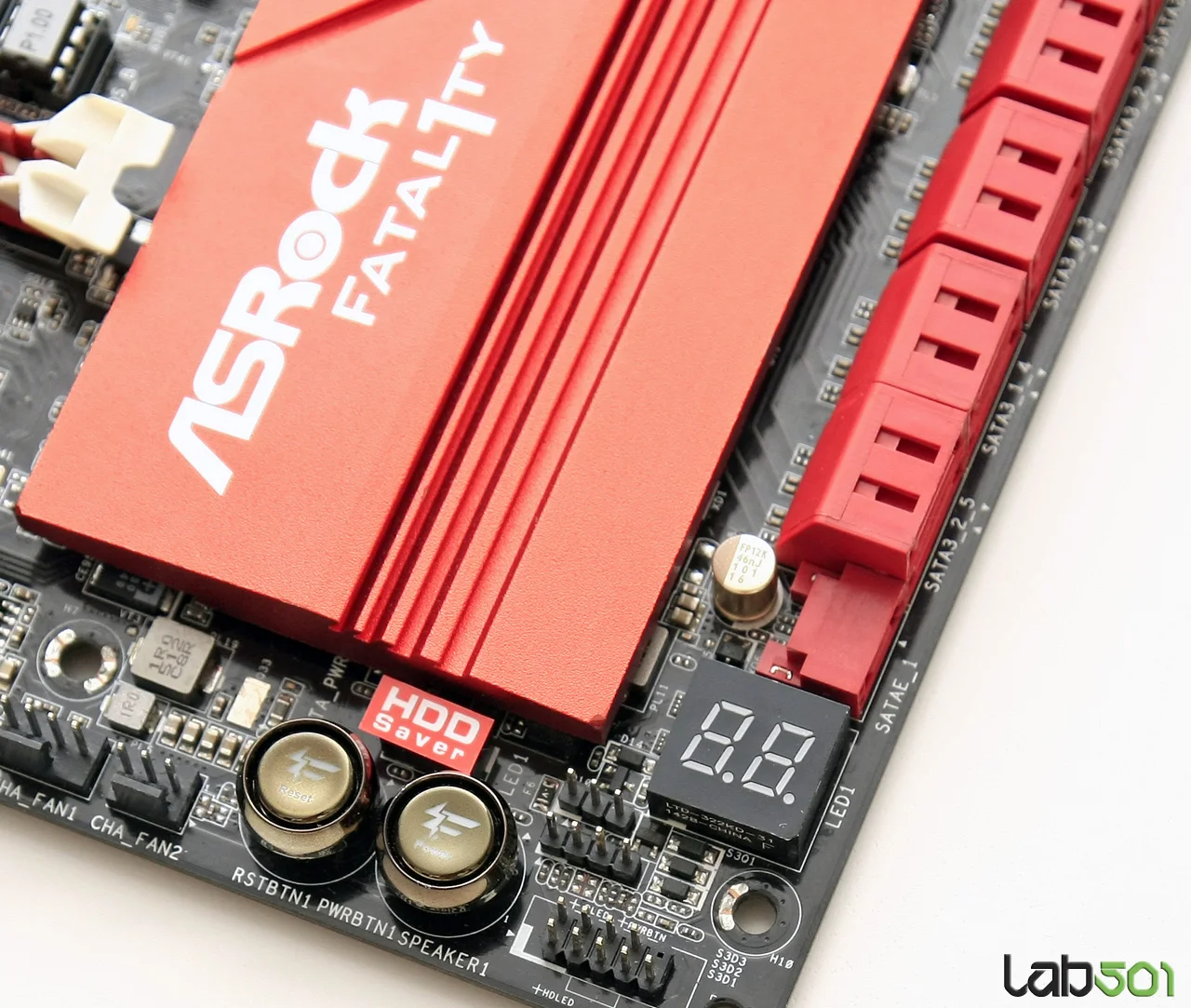

Storage interface 1×M.2 interface, 10×SATA III interface, 1×eSATA interface

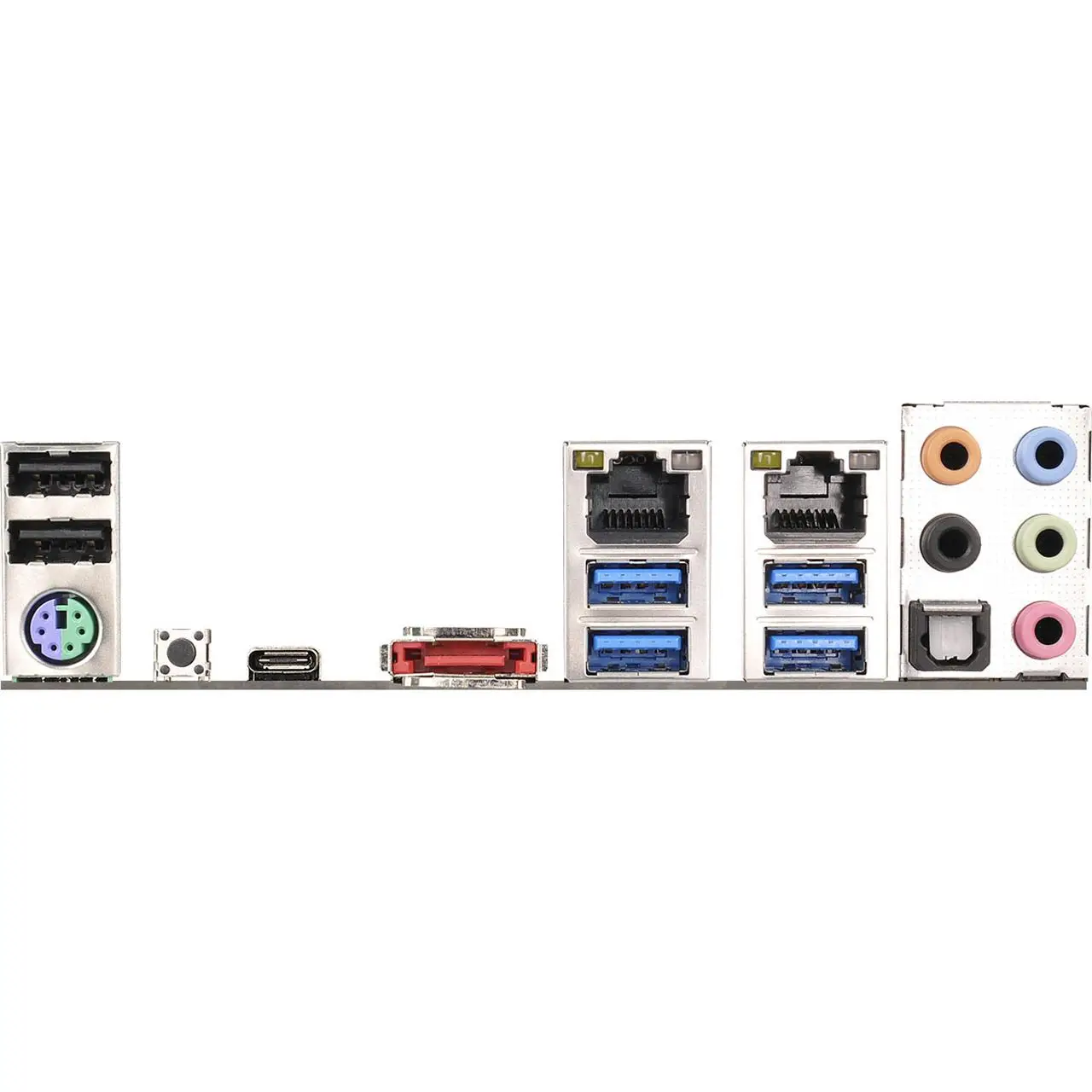

I/O interface
USB interface 1×USB2.0 interface, 6×USB3.0 interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 2×RJ45 network interface, audio interface, PS/2 universal interface for keyboard and mouse
plate type
Motherboard form factor ATX form factor
software management
BIOS Features 2 x Multilingual 128Mb AMI UEFI Legal BIOS with GUI support (1 x Main BIOS and 1 x Backup BIOS)
Support secure backup UEFI technology
Compliant with ACPI 1.1, supports Wake Up Events
Support for SMBIOS 2.3.1
CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM voltage multifunction regulator
Other parameters
Multi-graphics technology supports AMD CrossFireX crossfire technology
Support AMD 3-Way CrossFireX technology
Support NVIDIA SLI dual-way crossfire technology
Support NVIDIA 3-Way SLI three-way crossfire technology
Power supply mode 12 phases
Overclocking function Support free overclocking technology
Hardware monitoring CPU/chassis temperature detection
CPU/Chassis/Power Supply Fan Tachometer
CPU/chassis silent fan (automatically adjusts chassis fan speed according to processor temperature)
CPU/case fan multi-speed control
Voltage real-time monitoring: +12V, +5V, +3.3V, CPU input voltage, CPU internal voltage
Operating system Support Windows 8.1/8/7 operating system
