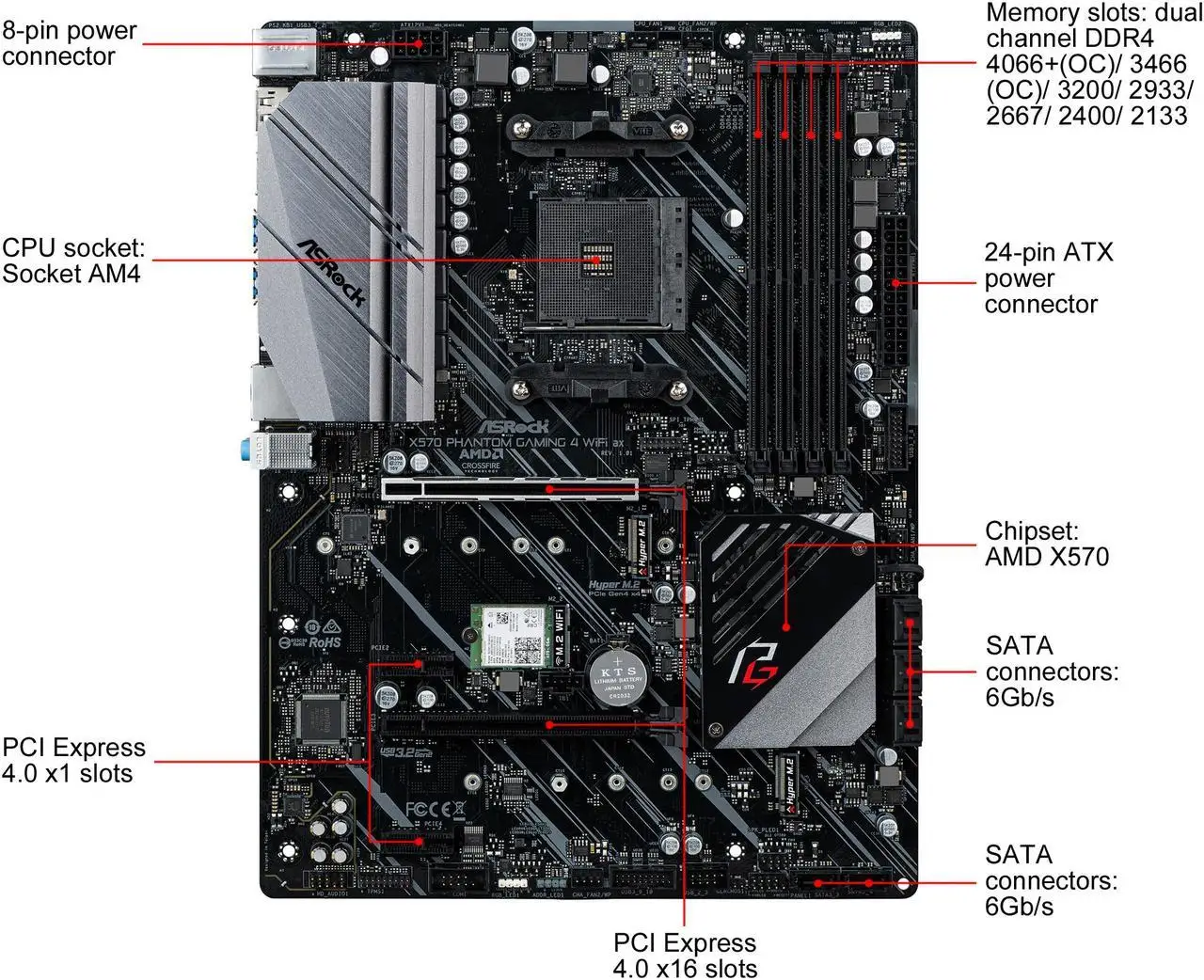

Description
Chipset
Integrated chip graphics card/sound card/network card
Main chipset AMD X570
Chipset description uses AMD X570 chipset
Display chip integrated with AMD Radeon HD Vega display core
Audio chip integrated with Realtek ALC1200 7.1 channel sound effect chip
Network card chip onboard Intel I211AT gigabit network card
Processor specifications
CPU type supports AMD AM4 slot Ryzen 2000 and 3000 series processors
CPU socket socket AM4
Memory specifications
Memory type 4xDDR4 DIMM
Maximum memory capacity of 128GB
Memory Description: Supports dual channel DDR4 DDR4 4066+(OC)/3466 (OC)/3200/2933/2667/2400/2133MHz memory
Storage Expansion
PCI-E Standard PCI-E 4.0
PCI-E slot 2 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
Storage interface 2 x M.2 interface, 8 x SATA III interface

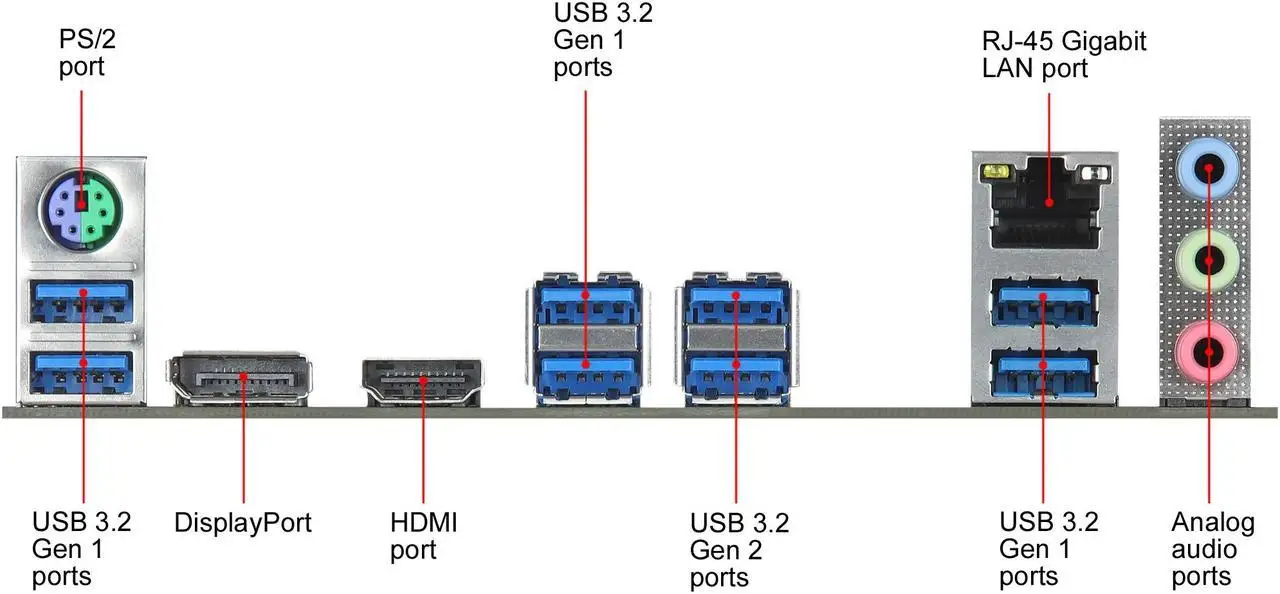

I/O interface
USB interface 2 x USB 3.2 Gen2 interface (supporting ESD electrostatic protection), 6 x USB 3.2 Gen2 interface
Video interface 1 x HDMI interface, 1 x Display Port interface
One 8-pin power interface and one 24 pin power interface
Other interfaces: 1 x PS/2 universal keyboard and mouse interface, 1 x RJ45 network interface, 3 x audio interface, 2 x antenna ports
Plate type
Motherboard type ATX board type
Dimensions 30.5 × 22.9cm
