NOTE: 1.Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.
2.We may ship a compatible screen model according to the inventory. If you need to specify the model, please leave a message or contact customer service.
LCD Screen Parameters

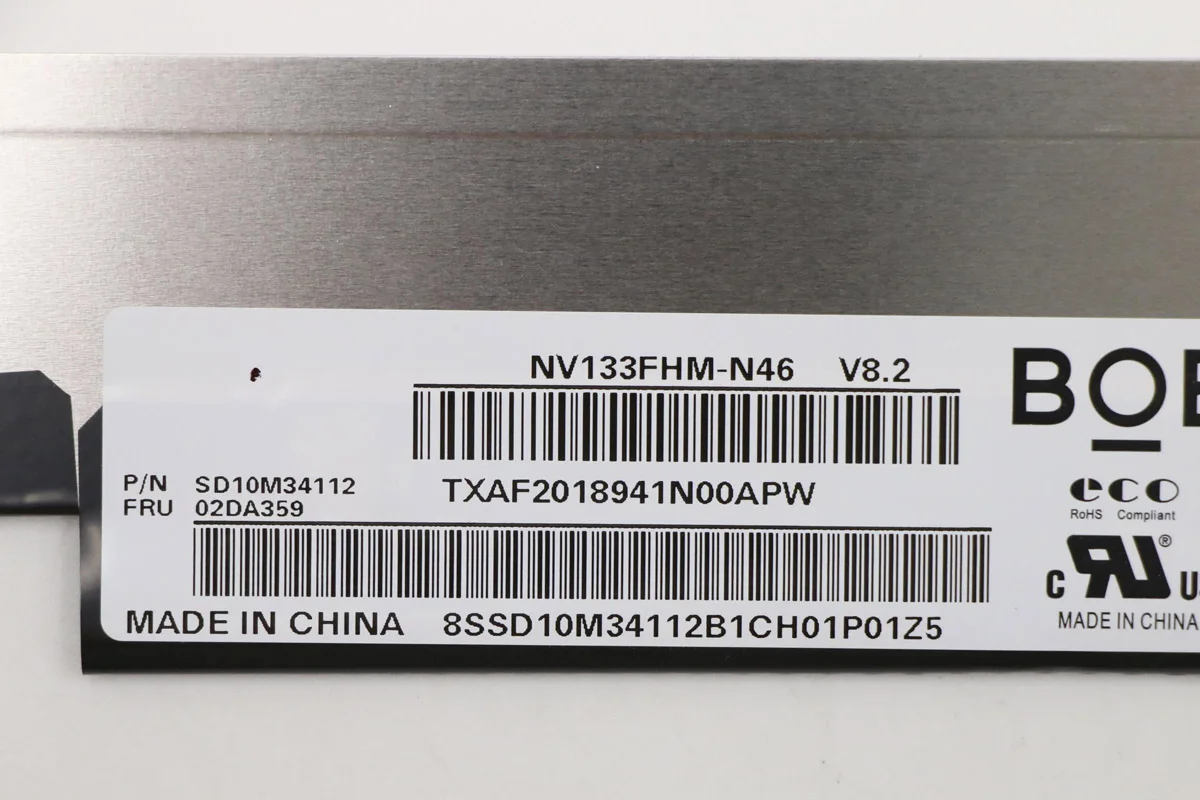

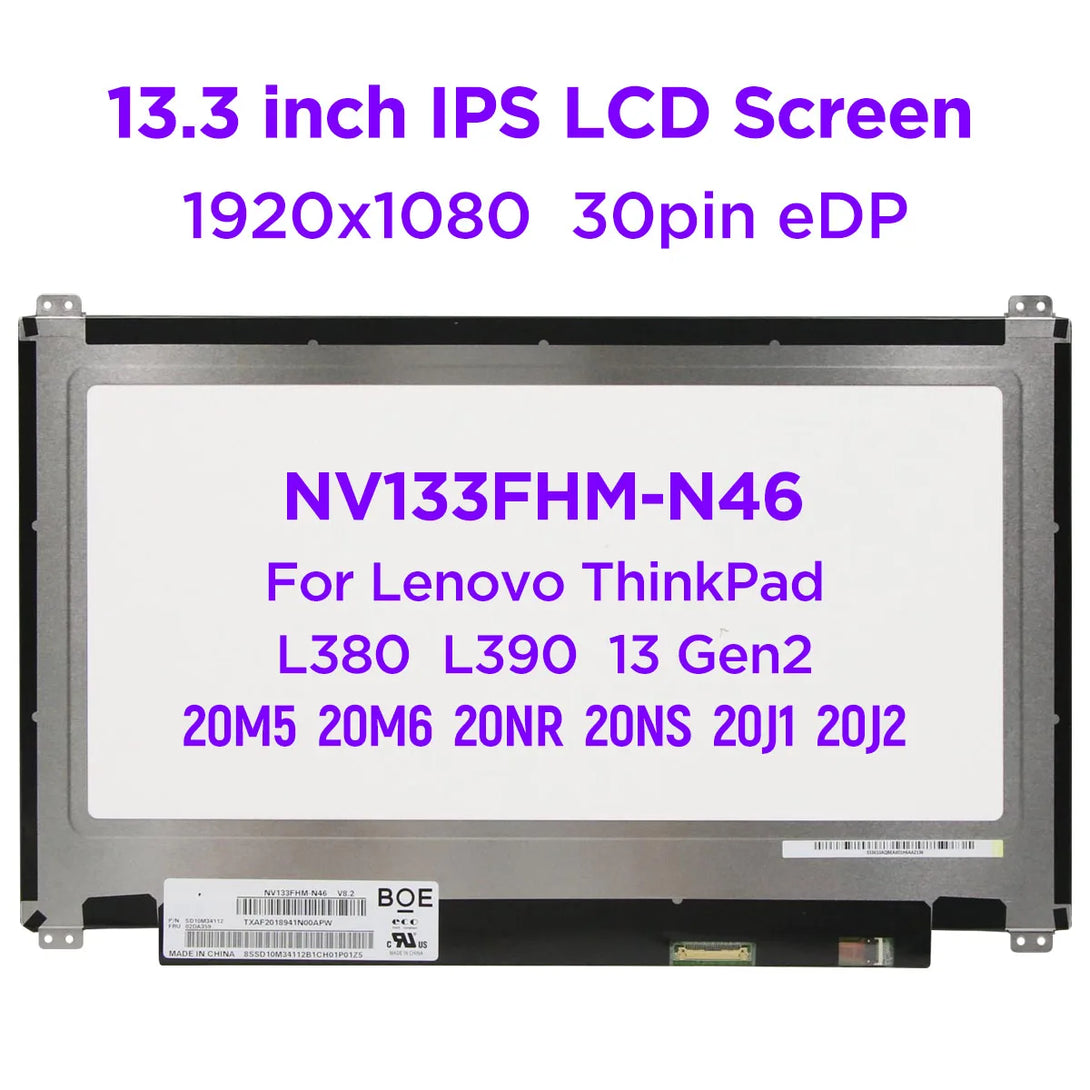

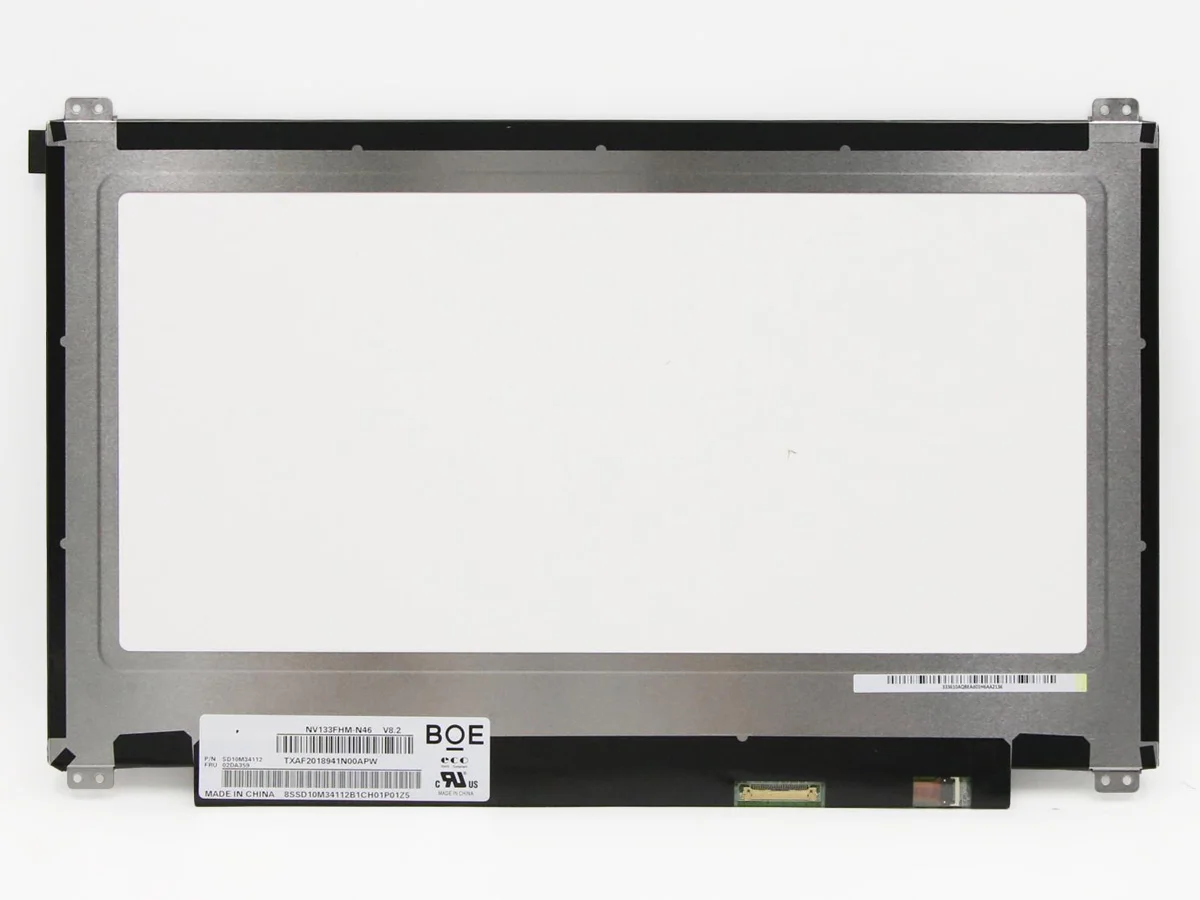

Panel Model: NV133FHM-N46 V8.2 or Compatible model.
Screen Size: 13.3"
Pixel Number: 1920(RGB)x1080 , FHD, 166PPI.
Reflash Rate: 60Hz
Screen Type: AH-IPS
Contrast Ratio: 800:1 (Typ.) (TM).
Brightness: 250 cd/m² (Typ.).
Display Colors: 262K., 45% NTSC.
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10).

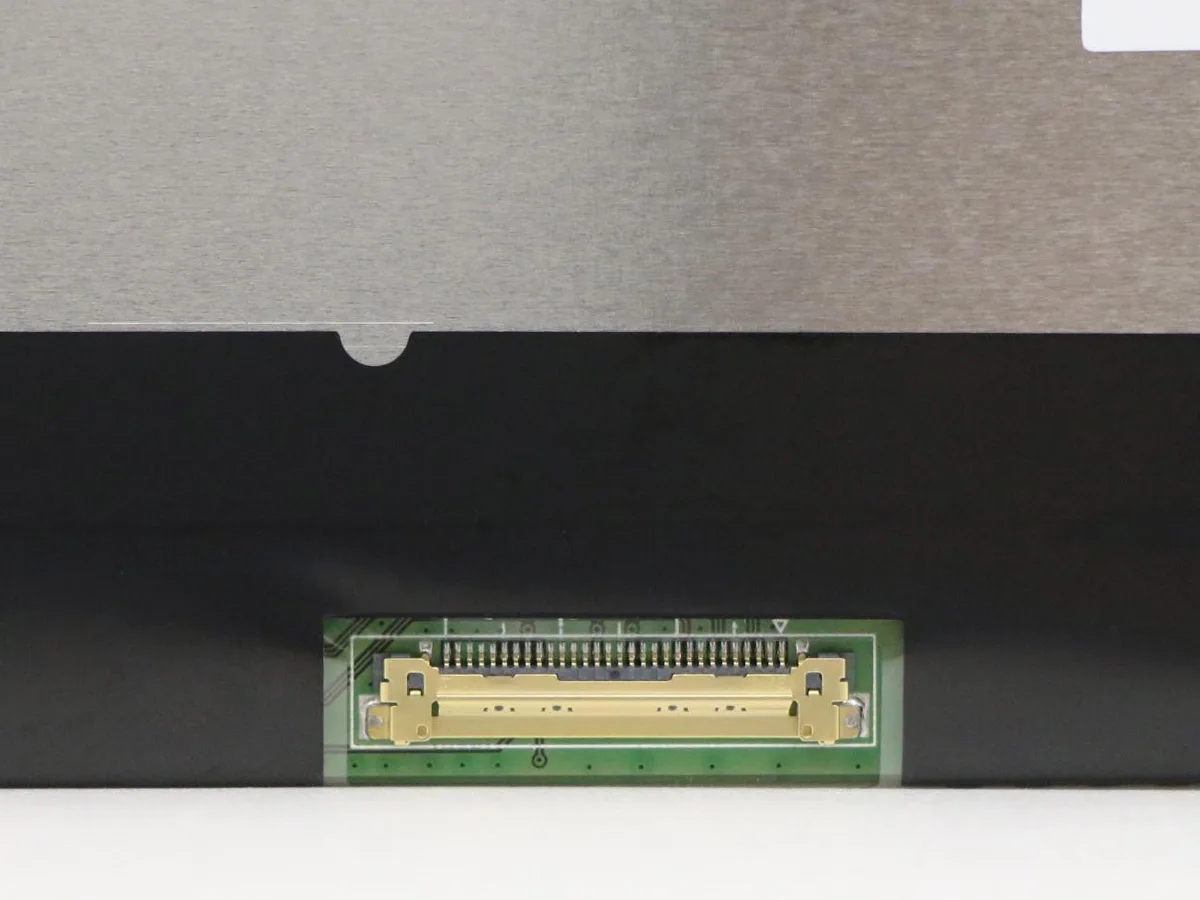

Signal Interface: eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector.
Backlight: WLED
Quality: A, Tested well before shipping
Warranty: 180 days.
eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector.
