Note: This product uses an immersion gold plate, a large number of alloy integrated inductors, tantalum capacitors, solid capacitors!
1. product description

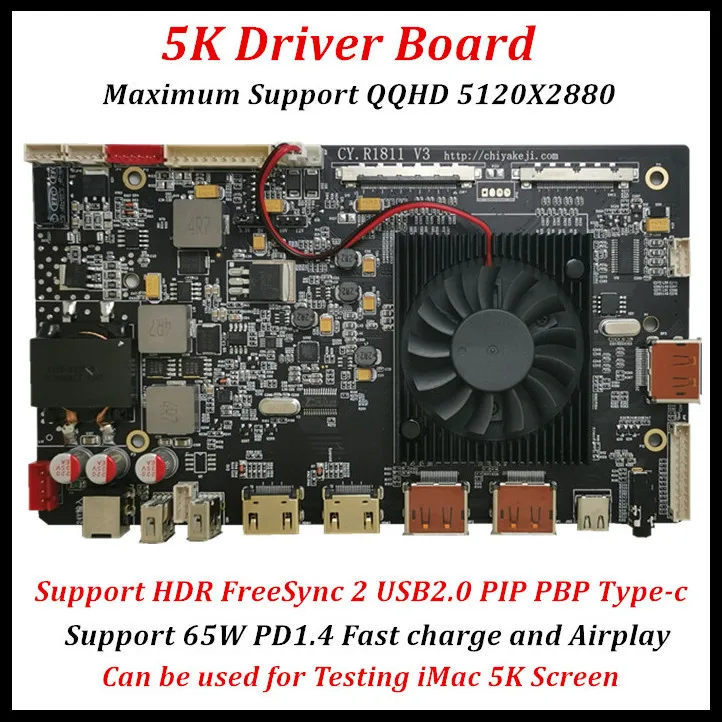

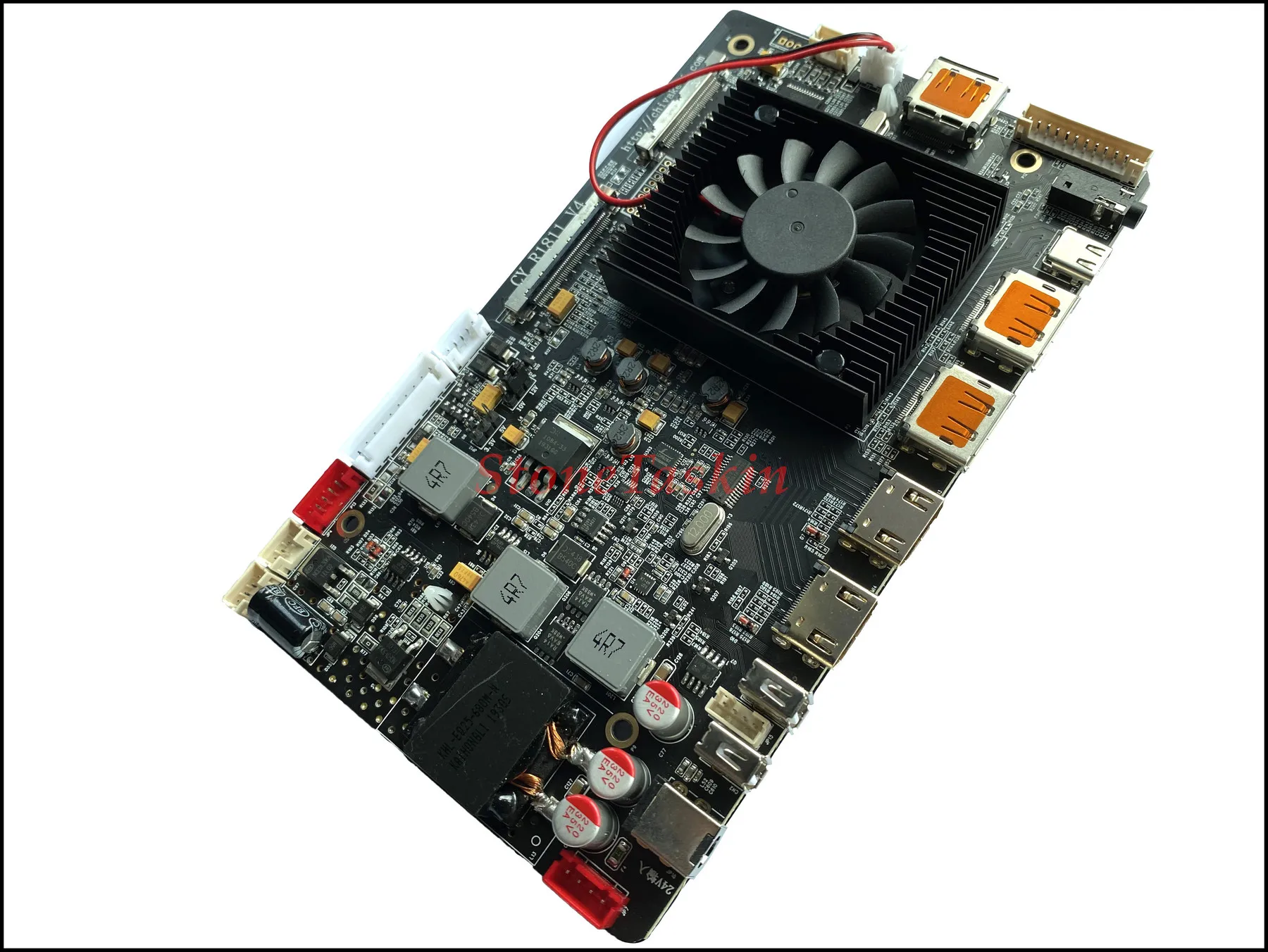

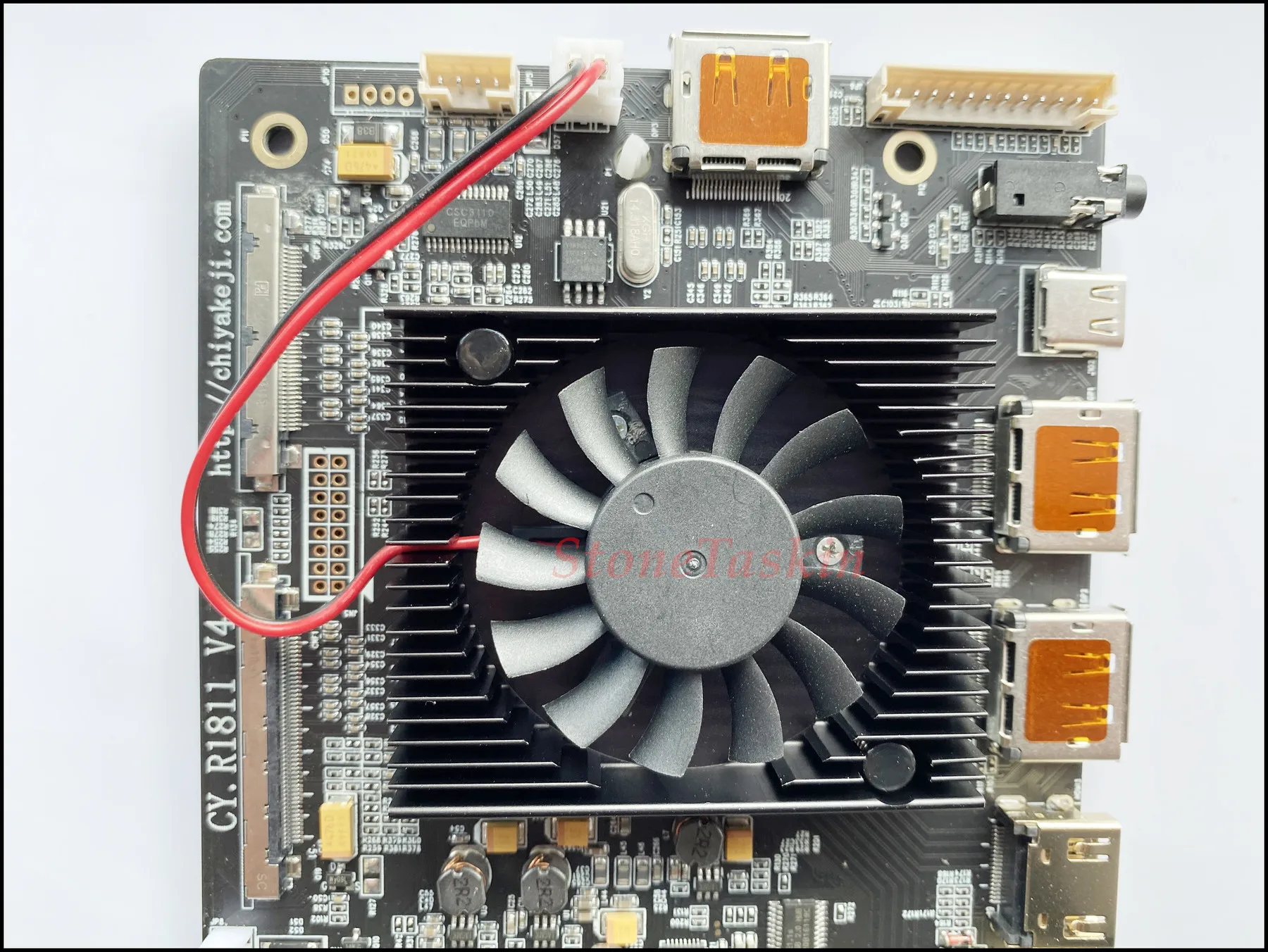

R1811 is a LCD MONITOR driver board that supports QQHD. The product supports VGA, SVGA, XGA, SXGA, UXGA, QHD and QQHD resolution TFT LCD screens, such as UHD LCD screens of LG, Philips, SAMSUNG, AUO, and other brands.
2. Product Features
2.0 Support HDR10 High-Dynamic Range (HDR), compared to ordinary images, can provide more dynamic range and image details, according to different exposure time LDR (Low-Dynamic Range) images, use Each exposure time corresponds to the best detail LDR image to synthesize the final HDR image, which can better reflect the visual effect in the real environment.
2.1 Support FreeSync 2 technology of AMD graphics card to improve the picture tearing and freezing problem and improve the picture quality.
2. The HDMI interface supports the HDMI2.0 protocol and supports the hard decode 4K @ 60HZ signal
2.3 The DP interface supports the DP1.1, DP1.2, and DP1.4 protocols support hard decoding of 5K @ 60HZ and 4K @ 144Hz signals and supports the DP ring connection function.
2.4 Support 65W PD fast charge.
2.5 Support USB2.0

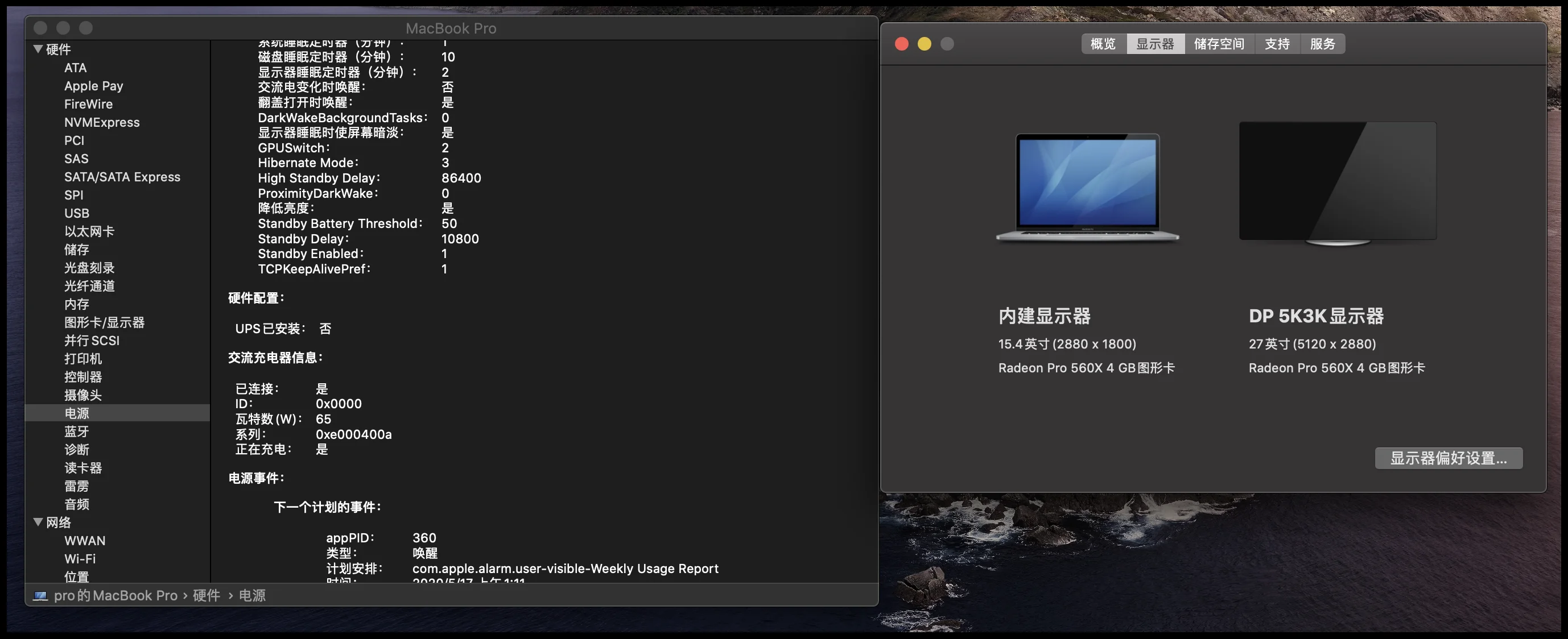

2.6 Support Type-C mobile phone screen projection function (this function requires mobile phone support), Type-c interface supports MACBOOK input 5K resolution
2.7 Support PIP, PBP
2.8 The on-screen display menu is convenient to use, and can control all the supported functions: Automatically adapt to screen picture adjustment, brightness and contrast control, OSD menu supports Chinese and English language, 5-key OSD control button, supports remote control function.
Tested LED Screen was compatible, More models please contact with us
LM270QQ2、LM270QQ1、G270ZAN01.2、M270QAN02.3、LM340RW1-SSA1、LM375QW2-SSA1、
LM340UW5（DP144HZ）、LSM434YP01-M01、LSM490YP01、LM490DQ1-SSA1、LTM282RL01
Different screen models compatible with different software, The interfaces are different.It can not universal.Please leave us a message when you're purchasing.

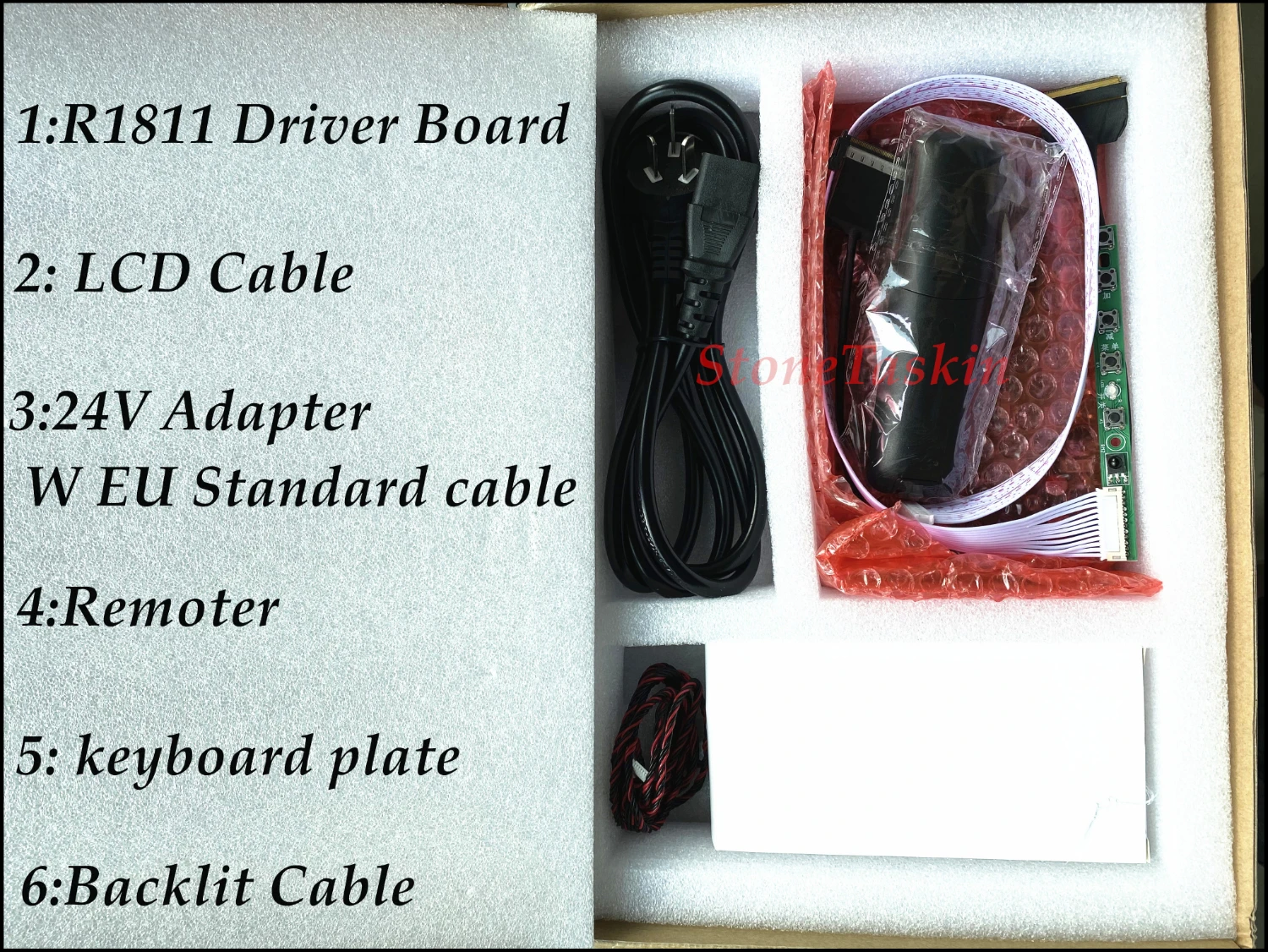

Package Including:
1* R1811 Driver Board
1* keyboard plate
1*12V 5A power supply（Only provide EU standard plugs, other countries need to buy their own plug wires）
1*backlight cable（It depends on the type of screen）
