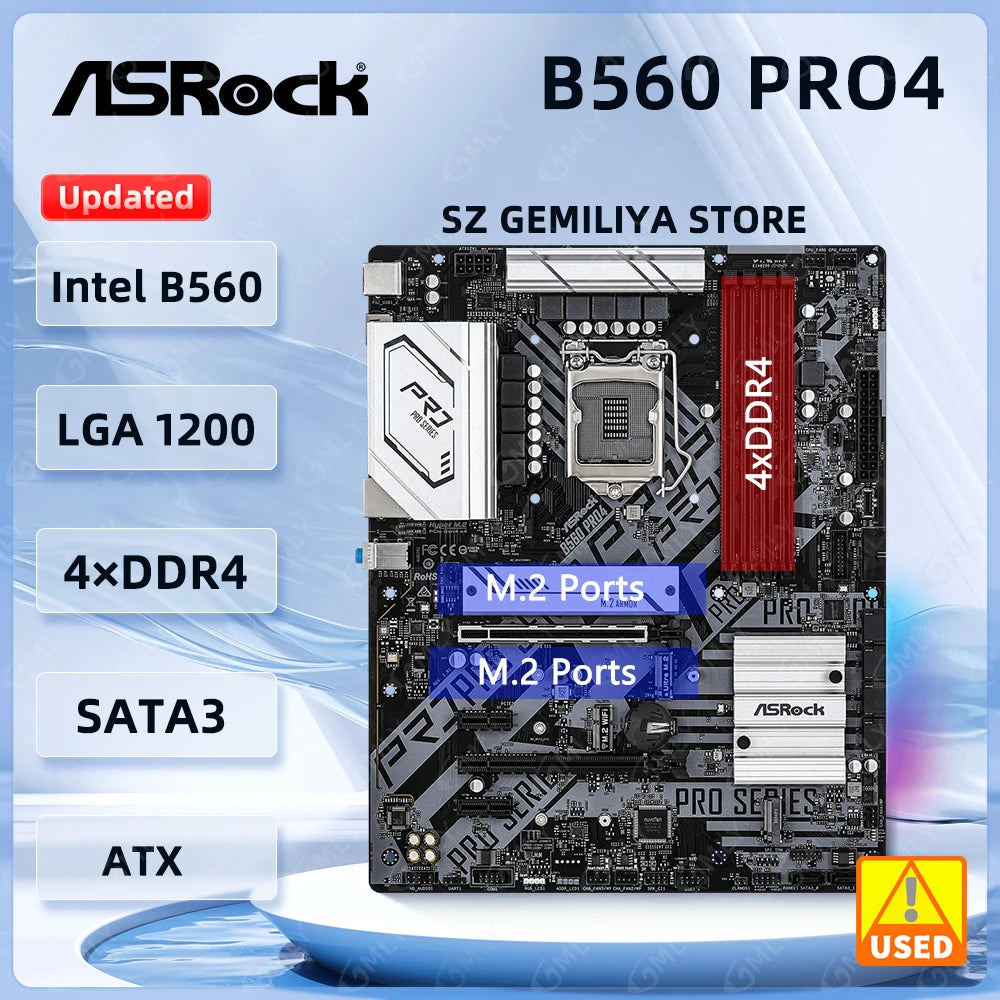

Motherboard chip
Integrated chip Sound card/network card
Main chipset Intel B560
Chipset description Using Intel B560 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC897 7.1 channel sound chip
Network card chip Onboard Gigabit network card
Processor specifications
CPU type 11th/10th generation Core/Pentium/Celeron
CPU slot LGA 1200
CPU description Turbo Boost Max 3.0 technology
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual-channel DDR4 4800MHz (overclocked) memory
Support Intel Extreme Memory Profile (XMP) 2.0 technology
Storage expansion
PCI-E standard PCI-E 4.0
PCI-E X16 slot 2
PCI-E X1 slot 2
Storage interface 3×M.2 interface, 6×SATA III interface

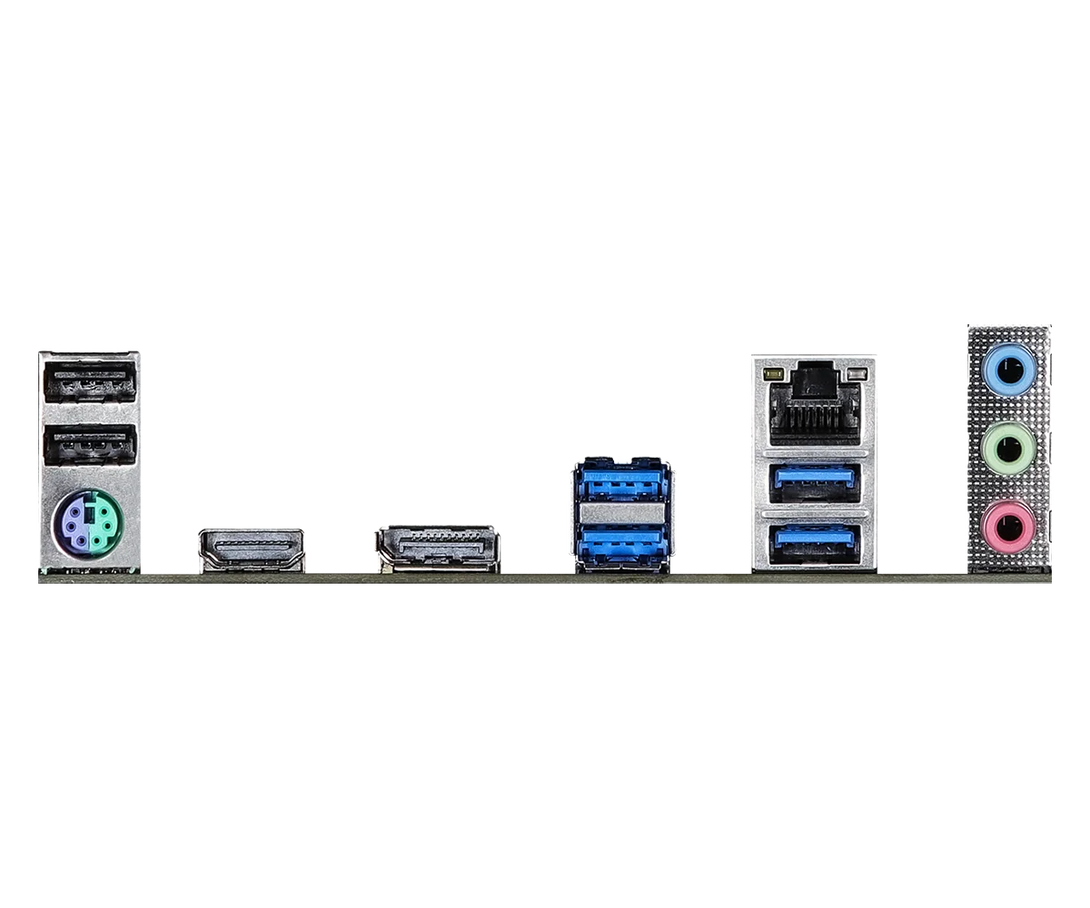

I/O interface
USB interface 8×USB3.2 Gen1 interfaces, 4×USB2.0 interfaces, 1×USB3.2 Gen1 Type-C interface
Video interface 1×HDMI interface, 1×DisplayPort 1.4 interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 3×antenna installation ports, 1×PS/2 keyboard/mouse interface, 1×RJ-45 network card interface, 3×audio interfaces

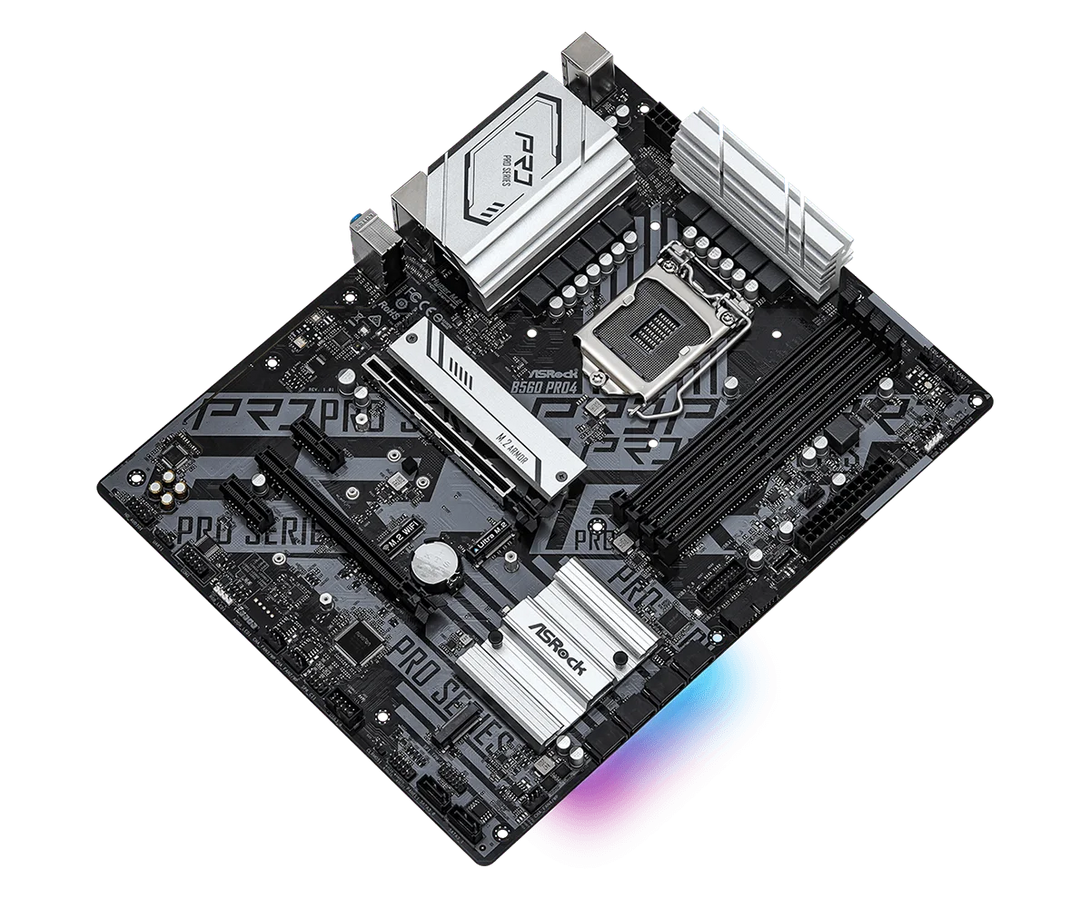

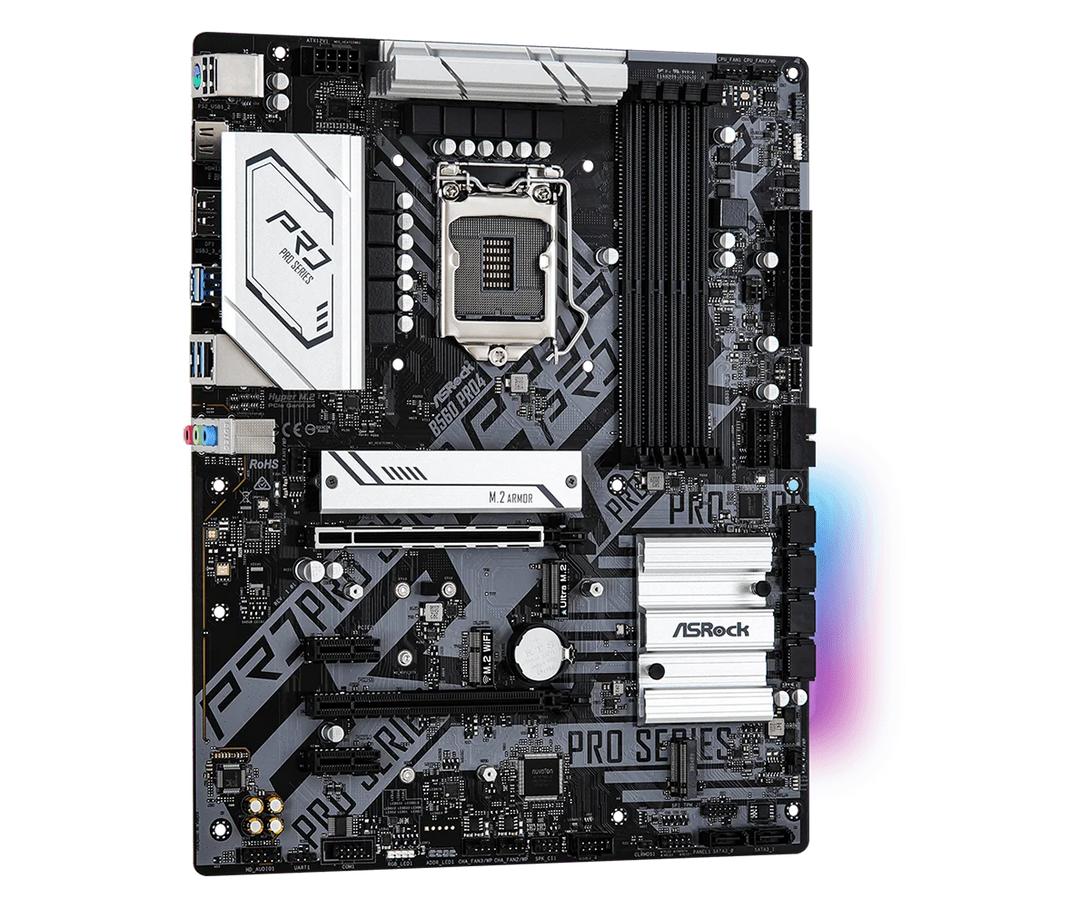

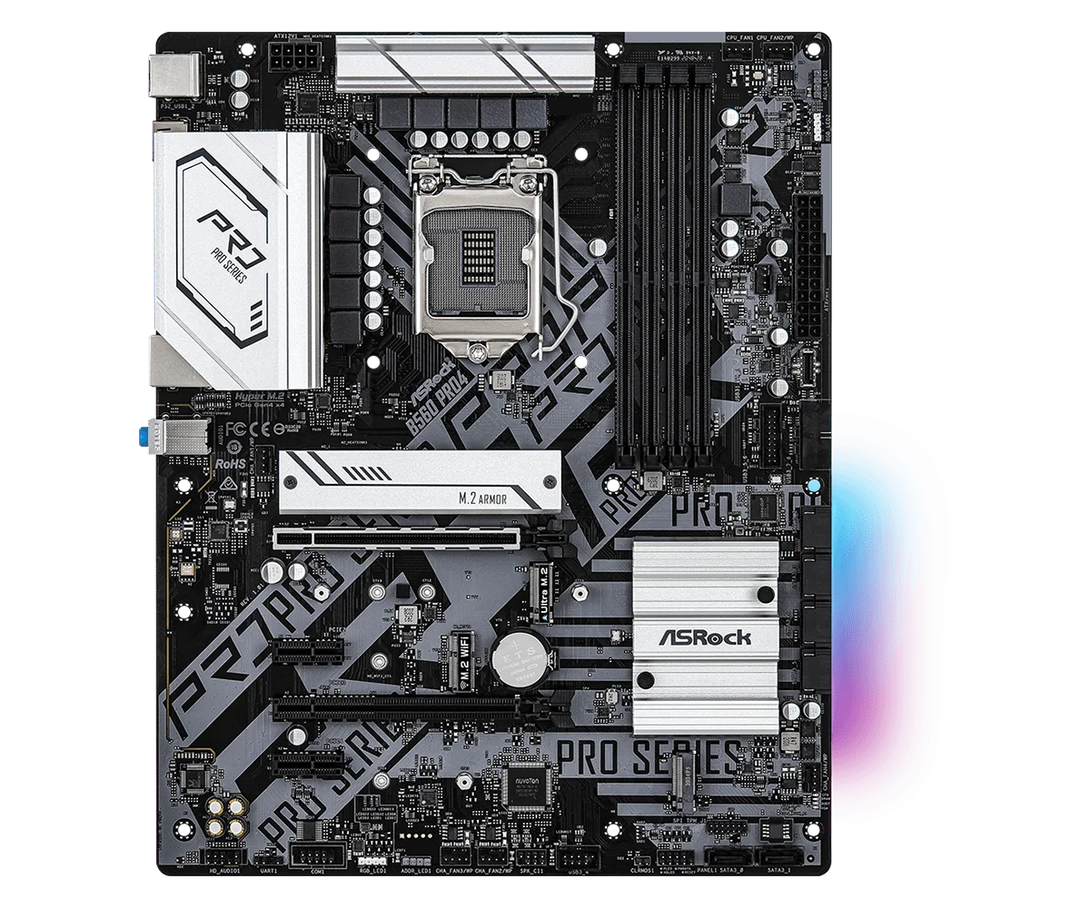

Board type
Motherboard type ATX board type
Dimensions 30.5×24.4cm
