Motherboard chip
Integrated chip video card/sound card/network card
Main chipset AMD X470
Chipset description Uses the AMD X470 chipset
Display chips Integrated with AMD Radeon Vega series display chips
Audio chip integrated with Realtek ALC1220 8-channel sound chip
Nic chip Onboard Intel I211AT Gigabit NIC
Processor specification
CPU Type AMD Ryzen/ 7th Generation A Series /Athlon II/Athlon
CPU Socket Socket AM4
Memory specification
Memory Type 2 x DDR4 DIMMs
Maximum memory capacity 32GB
Memory Description Supports dual-channel DDR4 memory of 3466+(OC), 3200(OC), 2933/2667/2400/2133 MHZ
Storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 1 x PCI-E X16 video card slot
Storage ports 1 x M.2 ports, 4 x SATA III ports

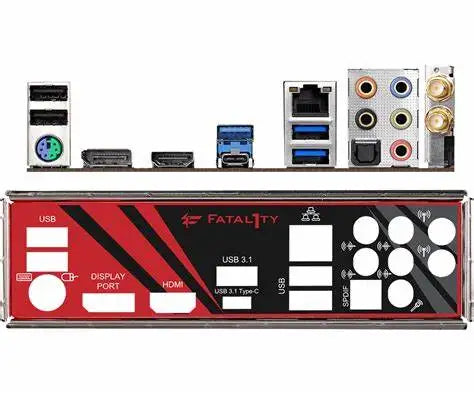

I/O interface
USB port 1 x USB3.1 Gen2 Type-A port, 1 x USB3.1 Gen2 Type-C port, 4 x USB3.1 Gen1 port (2 built-in +2 backplane), 4 x USB2.0 port (2 built-in +2 backplane)
Video Port 1 x Display Port, 1 x HDMI port
One 8-pin power port and one 24-pin power port
Other ports 1 x RJ45 network port, 1 x optical fiber port, 5 x audio port, 1 x PS/2 general keyboard and mouse port, 1 x antenna port, 1 x CPU Fan port, 1 x Chassis fan port, 1 x front panel audio port, 1 x Chassis/Water Pump Fan port, 2 x antenna port
Plate cut

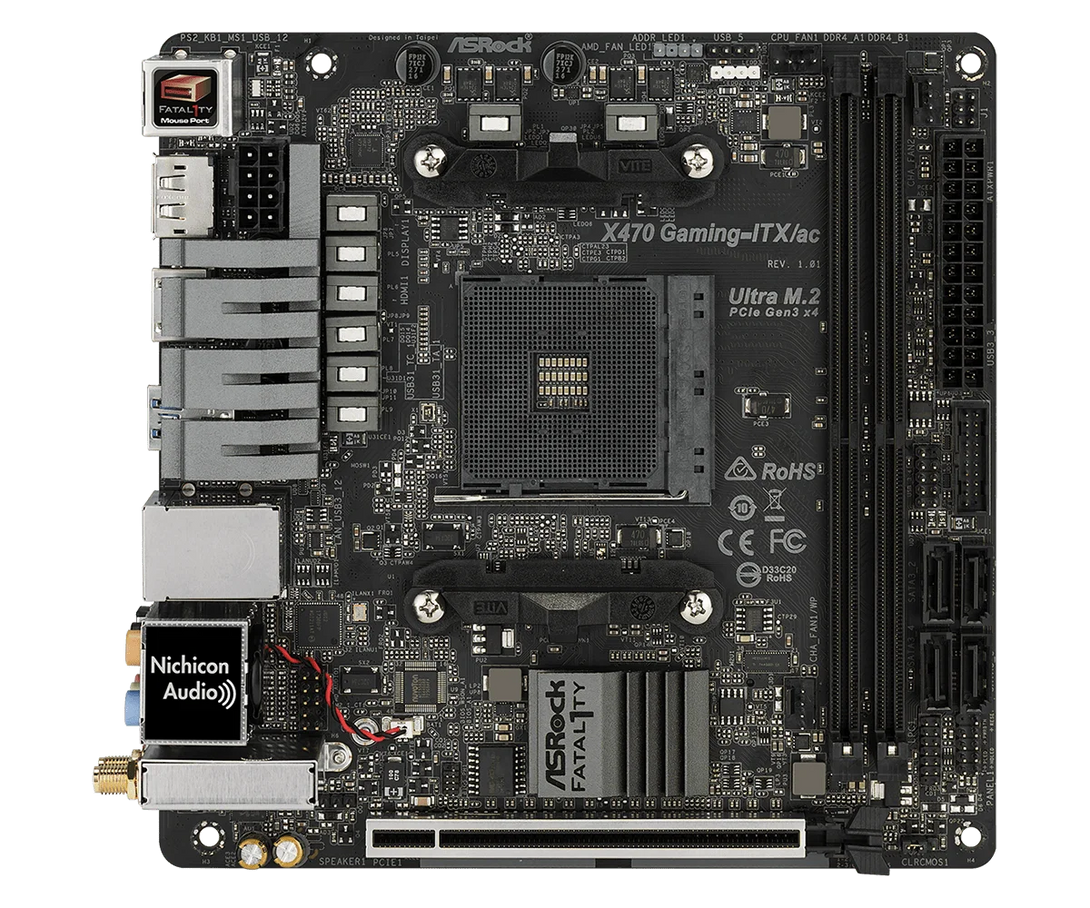

Board type Mini-ITX board type
Overall dimensions 17.0×17.0cm
