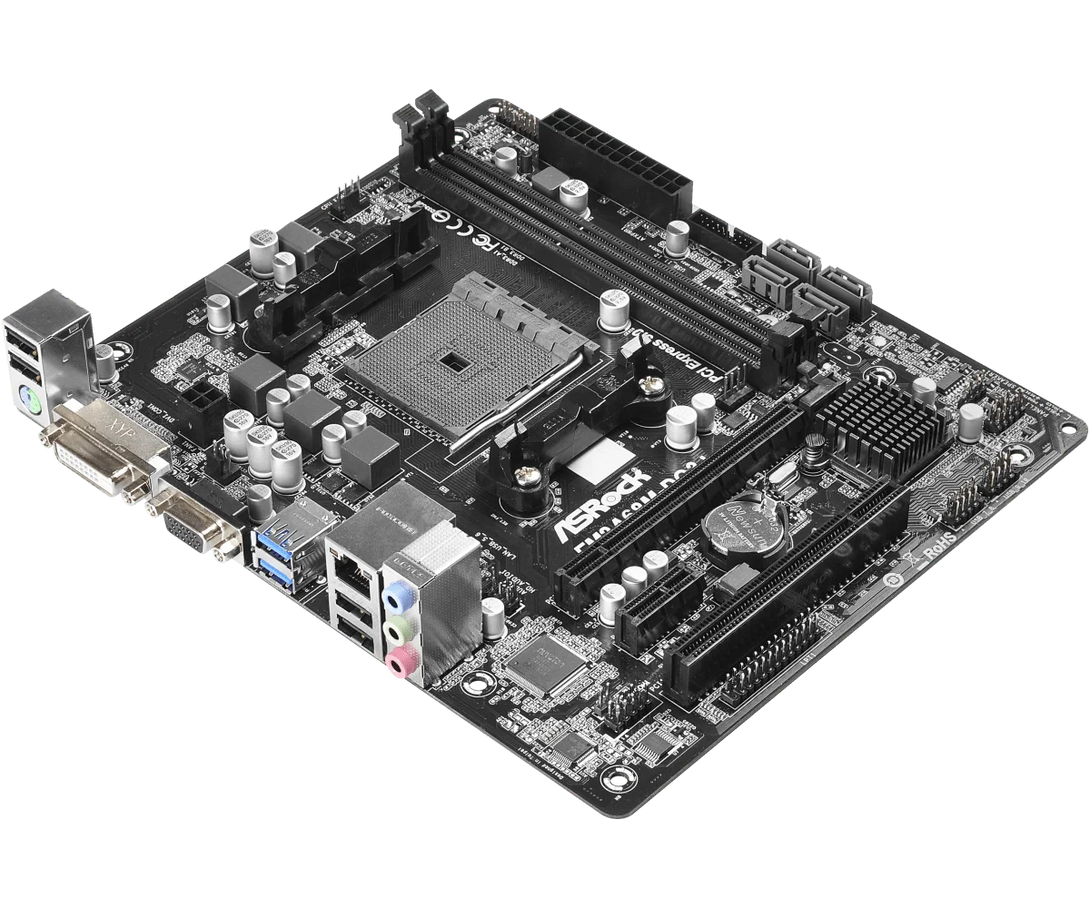

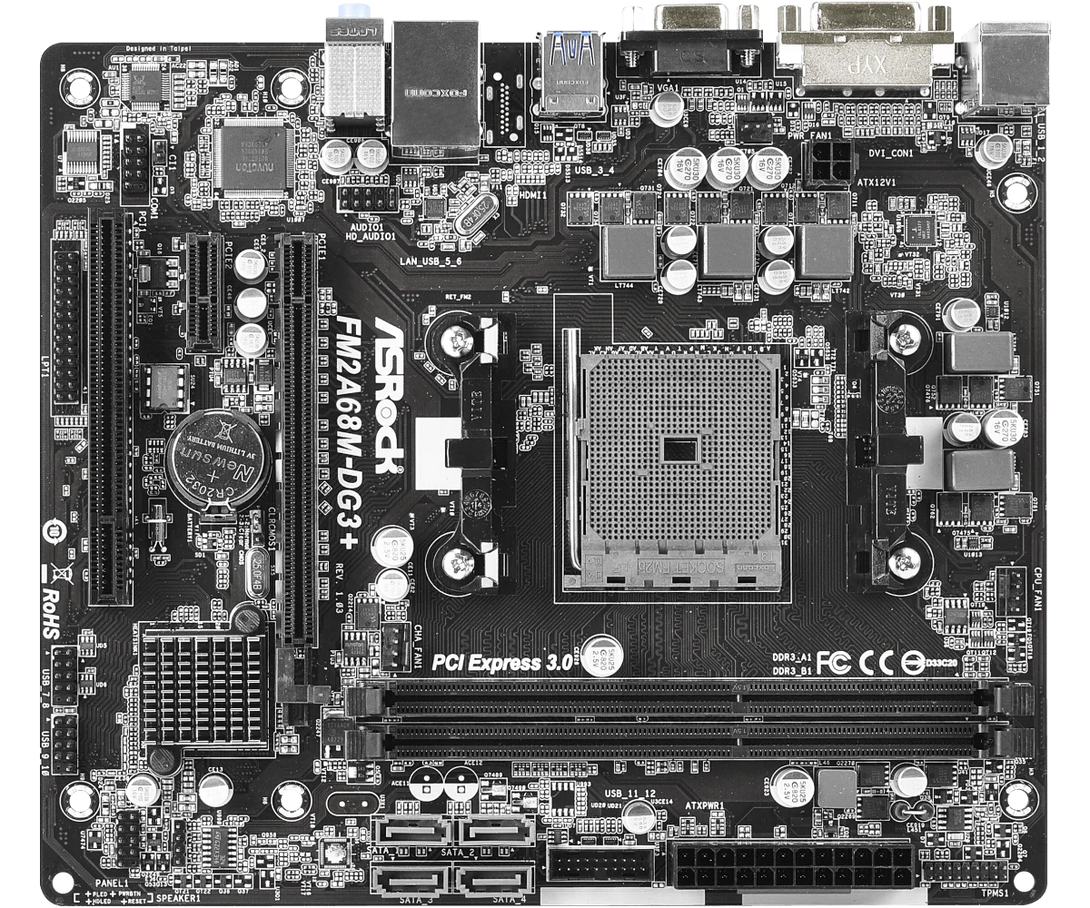

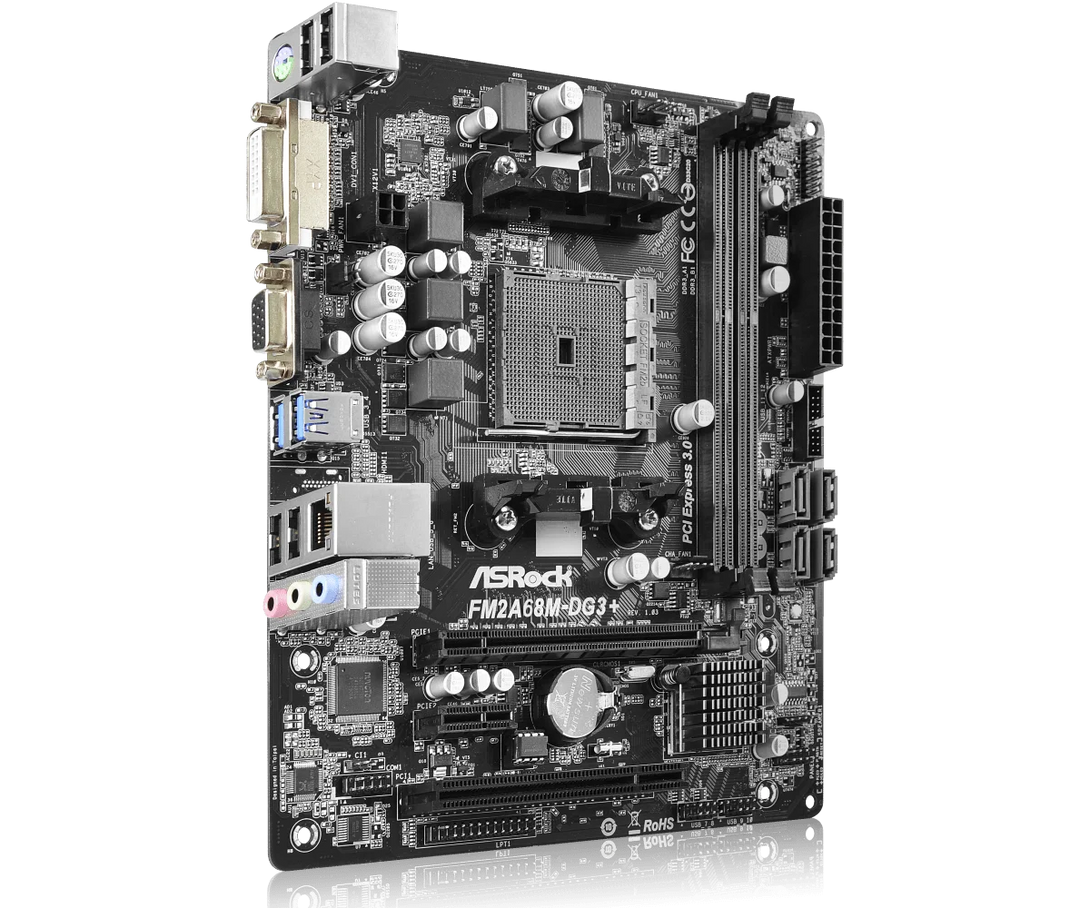

motherboard chip
Main chipset AMD A68H
Chipset Description Adopt AMD A68H chipset
Display chip APU built-in display chip (requires APU support)
Audio chip Integrated Realtek ALC662 5.1-channel audio chip
Network card chip Onboard Realtek RTL8111GR Gigabit network card
Processor Specifications
CPU type Support Socket FM2+ 95W / FM2 100W processor
CPU socket FM2+
memory specification
Memory type 2×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066MHz memory
storage expansion
PCI-E slot 1×PCI-E X16 graphics card slot, 1×PCI-E X1 slot
PCI slot 1
Storage interface 4×SATA III interface

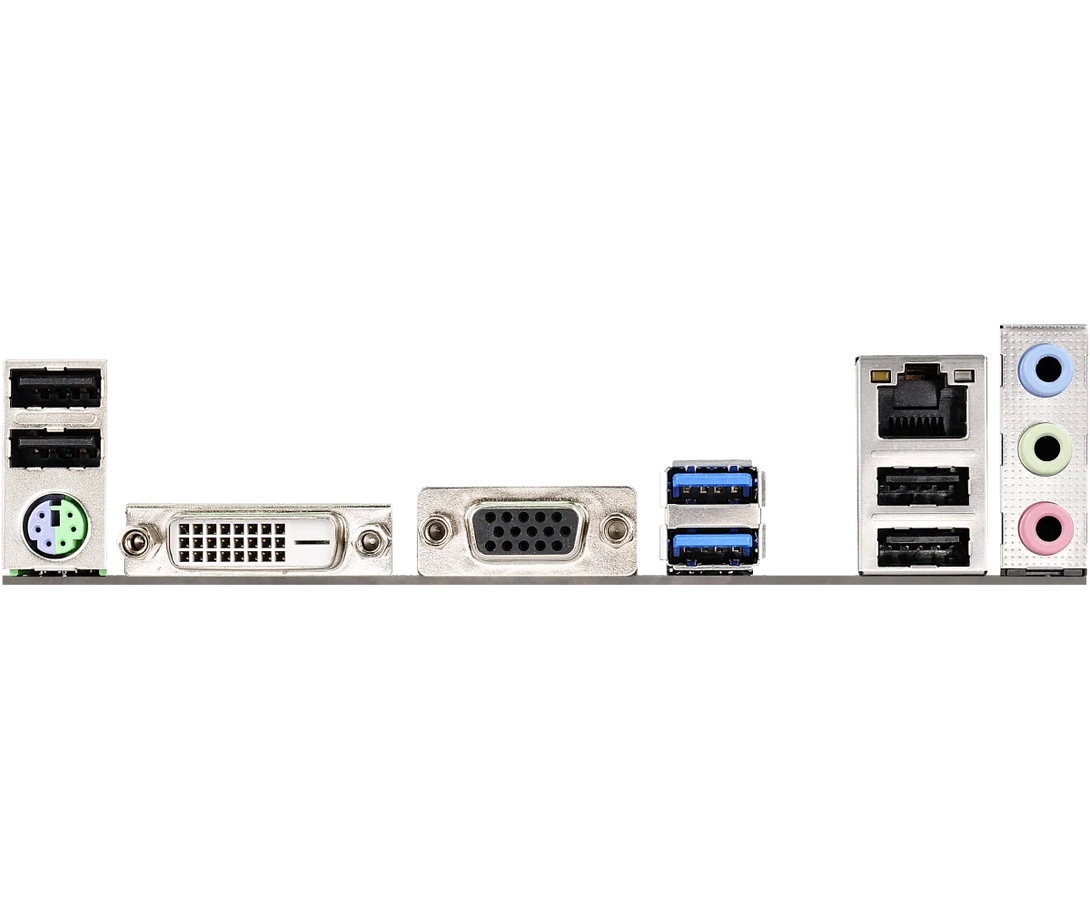

I/O interface
USB interface 7×USB2.0 interface (3 built-in + 4 backplane), 2×USB3.1 Gen1 interface
Video interface 1×DVI-D interface
Power interface One 4-pin, one 24-pin power interface
Other interfaces 1×PS/2 common interface for keyboard and mouse, 1×COM interface, 1×RJ45 network interface, 3×audio interface
plate type
Motherboard form factor Micro ATX form factor
Dimensions 21.8×18.8cm
