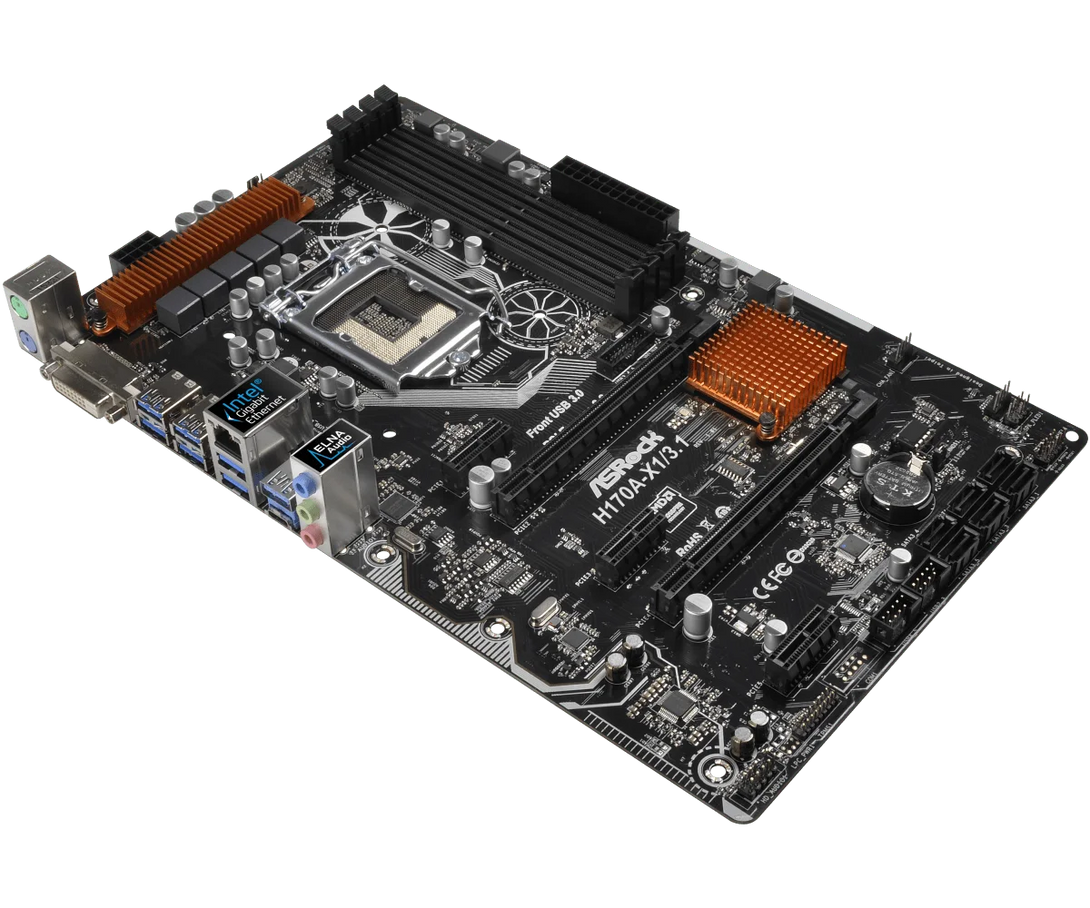

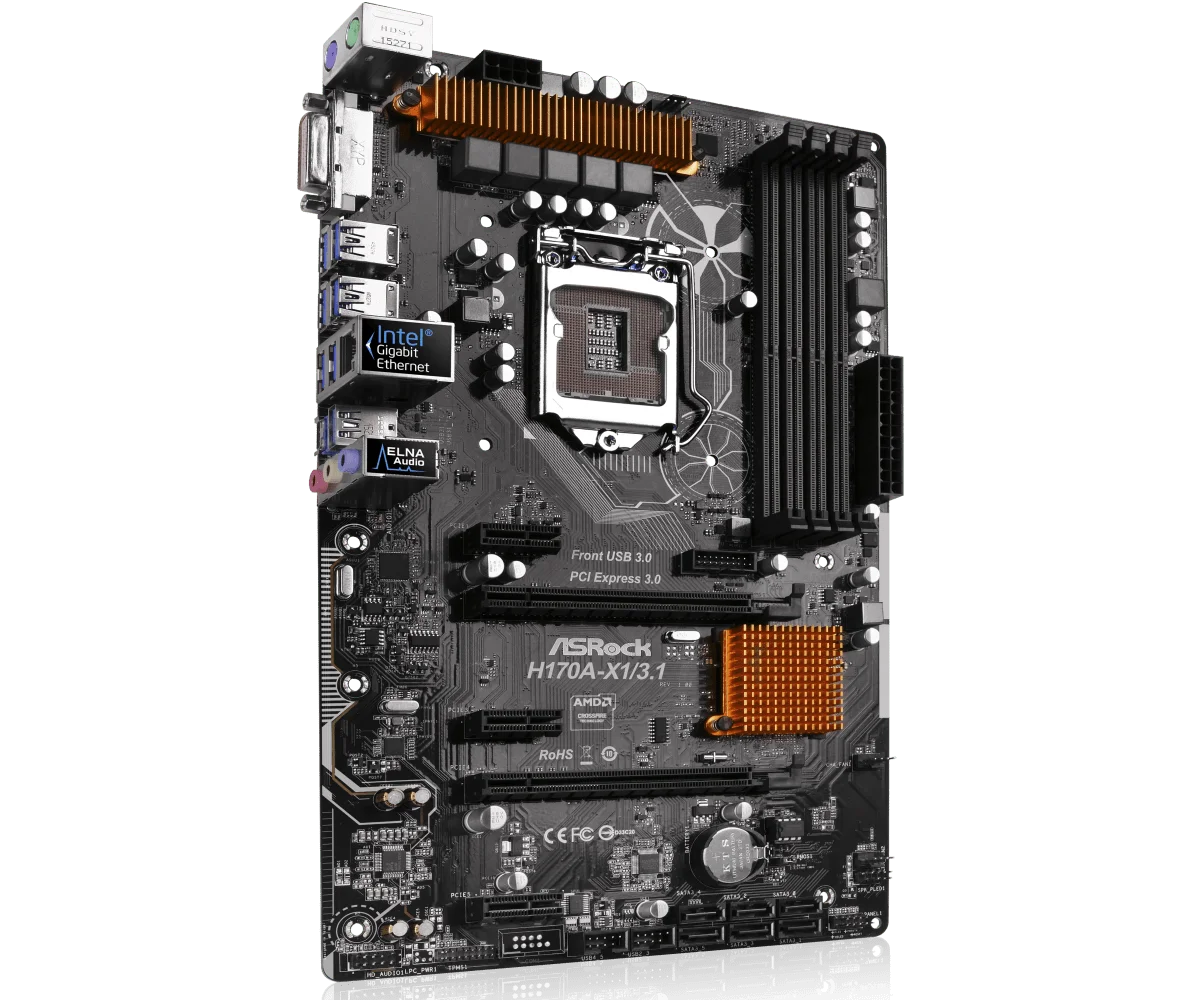

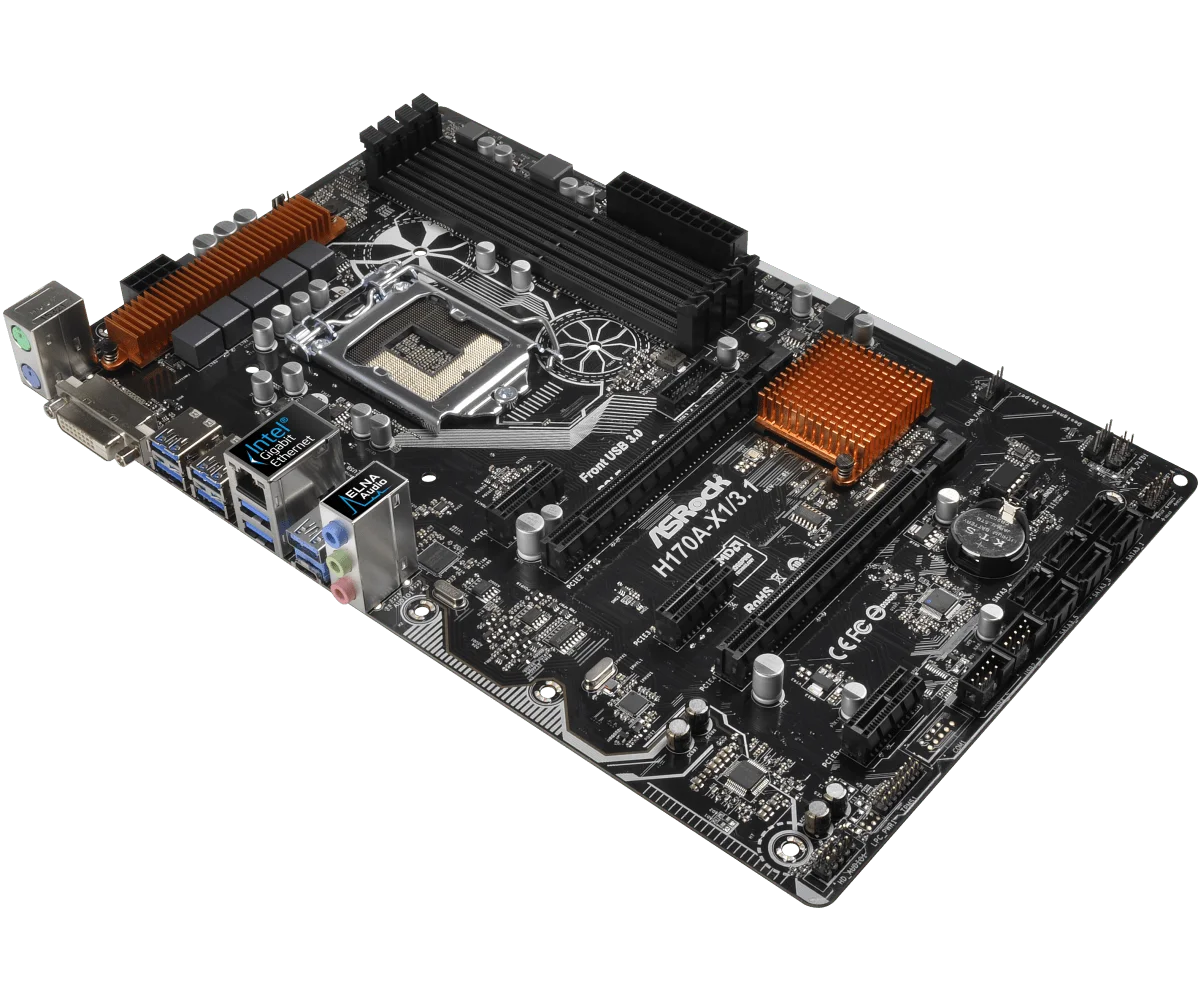

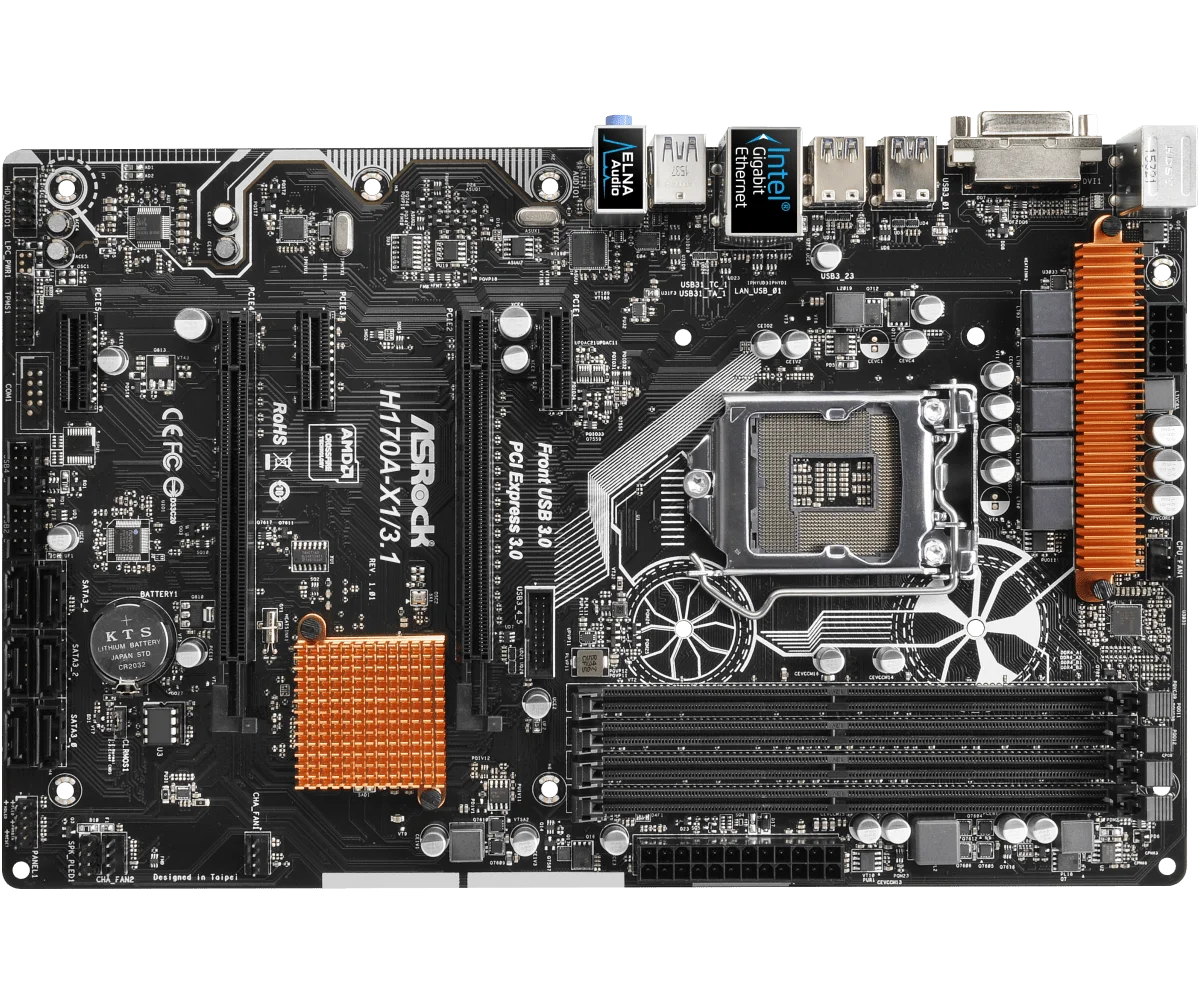

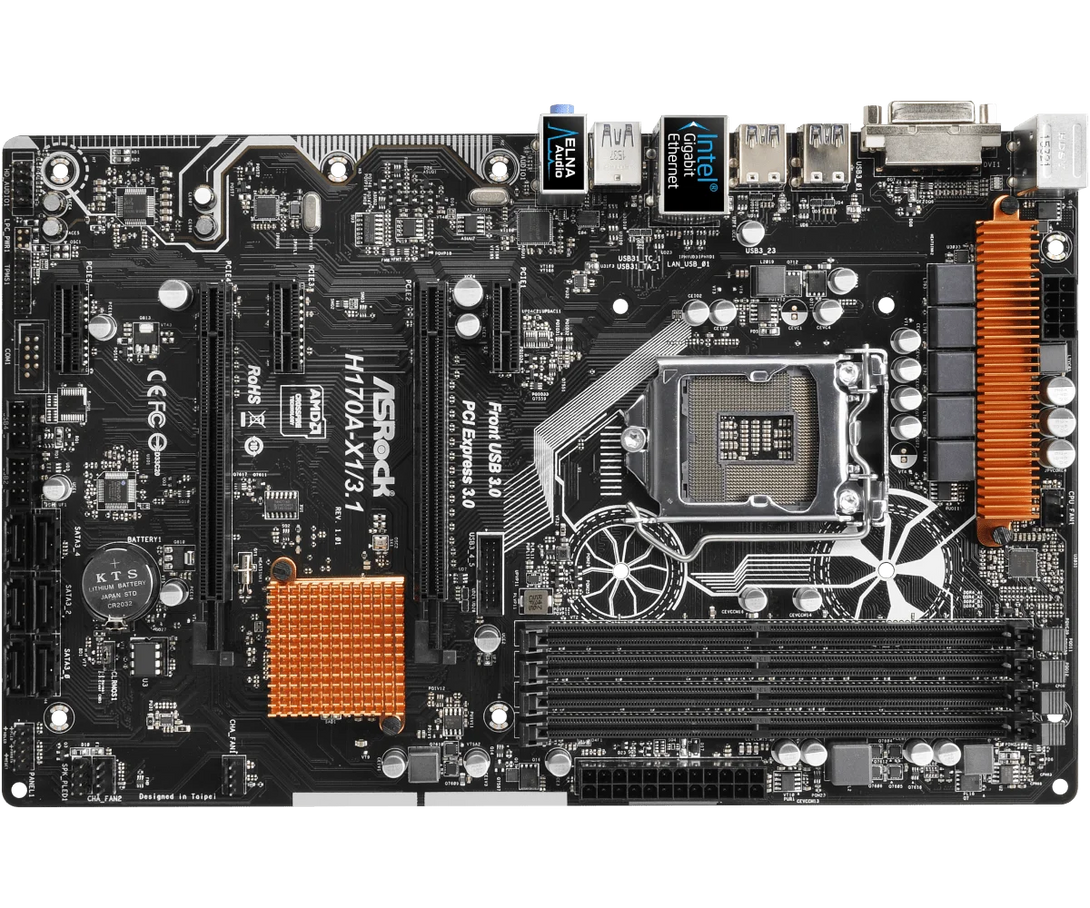

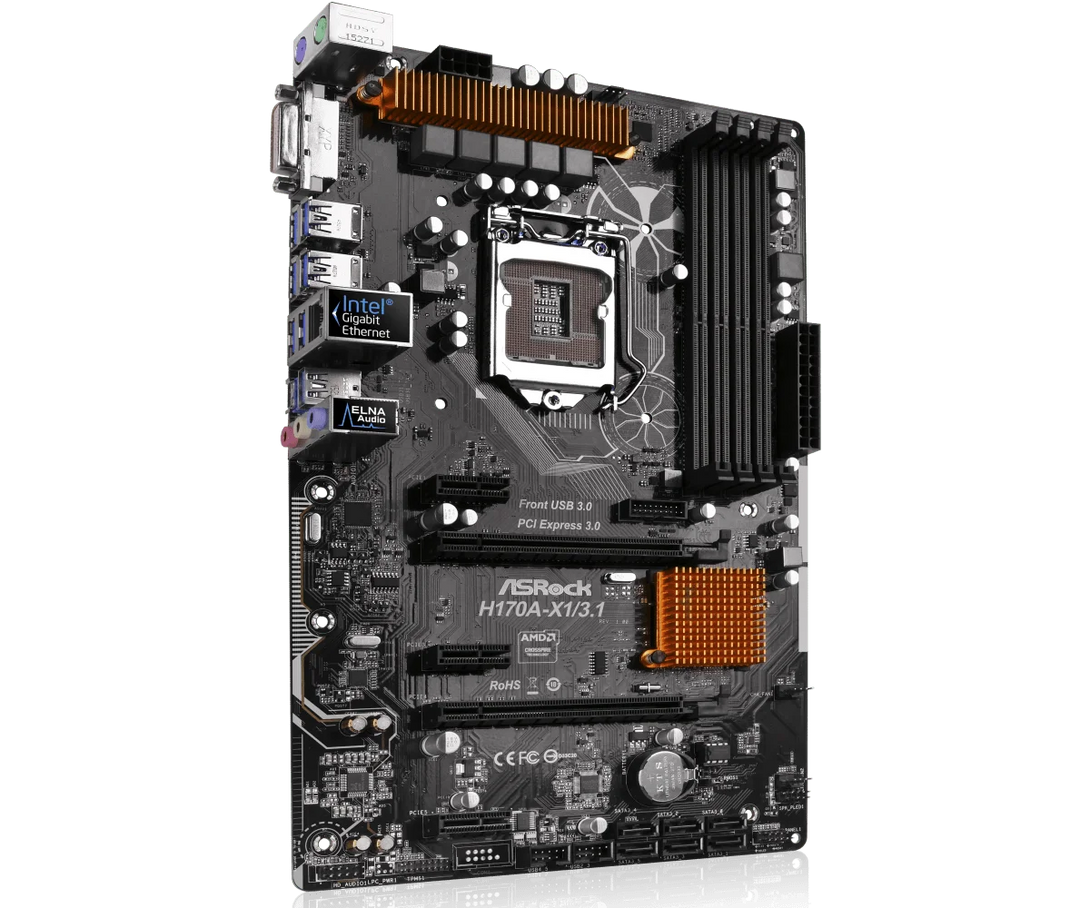

Motherboard chip
Integrated chip Sound card/network card
Main chipset Intel H170
Chipset description Using Intel H170 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC892 8-channel sound chip
Network card chip Onboard Intel I219V Gigabit network card
Processor specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual-channel DDR4 2133MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 3×PCI-E X1 slot
Storage interface 6×SATA III interface

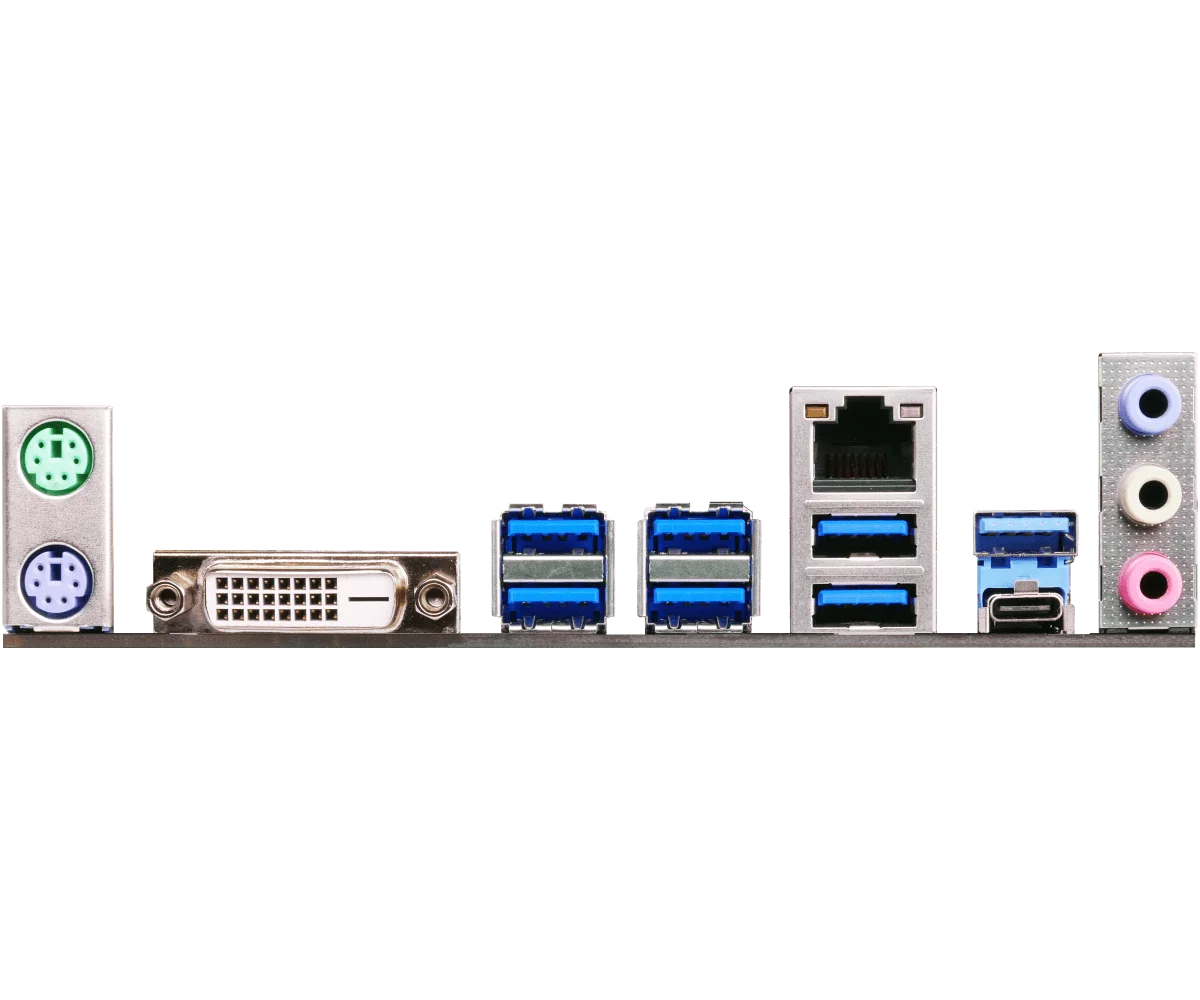

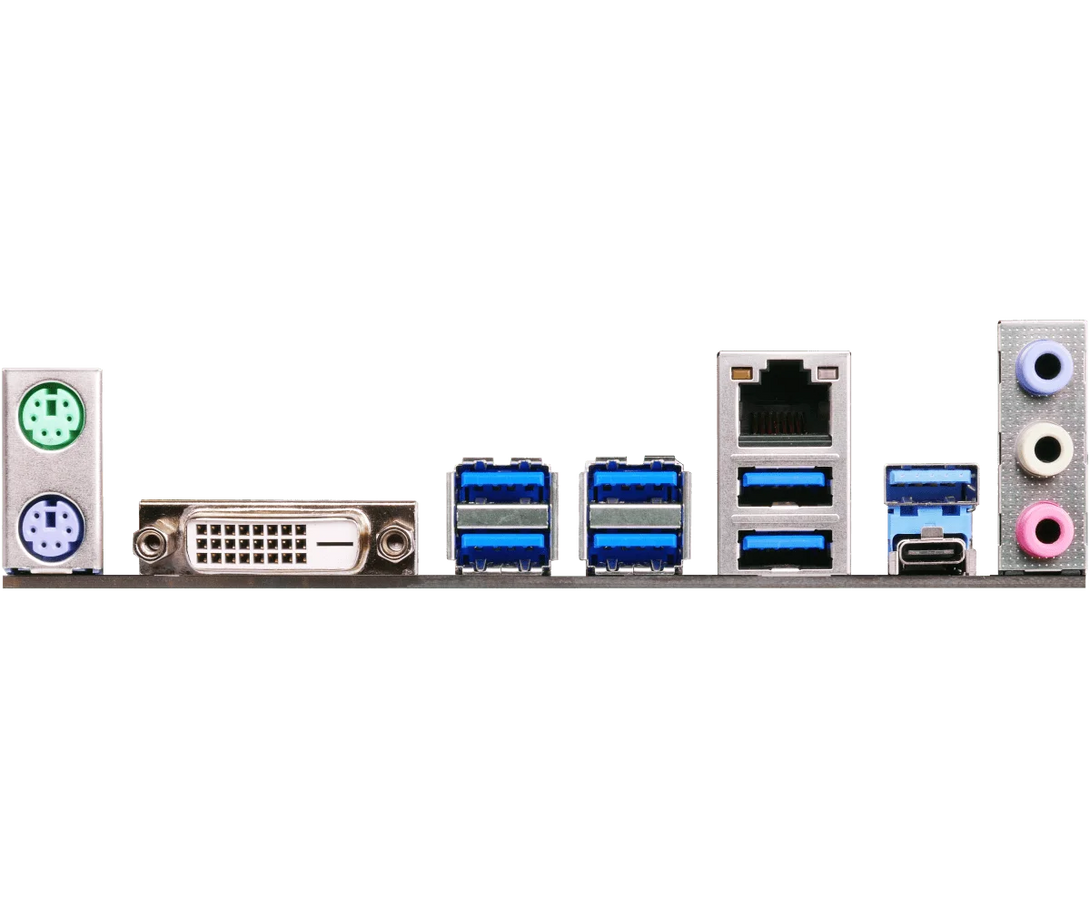

I/O interface
USB interface 1×USB3.1 Type-A interface, 1×USB3.1 Type-C interface, 8×USB3.0 interfaces (2 built-in + 6 backplane), 4×USB2.0 interfaces
(built-in)
Video interface 1×DVI interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard type ATX board type
Dimensions 30.5×19.1cm
