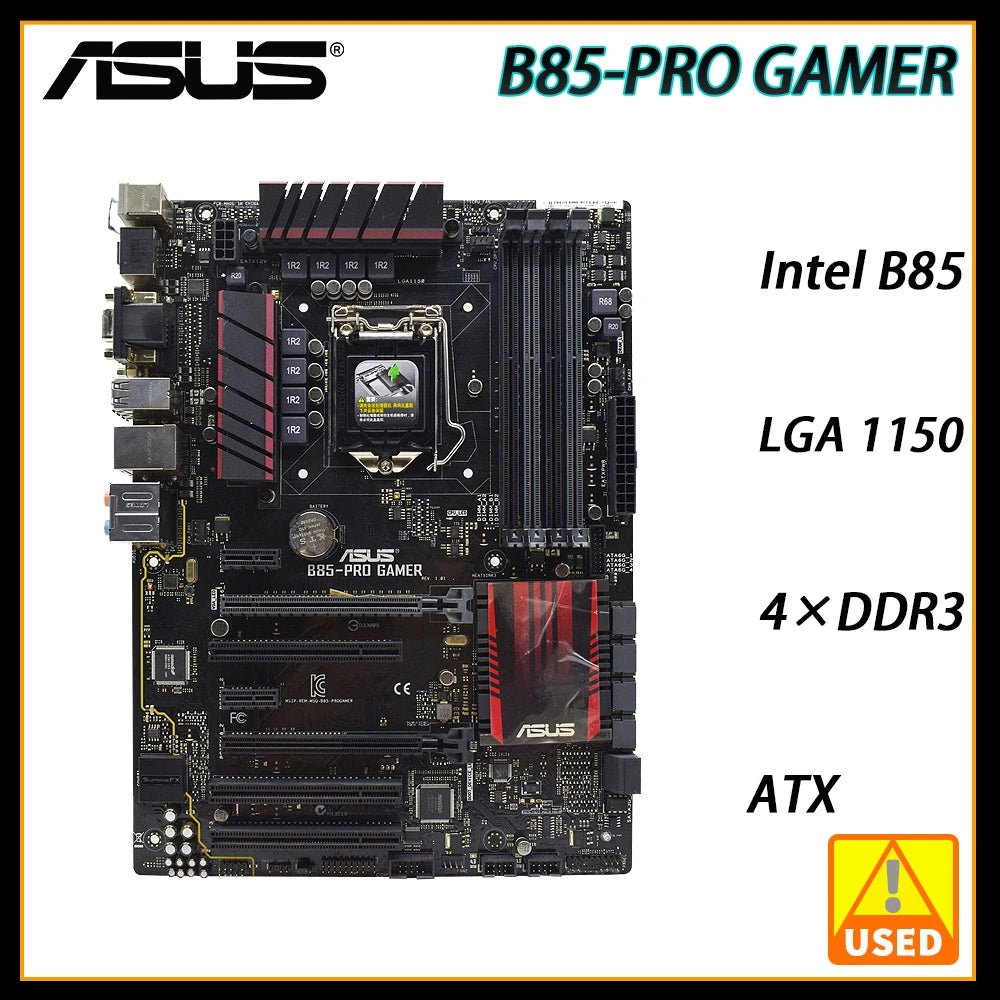

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B85
Chipset description Using Intel B85 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC1150 8-channel audio chip
Network card chip onboard Intel I217V Gigabit network card
Processor specifications
CPU type Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1150
CPU description Support Intel 22nm processor
Storage expansion
PCI-E standard PCI-E 3.0

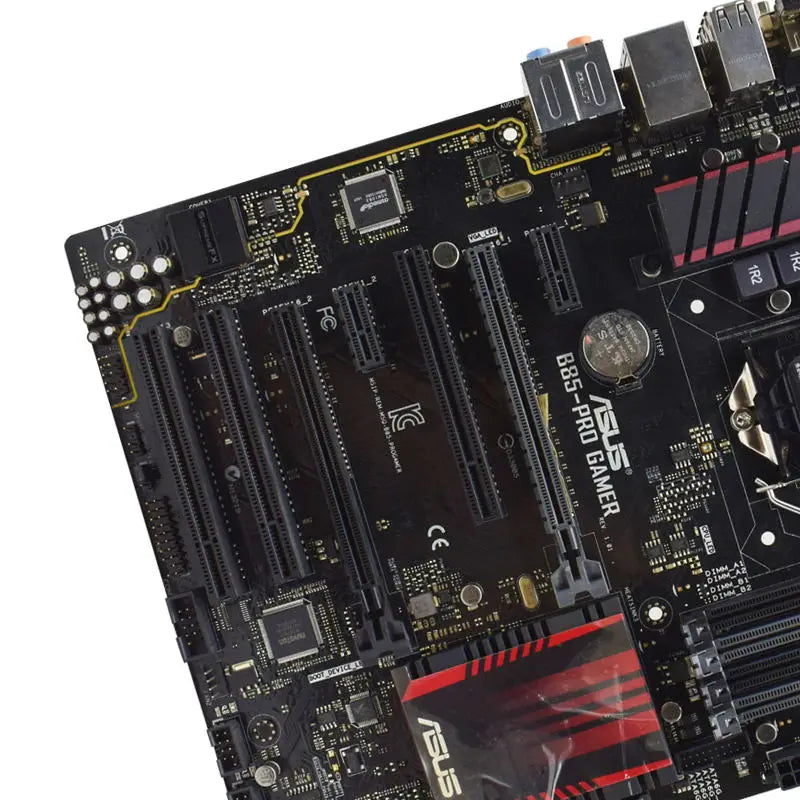

PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 3 × PCI slot
Storage interface 4×SATA III interface, 2×SATA II interface

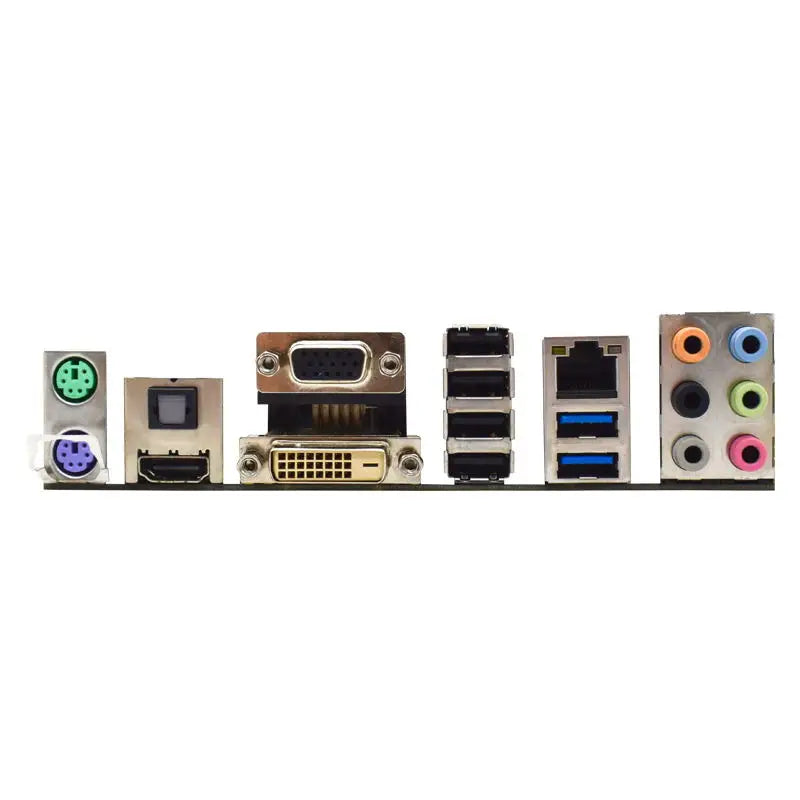

I/O interface
USB interface 4 × USB3.0 interface (2 built-in +2 backplane), 8 × USB2.0 interface (4 built-in +4 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 mouse, 1×PS/2 keyboard interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×22.8cm
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600/1333/1066MHz memory
Software management
BIOS performance 64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, favorites, quick notes, history , F12 screenshot, F3 shortcut key function and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Multi-graphics technology supports AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Power supply mode: eight phase
Overclocking function support
