Motherboard chip
Integrated chip video card/sound card/network card
Main chipset Intel Z68
Chipset Description Intel Z68 chipset is used
Audio chip integrated 8-channel sound chip
Nic chip Onboard Intel 82579 Gigabit NIC
Processor specification
CPU type Core i7/Core i5/Core i3//Pentium/Celeron
CPU slot LGA 1155
CPU Description Intel 22nm processors are supported
Memory specification
Memory Type 4 x DDR3 DIMMs
Maximum memory capacity 32GB
Memory Description Supports dual-channel DDR3 2200 MHz (overclocked) memory
Storage expansion
PCI-E Standard PCI-E 3.0 standard
PCI-E slot 3 x PCI-E X16 graphics card slot, 2 x PCI-E X1 slot
PCI slot 2 x PCI slot
Storage port 4 x SATA II port 2 x SATA III ports

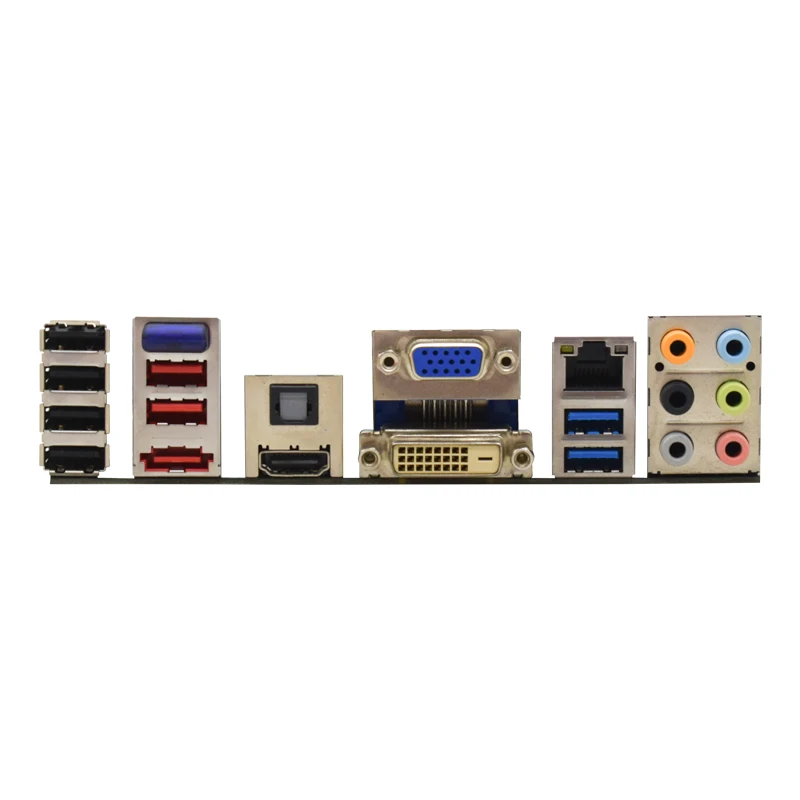

I/O interface
USB port 12 x USB2.0 port; 4 x USB3.0 port
Video port 1 x DVI port, 1 x VGA port, 1 x HDMI port
One 8-pin power port and one 24-pin power port
Other ports 1 x RJ45 network ports
1 x eSATA interface
1 x Optical fiber port
Audio interface
