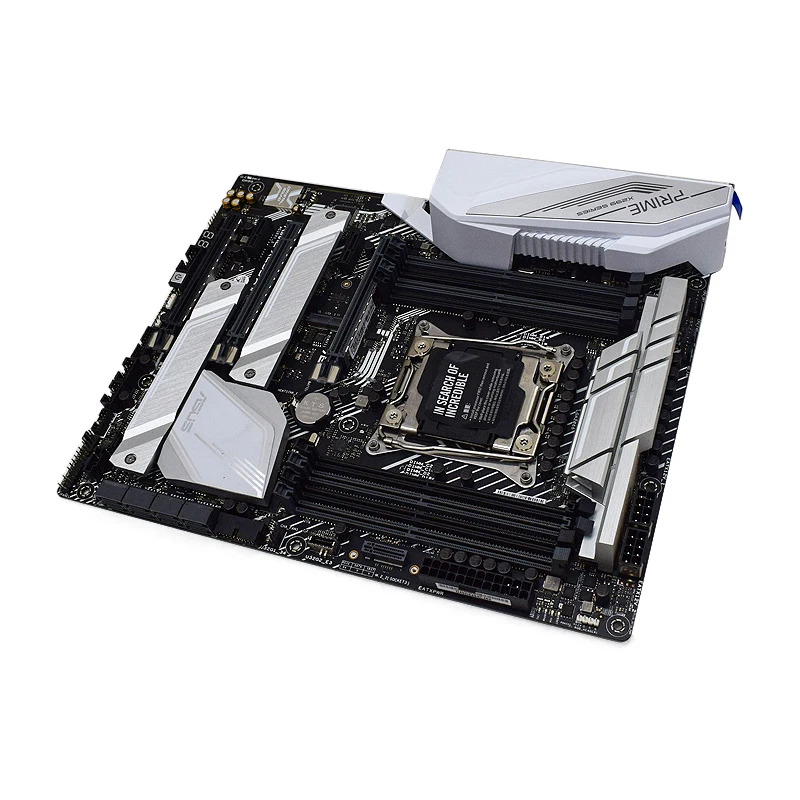

Prime X299-A II
CPU
* Refer to www.asus.com for CPU support list.,Intel® Socket 2066 Core™ X-Series Processors,* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset
Intel® X299
Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory,Supports Intel® Extreme Memory Profile (XMP),* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

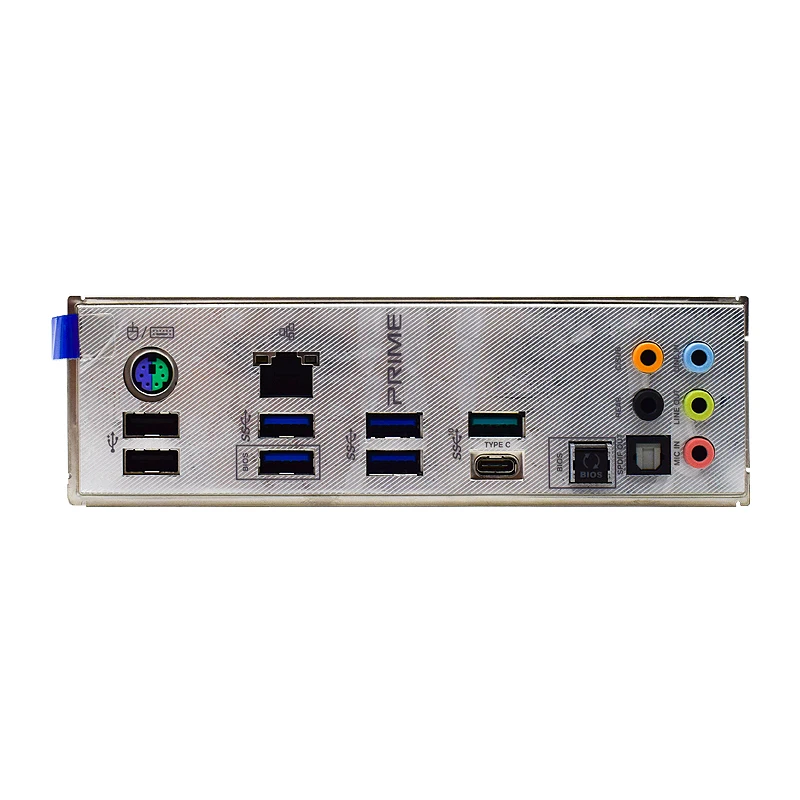

Back I/O Ports
2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™),1 x USB BIOS FlashBack™ Button(s),4 x USB 3.2 Gen 1,2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM),1 x PS/2 keyboard/mouse combo port(s),1 x LAN (RJ45) port(s),1 x Optical S/PDIF out,5 x Audio jack(s)
Form Factor

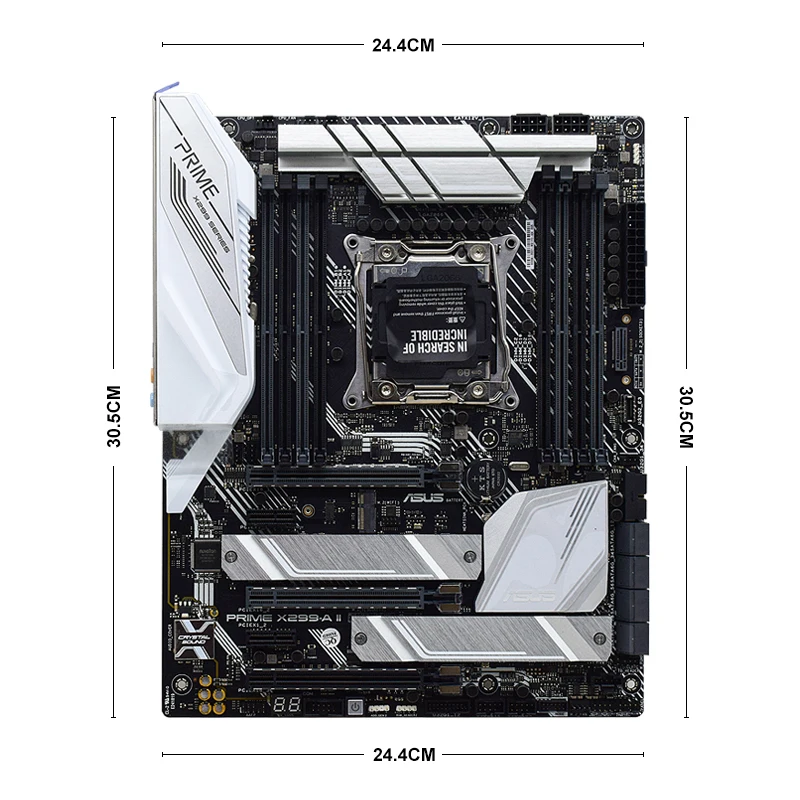

ATX Form Factor,12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
