Motherboard chip
Integrated chip Sound card/network card
Main chipset Intel X99
Chipset description Using Intel X99 chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Integrated Realtek ALC1150 8-channel sound chip
Network card chip Onboard Intel I218LM Gigabit network card
Processor specifications
CPU type Broadwell-E processor
CPU slot LGA 2011-V3
Memory specifications
Memory type 8×DDR4 DIMM
Memory description Supports four-channel DDR4 3000MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 3×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 1×M.2 interface, 1×SATA Express interface, 10×SATA III interface

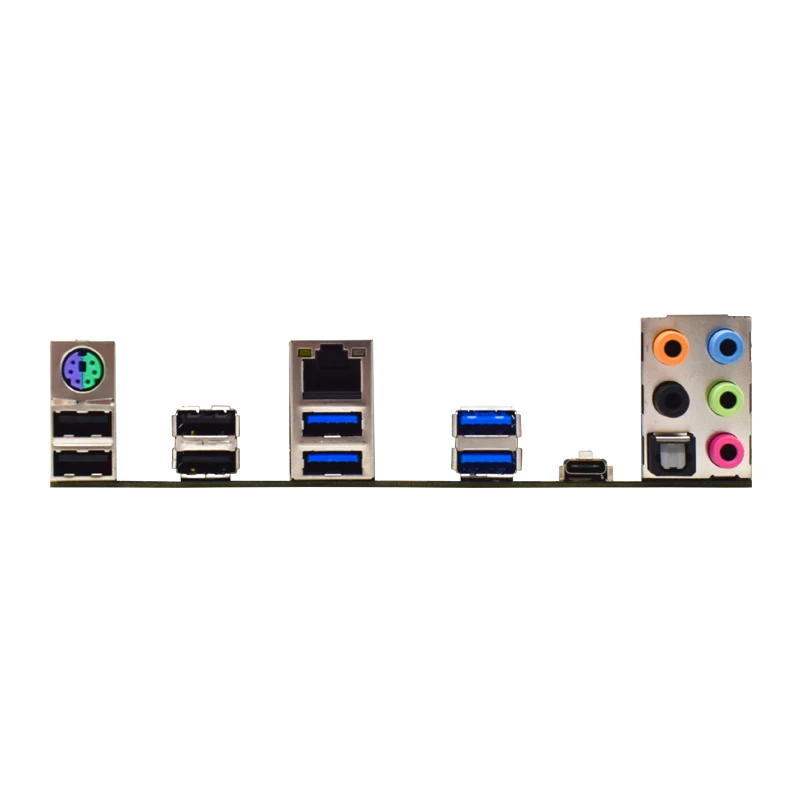

I/O interface
USB interface 1×USB3.1 Type-C interface, 4×USB3.0 interface, 4×USB2.0 interface
Power interface One 8-pin, one 24-pin power interface
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Board type
Motherboard type ATX board type
Dimensions 30.5×24.4cm
