LED Optical Fiber Converter:

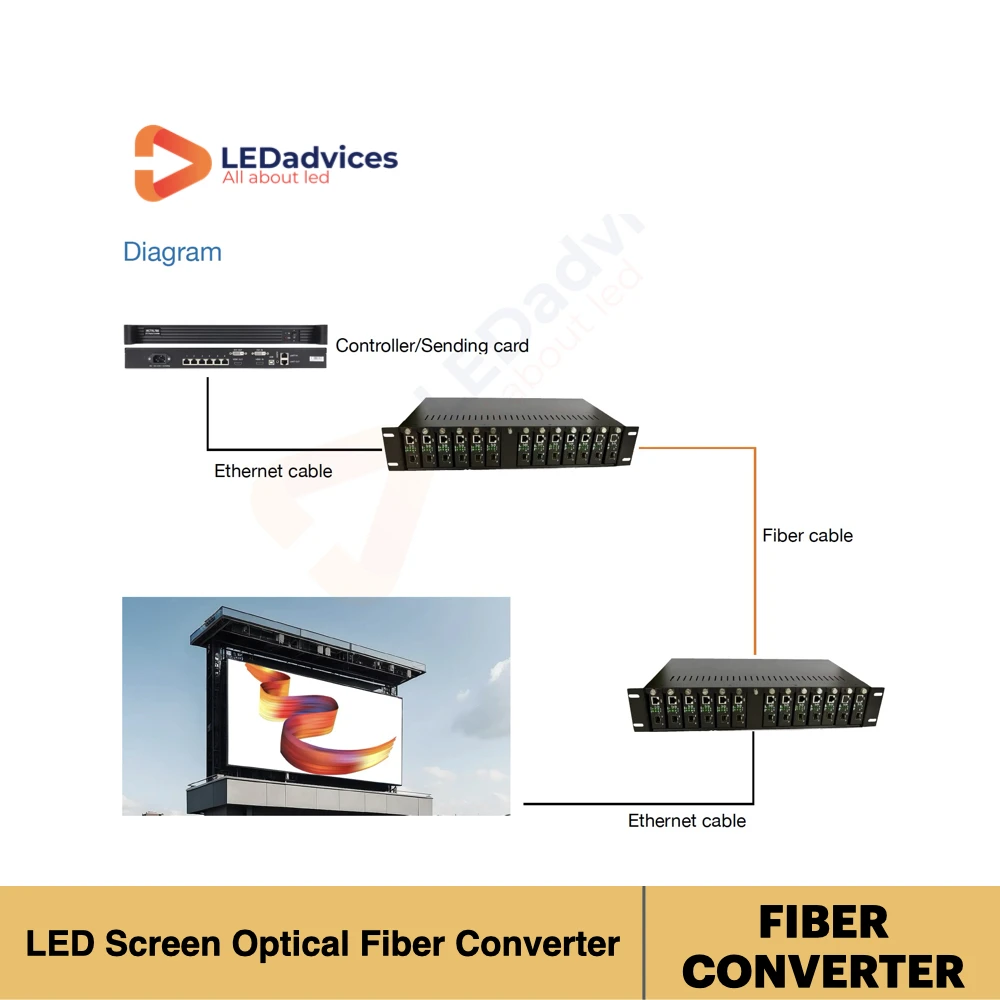

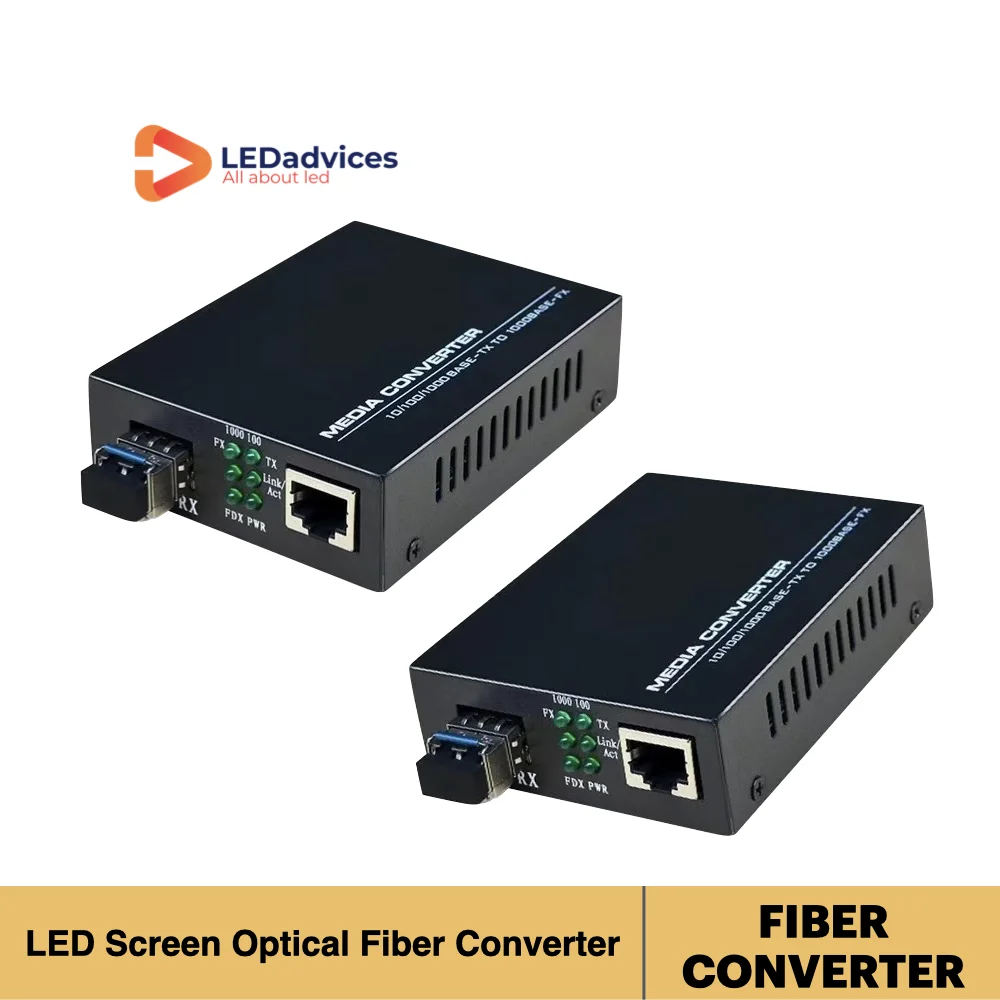

The single-port optical fiber converter transforms the interface between Ethernet ports and optical ports (LC SFP). Equipped with 1 gigabit optical port and 1 Ethernet port, it extends the Ethernet transmission distance from 100m to up to 500m (multi-mode fiber) or a maximum of 20km (single-mode fiber). It supports optical interconnection between sending cards and receiving cards. Using a mature core processing system, it offers flexibility, efficiency, and reliability.
Features:
• Standard 2U chassis for rack installation in server rooms for unified management and maintenance.
• Modular power design for easy maintenance and improved shielding, avoiding electromagnetic interference.
• Supports up to 14 optical fiber converters simultaneously, with different module configurations available.
• Each module supports independent hot-swappable operation.
• Dual power supply ensures uninterrupted system operation.
• AC100-220V input, suitable for diverse environments.
• Supports various modules for flexible applications.
• Centralized management and control for data rooms.
• MTBF: Over 50,000 hours.
Technical Parameters:
Optical Interface:
• Optical Port: 1 SFP optical port.
• Multi-mode Fiber: 50/125, 62.5/125μm (max distance: 500m).
• Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125μm (max distance: 20km).
Ethernet Interface:
• 1 x 1000M Ethernet port.
• Compliant with IEEE802.3z/AB 1000Base-T and 1000Base-SX/LX standards.
• Fully adaptive full/half duplex mode.
• Physical Interface: RJ45.
• Operating Temperature: -20°C ~ 70°C.
• Operating Humidity: 5% ~ 95%.
• Power Supply: 100-240V AC input; 5V DC output.
• Maximum Output Power: 150W.
• Dimensions: 485mm x 245mm x 90mm (excluding front panel: 425mm x
245mm x 90mm; 19-inch 2U height).
• Weight: Approx. 6.2kg.
