We are mainly a store selling used motherboards, mainly selling AM4 interface
motherboards such as B550 X570, as well as some LGA 1151, LGA 1200, LGA 1700 motherboards, X99
X299 series motherboards, and server motherboards.
Our motherboards undergo rigorous testing, including testing of CPU
slots, memory slots, M.2/SATA interfaces, and more.
Before shipment, we will conduct a second shipment test and take pictures of the test results.
Once testing defects are found, we will not ship the product.
Regarding the delivery time, we usually ship within 48 hours. Some orders can
even be shipped within 24 hours.You can purchase motherboards with confidence in our store, and
feel free to contact us if you have any questions. We have professional testers. I can answer
your questions.
In terms of motherboard accessories, we will ship them with a i/o board and SATA cable. For
motherboards that can install antennas, we will also ship with antennas. We will remove the
battery before shipment in order to reset the BIOS settings.
(The battery was not shipped with the package at the time of shipment. You need to equip your
own battery. Hope for understand.)
Regarding the Bios version, we will update the AM4 interface motherboard to the latest Bios
version by default. If you have special requirements, please leave us a message.
Best Regards
Motherboard chip
Main chipset Intel B760
Chipset description The Intel B760 chipset is used
Audio chip integrated with Realtek ALC897 7.1 channel sound chip
Nic chip Onboard Realtek RTL8111H NIC
Processor specification
CPU type 14th generation / 13th generation / 12th generation Core/Pentium/Celeron
CPU slot LGA 1700
Memory specification
Memory Type 4 x DDR4 DIMMs
The maximum memory capacity is 128GB
Memory Description Supports dual-channel DDR4 4800(OC), 4600(OC), 4400(OC), 4266(OC), 4200(OC), 4000(OC), 3800(OC), 3733(OC), 3600(OC), and 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)MHz memory
Storage expansion
PCI-E Standard PCI-E 4.0
One PCI-E X16 slot
There are two PCI-E X1 slots
Storage ports 2 x M.2 ports, 4 x SATA III ports

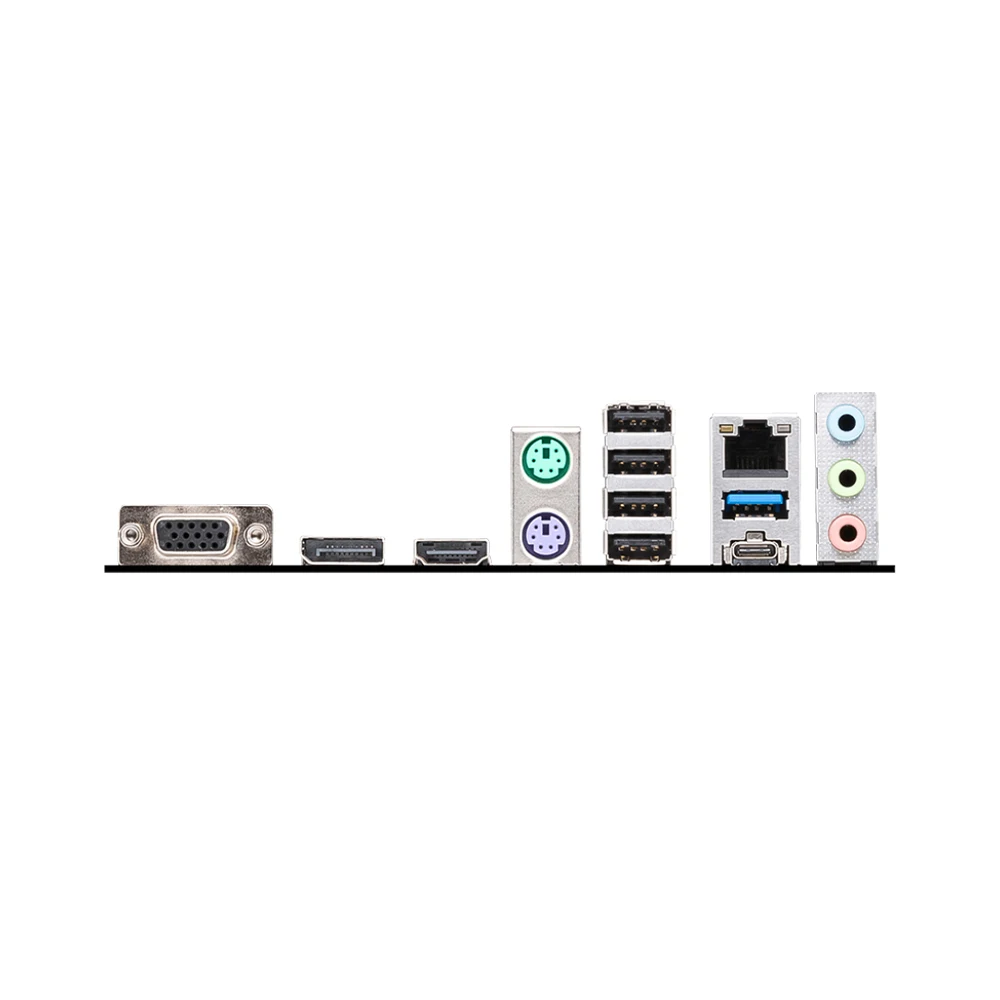

I/O interface
USB (backplane) 1 x USB3.2 Gen2 Type-C port
1 x USB3.2 Gen1 interface
4 x USB2.0 port
USB (built-in) 2 x USB3.2 Gen 1 port
4 x USB2.0 port
Video port 1 x VGA port, 1 x HDMI port, 1 x DisplayPort port
Other ports 1 x RJ45 network port, 3 x audio port
Plate cut
Main board type Micro ATX board type
Overall dimensions 17.0×17.0cm
