We are mainly a store selling used motherboards, mainly selling AM4 interface
motherboards such as B550 X570, as well as some LGA 1151, LGA 1200, LGA 1700 motherboards, X99
X299 series motherboards, and server motherboards.
Our motherboards undergo rigorous testing, including testing of CPU
slots, memory slots, M.2/SATA interfaces, and more.
Before shipment, we will conduct a second shipment test and take pictures of the test results.
Once testing defects are found, we will not ship the product.
Regarding the delivery time, we usually ship within 48 hours. Some orders can
even be shipped within 24 hours.You can purchase motherboards with confidence in our store, and
feel free to contact us if you have any questions. We have professional testers. I can answer
your questions.
In terms of motherboard accessories, we will ship them with a i/o board and SATA cable. For
motherboards that can install antennas, we will also ship with antennas. We will remove the
battery before shipment in order to reset the BIOS settings.
(The battery was not shipped with the package at the time of shipment. You need to equip your
own battery. Hope for understand.)
Regarding the Bios version, we will update the AM4 interface motherboard to the latest Bios
version by default. If you have special requirements, please leave us a message.
Best Regards
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Processor socket LGA1700
Chipset
Intel® B660 Chipset
Memory
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memoryy
Supports Intel® Extreme Memory Profile (XMP)

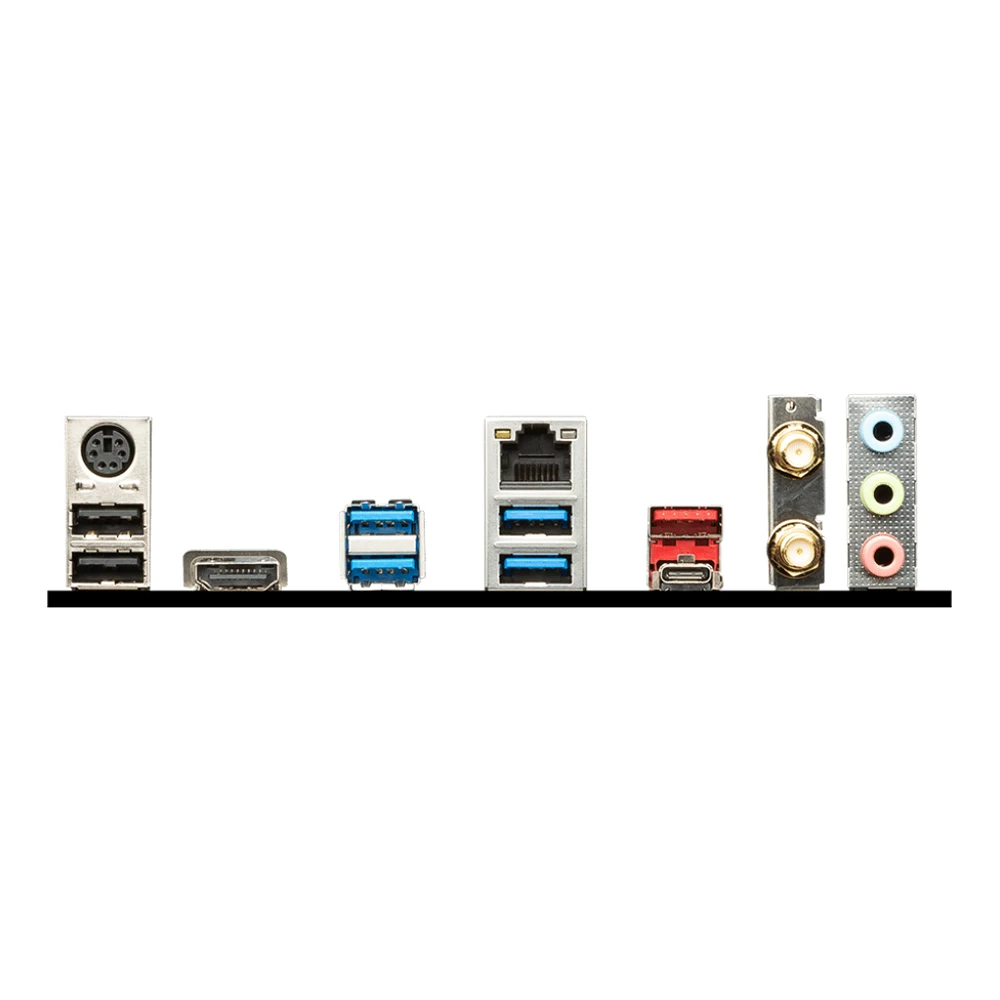

Back panel ports
Keyboard / Mouse
LAN port
USB 3.2 Gen 2 10Gbps Type-A
Wi-Fi / Bluetooth
Audio connectors
USB 2.0
HDMI™
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-C
Dimensions
Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
