Specifications:
Operating data rate up to 11.3Gbps
1310nm DFB-LD Transmitter
Distance up to 10km
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector Interface
Hot Pluggable
Power Dissipation < 1.0W
Compliant with MSA SFP+ Specification SFF-8431
Compliant with IEEE 802.3ae 10GBASE-LR/LW
Operating Case Temperature Standard: 0℃~+70℃Industrial:-40℃~+85℃
Safety Certification: TUV/UL/FDA*Note1
RoHS Compliant

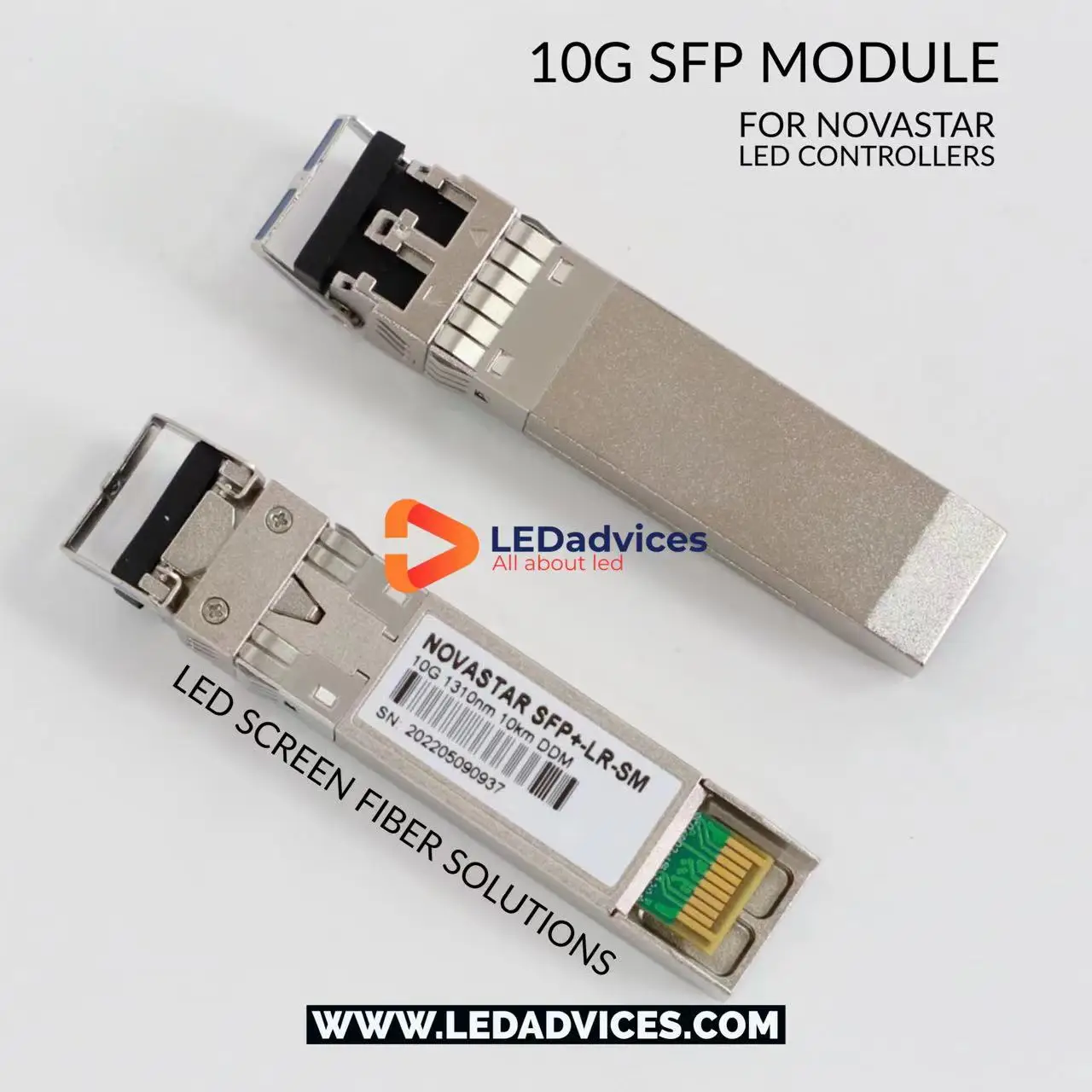

The 10G SFP Fiber Module fits into the empty fiber slots on the back of these products: MCTRL660 PRO, MCTRLR5, MCTRL4K, NOVA PRO UHD JR, KU20 (SU20), VX600, VX1000.
MCTRL660 PRO: 2 Fiber Modules Needed
MCTRLR5: 2 Fiber Modules Needed
MCTRL4K: 4 Fiber Modules Needed
NOVA PRO UHD JR: 4 Fiber Modules Needed
KU20 (SU20): 1 Fiber Module Needed
VX600: 2 Fiber Modules Needed
VX1000: 2 Fiber Modules Needed
The proper configuration for a fiber setup is FROM THE PROCESSOR to the fiber converter via SINGLE MODE DUPLEX FIBER CABLES WITH LC CONNECTORS. Then, you can connect RJ45 Data Cables from the OUTPUT of the fiber converter to the input of the video wall itself, just like you would connect them straight out of the processor when you aren’t using fiber.
