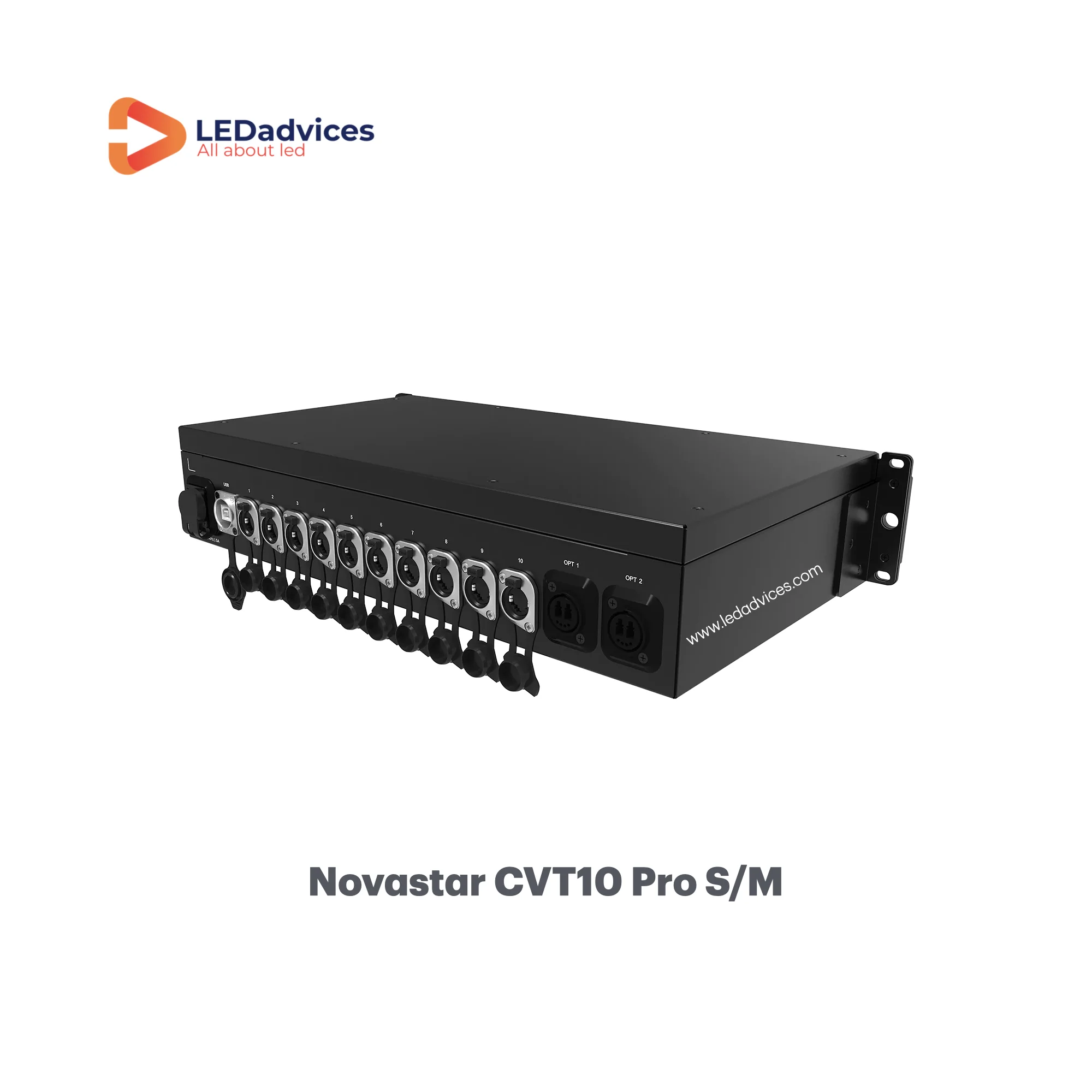

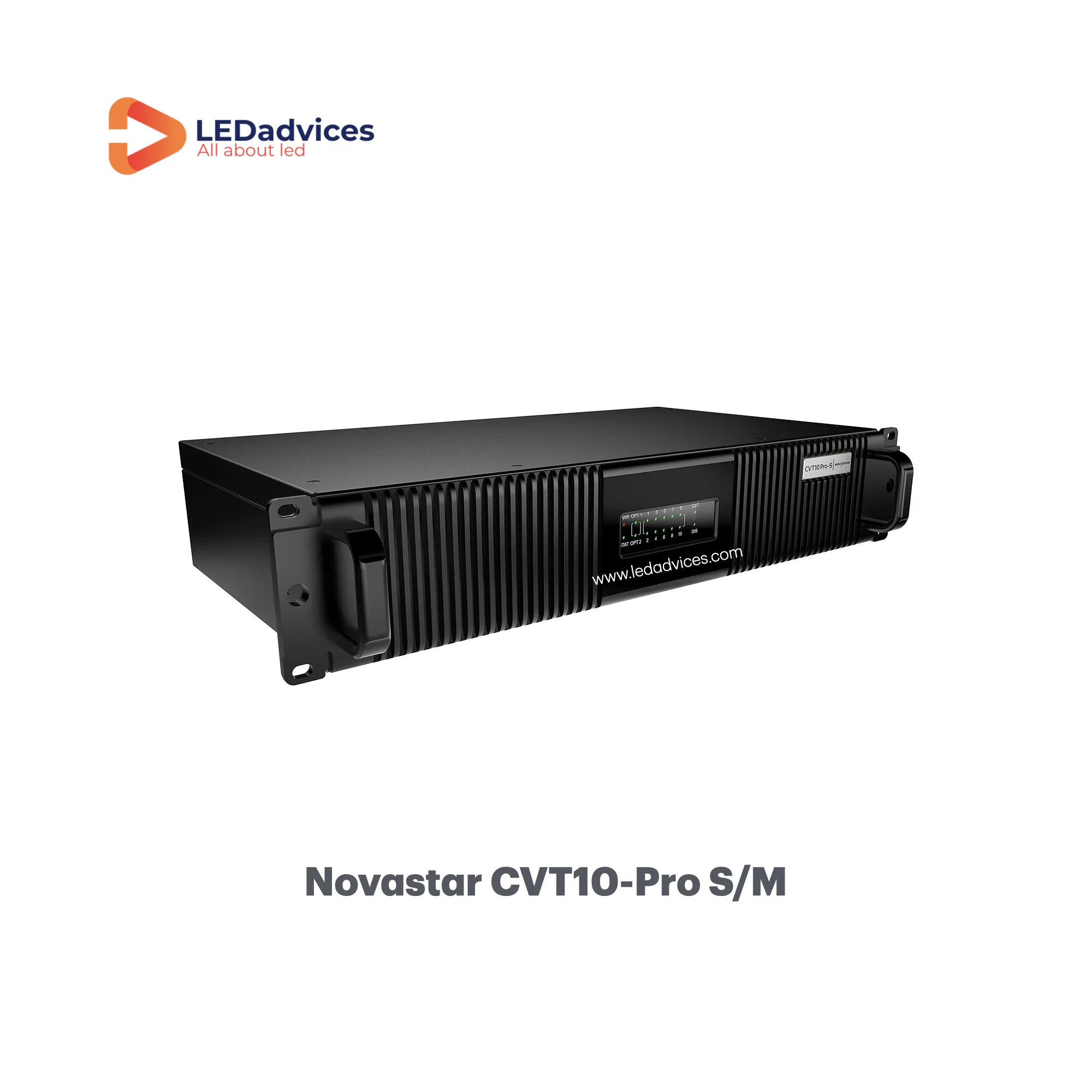

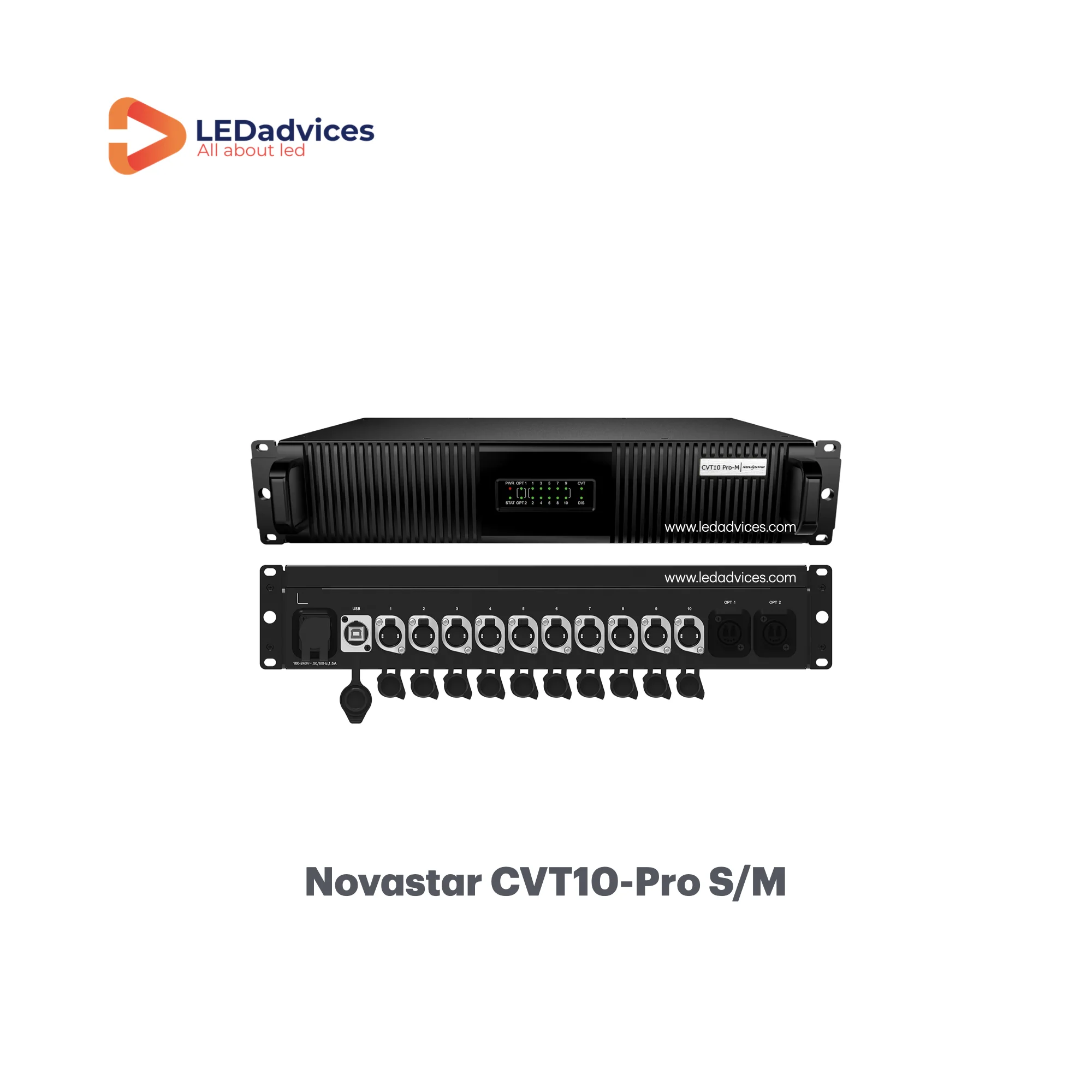

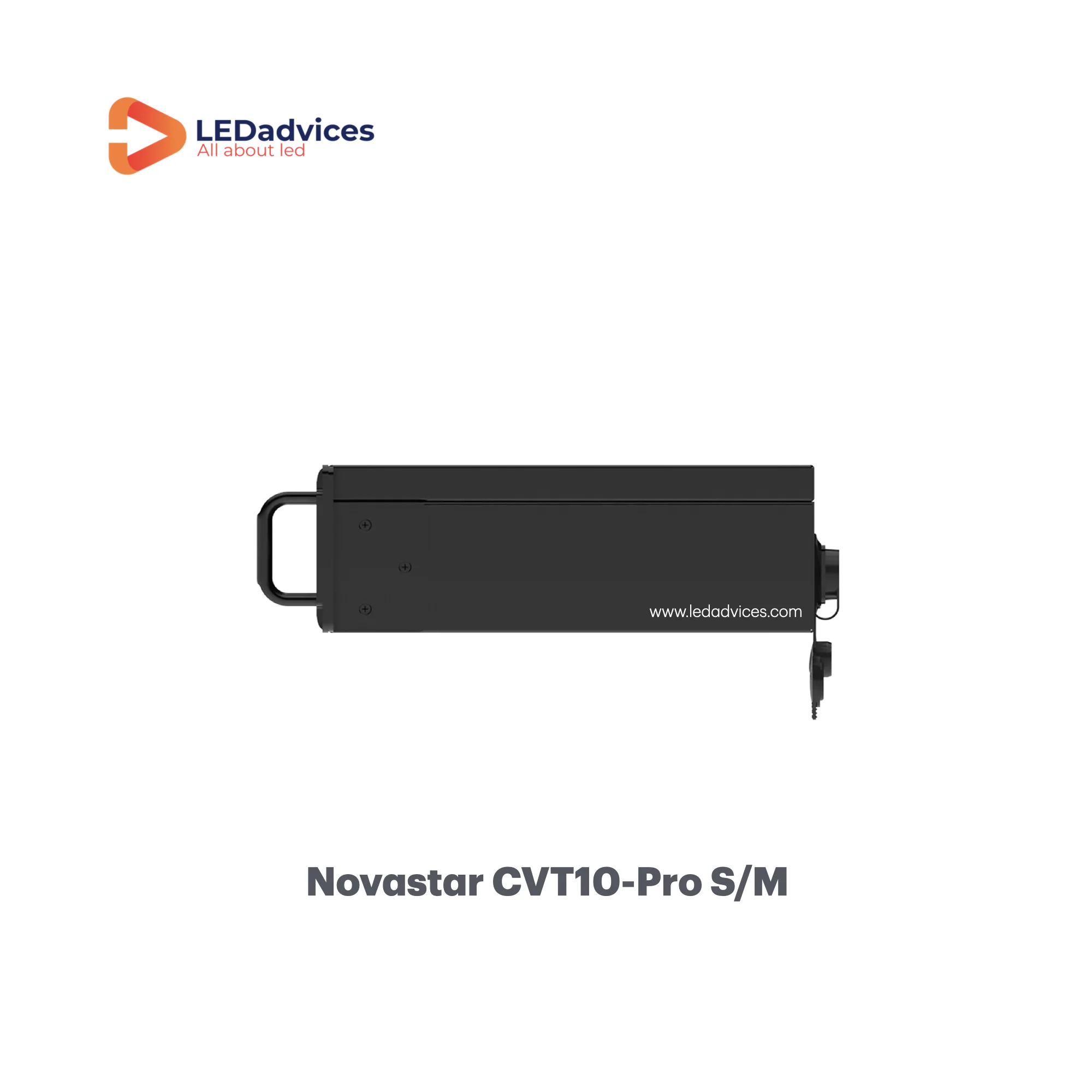

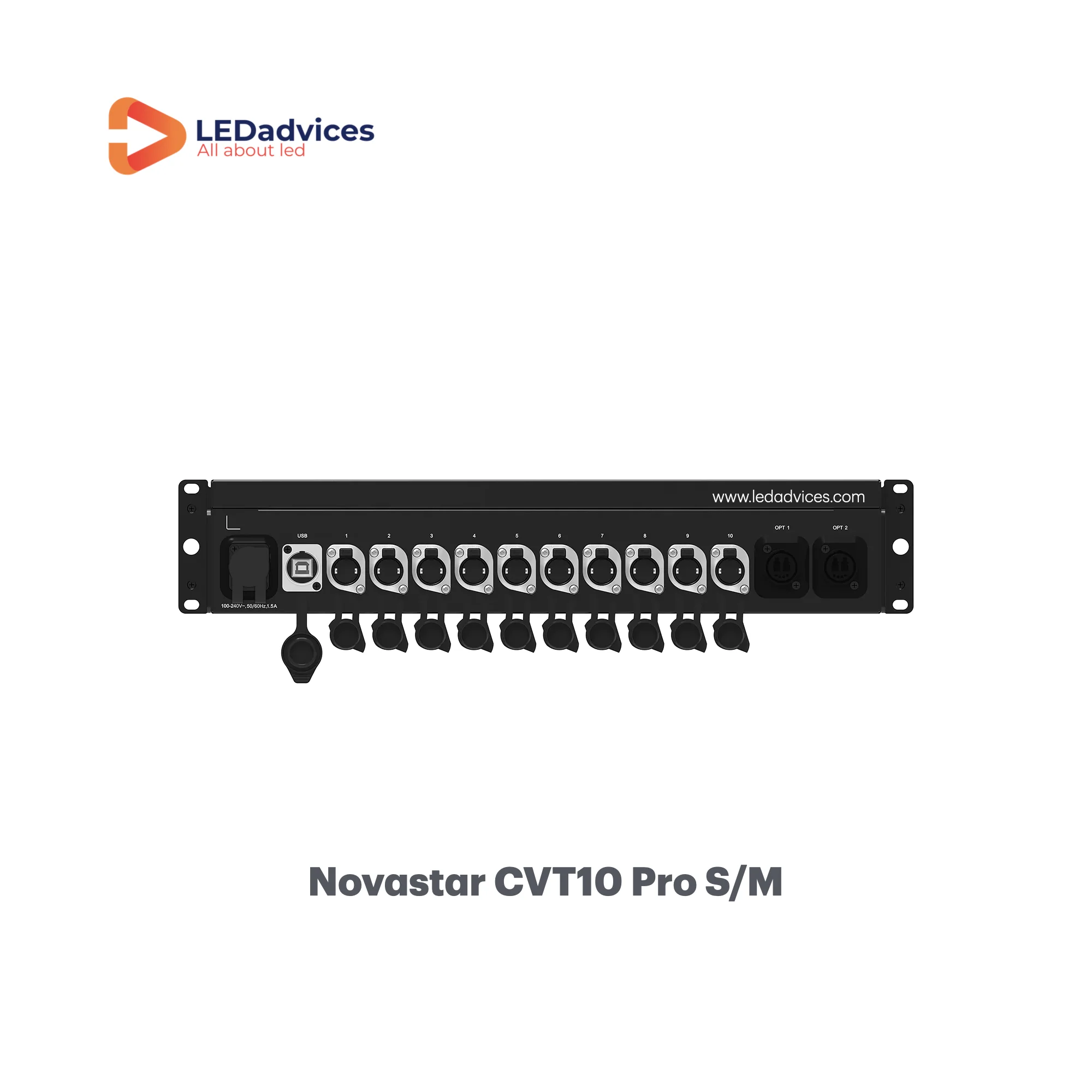

The CVT10 Pro fiber converter offers a way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED screen. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.
The CVT10 Pro adopts a dustproof and waterproof design. It can be mounted horizontally in a rack, or mounted onto a scaffold in a suspended way with truss clamps, which is easy, secure and reliable.
Certifications
CE, FCC, IC, UL, CB, RCM
Features
Models include the CVT10 Pro-S (single-mode) and the CVT10 Pro-M (multi-mode).
2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
-
10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
-
Fiber in and Ethernet out
If the input device has 8 or 16 Ethernet ports, the first 8 Ethernet ports of the CVT10 Pro are available.
If the input device has 10 or 20 Ethernet ports, all the 10 Ethernet ports of the CVT10 Pro are available. If Ethernet ports 9 and 10 are found unavailable, they will be available after upgrading in the future.
-
Ethernet in and fiber out
All the 10 Ethernet ports of the CVT10 Pro are available.
-
1x type-B USB control port
