Novastar HDR Master 4K Video Processor
Description:

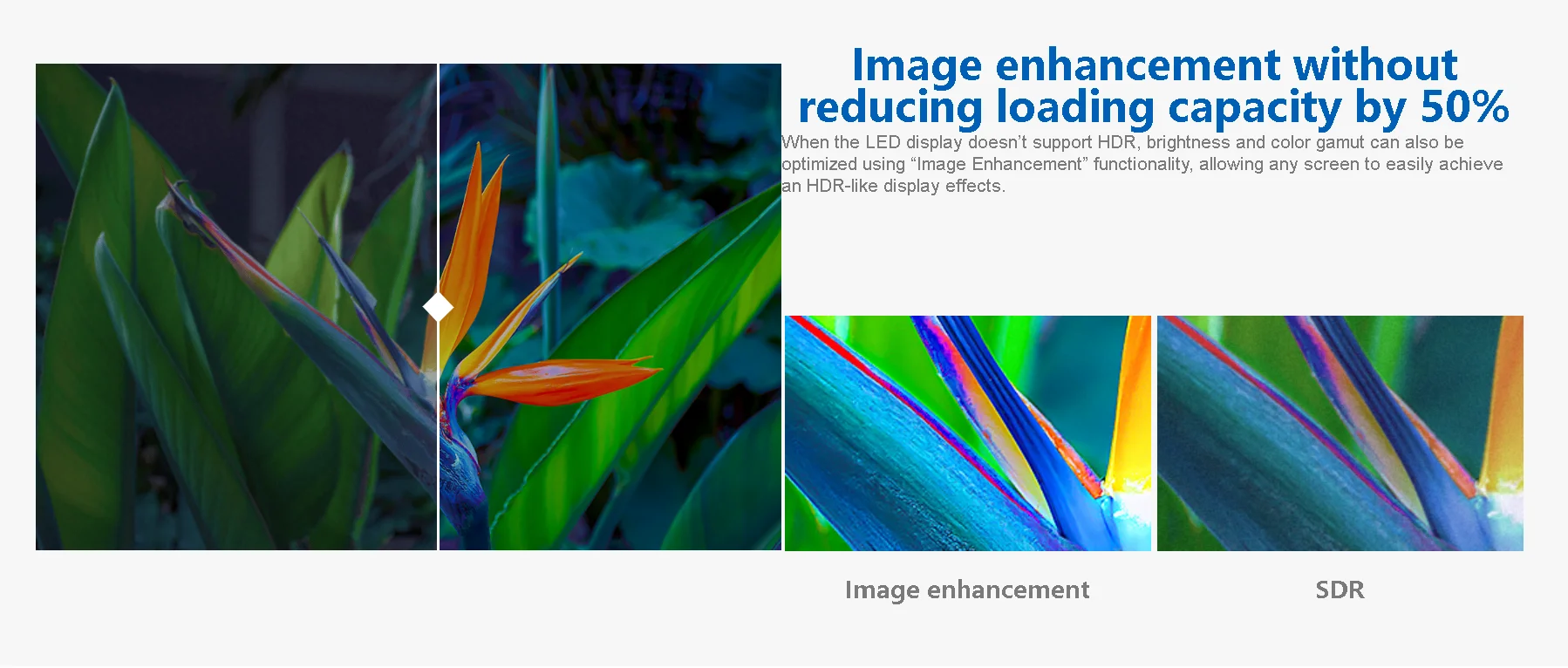

HDR Master 4K is an HDR video generator, image quality optimizer, and 4K video processor. It is capable of converting SDR video into HDR video output, allowing for a more realistic and lifelike image. When the LED display doesn’t support HDR, it can provide an overall improvement to image quality using “Image Enhancement” functionality.
Features:
1x pluggable input card
− 1x DP 1.2, 1x HDMI 2.0 and 4x 12G-SDI
− 3G-SDI mosaic input
− Up to six 4K×2K@60Hz video inputs simultaneously2x pluggable output cards that output the same content synchronously
− One with 1x HDMI 2.0 and 4x 10G optical fiber ports
− The other one with 1x HDMI 2.0 and 4x 12GSDI output connectors

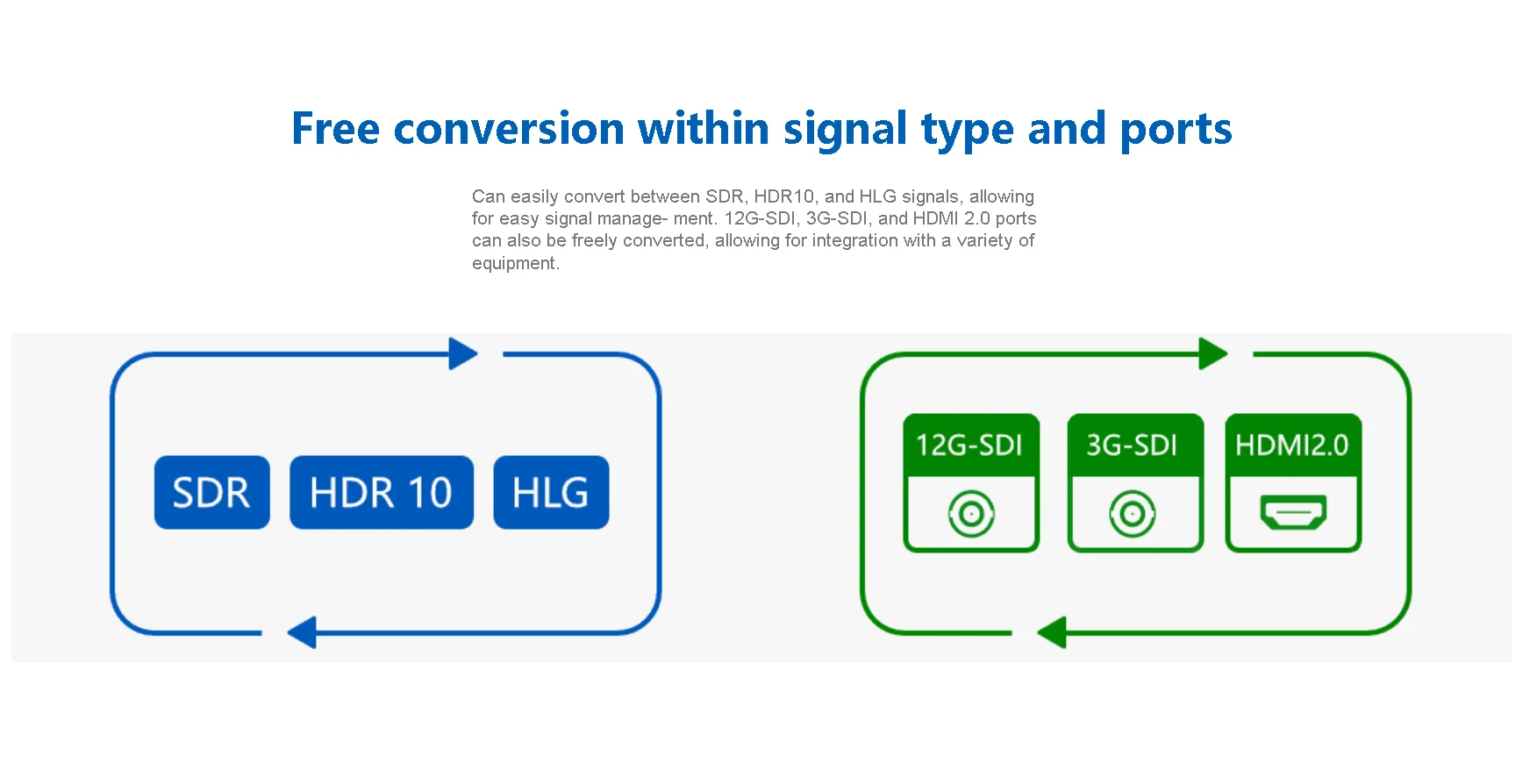

− 3G-SDI mosaic outputFree conversion between SDR and HDR10/HLG
− Convert SDR content to HDR10/HLG format
− Convert HDR10/HLG content to SDR formatBKG and LOGO file importing via a USB drive
− Up to 10 BKG images, each width or height up to 8192 pixels
− Up to 10 LOGO images, each width or height up to 512 pixelsImage mosaic supported
Adjustable contrast gain and low grayscale gain of the output image
Input source black level settings for better image effect
An LCD screen dedicated to monitoring
Self-test and status monitoring
Input hot backup function
High-quality adaptive scaling of the output image
Adjustable output color space, sampling rate and bit depth
Layer image flipping, input crop and layer mask

HDR Master 4K is an HDR video generator, image quality optimizer, and 4K video processor. It is capable of converting SDR video into HDR video output, allowing for a more realistic and lifelike image. When the LED display doesn’t support HDR, it can provide an overall improvement to image quality using “Image Enhancement” functionality.

4K HDR full-link HDR solution
Support for conversion of SDR video source into HDR, providing a more vivid and stunning visual experience. Can provide a full-link HDR solution by pairing a MCTRL 4K and A8s receiving card. The output load can up to 8K by splicing 4 devices.

Detailed Image for a stunning visual experience

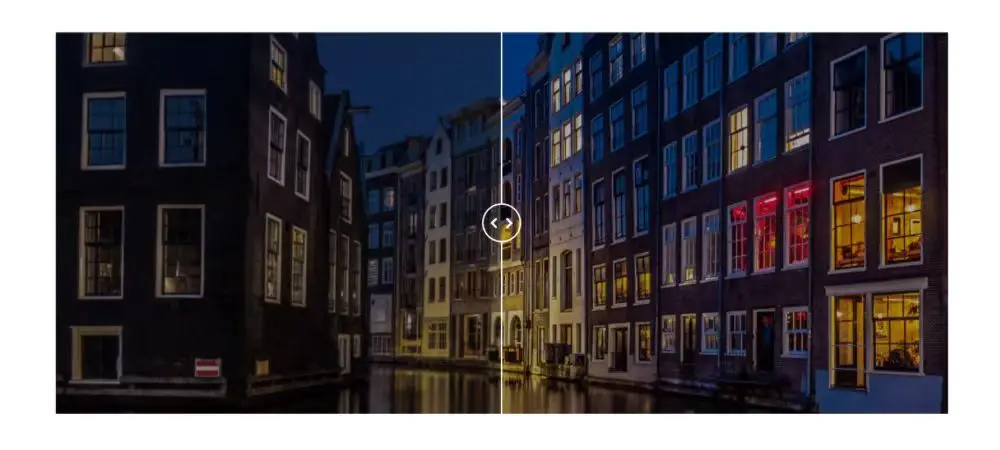

Automatic image noise correction, allowing for a more beautiful image. All-new Black Level adjustment, providing more detail in dark parts of the image. Flexible adjustment for Contrast Gain and Low Grayscale Gain, avoiding overexposure in bright areas and grayscale loss in low brightness.
