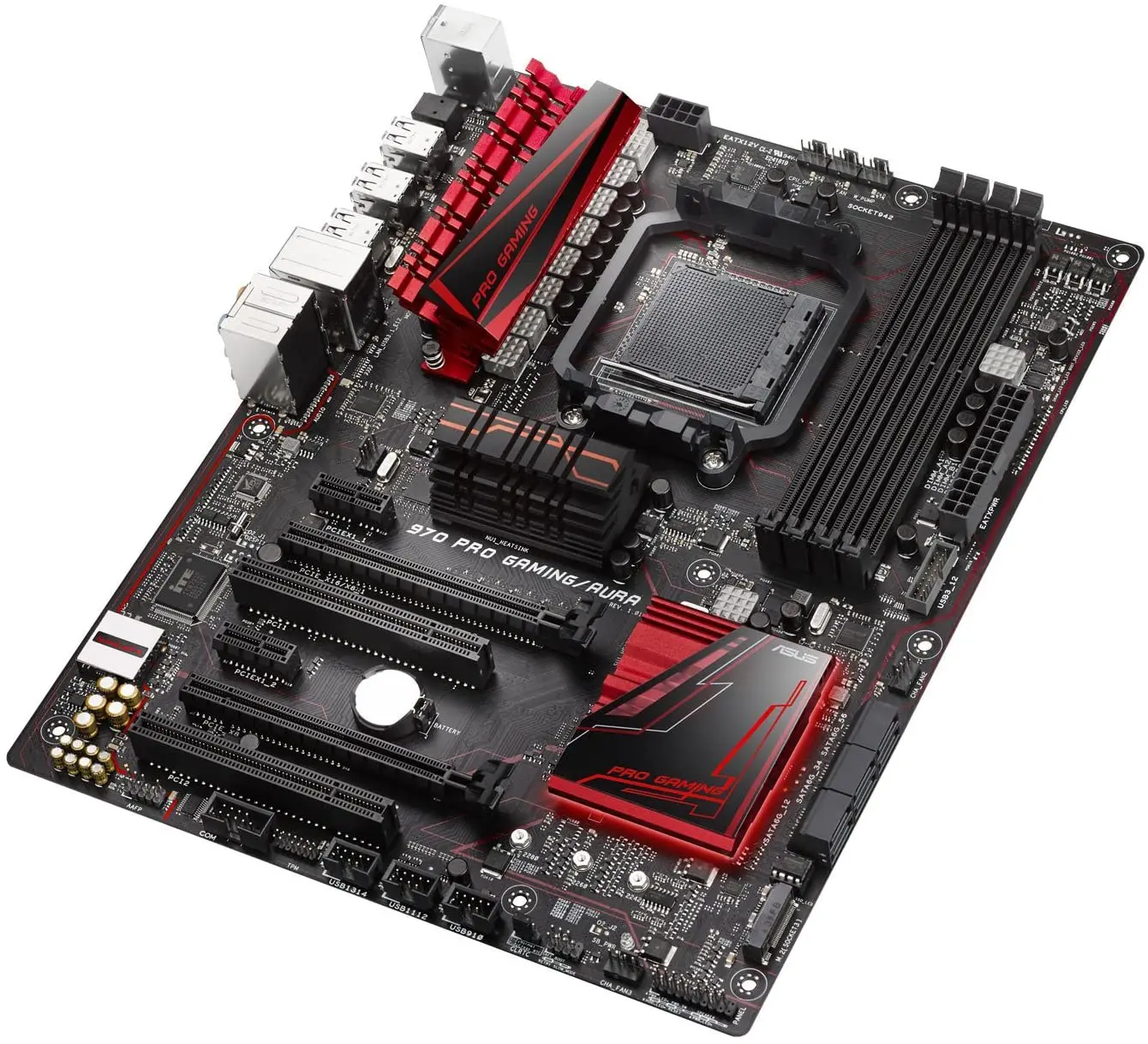

Original ASUS 970 PRO GAMING/AURA Desktop Motherboard Socket AM3+ AMD 970 DDR3 AMD AM3+ FXPhenom II PCI-E2.0 SATA3 USB3.1 ATX Motherboard

$251.21 $145.60 SAVE 42%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description

Motherboard chip
Integrated chip sound card/network card
Main chipset AMD 970
Chipset description Using AMD 970 North Bridge + SB950 South Bridge chipset
Display chip APU built-in display chip (requires APU support)
Audio chip integrated SupremeFX 8-channel audio chip
Network card chip onboard Intel I211-AT gigabit network card
Processor specifications
CPU type AMD AM3+ FXPhenom II/Athlon II/Sempron 100
CPU socket Socket AM3+
CPU description Support AMD 32nm processor
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2133 (overclocking)/1600/1866/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 2.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface 1×M.2 interface, 6×SATA III interface
I/O interface
USB interface 2×USB3.1 Type-A interface (backplane), 2×USB3.0 interface (built-in), 14×USB2.0 interface (6 built-in +8 backplane)
Power connector One 8-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×TPM interface, 1×PS/2 keyboard and mouse universal interface, 1×COM interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×24.4cm
Software management
BIOS performance 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Multi-graphics technology AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Support NVIDIA Quad-GPU SLI dual card four core crossfire technology
Power supply mode: eight phase
Overclocking function support
RAID function Support RAID 0, 1, 5, 10
Listing date February 2016
