Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B150
Chipset description Using Intel B150 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated SupremeFX 8-channel audio chip
NIC chip onboard Realtek Gigabit NIC
Processor specifications
CPU type Sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 1600MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 1 × PCI slot
Storage interface 6×SATA III interface

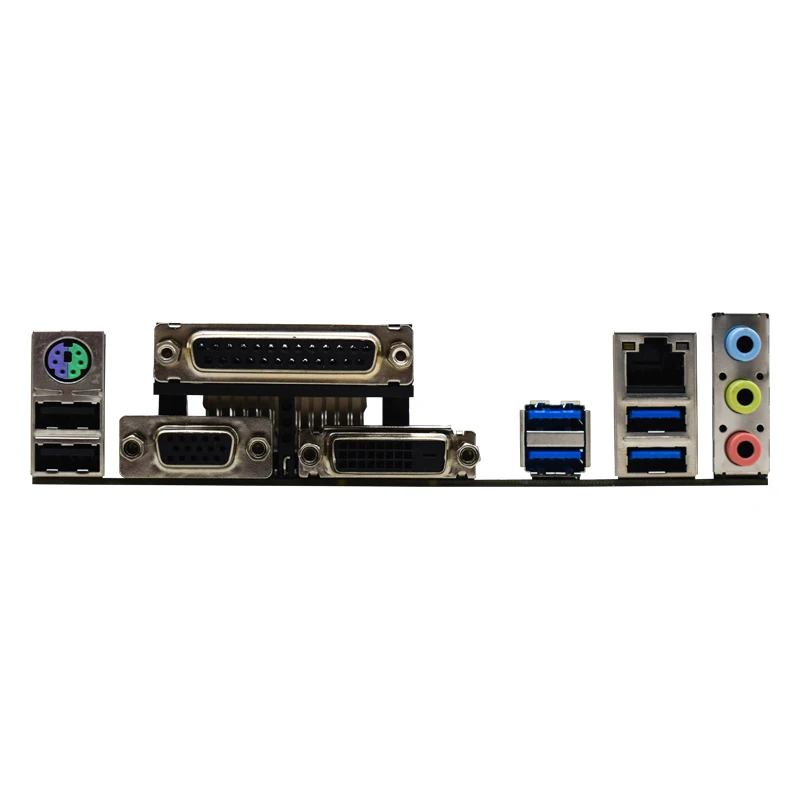

I/O interface
USB interface 6×USB3.0 interface (2 built-in +4 backplane), 6×USB2.0 interface (4 built-in +2 backplane)
Video interface 1×VGA interface, 1×DVI interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard type Micro ATX type
Dimensions 24.4×18.3cm
Software management
BIOS performance 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 favorites, quick notes, history, F12 screenshots, F3 shortcut keys, memory SPD information
Other parameters
Power supply mode: six phase
RAID function Support RAID 0, 1, 5, 10
Listing date October 2015
