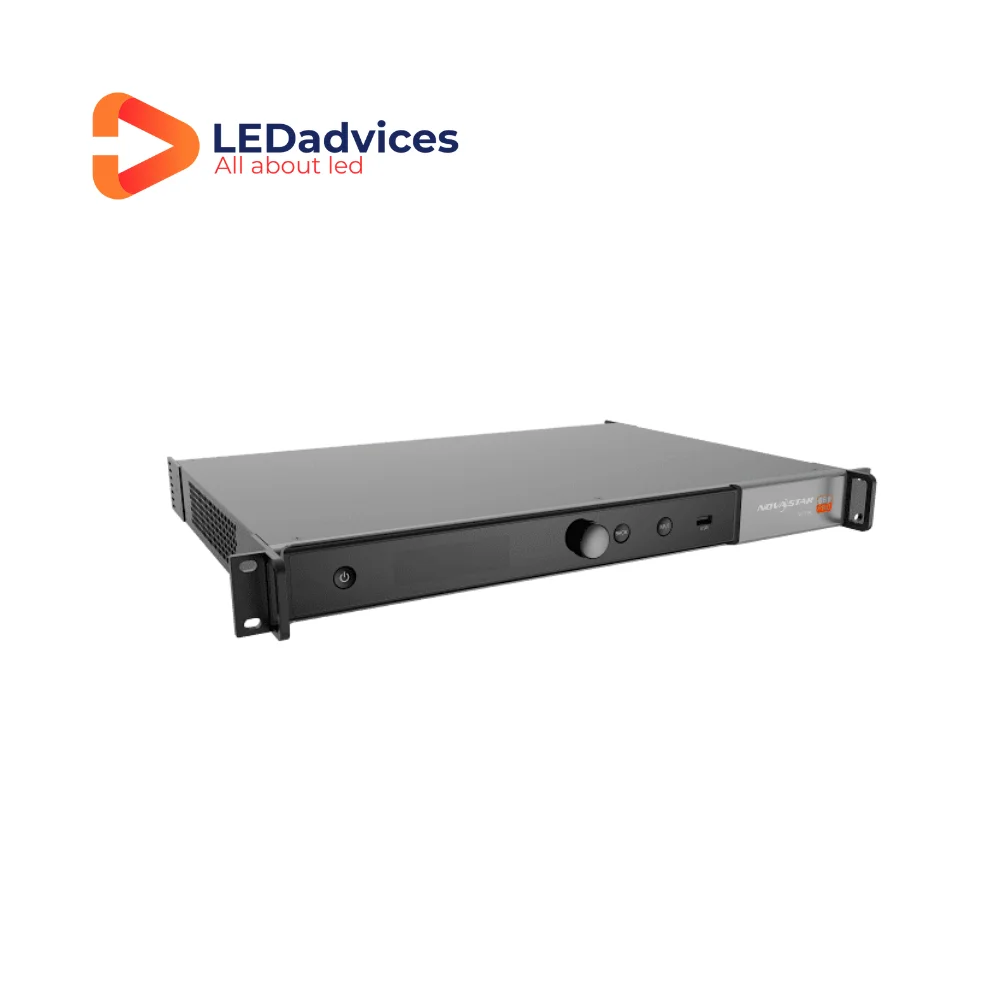

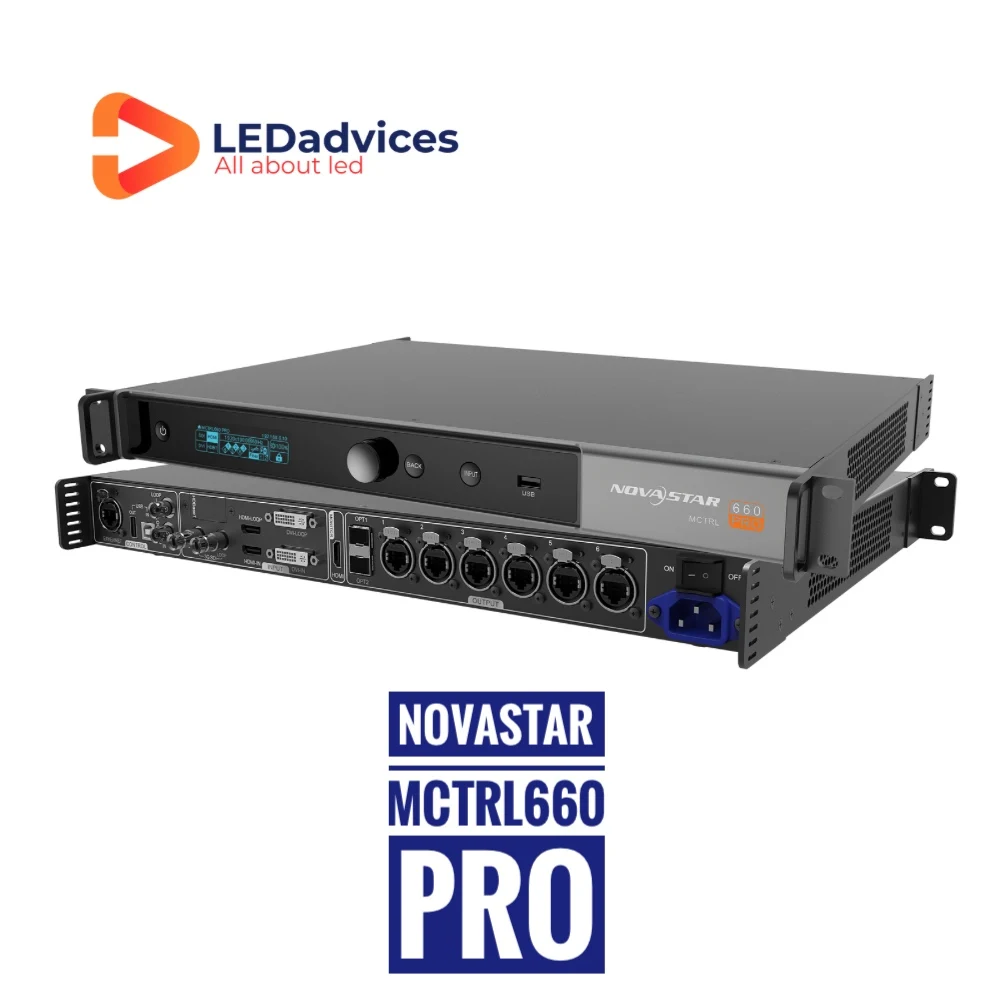

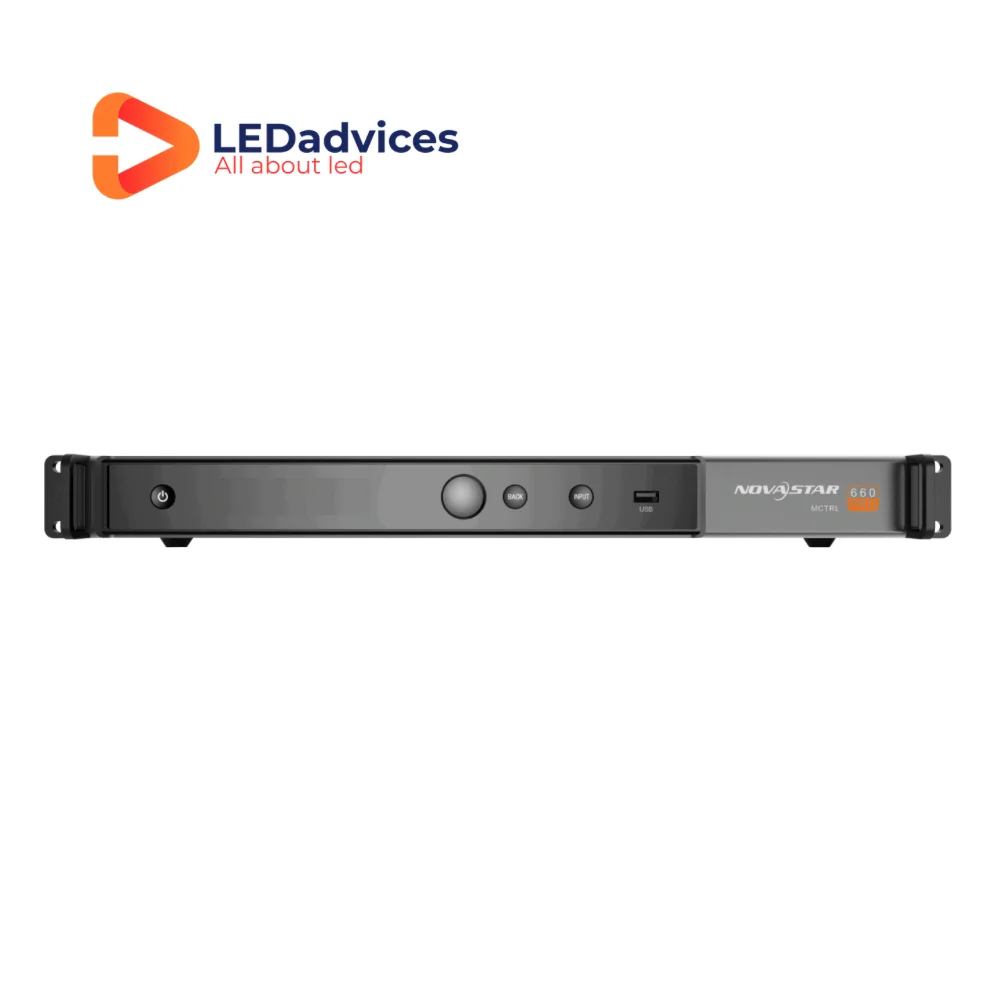

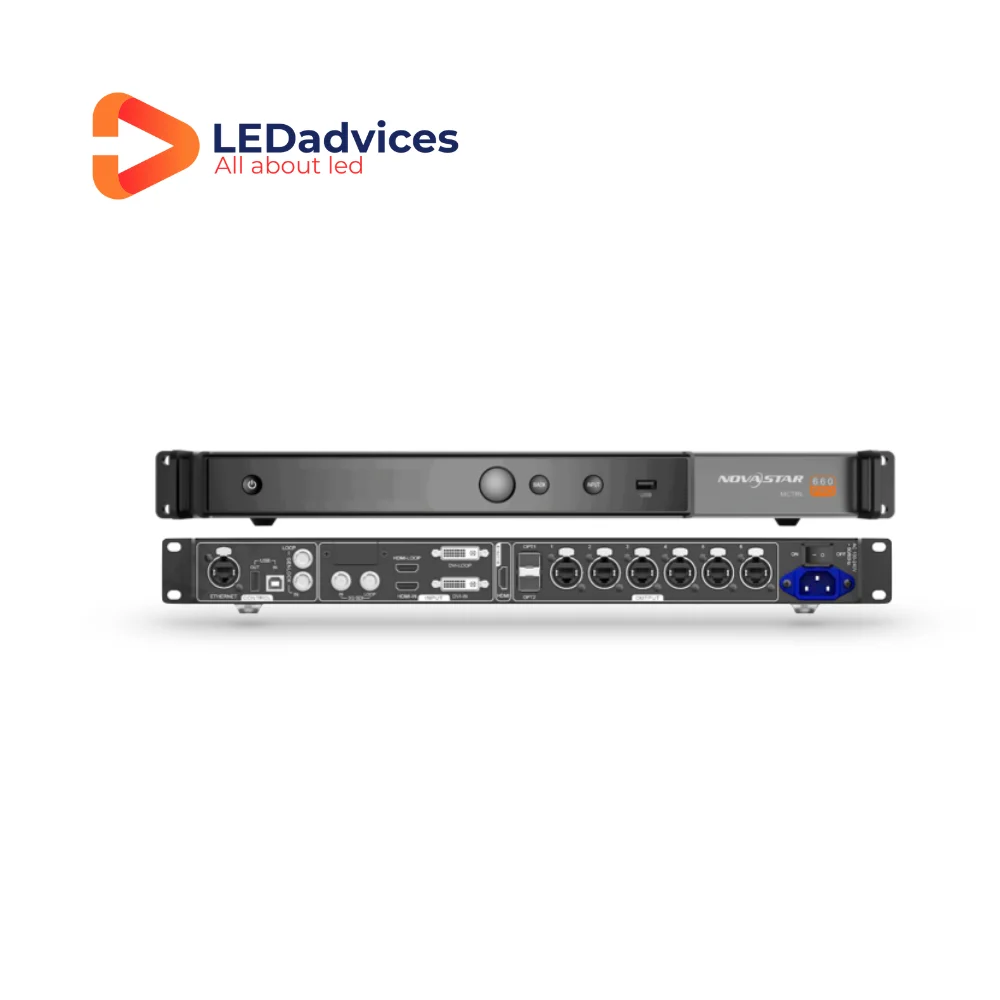

Novastar MCTRL660 Pro LED Display Controller
The MCTRL660 PRO is a professional controller developed by NovaStar. A single controller supports resolutions up to 1920×1200@60Hz. Supporting image mirroring, this controller can present a variety of images and bring an amazing visual experience to users.
The MCTRL660 PRO can work as a sending card and a fiber converter and supports switching between the two modes, meeting more diversified market demands.
The MCTRL660 PRO is stable, reliable, and powerful, dedicated to providing users with an ultimate visual experience. It can be used mainly in rental and fixed installation applications, such as concerts, live events, security monitoring, Olympic Games, various sports centers, etc.
-
Features:
The MCTRL660 PRO has a variety of video connectors:
Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI

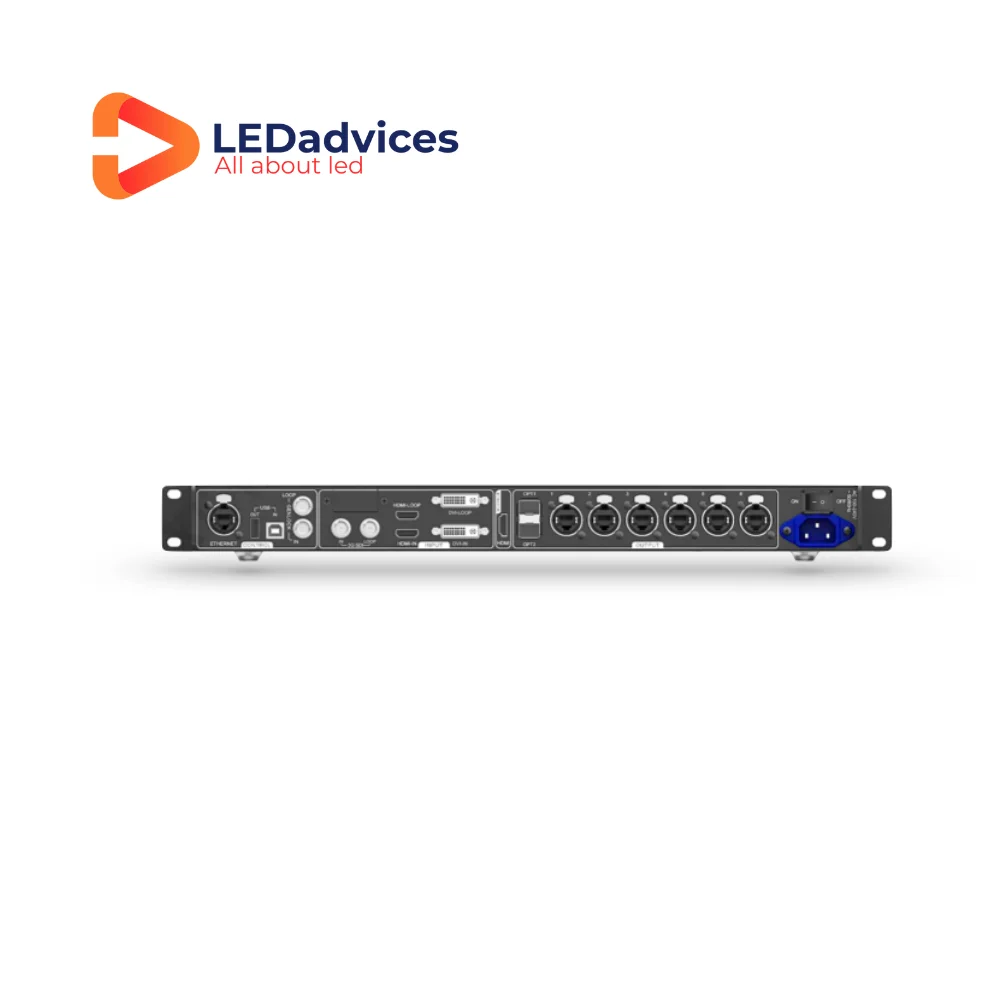

Output connectors: 6 × Gigabit Ethernet port, 2 × 10G optical port
Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI 1.4a LOOP, 1 × DVI LOOP
The MCTRL660 PRO has many industry-leading advanced technologies:
The input of ultra-high color depths: 10-bit/12-bit RGB 4:4:4/YCbCr 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors, smoother transitions, as well as clearer details.
Supports individual Gamma adjustment for RGB when the color depth of input source is 10-bit or 12-bit, which effectively controls image non-uniformity under low grayscale and white balance offset to improve image quality.
Low latency: Less than 1 ms (when the start position of image is 0).
Dual working modes: working as sending card and fiber converter.
One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure.
Image mirroring, allows for more cool and dazzling stage effects.
Auto LED screen configuration.
Web control.
Pixel level brightness and chroma calibration.
Monitoring of inputs.
Multiple MCTRL660 PRO units can be cascaded.
