Description
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B75
Chipset description Using Intel B75 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC662 6-channel audio chip
Network card chip Onboard Realtek RTL8111E Gigabit network card
Processor specifications
CPU type Core i7/Core i5/Core i3
CPU socket LGA 1155
CPU description Support Intel 22nm processor
Memory specifications
Memory type 2×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 2200 (overclocking)/1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0 standard
PCI-E slot 1×PCI-E X16 graphics slot
1×PCI-E X1 slot
Storage interface 3×SATA II interface; 1×SATA III interface

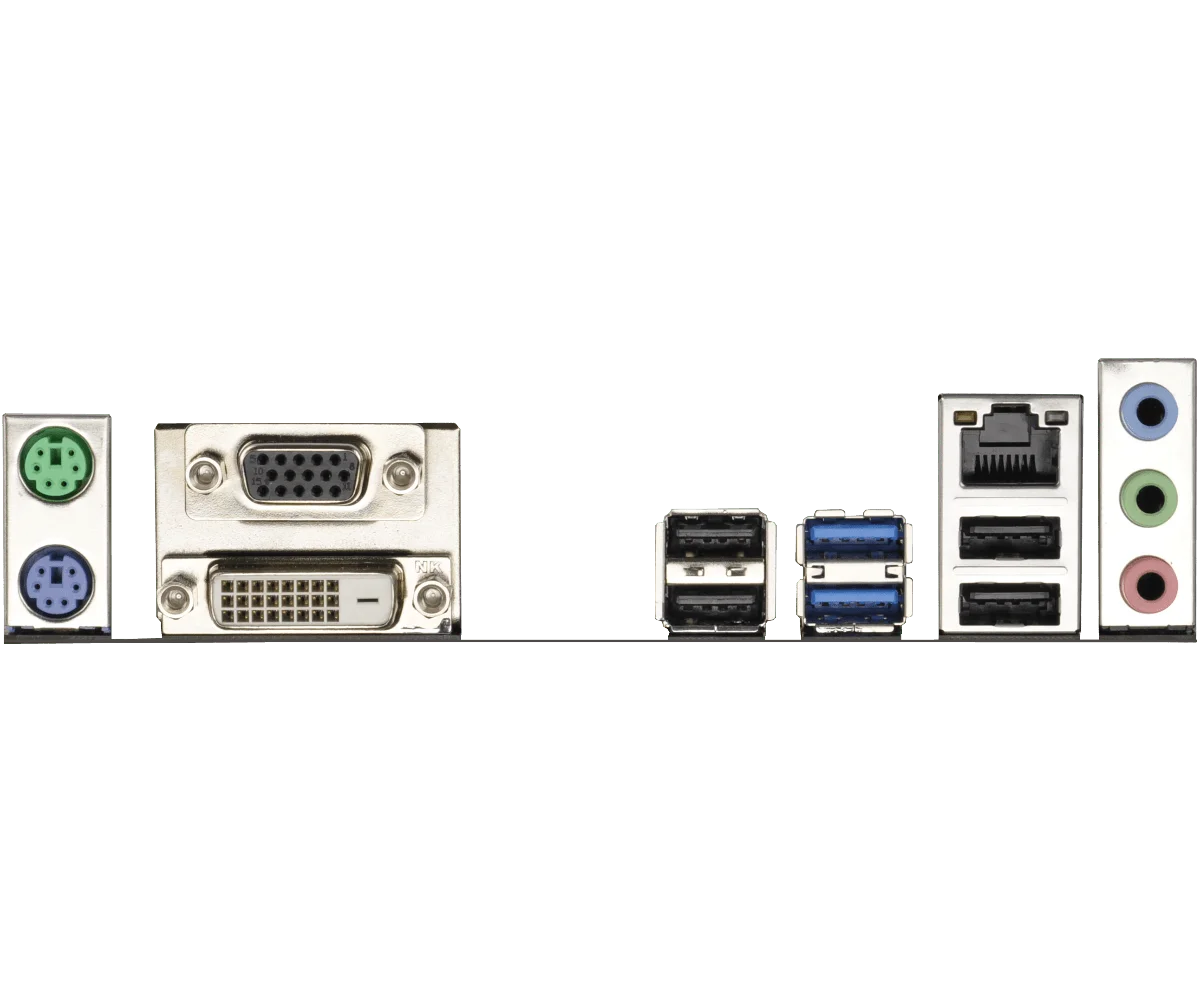

I/O interface
USB interface 8 × USB2.0 interface (4 built-in + 4 backplane); 4 × USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×DVI interface
1×VGA interface
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Board type
Motherboard type Micro ATX type
Dimensions 22.6×18.3cm
Software management
BIOS performance 64Mb AMI UEFI Legal BIOS with graphical interface support
Support "Plug and Play"
Comply with ACPI 1.1, support wake up and automatic boot (Wake Up Events)
Support jumper-free
Support SMBIOS 2.3.1
CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA voltage multi-function regulator
Other parameters
Power supply mode 3+1 phase
Hardware monitoring CPU temperature detection
Chassis temperature detection
CPU/chassis/power fan tachometer
CPU/chassis silent fan (automatically adjust the speed of the chassis fan according to the processor temperature)
CPU/chassis fan multi-speed control
Chassis opening detection
Real-time voltage monitoring: +12V, +5V, +3.3V, core voltage
Other parameters Support Microsoft Windows 7/7 64-bit/Vista/Vista 64-bit/XP/XP 64-bit operating system
