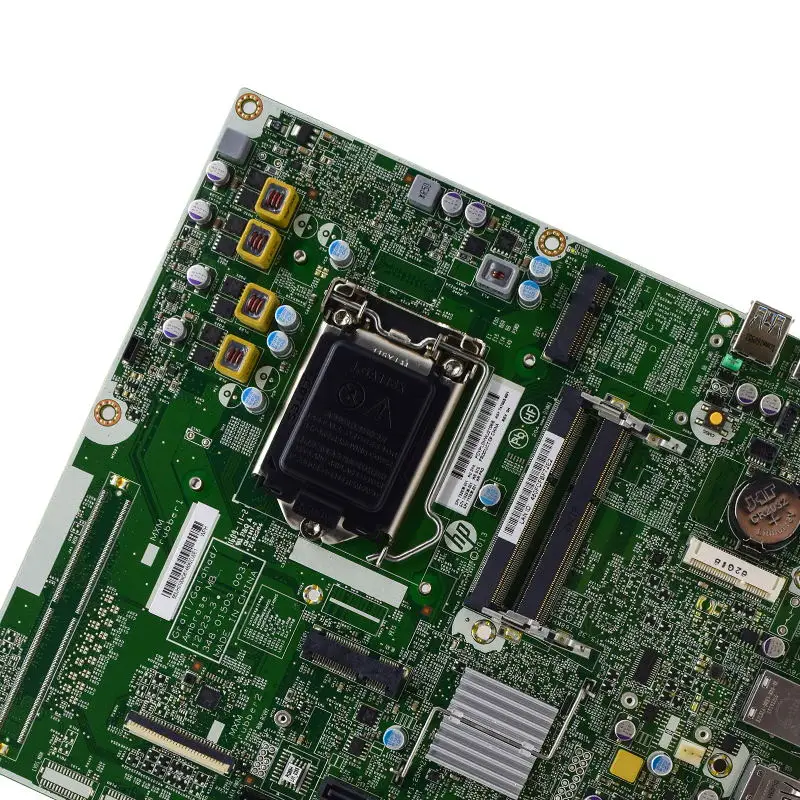

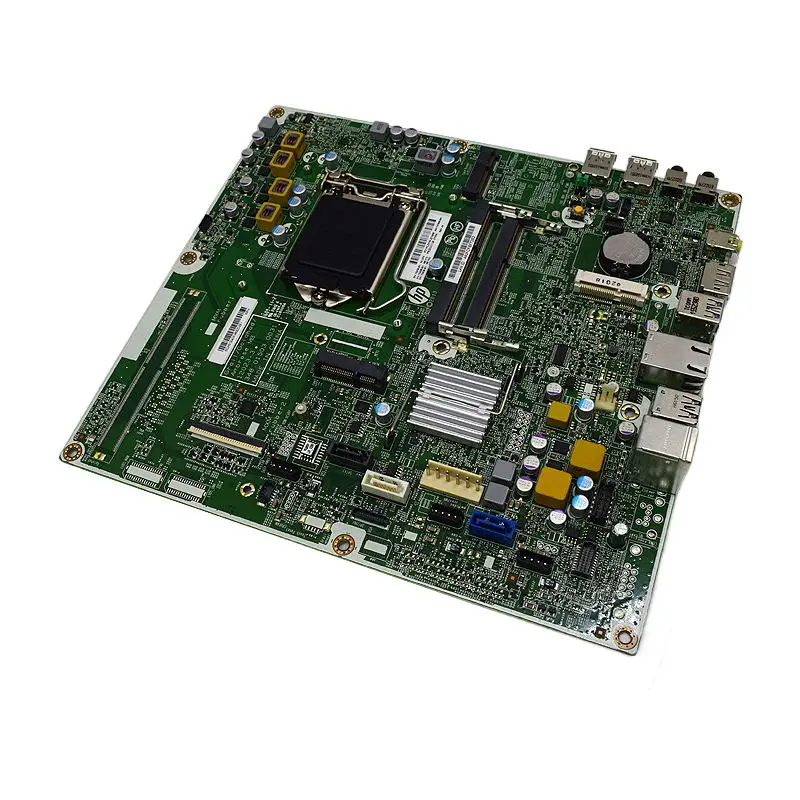

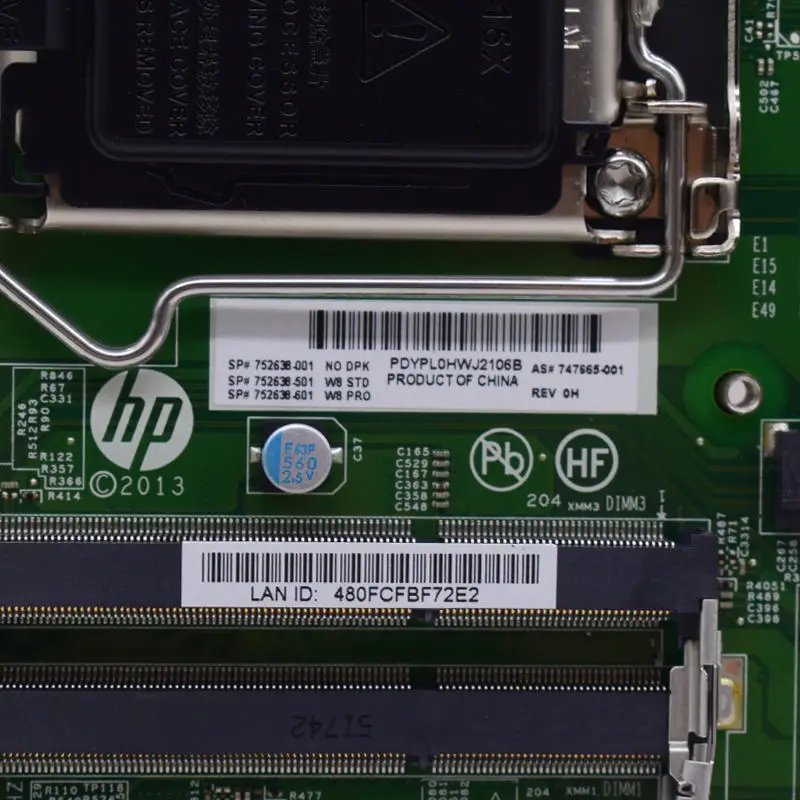

Original For HP All-in-One PC 600 G1 Motherboard LGA 1155 DDR3747665-001 752638-001 System Original Used Motherboard

$129.63 $78.88 SAVE 39%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description

Motherboard chip
Integrated chip sound card/network card
Main chipset Intel H61
Chipset description Using Intel H61 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC889 8-channel audio chip
Network card chip Onboard Realtek RTL8111E Gigabit network card
Processor specifications
CPU type Core i7/Core i5/Core i3/Pentium/Celeron
CPU socket LGA 1155
CPU description L3 cache depends on CPU
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 16GB
Memory description Support dual-channel DDR3 1333/1066/800MHz memory
Storage expansion
PCI-E slot 1×PCI-E X16 graphics slot
1×PCI-E X1 slot
PCI slot 4 × PCI slot
Storage interface 4×SATA II interface; 2×SATA III interface
I/O interface
USB interface 10 × USB2.0 interface (4 built-in +6 backplane); 4 × USB3.0 interface (2 built-in +2 backplane)
Power connector One 4-pin, one 24-pin power connector
Other interfaces 1×RJ45 network interface, audio interface, PS/2 mouse, PS/2 keyboard interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×21.5cm
Software management
BIOS performance 2 64Mbit flash
Use authorized AWARD BIOS
Support DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Other parameters
RAID function Support RAID 0, 1
Hardware monitoring System voltage detection
CPU/system temperature detection
CPU/system fan speed detection
CPU/system smart fan control
Other parameters support Microsoft Windows 7/Vista/XP operating system
