Before placing an order, please provide your panel model to us if you are not sure about your lcd

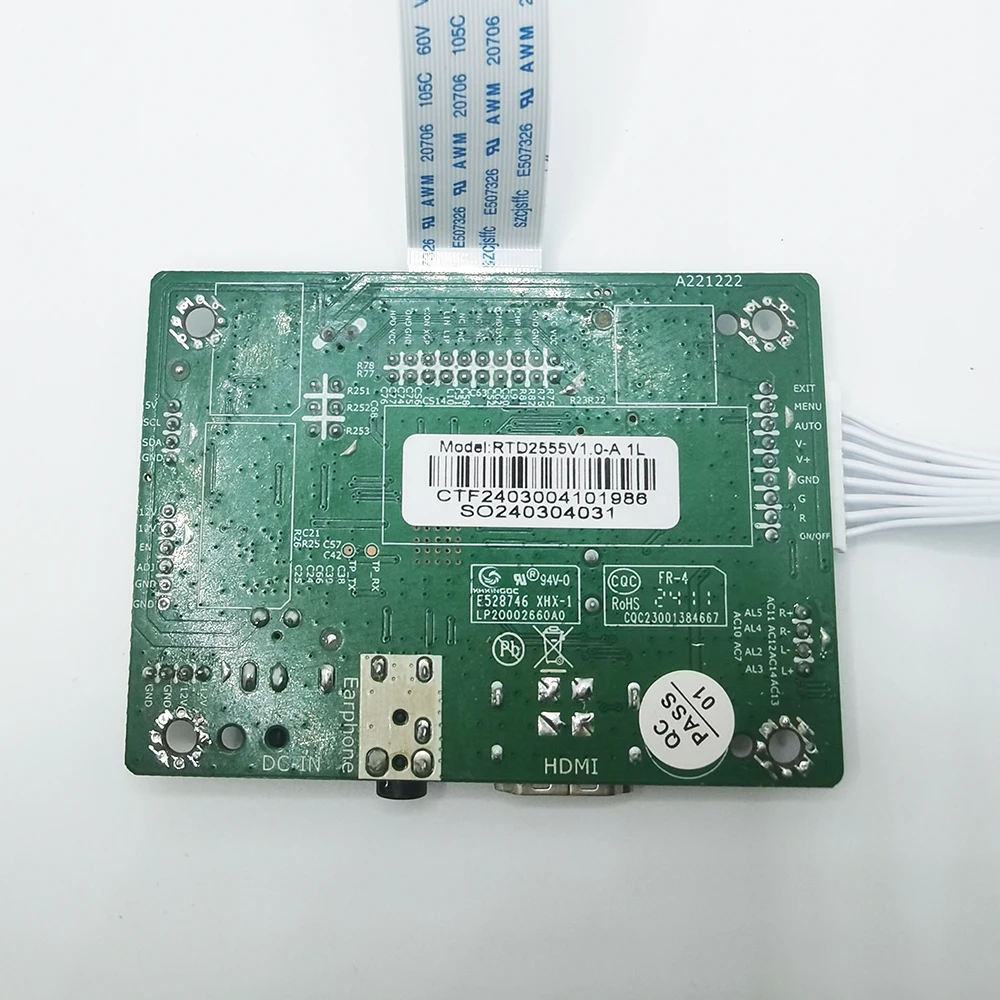

RTD2550 Program Free Jump Cap 30P eDP Universal LCD Driver Board HDM LED Screen Modification Audio Input Burn-in Driver Board
For 30p edp screen
Free program (built-in) driver board
Jump resolution cap to adjust resolution
HDMI input

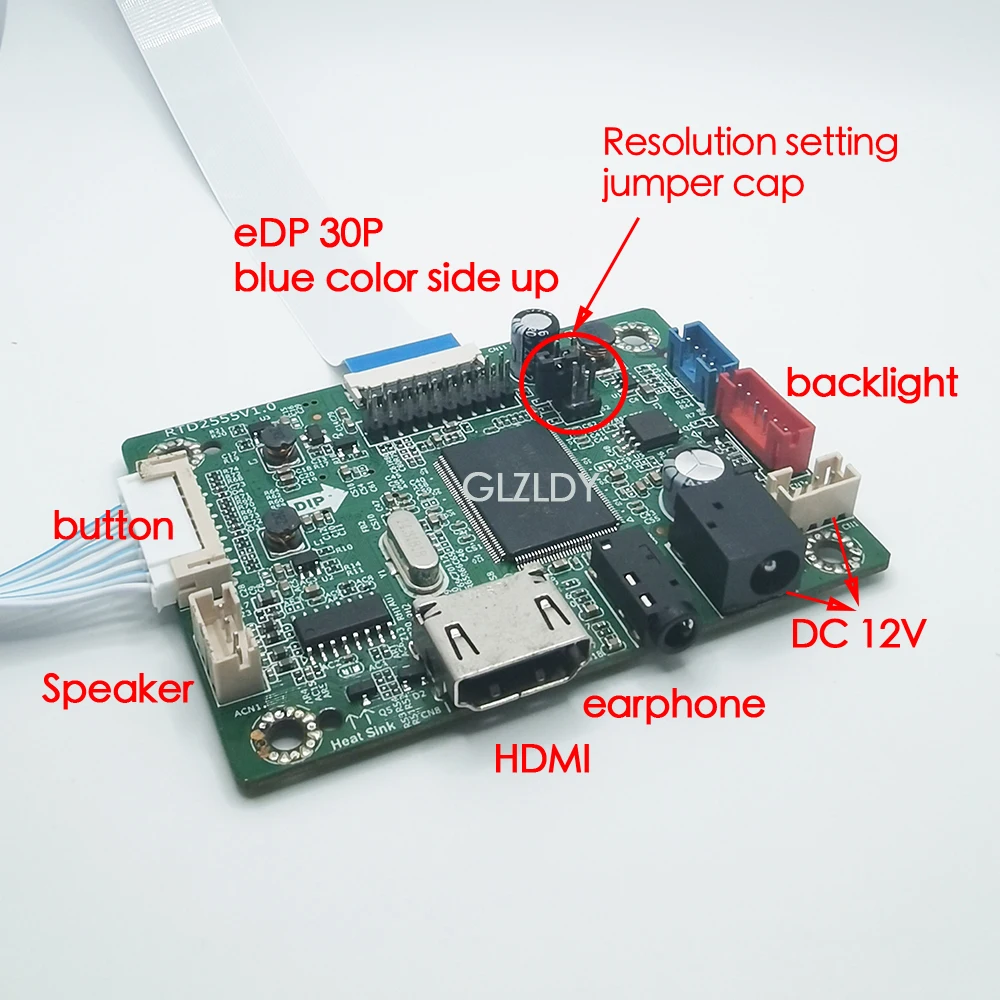

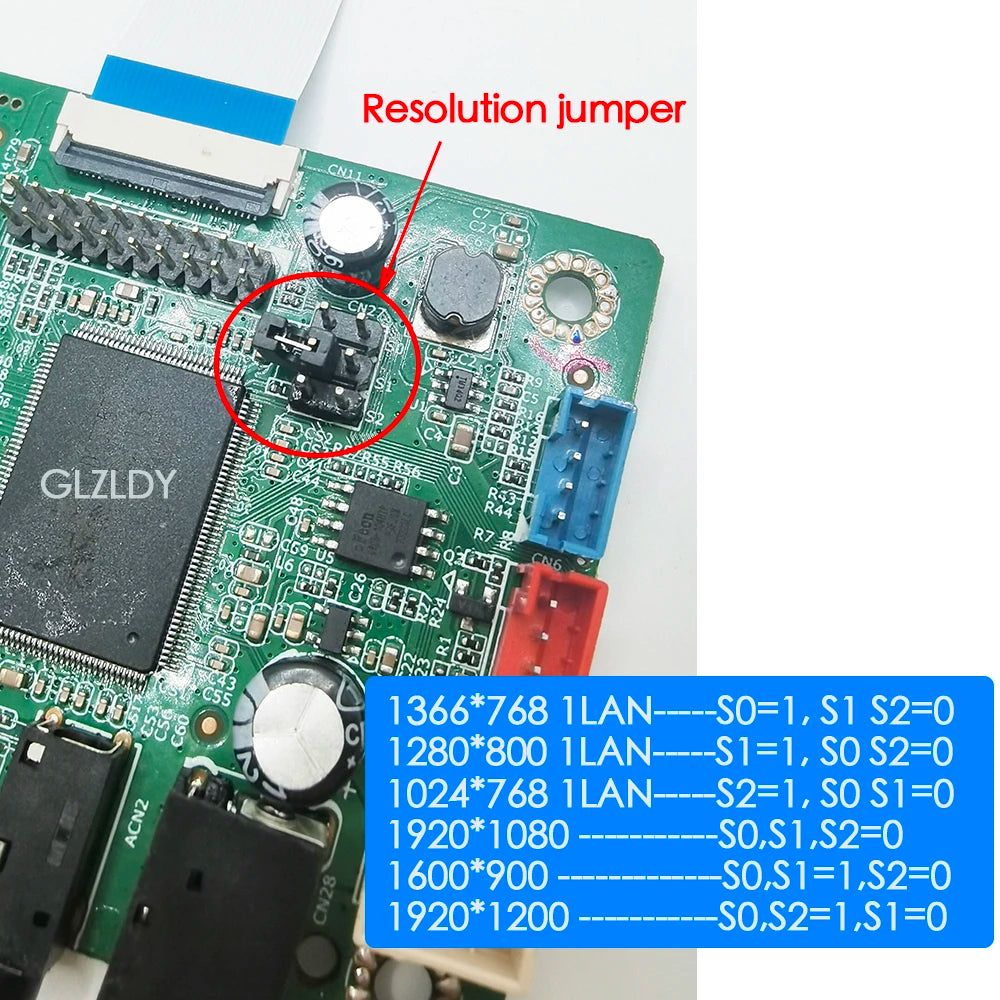

Driver Board Resolution Setting Jump Cap Setting Method:
1366*768 1LAN-----------S0 cap,S1,S2 not cap
1280*800 1LAN----------S1 cap,S0,S2 no cap
1024*768 1LAN-----------S2 cap,S0,S1 no cap
1920*1080 -----------S0,S1,S2 without cap
1600*900 -----------S0,S1 caps,S2 no cap
1920*1200 -----------S0,S2 caps,S1 no cap

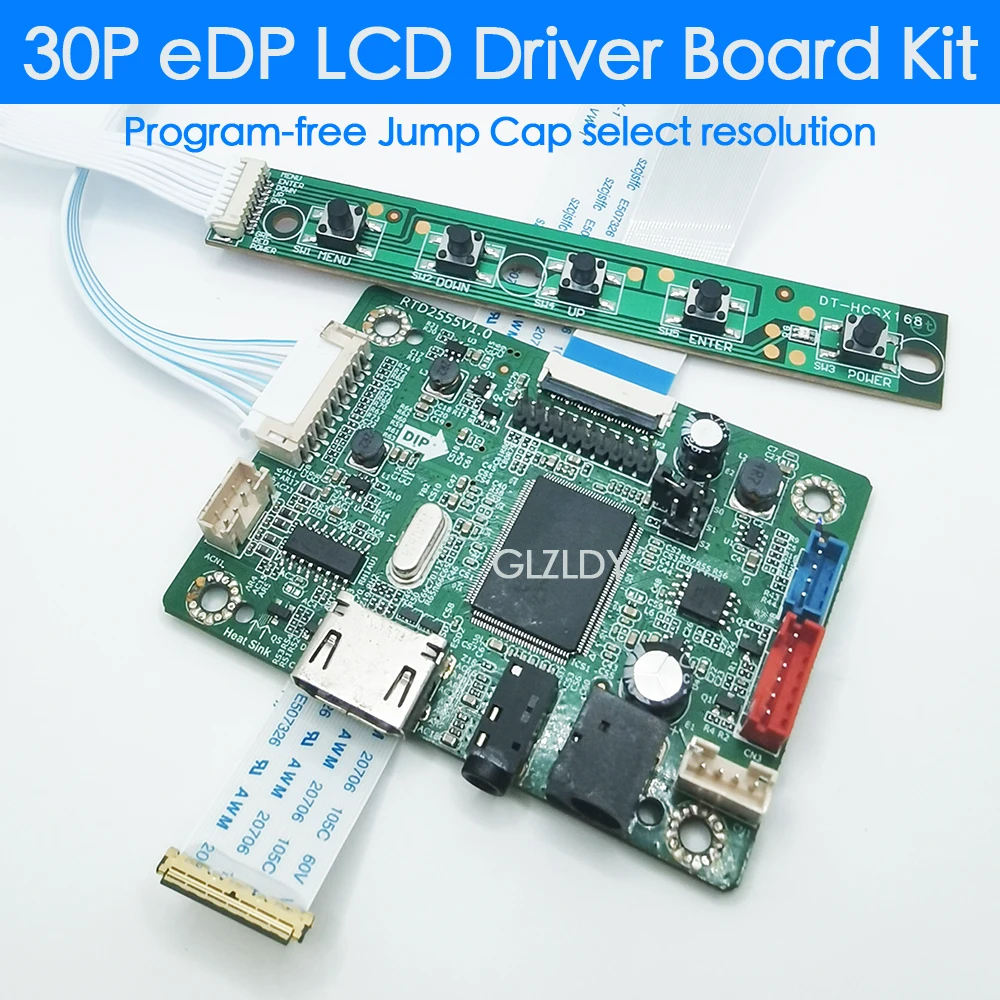

Package include:
1x Free program driver board

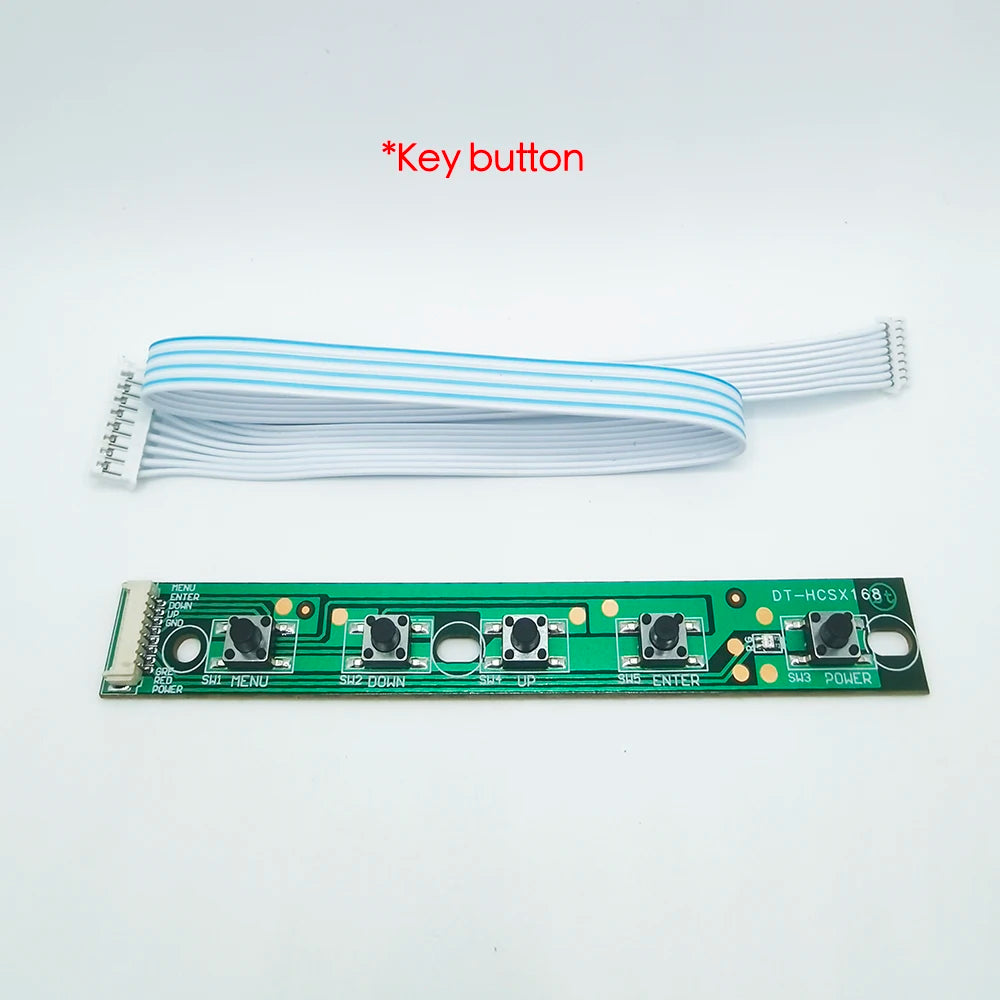

1x 5 key button
1x 30p edp cable
For example
panel :B140XTN02.A ,it's 1366x768, and edp 1 lane, so it works, and you can set S0 cap,S1,S2 not cap
