NOTE: Before you place your order, if you are not sure which screen model you need, please be sure to contact customer service and we will get back to you promptly.

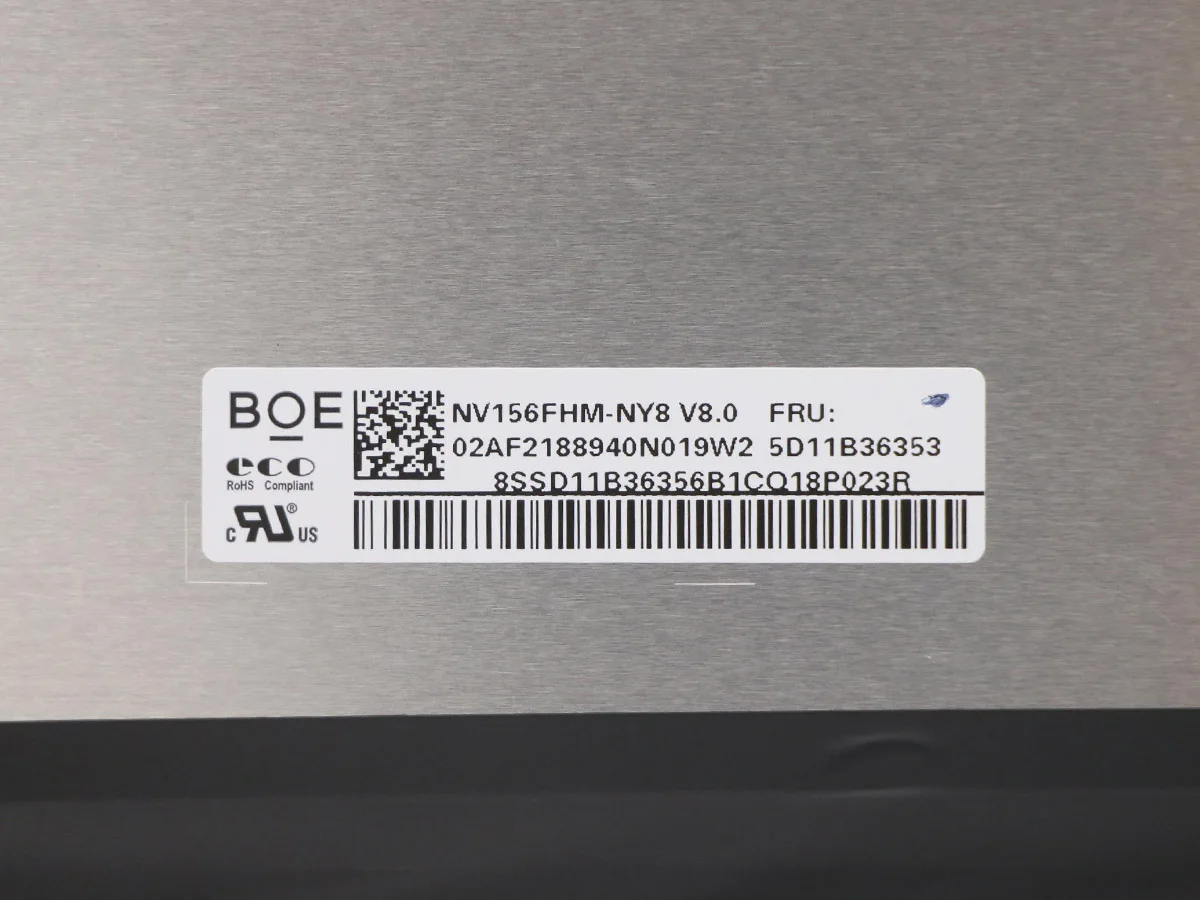

Original BOE NV156FHM-NY8.
15.6 inch 165Hz LCD Screen, FHD 1920x1080, 40 pins eDP connector.
LCD Screen Parameters
Panel Model: NV156FHM-NY8.
Screen Size: 15.6"
Screen Type: IPS
Pixel Number: 1920(RGB)×1080 , FHD, 141PPI.
Refresh Rate: 165Hz
Outline Dim.: 350.66(H)×214.75(V)×2.6(D) mm.
Contrast Ratio: 1000:1.
Brightness: 300 cd/m² (Typ.).
Viewing Angle: 85/85/85/85 (Typ.)(CR≥10).
Display Colors: 1.06B, 100% sRGB.
Surface: Matte.
Signal Interface: eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector.
Backlight: WLED
Quality: A+, Tested well before shipping
Warranty: 180 days
eDP (4 Lanes), 40 Pins Connector.
