StoneTaskin Adjustable DC power supply 30V 10A 60V 5A Lab Bench Power Source Stabilized Power Supply Voltage Regulator Switch 220V 110V 115V Fully Tested Free Shipping

$113.88 $98.88 SAVE 13%

color: TPS305 Black 30V 5A

TPS305 Black 30V 5A
TPS3010 Black30V 10A
TPS605 Black 60V 5A
TPS1203 Black120V 3A
TPS305 White 30V 5A
TPS3010 White30V 10A
TPS605 White 60V 5A
TPS1203 White120V 3A
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description

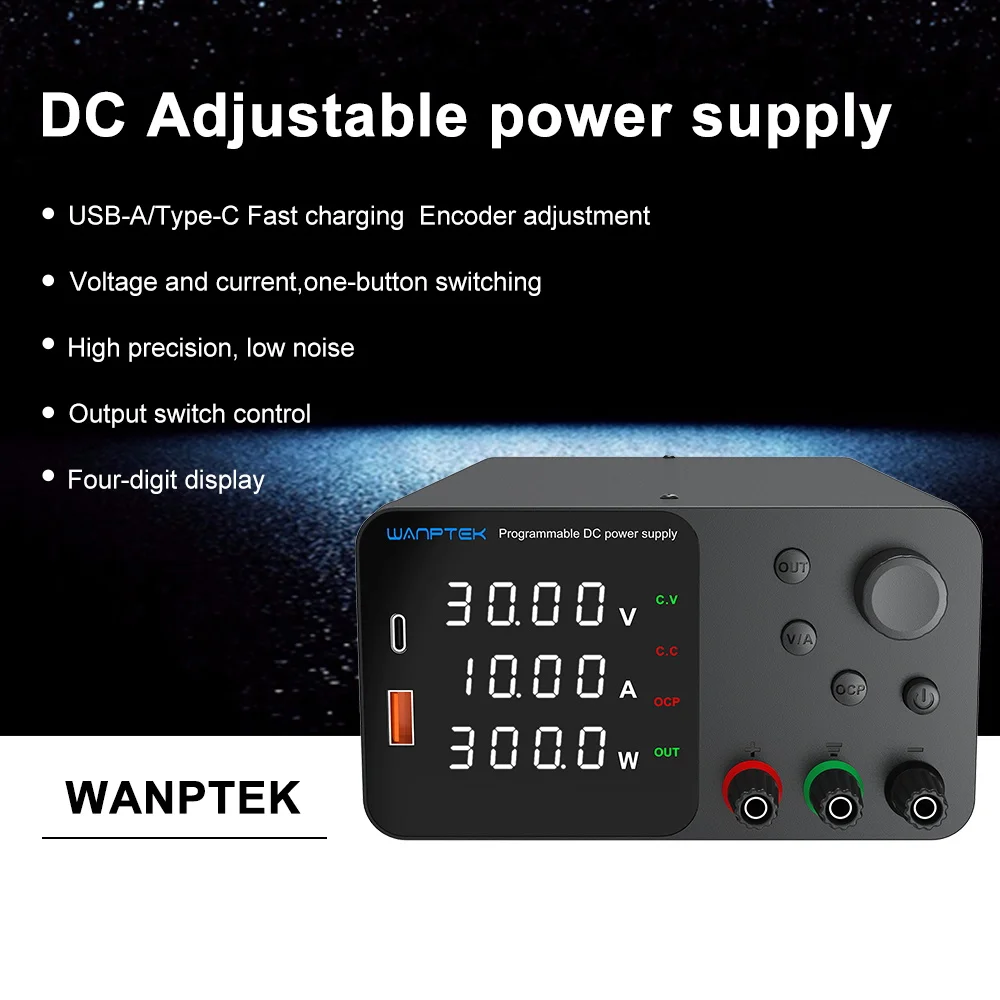

Four-digit display 0.01 V/0.001 A

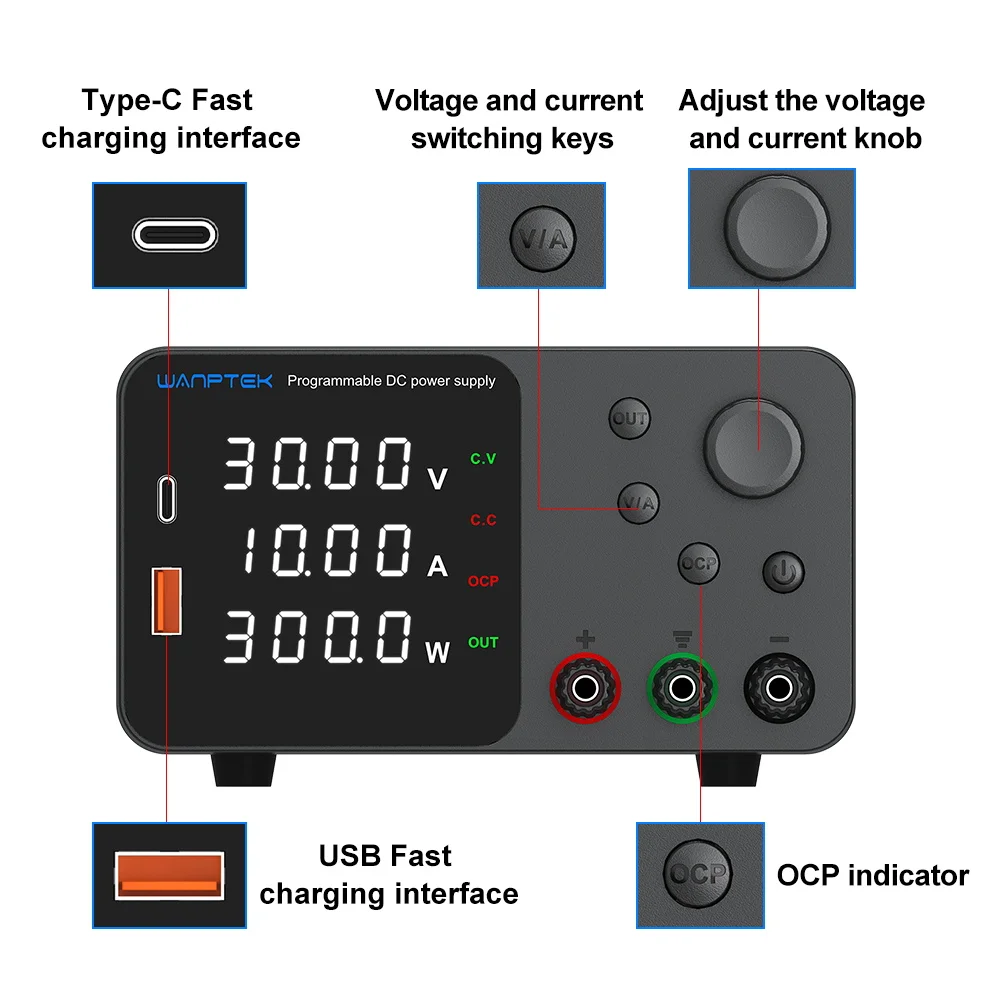

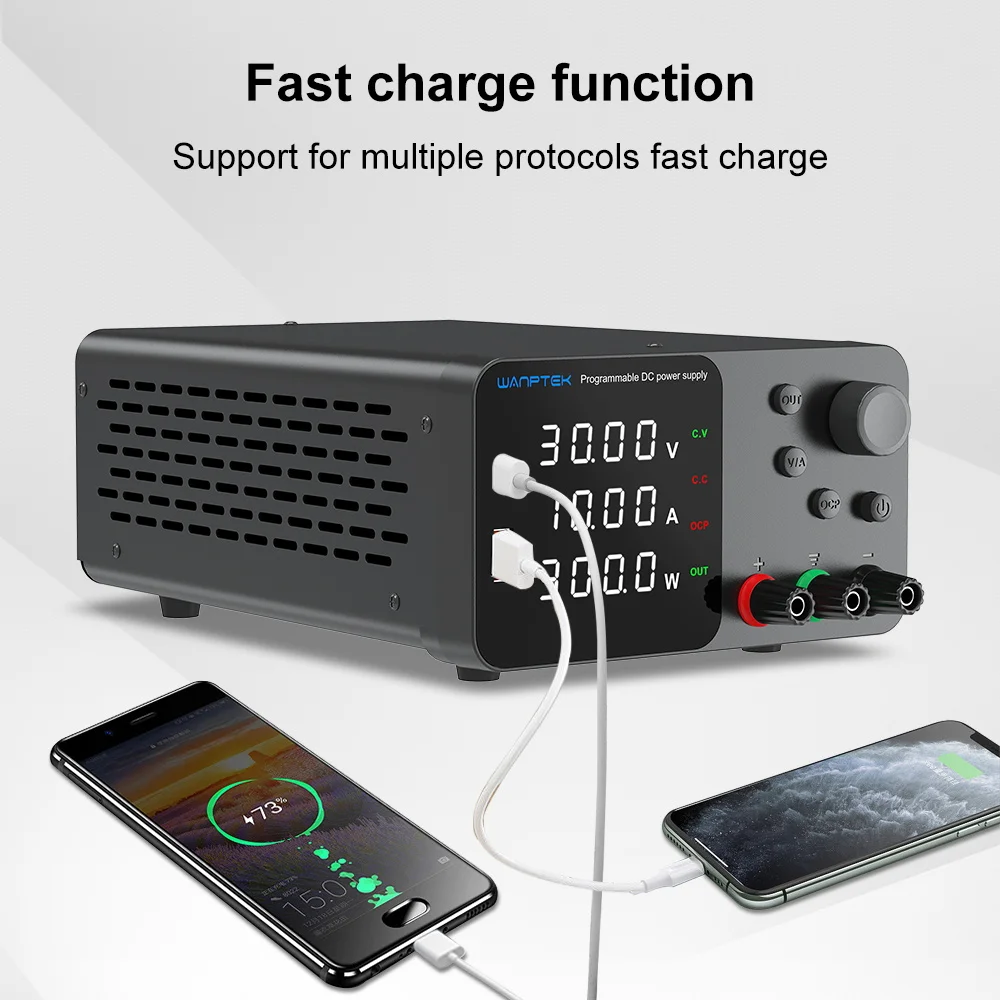

1.USB-A/USB TYPE-C TPS305 Encoder adjustment DC power supply

2.USB-A/USB TYPE-C TPS3010 Encoder adjustment DC power supply

3.USB-A/USB TYPE-C TPS605 Encoder adjustment DC power supply

4.USB-A/USB TYPE-C TPS1203 Encoder adjustment DC power supply

2023 Wanptek's new series products. This model is a miniature switching DC power supply.

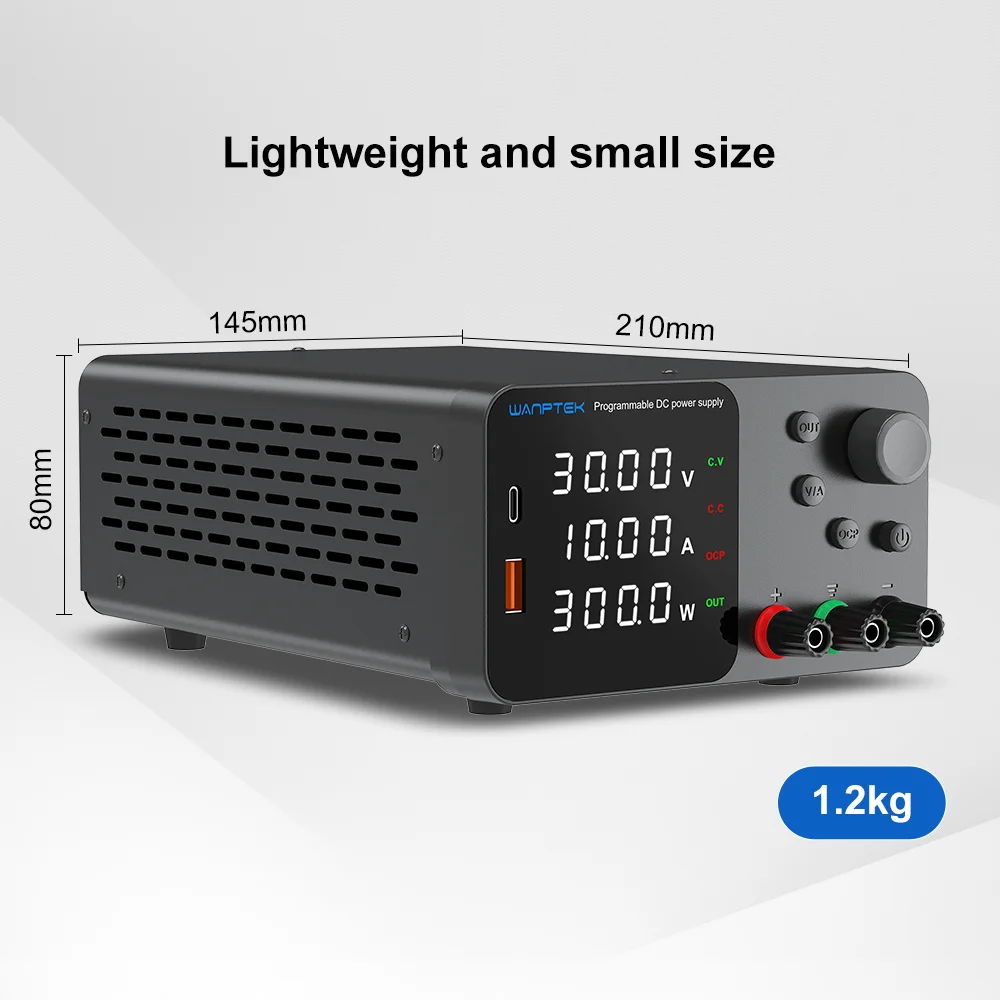

1.Small size, light weight and high power density.
2.Constant pressure and constant current switch automatically.
3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating
6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection
7.Temperature controlled fan cooling, low noise, long life.

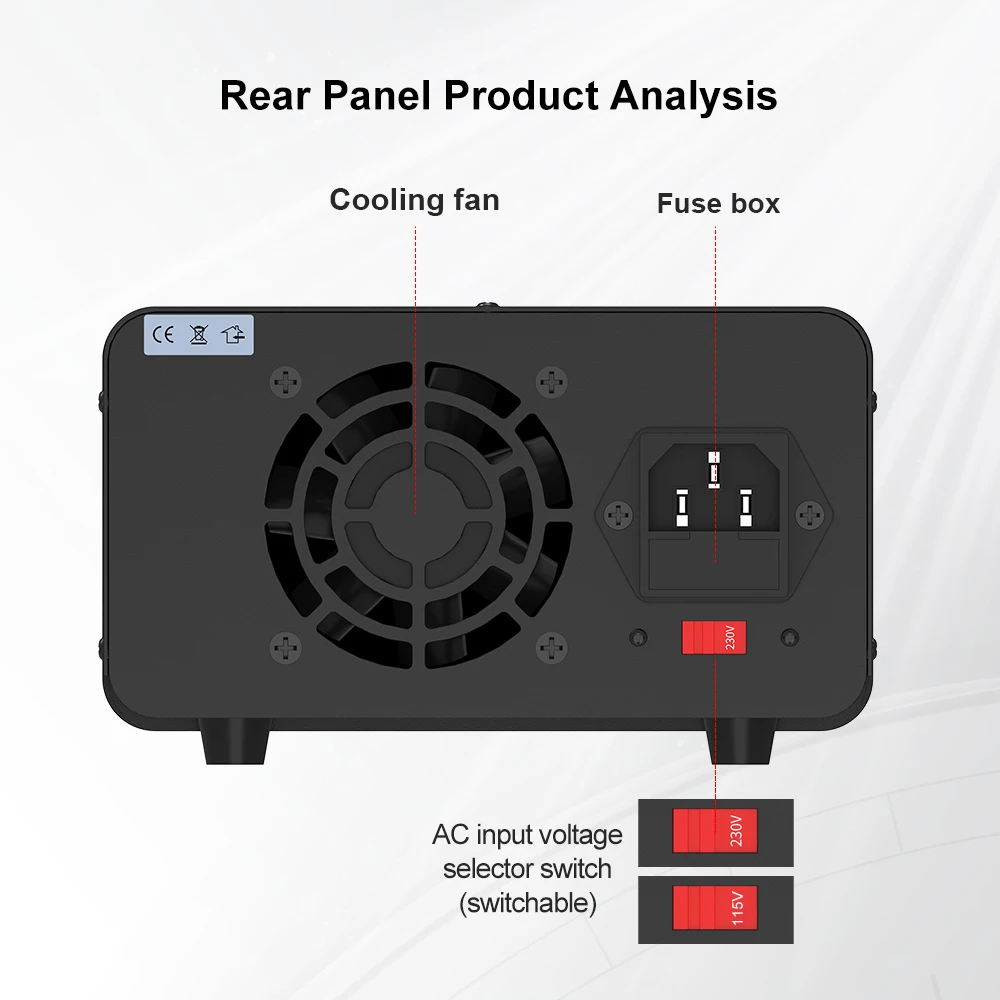

8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .
10.Output current ranges from 0 to rating current with continuous adjustment
11. AC 110v and 220V can work , rest assured to choose.
12. Encoder adjustment   DC power supply
13. Voltage and current one-key conversion regulation

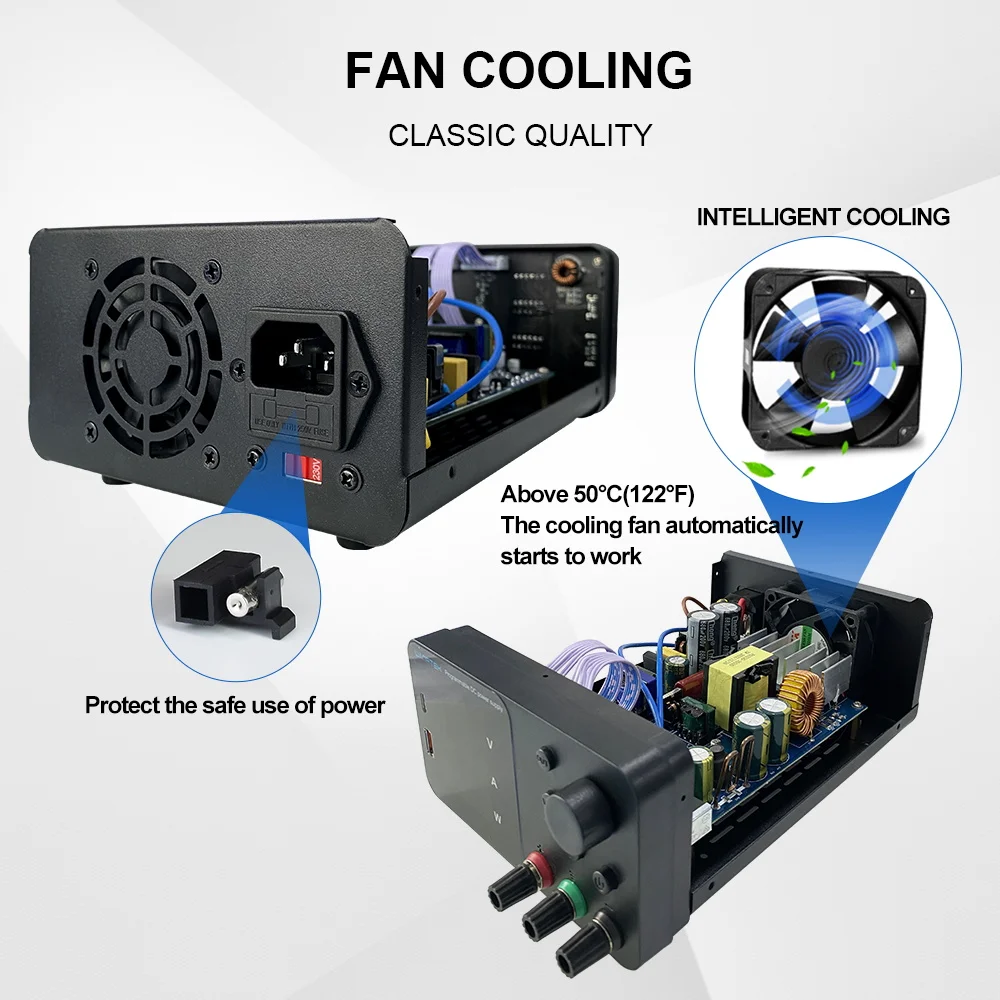

14. Built-in cooling fan, Smart turn on when temperature over 50℃
FCC & CE certified product


Output Power

150W/300W/360W

Output voltage

0~30V/60V/120V

Output current

0~3A/5A/10A

working environment

input voltage:AC 230V/115V±10%;50Hz/60Hz

Working temperature:0℃～40℃;relative humidity:<80%RH

Storage temperature:-10℃～70℃;relative humidity:<70%RH

Constant voltage CV

Voltage stability:0.1%±3mV

Load stability: 0.2%±3mV

Ripple voltage:≤0.5% Vp-p

0 to rated voltage continuously adjustable

constant current CC

Current stability:0.1%±3mA

Load stability: 0.2%±3mA

Ripple current:≤0.5% Vp-p

Recovery time:≤500μS

Temperature coefficient:≤100ppm/℃

0 to rated current continuously adjustable

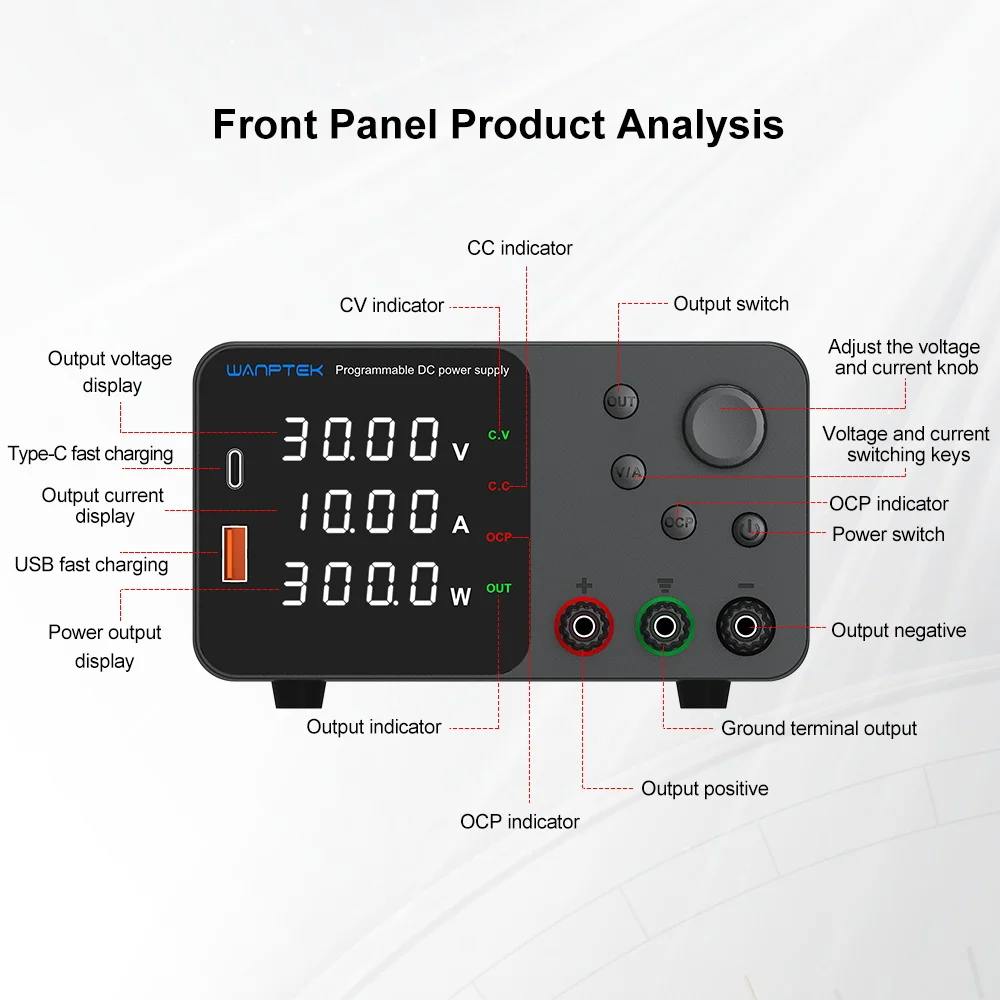

display

LED digit display

Display accuracy:0.5%±digits

Display resolution: voltage  0.01V, current  0.001A,

1. Production line test.

2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.

3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.

4. Charge the battery.

5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use

6. All other occasions requiring DC power supply.

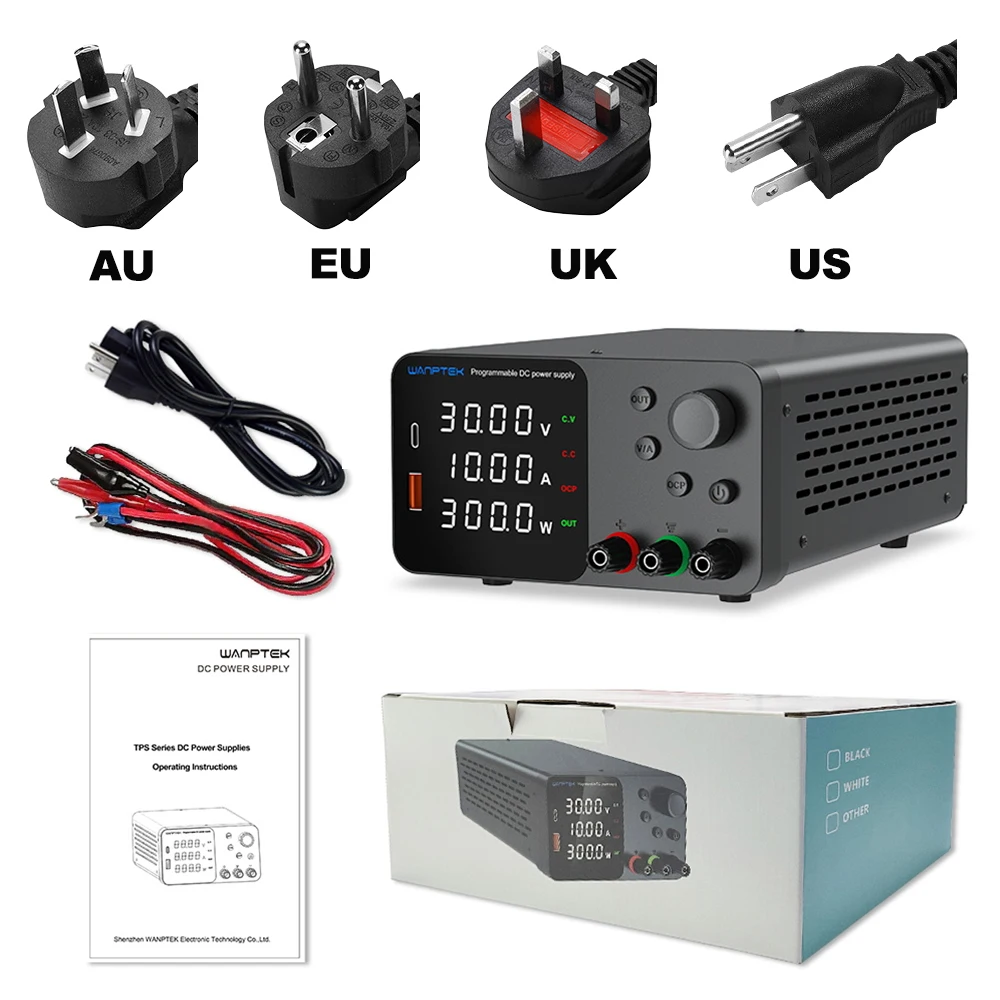

1x DC power supply

1x power cord (EU,US,UK,AU,we will send according to you country)

1x Test line

1x Instructions
