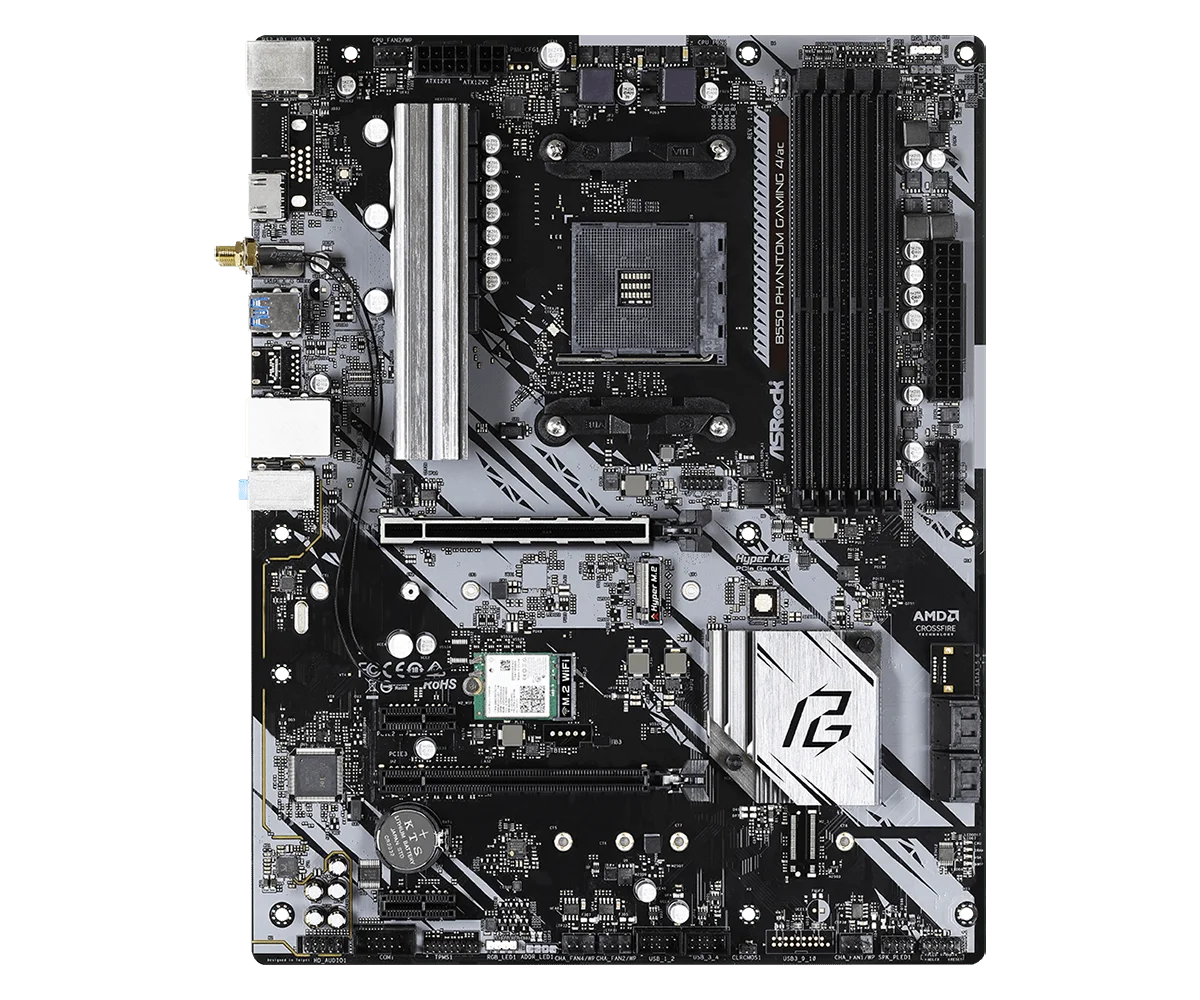

Motherboard chip
Integrated chip Graphics card/sound card/network card
Main chipset AMD B550
Chipset description Using AMD B550 chipset
Display chip Integrated AMD Radeon Vega display chip
Audio chip Integrated Realtek ALC1200 7.1 channel sound chip
Network card chip Onboard Realtek RTL8111H Gigabit network card
Processor specifications
CPU type AMD Ryzen 3000/5000 series processor (except R5 3400G/R3 3200G)
CPU slot Socket AM4
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 128GB
Memory description Support dual-channel DDR4 4733+(OC)/4666(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200/2933/2667/2400/2133Mhz memory
Storage expansion
PCI-E standard PCI-E 4.0, PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
Storage interface 2×M.2 interface, 6×SATA III interface
I/O interface
USB interface 6×USB3.2 Gen1 interface (supports ESD electrostatic protection)
Video interface 1×HDMI interface
Power interface: one 4-pin, one 8-pin, one 24-pin power interface
Other interfaces: 1×PS/2 keyboard and mouse universal interface, 1×RJ45 network interface, 3×audio interface
Type
Motherboard type ATX type
Dimensions: 30.5×24.4cm
