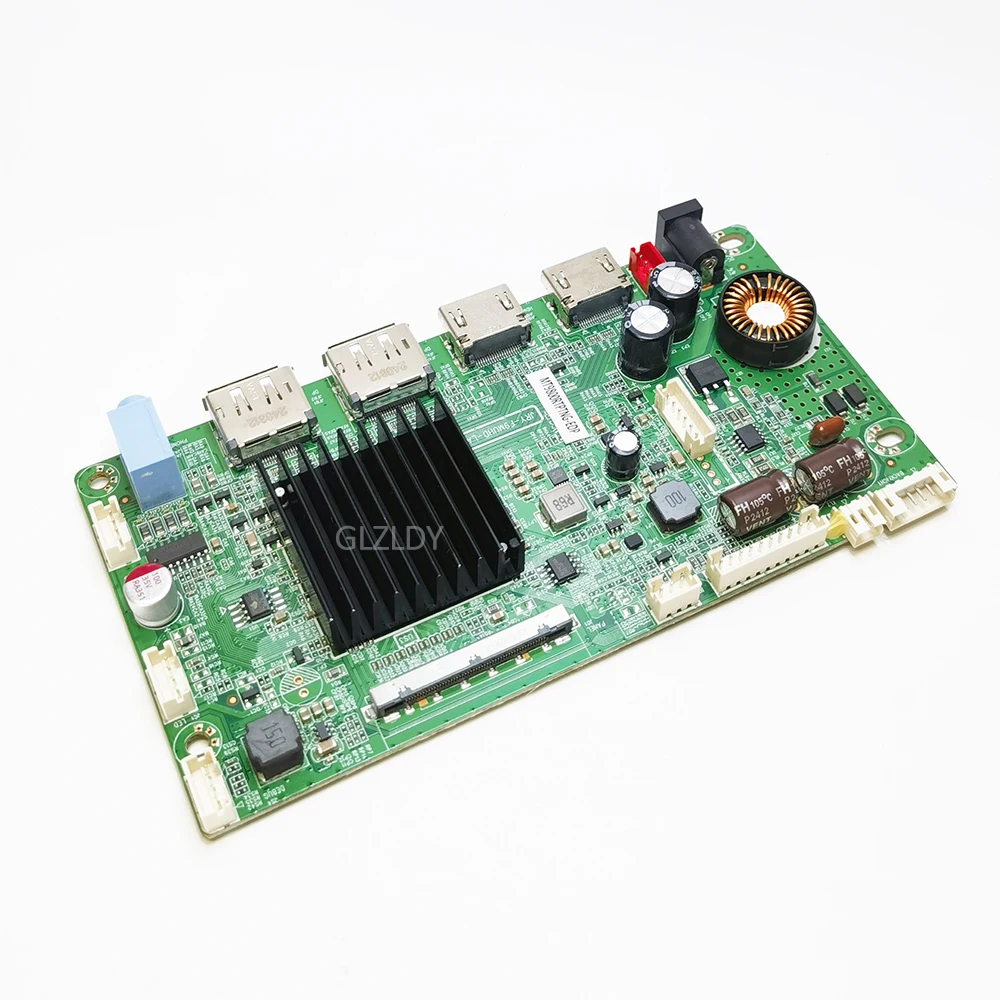

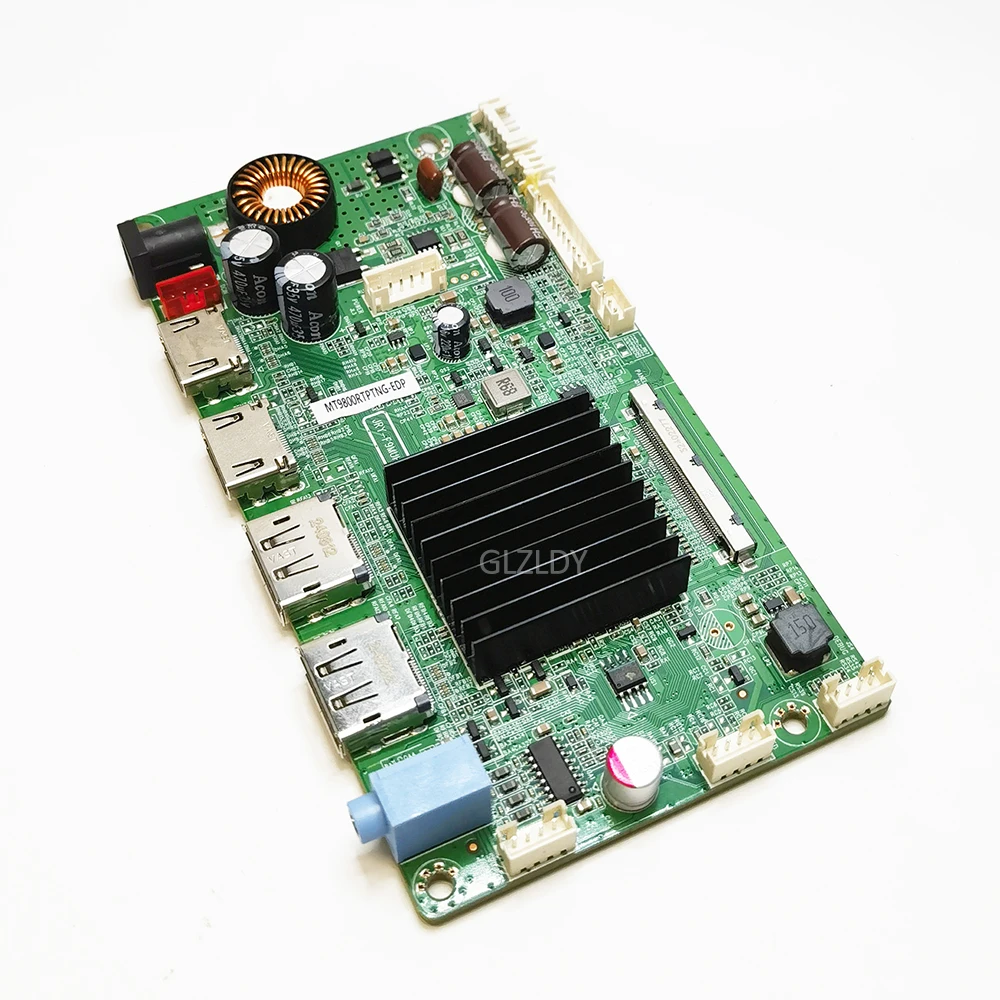

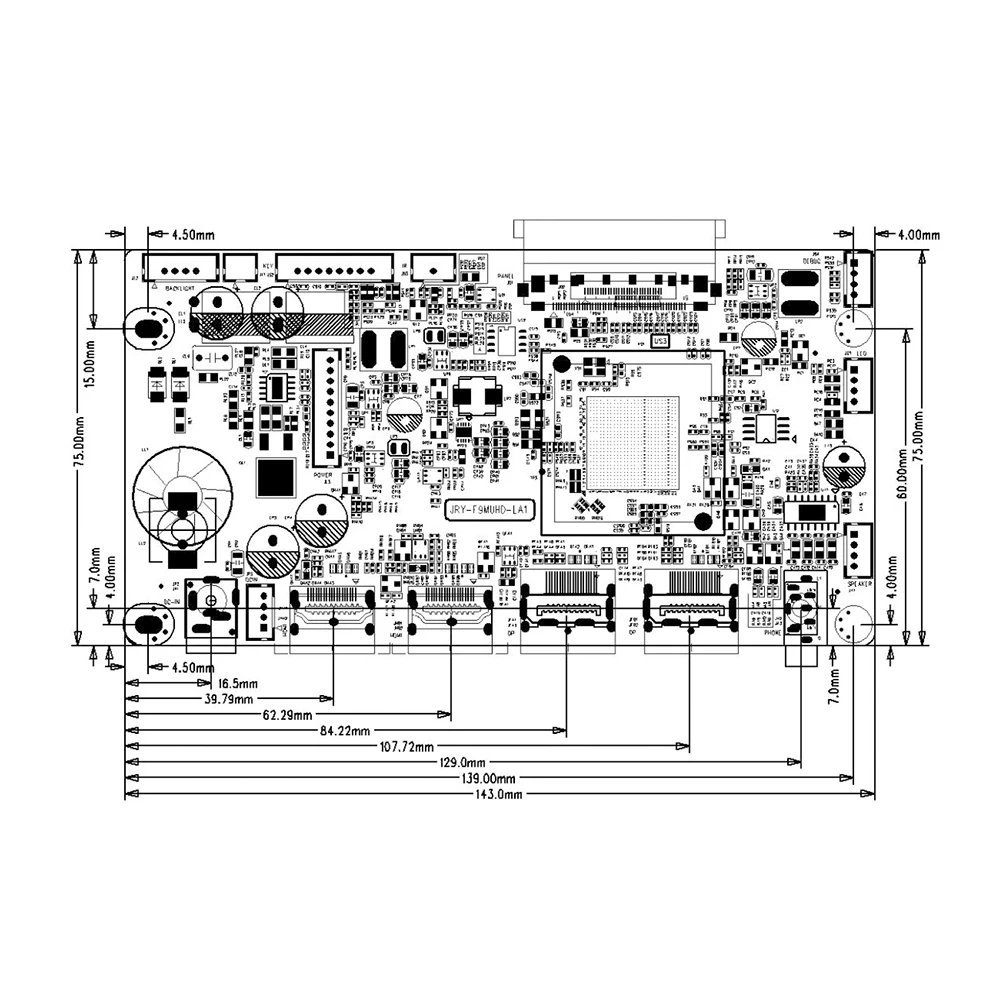

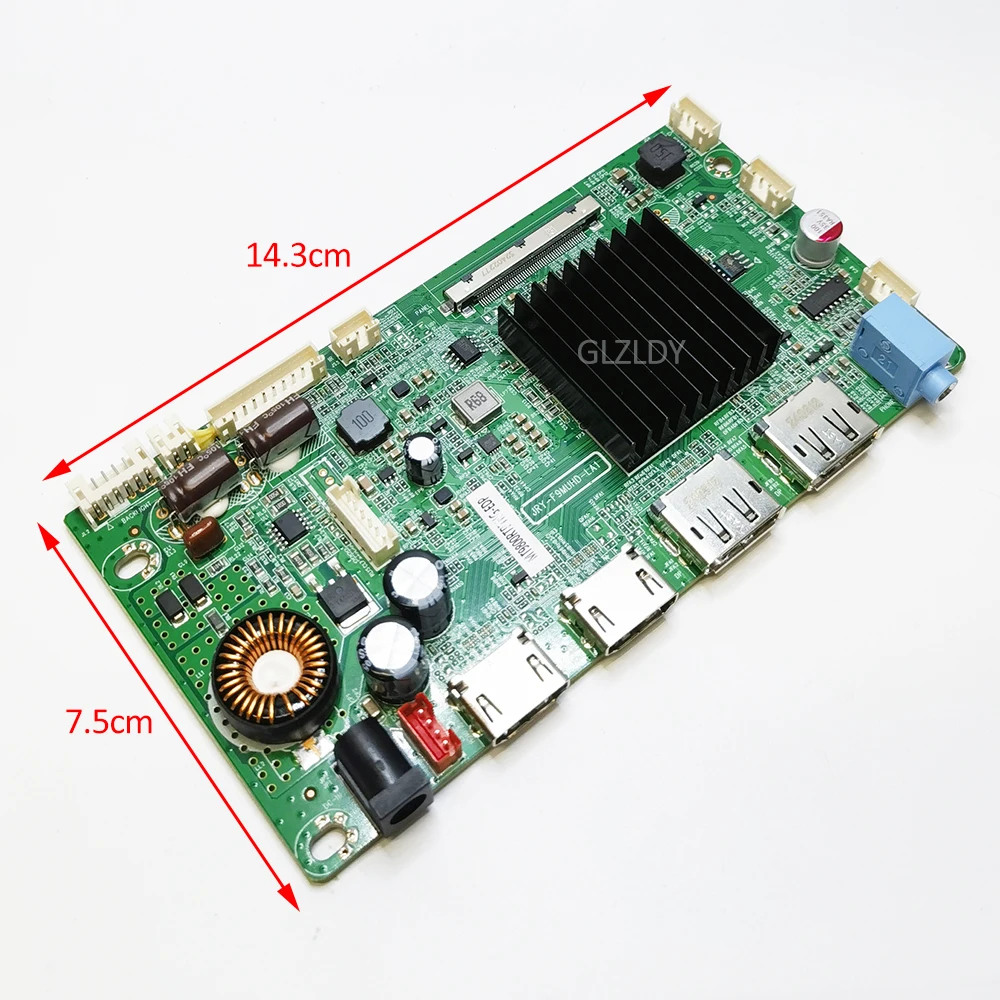

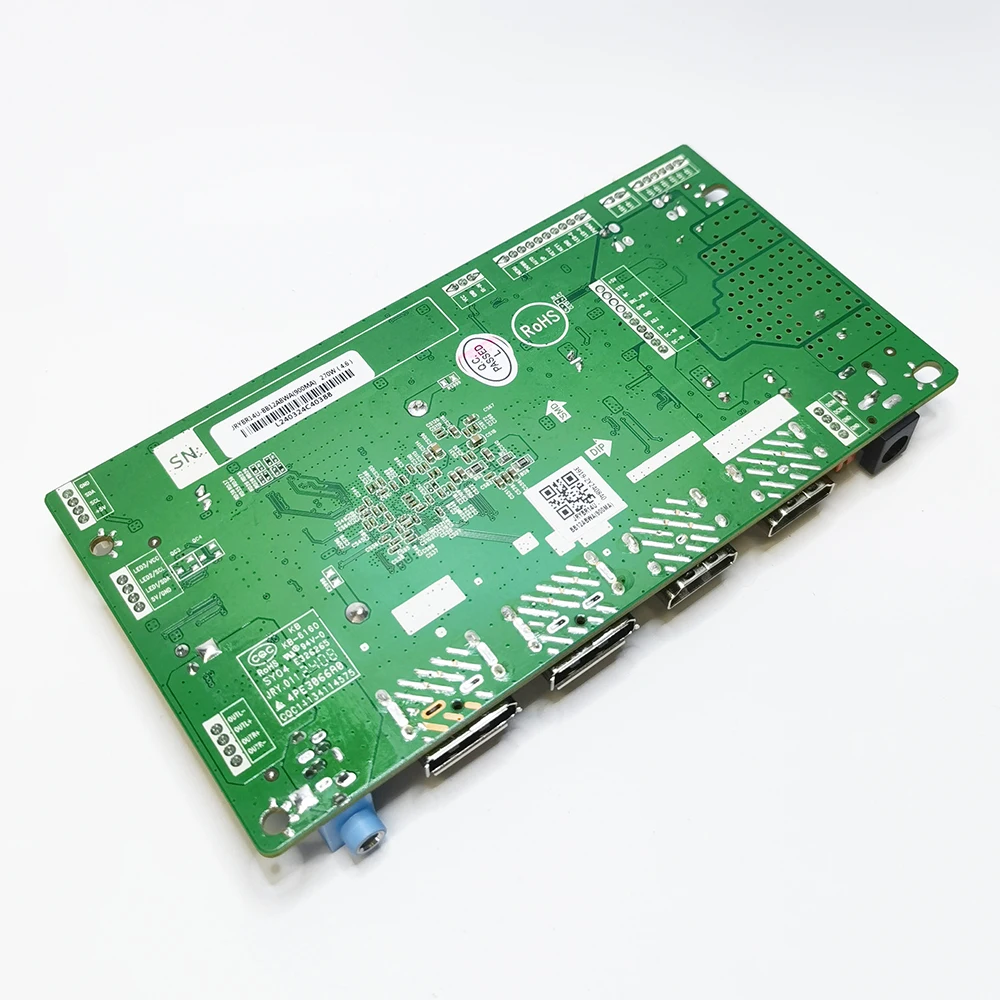

JRY-F9MUHD-LA1 board is a UHD display driver board with maximum resolution of 2560*1440@240Hz and below.
Support e-DP screen interface signal output
Supports multiple selectable OSD languages. Supports online update of software on motherboard.
Support HDMI2.1, HDCP2.3.
Support DP1.4 signal input.
Support MPRT dimming.
Support headphones and speakers.
Main Features
Chip: MT9800
Input: HDMI2.1 DP1.4
Output: PANEL connector 51Pin0.5mm
Speaker Output: 2x2.5W (4)
Headphone Output: P-325-5P
Power supply: Input power supply DC power supply 12V
Driving screen voltage 12V
Power operation: Normal operation mode, low power consumption mode
Main board standby power consumption <0.3W
Backlight maximum constant current 600mA
Maximum output voltage 60V
Light bar operating voltage 32~55V
Backlight Maximum Power 30W
OSD menu: Brightness, Contrast, Auto-Correct, Phase, Clock, Line Field Position, Function Setting, Reset, etc.
OSD language: Chinese, English, French, German, Italian, Spanish, Russian, Korean, Japanese, etc.
Buttons: POWER, ENTER, UP, DOWN, MENU
For panel:
2K@240Hz, 1K@360Hz, 4K@100Hz/120Hz
like:
SG3151G02-1
SG3151G02-2
SG3151G02-3
SG3151G02-7
and others...
How to know the resolution of your screen:
You can check the resolution from this link: http://www.panelook.com/index.php, enter the panel model to search.

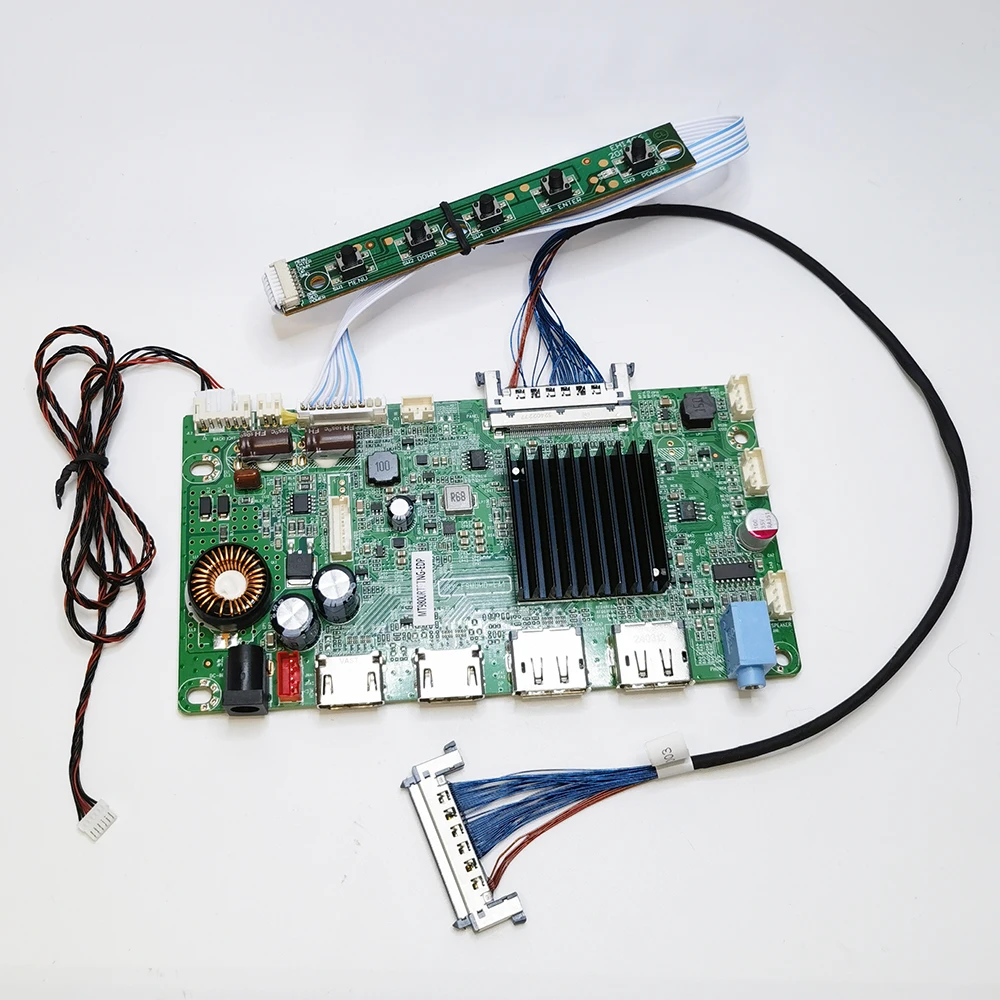

Package included:
1 x Driver board
1 x 5 Key board

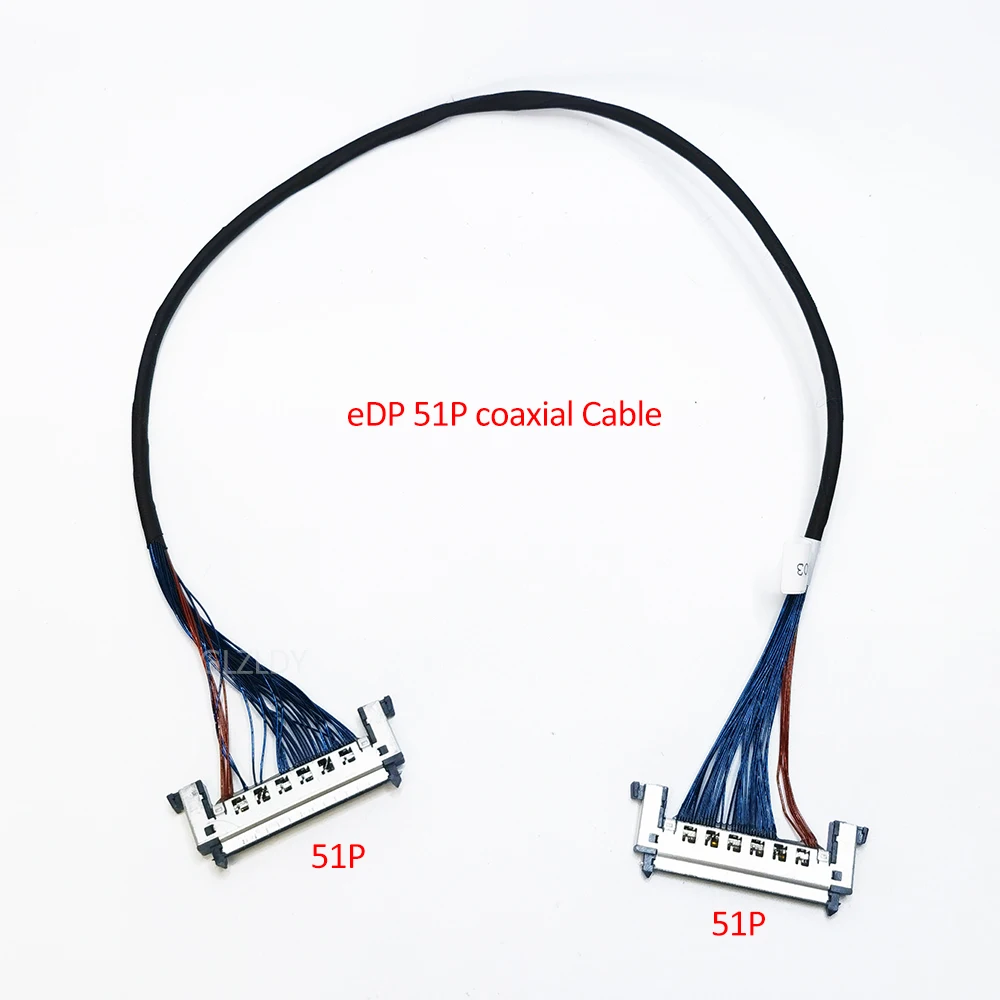

1 x 4K coax cable
1 x backlight cable
(not included the panel lcd ,just for reference only)
Note: This is a DIY kit, you need to have some knowledge of electronics and ability. We don't supply any instructions. Any problems caused by personal reasons, not covered under warranty

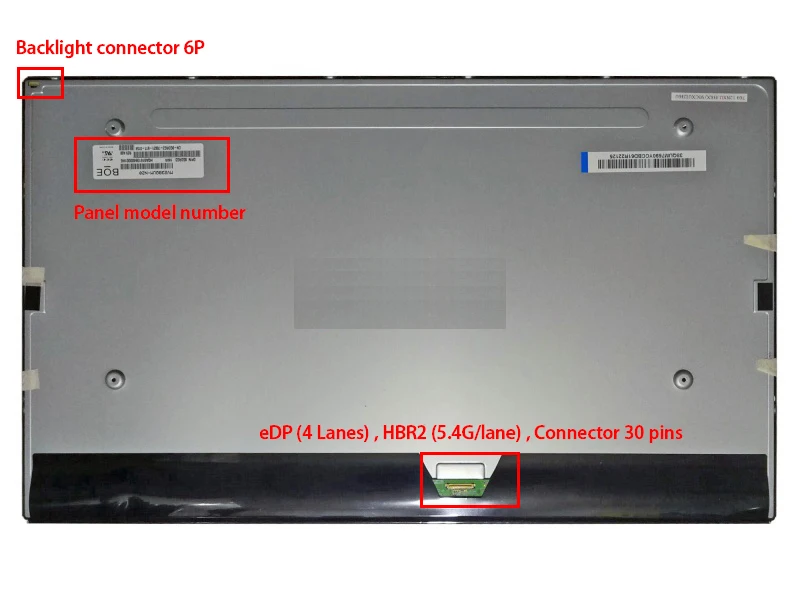

if you don't know how to order, display shell removed, take photo of the inner screen backside/model stickers/signal ports/backlight port, then send the photos to us by webmail. We help you burn the program + match the right screen cable and backlighting cable.
not include this panel display, just for reference only
