Note:
The motherboard has been used, but the appearance is relatively new, and it looks almost new The product does not come in the original box.
The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.
Motherboard Chip
Integrated chip sound card/network card
Main Chipset Intel Z170
Chipset Description Using Intel Z170 Chipset
Display chip CPU built-in display chip (requires CPU support)

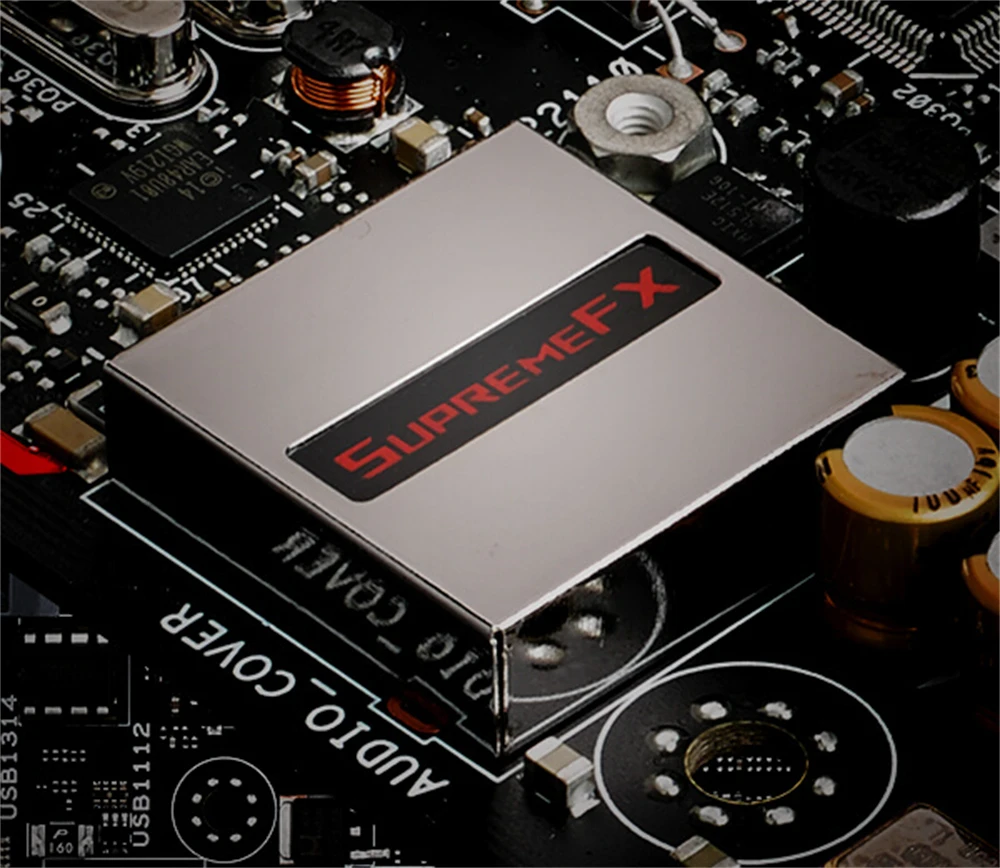

Audio chip integrated ROG SupremeFX 2015 8-channel sound chip
Network card chip Onboard Intel I219V Gigabit network card
Processor Specifications
CPU type 6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory Specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description Support dual channel DDR4 3733(OC)/3800(OC)/3600(OC)/3466(OC)/3400(OC)/3500(OC)/3333(OC)/3300(OC)/3200(OC) /3000(OC)/2800(OC)/2666(OC)/2400(OC)/2133MHz memory
storage expansion
PCI-E Standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 1×PCI-E X4 slot, 3×PCI-E X1 slot

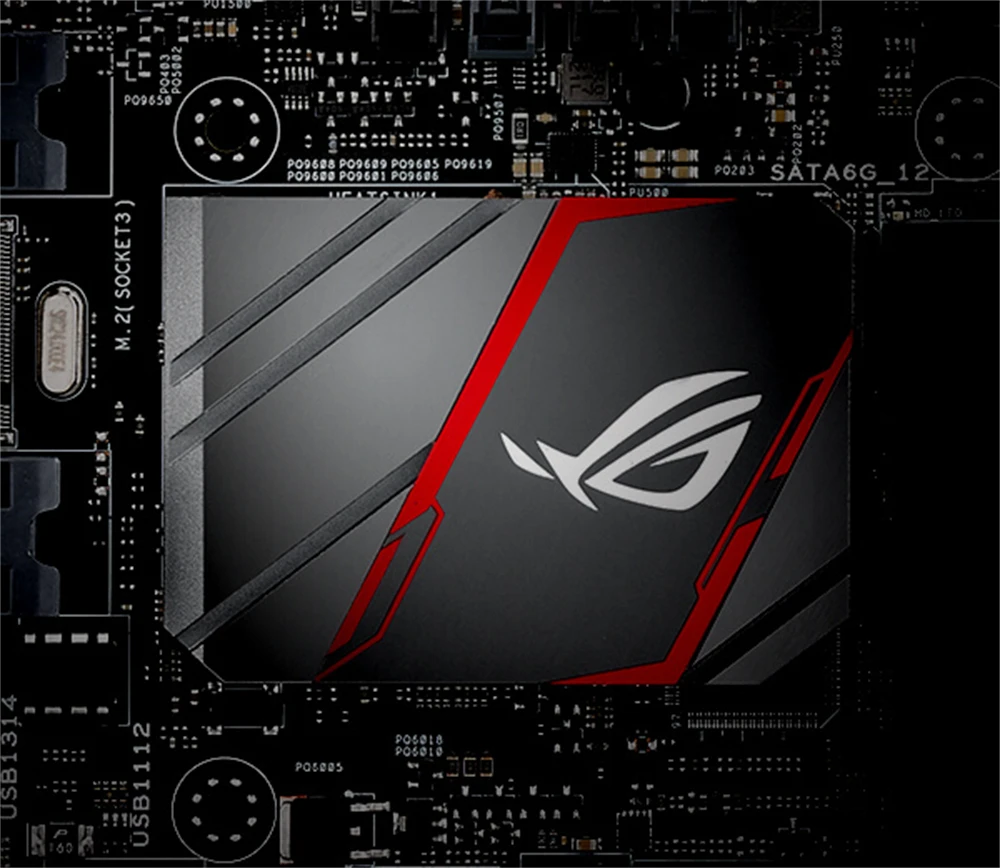

Storage interface 1×M.2 port, 2×SATA Express port, 6×SATA III port
I/O interface
USB port 1×USB3.1 Type-A port, 1×USB3.1 Type-C port, 8×USB3.0 port (2 built-in +6 backplane), 4×USB2.0 port (built-in)
Video interface 1 × Display Port interface, 1 × HDMI interface
Power connector One 8-pin, one 24-pin power connector

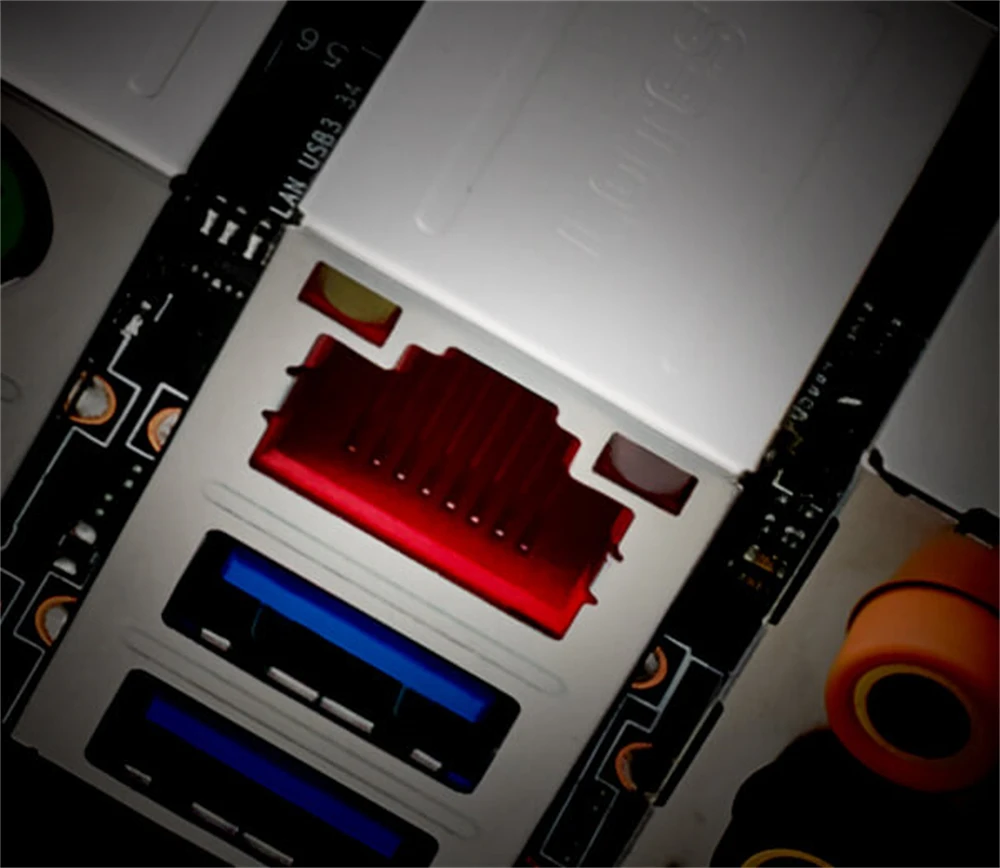

Other interfaces 1×RJ45 network interface, 1×optical fiber interface, audio interface, 1×PS/2 keyboard and mouse general interface
plate type
Mainboard form factor Micro ATX form factor
Dimensions 24.4×24.4cm
software management
BIOS Performance 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multilingual BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 Setup Wizard, F6 Qfan Control, F3 Favorites, Quick Notes, History, F12 Screenshots, F3 Shortcuts, and ASUS DRAM SPD (Serial Presence Detect) memory information
Other parameters
Multi-graphics card technology Support AMD Quad-GPU CrossFireX dual-card four-core crossfire technology
Support NVIDIA Quad-GPU SLI dual-card four-core crossfire technology

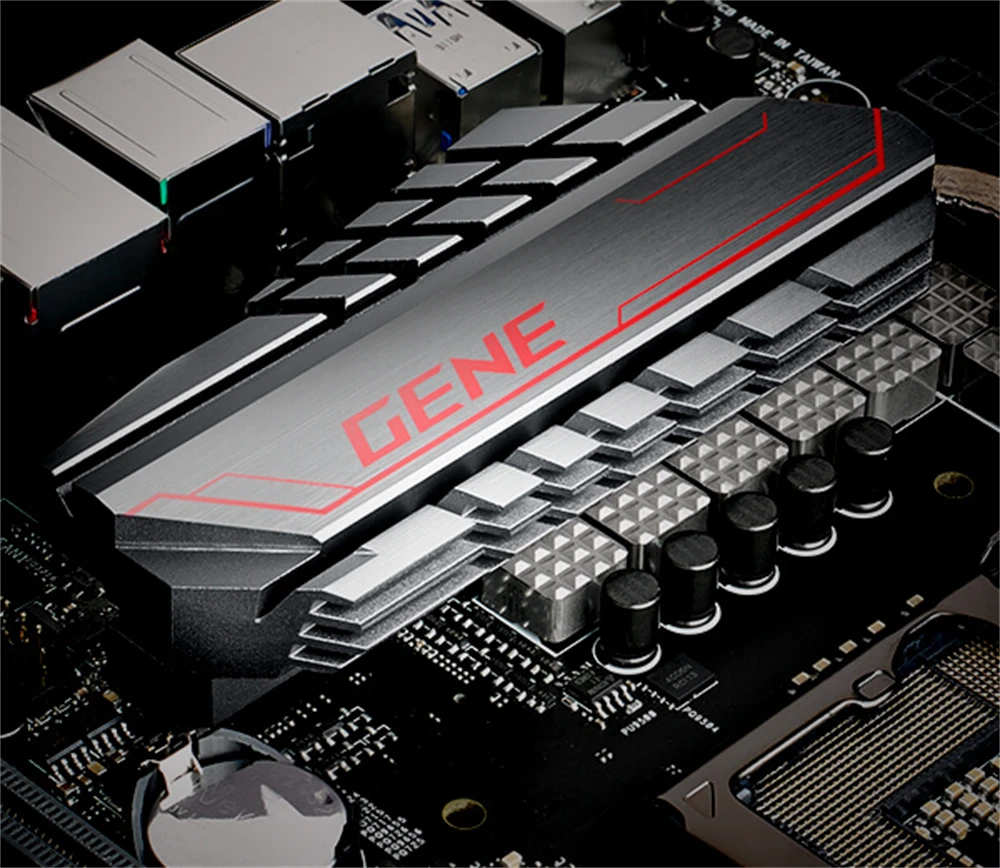

Power supply mode 10-phase

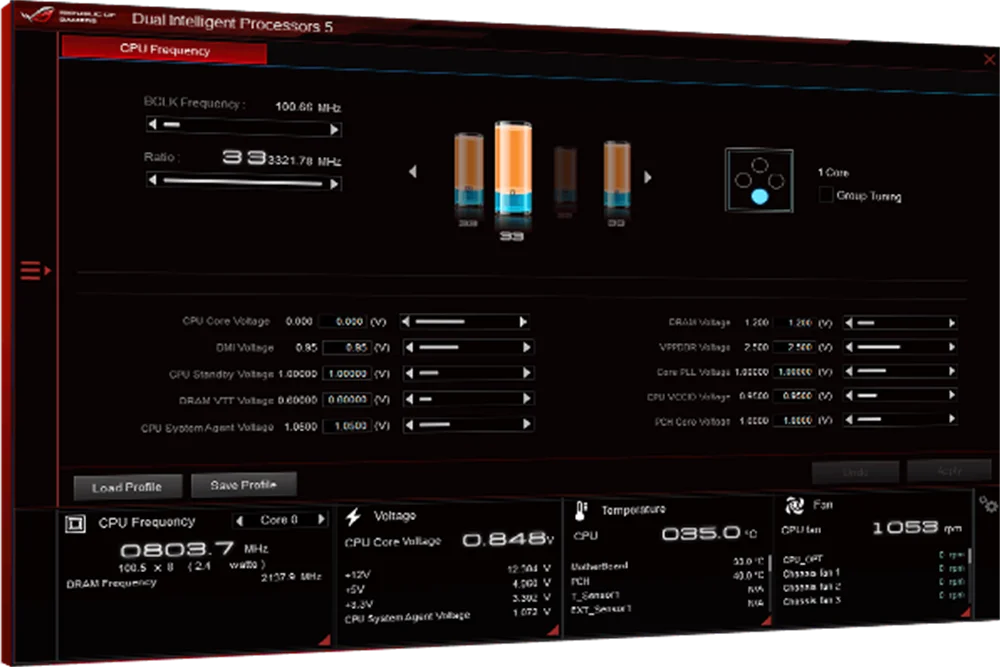

Overclocking function support
RAID function Support RAID 0, 1, 5, 10
Other parameters Faith lights, Faith sound effects,
