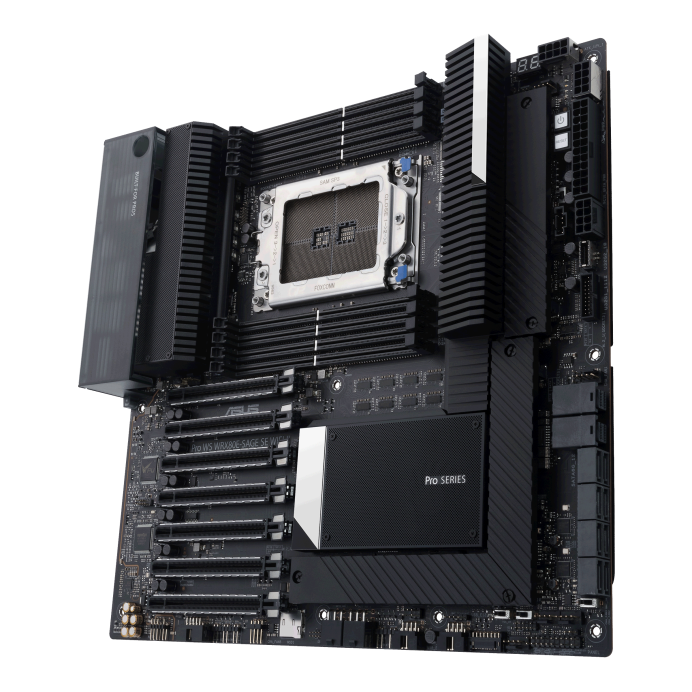

StoneTaskin Original For ASUS PRO WS WRX80E-SAGE SE WIFI II sWRX8 AMD WRX80 DDR4 EATX EBB Motherboard Fully Tested Free Shipping

Specification:

Manufacturer Number: PRO WS WRX80E-SAGE SE WIFI II

CPU: AMD Socket sWRX8 for AMD Ryzen Threadripper PRO Series Processors

Chipset: AMD WRX80 Chipset

Memory:

8 x DDR4 8 x DIMM, Max. 2048GB, DDR4 Non-ECC and ECC Unbuffered DIMM

8 x DIMM, Max. 2048GB, DDR4 ECC R-DIMM and LR-DIMM

8 Channel Memory Architecture

Expansion Slots:

AMD Ryzen Threadripper PRO Series Processors

7 x PCIe 4.0/3.0 x16 slot(s)

Multi-GPU Support: Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology

Storage:

Total supports 3 x M.2 slots and 8 x SATA 6Gb/s ports

AMD Ryzen Threadripper PRO Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices

AMD WRX80 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

U.2_2 slot supports U.2 NVMe device and up to 4 SATA devices

4 x SATA 6Gb/s ports

ASMedia ASM1061 Controller

4 x SATA 6Gb/s ports

Supports NVMe RAID configurations via M.2 storages

Ethernet: 1 x Intel X550-AT2 dual 10Gb Ethernet

Wireless & Bluetooth:

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.3

WiFi 6E 6GHz regulatory may vary between countries.

USB:

Rear USB (Total 10 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (suppport USB Type-C)

1 x USB 3.2 Gen 1 header support additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:

Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

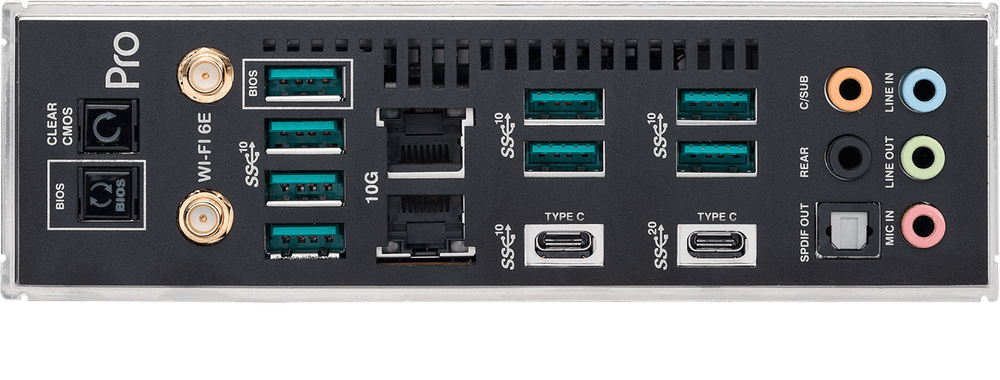

Back Panel I/O Ports:

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)

9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C)

1 x Wi-Fi Module

2 x Intel X550-AT2 dual 10Gb Ethernet ports

5 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Internal I/O Connectors:

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

6 x 4-pin Chassis Fan header(s)

1 x VRM heatsink Fan header

1 x Chipset Fan header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

2 x 6-pin PCIe Graphics Card connector

1 x 8-pin PCIe Power connector

Storage related

3 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

2 x U.2 slots

USB

1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BMC Related

1 x BMC switch

1 x IPMI switch

1 x Messange LED header

1 x Micro SD card socket

2 x LAN LED header(s)

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header

1 x VPP_I2C header

Miscellaneous:

1 x COM Port header

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x RTC Battery header

1 x Thermal Sensor header

Special Features:

ASUS Q-Design

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

Bespoke Motherboard Design & Business Focused Features

- Event Log in ASMB9-iKVM

- 24/7 Reliability

- Overcurrent Protection

ASMB9-iKVM for KVM-over-Internet

Software Features

ASUS Exclusive Software

Armoury Crate

ASUS CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

DTS:X Ultra

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Manageability: WOL by PME, PXE

Accessories:

Cables

6 x SATA 6Gb/s cables

1 x VGA cable

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x Hyper M.2 X16 Gen 4 Card

4 x M.2 SSD screw packages for Hyper M.2 X16 Gen 4 Card

3 x Q Latch

7 x M.2 Rubber Packages

1 x Q-connector

Installation Media

1 x Support DVD

Documentation

1 x User manual

Operating System: Windows 11; Windows 10 64-bit

Form Factor:

EATX(EEB) Form Factor

12.2 inch x 13 inch ( 30.98 cm x 33.02 cm )

1. We guarantee to ship out within 24 hours after payment confirmation(except Holiday).
2. If there is any unexpected situation（for example,if the order can not ship out within 24 hours),we will contact you as soon as possible,and follow up closely to ship your order soon.

3. All products will be tested strictly before shipping.

4. We ship to Paypal address ONLY.Please make sure your address in Paypal is matched with your shipping address before you pay.
