Description
central processing unit
Intel Socket 1200 - Supports <>th Gen Intel Core®, Pentium Gold and Celeron processors®
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**®
*Please visit w3.asus.com.cn for a list of processor support.
**Support for Intel Turbo Boost Max Technology 3.0 is based on CPU type.®
Support for Intel 14nm processors®
Chipset
Intel Z490®
memory
4 x DIMMs, support up to 128GB, DDR4 4600 (overclocked) / 4500 (overclocked) / 4400 (overclocked) / 4266 (overclocked) / 4133 (overclocked) / 4000 (overclocked) / 3866 (overclocked) / 3733 (overclocked) / 3600 (overclocked) / 3466 (overclocked) / 3400 (overclocked) / 3333 (overclocked) / 3200 (overclocked) / 3000 (overclocked) / 2933 (overclocked) / 2800 (overclocked) / 2666/2400/2133 MHz Non-ECC, Un-buffered memory
OptiMem II
* 9th Gen Intel Core ™i7/i2933 processor, native support 2800/2666/2400/2133/3, please refer to the w<>.asus.com.cn website for memory QVL (Qualified Vendor List).®
Supports dual-channel memory architecture
Graphical display
1 x DisplayPort 1.4 *
**Support DisplayPort 1.4 Supports maximum resolution 4096 x 2304 @60Hz. See www.intel.com for updates.
1 x HDMI 1.4b
*Display core specifications may vary by CPU type.
Integrated graphics processor
Multiple graphics display technology
Supports AMD 2-Way CrossFireX technology
Expansion slots
3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0 x4 expansion card slot (max. in x2 mode)
Intel Z490 chipset®
10th Generation Intel?processors®
1 x PCIe 3.0 x1
Storage capabilities (depending on shipment)
1 x M.2_1 socket 3, supports M key, 2242/2260/2280/22110 type storage devices (SATA & PCIE 3.0 x 4 mode)
A total of 2 x M.2 slots and 6 x SATA 6Gb/s interfaces are supported
Intel Z490 Chipset : ®
1 x M.2_2 socket 3, M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s interfaces
Supports RAID 0, 1, 5, 10
Intel Optane ™ memory technology®
Network capabilities
Intel I225-V 2.5Gb network card®
ASUS LAN Guard network security protection
Wireless connection
*Wi-Fi module purchased separately.
M.2 slot only (Key E) (CNVI & PCIe interface supported)*
sound effect
- LED-lit audio divider
ROG Supreme FX8 channel high-fidelity audio chip S1220A
- Support: Jack-detection, Front Panel Audio Jack Switching (Jack-retasking), Multi-Streaming
- Support 32-Bit/192kHz playback *
- The backplane has an S/PDIF optical digital output interface
- Audio shield
- High quality Japanese audio capacitors
- Supreme meFX Shielding™ technology
- Amphorauria
- Front and rear headphone output impedance sensing
- High quality 120dB stereo playback output and 113dBSNR recording input
Audio features:
- Gold-plated jack
* Due to HDA bandwidth limitations, 32-Bit/192kHz does not support 8-channel audio.
USB interface
2 x USB 3.2 Gen 2 ports (1 x Type-A + USB Type-CTM )
Back USB port (of 7 )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB ports (of 8 )
4 x USB 3.2 Gen 1 ports
Software Features
ROG-specific software - RAMCache III - ROG CPU-Z
- GameFirst VI game low latency
- Sonic Studio III intelligent sound management software
+ Sonic Studio virtual audio mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
Asus unique software
Armoury Crate Ultron Game Intelligent Control Center
- Aura Creator
- AURA SYNC
AI Suite 3 (Smart Butler 3rd Generation): - 5 optimizations equipped with AI intelligent overclocking
TPU intelligent acceleration processor
EPU intelligent
energy-saving processing
DIGI+ digital power supply design
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
AI Smart Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ mode
FlexKey free buttons®
- GameFirst VI game low latency
- Sonic Studio III intelligent sound management software
+ Sonic Studio virtual audio mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
Asus unique software
Armoury Crate Ultron Game Intelligent Control Center
- Aura Creator
- AURA SYNC
AI Suite 3 (Smart Butler 3rd Generation): - 5 optimizations equipped with AI intelligent overclocking
TPU intelligent acceleration processor
EPU intelligent
energy-saving processing
DIGI+ digital power supply design
Fan Xpert 4
Turbo APP
- EZ update
WinRAR
UEFI BIOS
AI Smart Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ mode
FlexKey free buttons®
ASUS-specific features
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- ASUS Q-Slot
thermal solution
- aluminum M.2 heatsink
ASUS EZ DIY
- BIOS Flashback™ Button
- BIOS FlashBack™ LED
- Procool II
- Pre-installed Integrated I/O Shield
- SafeSlot High Strength Security Slot
AURA SYNC
- 2 x RGB Standard Headers
- <>nd Generation programmable ARGB headers
onboard red LED illumination
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
- ASUS Q-Slot
thermal solution
- aluminum M.2 heatsink
ASUS EZ DIY
- BIOS Flashback™ Button
- BIOS FlashBack™ LED
- Procool II
- Pre-installed Integrated I/O Shield
- SafeSlot High Strength Security Slot
AURA SYNC
- 2 x RGB Standard Headers
- <>nd Generation programmable ARGB headers
onboard red LED illumination

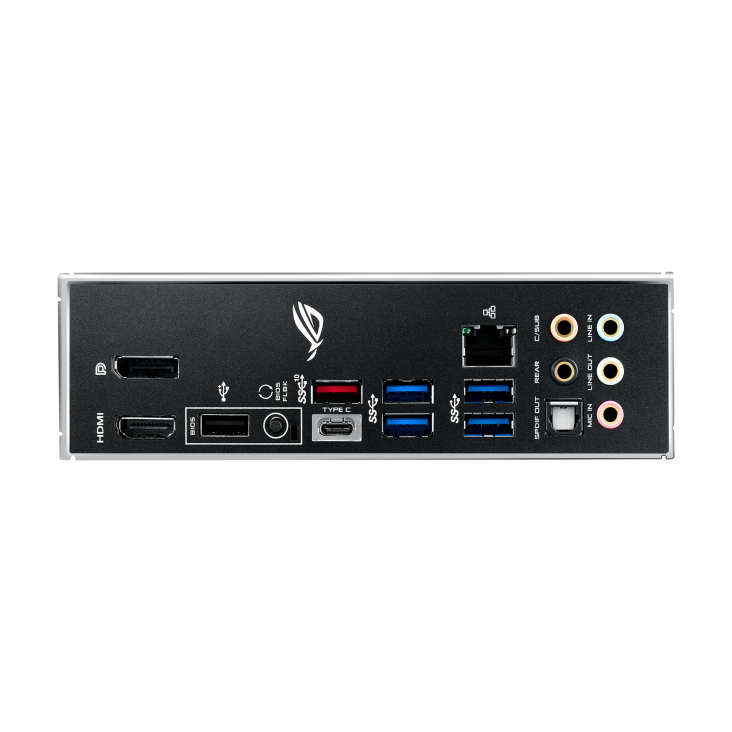

Backplane I/O interface
2 x USB 3.2 Gen 2 ports (1 x Type-A + USB Type-CTM )
4 x USB 3.2 Gen 1 port Type-A
1 x DisplayPort interface
1 x HDMI connector
1 x Intel I225-V 2.5Gb network card®
1 x USB 2.0 port (one of the connectors can be switched to USB BIOS Flashback.)™)
5 x Gold-plated audio jacks
1 x Optical S/PDIF digital audio output
1 x USB BIOS Flashback™ button
Internal I/O interface
1 x CPU fan header
1 x M.2 Socket 1 supports M key, 2242/2260/2280/22110 type storage devices (SATA mode & PCIE mode)
1 x M.2 with E key for Wi-Fi modules
1 x System panel socket (built-in chassis intrusion header)
2 x USB 3.2 Gen 1 (up to 5Gbps) ports support an additional 4 USB 3.2 Gen 1 ports
1 x VRM_HS_ fan header
1 x M.2 slot 2 supports M key, 2242/2260/2280/22110 type storage devices (PCIE 3.0 x 4 mode)
1 x CPU_OV jumper
1 x M.2_ fan connector
1 x Thunderbolt pin header
1 x Programmable RGB header
2 x Aura RGB light strip headers
6 x SATA 6Gb/s devices connected to sockets
1 x CPU optional fan connector
2 x Chassis fan connectors
1 x AAFP front audio header
2 x USB 2.0 ports expands 4 sets of external USB 2.0 ports
1 x 24-pin EATX motherboard power supply slot
1 x 8-pin ATX 12V motherboard power supply slot
1 x 4-pin ATX 12V motherboard power supply slot
1 x Temperature sensor interface
1 x AIO_ pump connection
1 x Clear the CMOS jumper
fittings
1 x ROG STRIX sticker
4 x SATA 6.0Gb/s cables
1 x Random disc
1 x M.2 SSD screw pack
1 M.2 Key E screw pack
1 ROG keychain
1 x ASUS fan bracket
1 x <>-in-<> rubber pad
User manual
1 x harness
1 x Programmable LED expansion cable
1 x RGB LED Strip Extension Cable (80 cm)
1 x Temperature sensing data cable
1 x ROG thank you card
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Management software
WOL by PME, PXE
Size specifications
ATX form factor construction
12" x 9.6" ( 30.5 cm x 24.4 cm )
remark
* M.2_1 Share bandwidth with SATA6G_2. When M.2_1 occupies, SATA6G_2 will not be available.
