Motherboard chip |
|
Integrated chip |
Sound/network card |
Main chipset |
Intel X299 |
Chipset description |
Powered by Intel X299 chipset |
Display chip |
CPU built-in display chip (requires CPU support) |
Audio chip |
Integrated ROG SupremeFX 8-channel audio chip |
Network card chip |
Onboard Intel I219V Gigabit network card |
Processor specifications |
|
CPU type |
Core X-series |
CPU socket |
LGA 2066 |
Memory specifications |
|
Memory type |
8×DDR4 DIMM |
Maximum memory capacity |
128GB |
Memory description |
Supports dual-channel DDR4 4133 (overclocking)/4000(overclocking)/3600(overclocking)/2666/2400/2133MHz memory |
Storage expansion |
|
PCI-E standard |
PCI-E 3.0 |
PCI-E slots |
3× PCI-E X16 graphics card slots, 1× PCI-E X4 slots, 2× PCI-E X1 slots |
Storage interfaces |
1× M.2 interface, 6×SATA III interface |

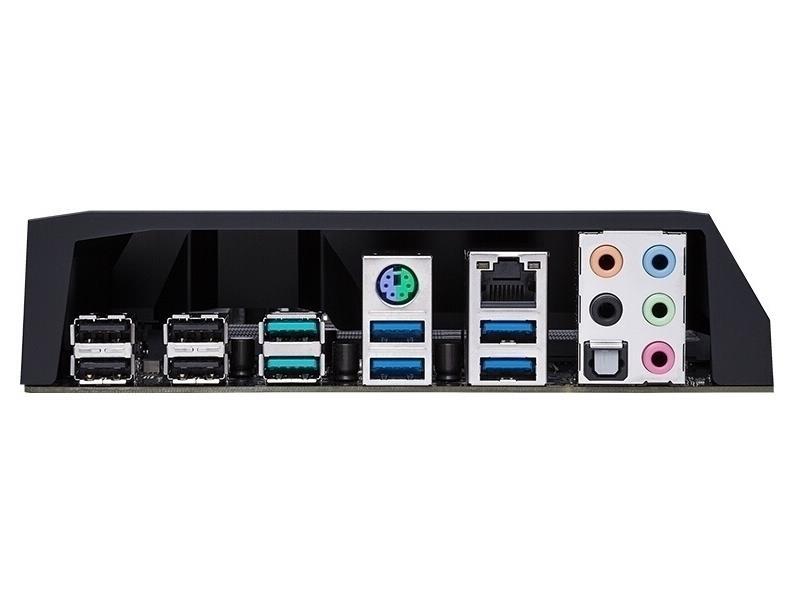

I/O interface |
|
USB interface |
2× USB3.1 Type-A interface, 8×USB3.1 Gen1 interface (4 built-in +4 backplane), 6× USB2.0 interface (2 built-in +4 backplane) |
Power connector |
One 4-pin, one 8-pin, one 24-pin power connector |
Other interfaces |
1× RJ45 network interface, 5× audio interface, 2× chassis fan interface, 1×M.2_ fan interface, 1× CPU optional fan interface, 1× temperature sensor interface, 1 ×AIO_ water pump interface, 1 ×W_PUMP+ interface, 1× 3D mounting screw interface, 1× optical fiber interface, 1×PS/2 keyboard and mouse universal interface |
Form factor |
|
Motherboard form factor |
ATX form factor |
Form factor |
30.5×24.4cm |
Software management |
|
BIOS performance |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-Chinese BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 Favorites, History, F12 Screenshots, |
Other parameters |
|
Multi-graphics technology |
Support for NVIDIA Quad-GPU SLI technology Support for NVIDIA 3-Way SLI technology Support for AMD Quad-GPU CrossFireX technology Support for NVIDIA SLI two-way crossfire technology |
RAID function |
Supports RAID 0, 1, 5, 10 |
Listing date |
2017-05 |
