Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
2 1GbE LAN via Intel® i350-AM21
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC
Input / Output
SATA
10 SATA3 (6 Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connector
1 TPM 2.0 header
Expansion Slots
PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16
M.2

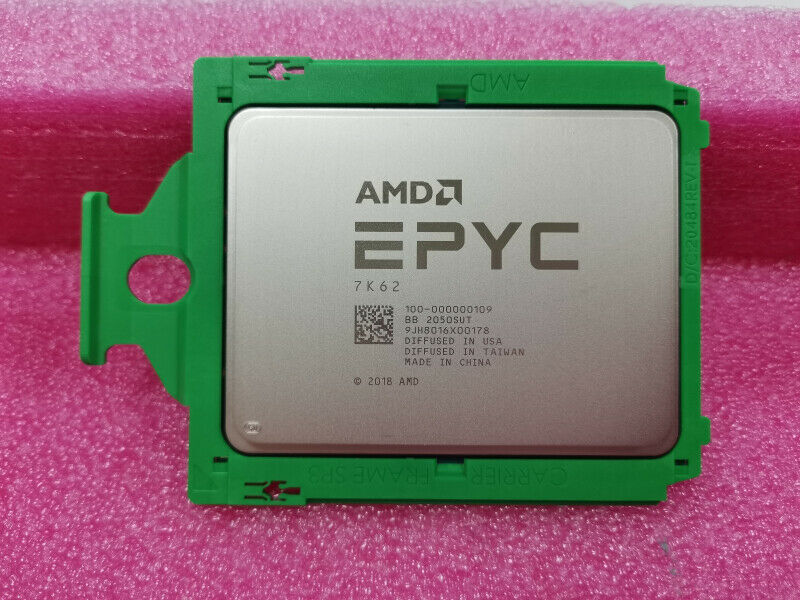

Interface: 1 SATA/PCI-E 3.0 x2 (Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
Form factor: 2280, 22110
Key: M-key
Payment
1. We accept all kinds payment.
2. When using Paypal,your money is deposited securely in your account.
3. The buyer is responsible for customs duties
Shipping
1. We guarantee to ship out within 24 hours after payment confirmation(except Holiday).
2. If there is any unexpected situation（for example,if the order can not ship out within 24 hours),we will contact you as soon as possible,and follow up closely to ship your order soon.
3. All products will be tested strictly before shipping.
4. We ship to Paypal address ONLY.Please make sure your address in Paypal is matched with your shipping address before you pay.
Contact US
We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you. We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference, we may not be able to reply your emails immediately. Please allow 24 business hours for us to response.

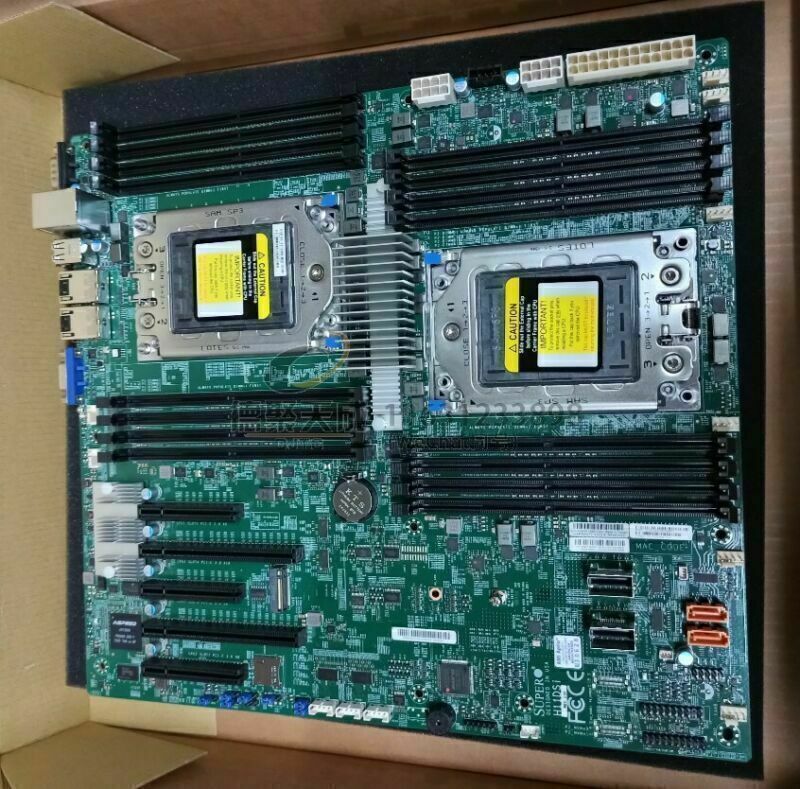

Chassis ( Optimized for H11DSi )
2U
SC213AC-R1K23LPB
SC216BE1C4-R1K23LPB
SC825TQC-R802LPB
SC826BE1C4-R1K23LPB
SC829HE1C4-R1K62LPB
3U
SC836BE1C-R1K23B
4U
SC745BAC-R1K28B2
SC846BE1C-R1K23B
System BIOS
BIOS Type
AMI 128Mb SPI Flash EEPROM
BIOS Features
Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1
Management
Software
Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN
Power Configurations
ACPI Power Management
Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
Monitors CPU Core Voltages, +1.5V, +1.8V, +12V +5V, +5V standby
CPU switching voltage regulator
Supports system management utility
VBAT
FAN
Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic
LED
CPU / System Overheat LED
Other Features
Chassis Intrusion Detection
Chassis Intrusion Header
UID
Operating Environment / Compliance
Environmental Specifications
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
