StoneTaskin Original Supermicro H12DSi-N6 Motherboard PCIE 4.0 + AMD EPYC 7532 64C/125T 256MB CPU Mainboard Fully Tested Free Shipping

$2,521.68 $2,023.08 SAVE 20%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description

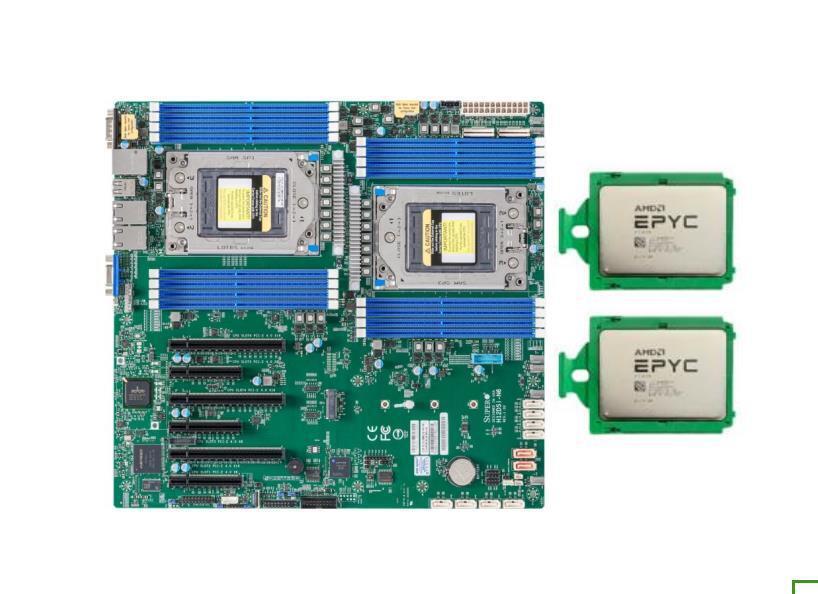

Package include:

1Xsuper micro H12DSi-N6

2x AMD EPYC 7532 32 Core 64 Threads


CPU

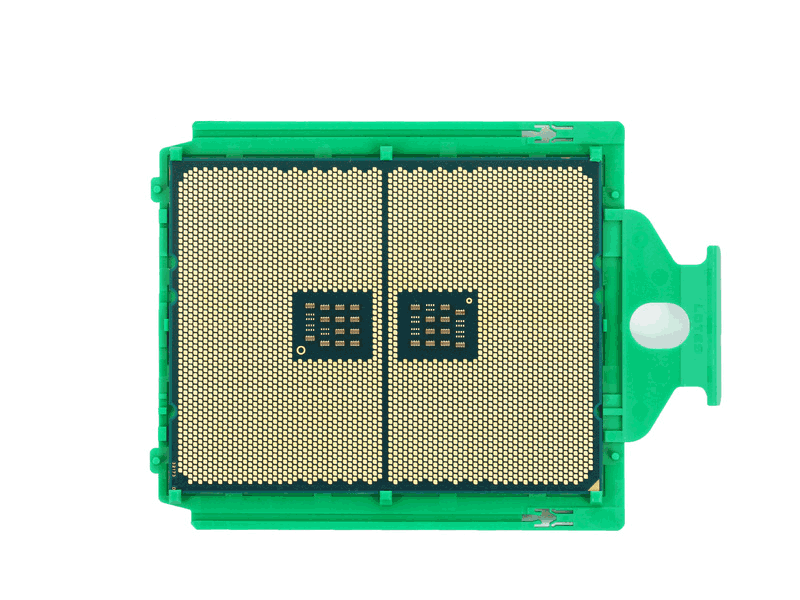

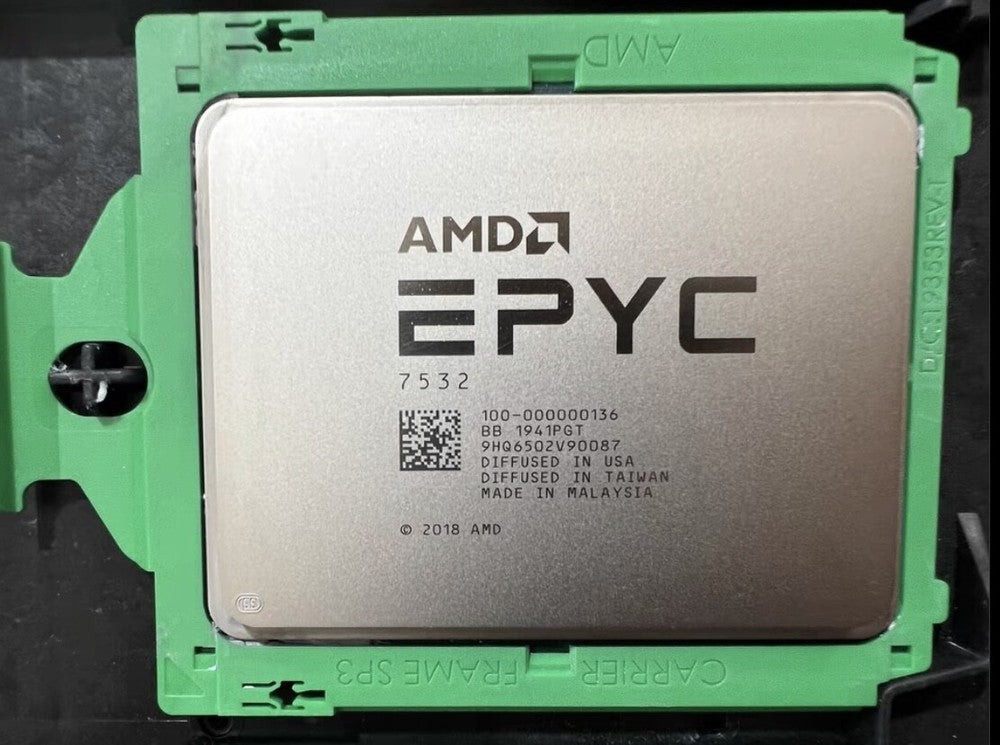

AMD EPYC™ 7532

Specifications
# of CPU Cores
32
# of Threads
64
Base Clock
2.4GHz
Max Boost Clock
Up to 3.3GHz
Total L3 Cache
256MB
Package
SP3
Socket Count
1P/2P
PCI Express® Version
PCIe 4.0 x128
Default TDP / TDP
200W
System Memory
System Memory Specification
Up to 3200MHz
System Memory Type
DDR4
Memory Channels
8
Per Socket Mem BW
204.8 GB/s
Key Features
Supported Technologies
AMD Infinity Architecture
Workload Affinity
Analytics
CAE/CFD/FEA
ERM/SCM/CRM apps
Media streaming
Medium capacity data mgmt (NR/RDBMS)
VDI
VM Density
Foundation
Product Family
AMD EPYC™
Product Line
AMD EPYC™ 7002 Series
Platform
Server
OPN Tray
100-000000136
OPN PIB
100-000000136WOF

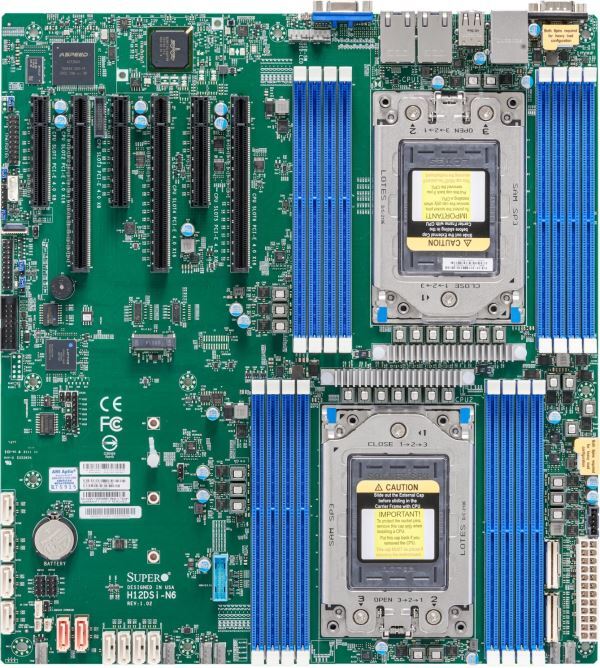

Motherboard

Product SKUs

MBD-H12DSi-N6
  • H12DSi-N6


Physical Stats

Form Factor
  • EATX
Dimensions
  • 12" x 13.05" (30.5cm x 33.1cm)


Processor/Chipset

CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip


System Memory

Memory Capacity
  • 16 DIMM slots
  • Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
  • For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v. 2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA
  • ASPEED AST2600 BMC

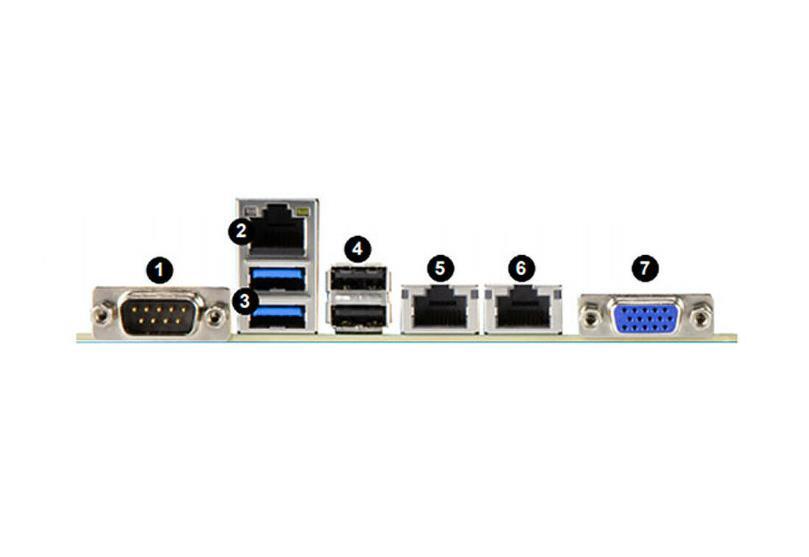

Input / Output

SATA
  • 10 SATA3 (6 Gbps) ports
LAN
  • 2x 1GbE LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 2.0 ports (rear)
  • 4 USB 3.0 ports (2 rear, 2 headers)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • 4 PCI-E 4.0 NVMe x4 internal ports
  • TPM 2.0 header


Expansion Slots

PCI-Express
  • 3 PCI-E 4.0 x16 slots
  • 3 PCI-E 4.0 x8 slots

M.2
  • Interface: 1 PCI-E 4.0 x4
  • Form Factor: 2280, 22110
  • Key: M-key

Chassis ( Optimized for H12DSi-N6)

2U
3U



Server(s) (with H12DSi-N6)

Model(s)


System BIOS

BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 6.2
  • USB Keyboard Support
  • SMBIOS 3.1.1


Management

Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery


PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby
  • CPU switching voltage regulator
  • VBAT
FAN
  • Up to 8 fan status tachometer monitoring
  • Up to 8x 4-pin fan headers
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 8x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header



Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
