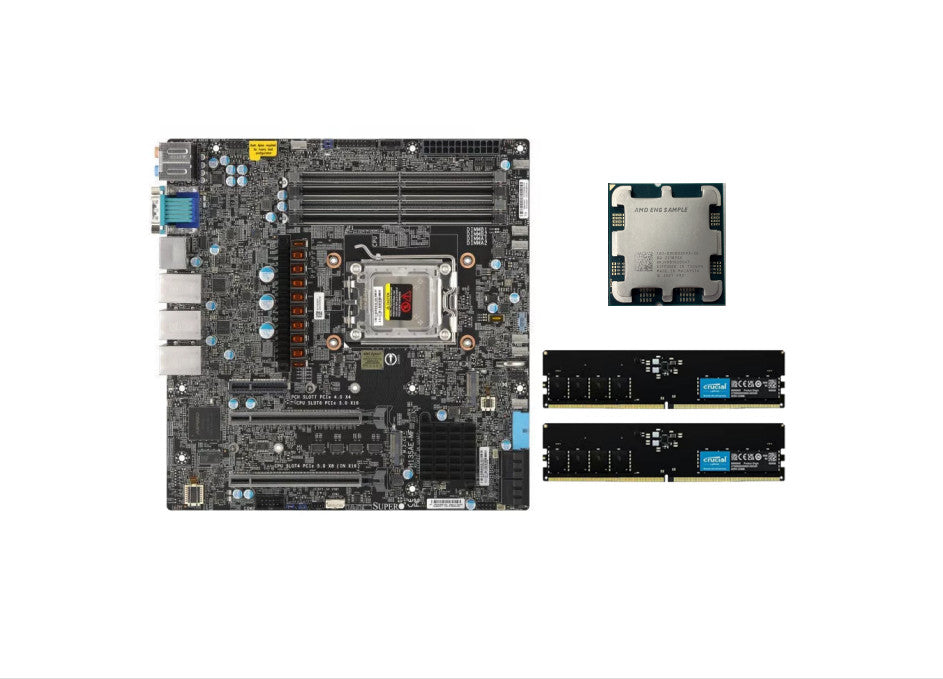

Package include:

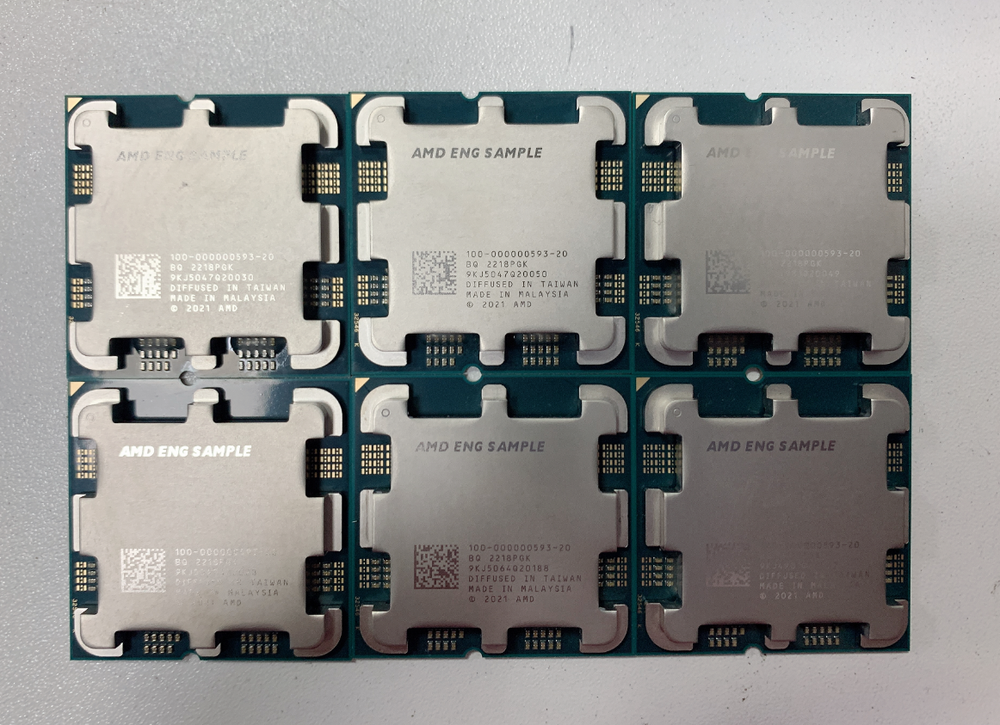

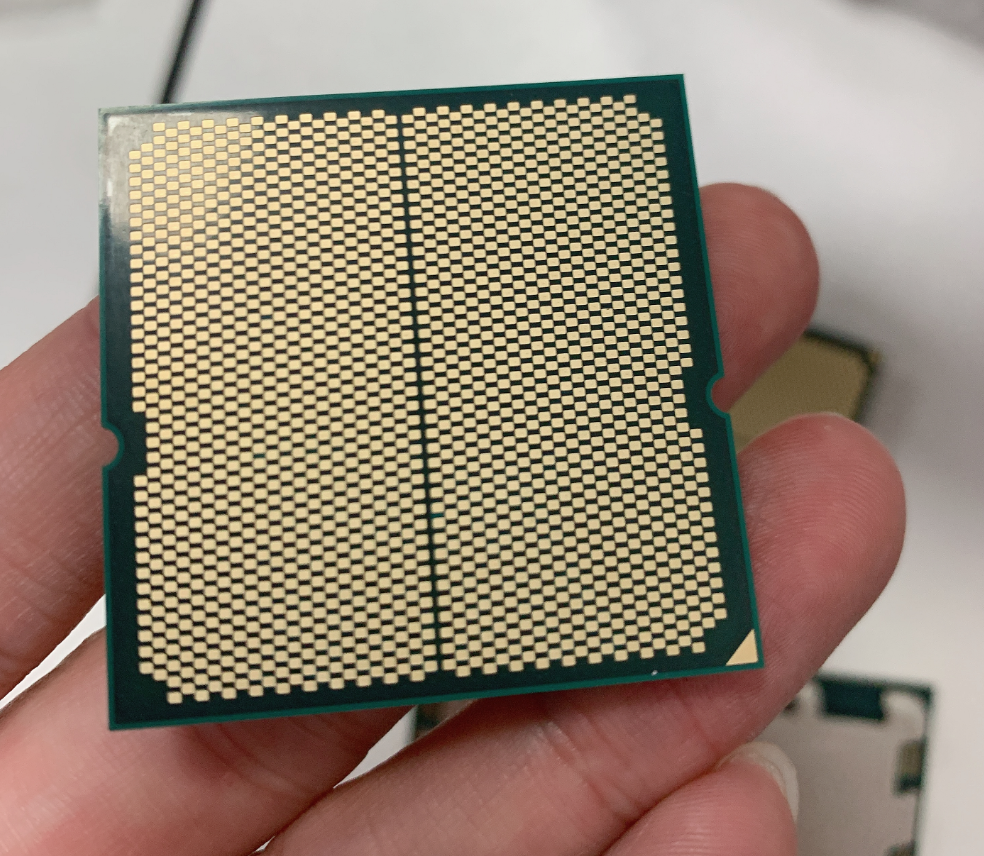

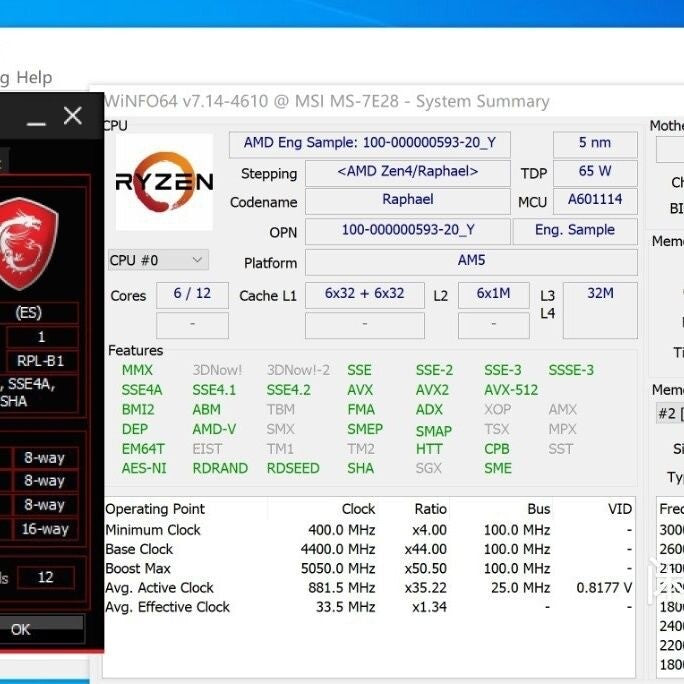

1x Amd Ryzen R5 7600x es 65w 6c/12t 4.4GHZ 32MB 5.1ghz

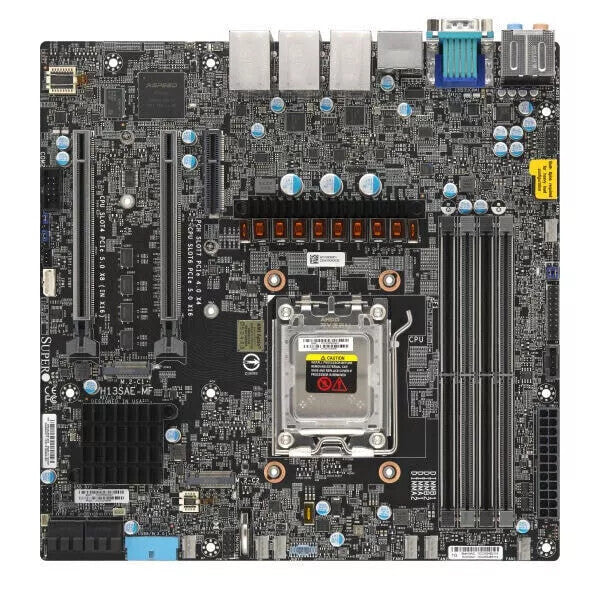

1x SuperMicro H13SAE-MF
2x 16GB DDR5-4800 Crucial DualChannel Kit
|
Product SKUs |
MBD-H13SAE-MF |
|
Physical Stats |
Form Factor |
· Micro-ATX |
Dimension |
· 9.6" x 9.6" (24.384cm x 24.384cm) |
Processor |
CPU |
· AMD EPYC™ 4004 series Processors
· Single Socket Socket AM5 (LGA-1718) supported, CPU TDP supports Up to 170W TDP
|
Core |
· Up to 16 cores, 32 threads |
System Memory |
Memory Capacity |
· 4 DIMM slots |
Memory Type |
· 5200/4800/3600 MT/s Up to 192GB of memory with speeds of up to 5200MT/s (1DPC)/ 3600MT/s (2DPC) |
DIMM Sizes |
· 8GB, 16GB, 24GB, 32GB, 48GB |
Memory Voltage |
· 1.1V |
On-Board Devices |
Chipset |
· B650 |
SATA |
· 4 SATA3 ports; RAID 0,1,10 |
IPMI |
· ASPEED AST2600 BMC |
Audio |
· ALC 888S HD Audio |
Network Controllers |
· Dual LAN with Intel® i210 Gigabit Ethernet Controller
· Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
|
Input / Output |
USB |
· 1 USB 3.2 Gen2x2 port(s) (1 rear type C 20Gb)
· 5 USB 3.2 Gen2 port(s) (3 rear type A 10Gb; 2 rear type C DP 1.4 Alt mode)
· 2 USB 3.2 Gen1 port(s) (2 headers 5Gb)
· 1 USB 2 port(s) (1 via header 2 ports by a header)
|
Video Output |
· 1 HDMI 2.0 port(s), 1 DP 1.4a port(s), 2 rear type C port(s) DP 1.4 Alt mode |
Serial Port |
· 1 COM Port(s) (1 header) |
TPM |
· 1 TPM Header |
|
Expansion Slots |
PCIe |
· 1 PCIe 4.0 x4,
· 2 PCIe 5.0 x16 slots (16/NA or 8/8)
|
M.2 |
· M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
· Form Factor: 2280/22110
· Key: M-Key
|
System BIOS |
BIOS Type |
· AMI 32MB SPI Flash EEPROM |
BIOS Features |
· ACPI 6.4
· SMBIOS 3.5 or later
· UEFI 2.8
· Plug and Play (PnP)
· USB Keyboard support
|
Management |
Software |
· Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
Power Configurations |
· Power-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5 |
PC Health Monitoring |
Voltage |
· System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
FAN |
· 7x 4-pin fan headers (up to 7 fans) |
Operating Environment |
Operating Temperature Range |
· 0°C - 50°C (32°F - 122°F) |
Non-Operating Temperature Range |
· -20°C - 60°C (-4°F - 140°F) |
Operating Relative Humidity Range |
· 10% - 85% (non-condensing) |
Non Operating Relative Humidity Range |
· 10% - 95% (non-condensing) |
|
