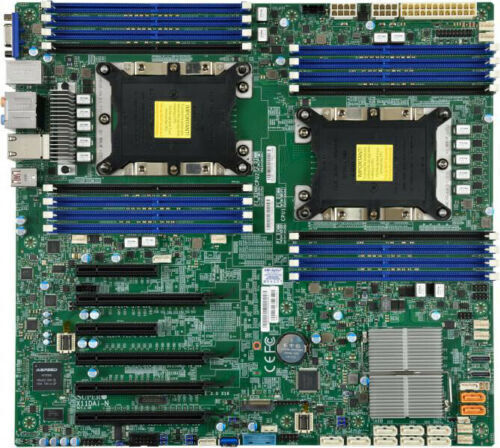

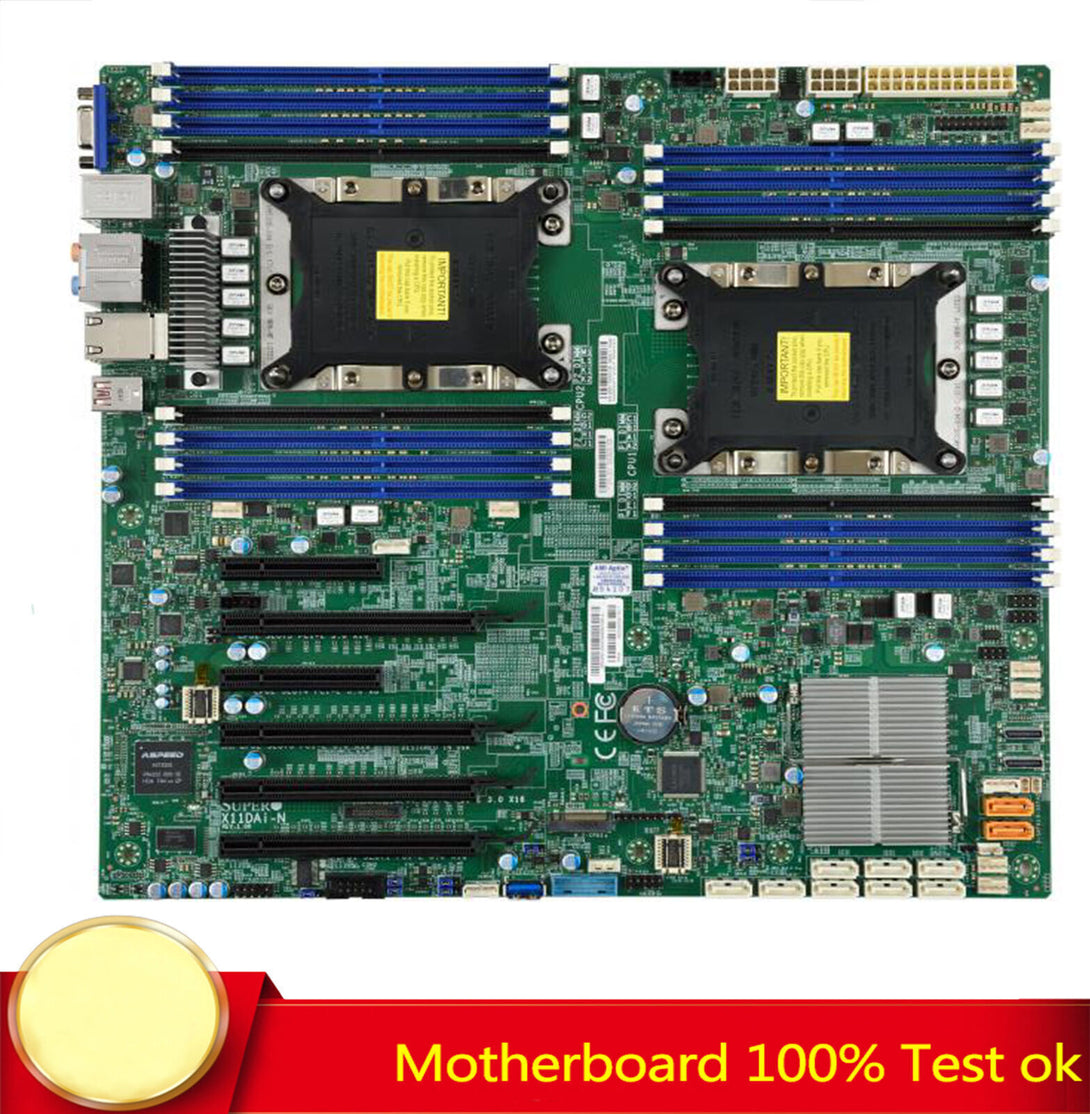

StoneTaskin Original Supermicro X11DAI-N Server Motherboard Supports DDR4 LGA 3647 205W TDP E-ATX Mainboard Fully Tested Free Shipping

$588.64 $463.08 SAVE 21%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description

Key Features

  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
    Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
  2. Intel® C621
  3. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots;
    Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
  4. 4 PCI-E 3.0 x16,
    2 PCI-E 3.0 x8,
    2 PCI-E 3.0 NVMe x4 Internal Port(s)
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2260, 2280, 22110
    M.2 Key: M-Key
  5. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with GbE from C621
  7. 1 VGA port


Specifications
Product SKUs

MBD-X11DAi-N
  • X11DAi-N


Physical Stats

Form Factor
  • E-ATX
Dimension
  • 12" x 13" (30.48cm x 33.02cm)


Processor

CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket LGA-3647 (Socket P) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s


System Memory

Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz
  • Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only).
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 64GB, 128GB
  • RDIMM: 64GB, 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Audio
  • 7.1 HD Audio
Graphics
  • ASPEED AST2500 BMC
Network Controllers
  • Dual LAN with GbE from C621


Input / Output

USB
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • 4 USB 3.2 Gen2 port(s) (1 rear type C; 2 rear; 1 rear type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 2 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header
Expansion Slots

PCI-E
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 22110, 2280, 2260
  • Key: M-Key


System BIOS

BIOS Type
  • 32MB AMI SPI Flash ROM


Management

Software
  • SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog


PC Health Monitoring

Voltage
  • Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • Power LED
  • BMC/IPMI Heartbeat LED
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
FAN
  • 7x 4-pin fan headers (up to 7 fans)
  • PWM fan speed control
  • Status monitoring for speed control
  • 7 fans with tachometer status monitoring
Other Features
  • RoHS
  • Node Manager Support
  • CPU thermal trip support for processor protection
  • Chassis intrusion detection


Operating Environment

Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X11DAi-N 1 X11DAi-N Motherboard
I/O Shield MCP-260-00115-0N •  1 STD size I/O Shield for X11DAi-N with EMI Gasket and front metal,RoHS/REACH
IO Cable CBL-0044L •  1 SATA CABLE 61CM FLAT S-S PBF
