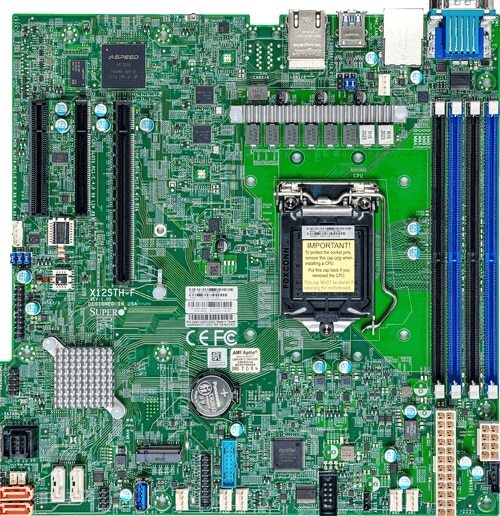

StoneTaskin Original SUPERMICRO X12STH-F LGA1200 Intel C256 DDR4 SATA3 M.2 Micro ATX Motherboard BULK Mainboard Fully Tested Free Shipping

$697.62 $551.03 SAVE 21%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description


Product SKUs

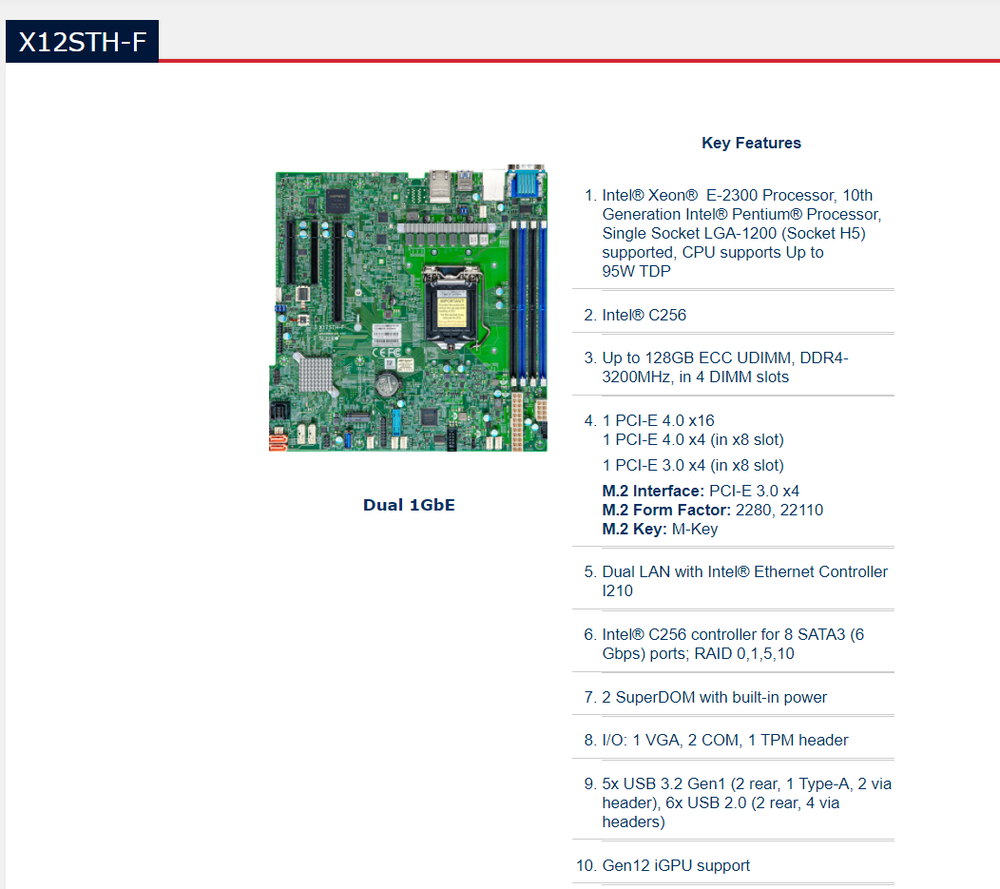

MBD-X12STH-F
Physical Stats
Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores, 16 threads
System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666 MT/s SDRAM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C256
SATA
  • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • 1 ASPEED AST2600 BMC port(s)
Network Controllers
  • Dual LAN with Intel® Ethernet Controller I210
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x4 (in x8 slot),
  • 1 PCIe 4.0 x16,
  • 1 PCIe 4.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 PCIe 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • 256MB UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0
Management
Software
  • Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
