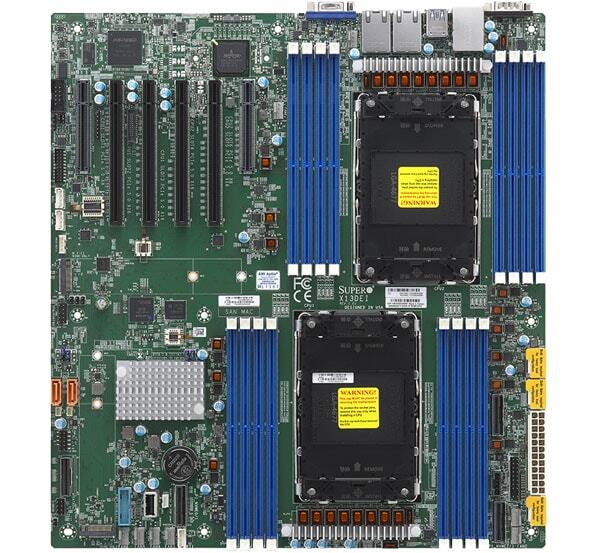

StoneTaskin Original Supermicro X13DEI lga4677 motherboard Intel Xeon Platinum 8490/Gold 5420+/6414U Mainboard Fully Tested Free Shipping

$1,439.82 $1,150.00 SAVE 20%
Add to Wishlist

Guaranteed Safe Checkout

paypalvisamasteramerican expressdiscoverapple pay
Fast standard shipping on all orders. Estimated shipping is 7-15 days.
Description


Product SKUs
MBD-X13DEI
Physical Stats
Form Factor
  • EATX
Dimension
  • 12.1" x 13.05" (30.74cm x 33.15cm)
Processor
CPU
Core
  • Up to 60 cores
System Memory
Memory Capacity
  • 16 DIMM slots
  • Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
  • 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Intel® C741 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with Broadcom BCM5720 1GBase-T
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
  • 2 SATA3 (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 3 port(s) (4 rear; 2 via header)
  • 3 USB 2 port(s) (1 Type A; 2 via header)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM header
Others
  • 3 MCIO PCIe 5.0 x8
Expansion Slots
PCIe
  • 2 PCIe 5.0 x8,
  • 4 PCIe 5.0 x16
M.2
  • M.2 Interface: 2 PCIe 4.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI 32MB AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Management
Software
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
Voltage
  • System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI)
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • Fan speed control
  • Overheat LED indication
  • 8x fans with tachometer monitoring
Other Features
  • UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
